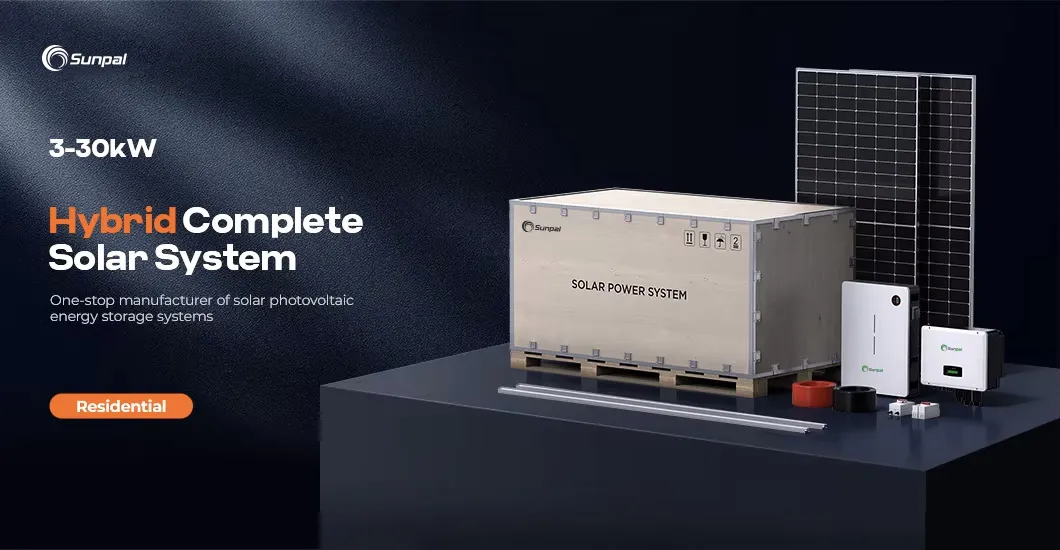

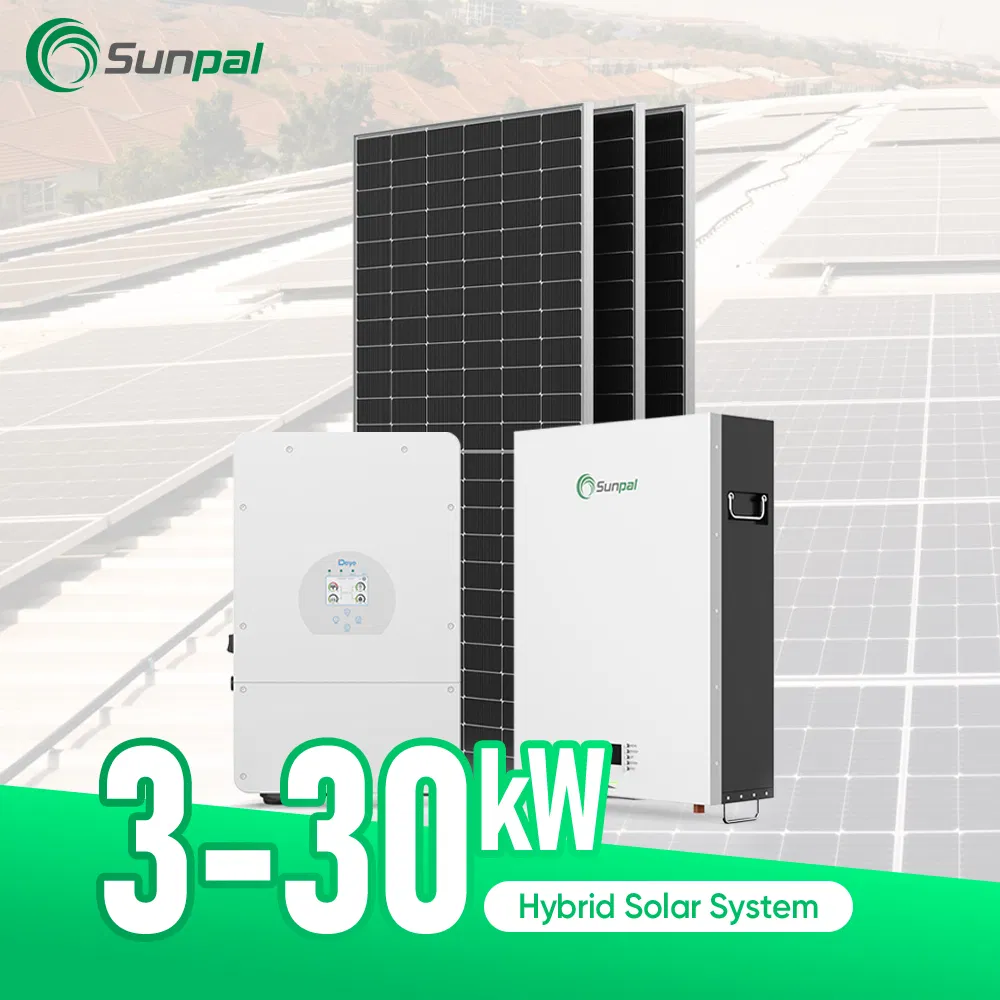

Sunpal Hybrid Full Solar Power System Set 48V 5Kw 10Kw 20Kw 30Kw 40Kw Solar Pv Energy Home Battery Storage System Complete Kit

1 / 5

Sunpal Hybrid Full Solar Power System Set 48V 5Kw 10Kw 20Kw 30Kw 40Kw Solar Pv Energy Home Battery Storage System Complete Kit

Customization:	Available
After-sales Service:	Free Warranty
Warranty:	10 Years

Send Inquiry

Product Description

Basic Specifications

Model

SP3-30KW3-HY

Certification

ISO, CE, RoHS

Application

Home Residential

Power Range

3KW - 30KW

Controller Type

MPPT

System Type

Hybrid / Off-Grid

Solar Panel

Mono Crystalline Perc

Battery

LiFePO4 Lithium Battery

★

Product Overview

Warranty & Reliability

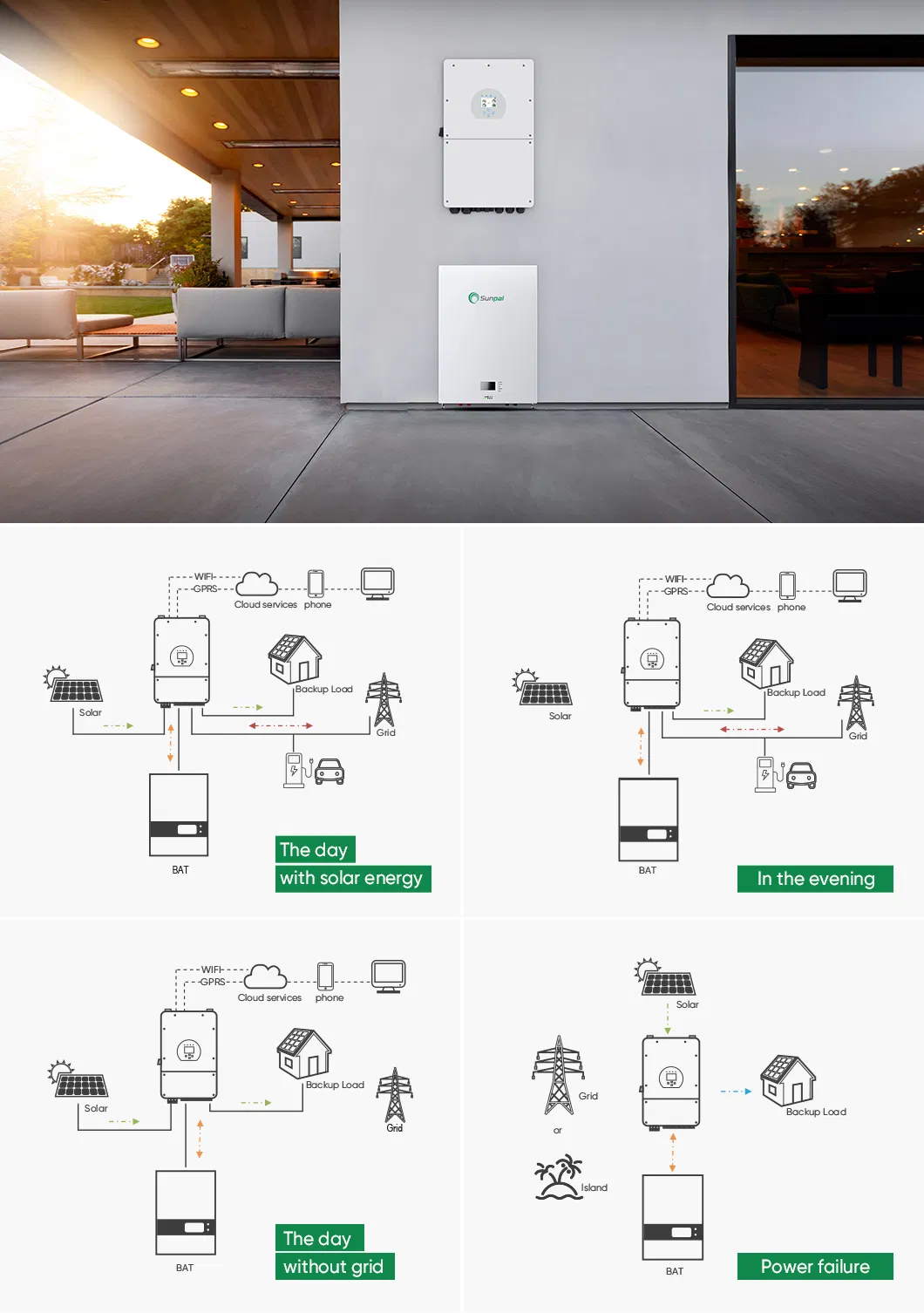

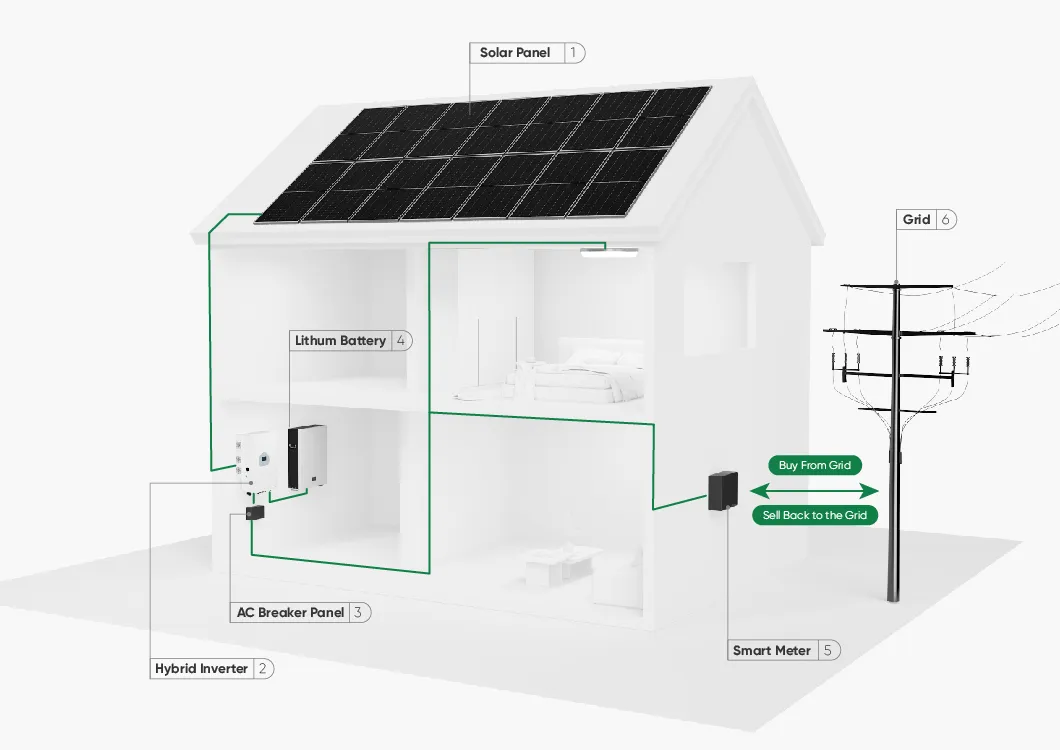

How the Hybrid System Works

📋

System Configuration (3KW - 10KW)

Component	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Mono 550W Panel	6 Pcs	10 Pcs	20 Pcs
Hybrid Inverter	3KW Single Phase	5KW Single Phase	10KW Three Phase
LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC/AC Switch	1 Set	1 Set	1 Set

📋

System Configuration (15KW - 30KW)

Component	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Mono 550W Panel	30 Pcs	40 Pcs	60 Pcs
Hybrid Inverter	Parallel 5KW x3	Parallel 10KW x2	Parallel 10KW x3
LiFePo4 Battery	15Kwh	20Kwh	30Kwh

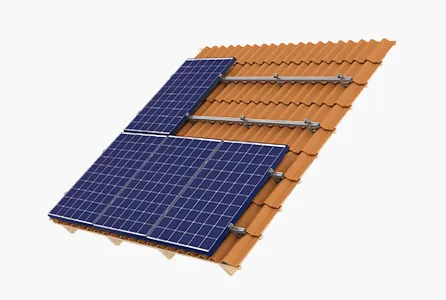

Mounting System	Customized for Roof or Ground

⚙

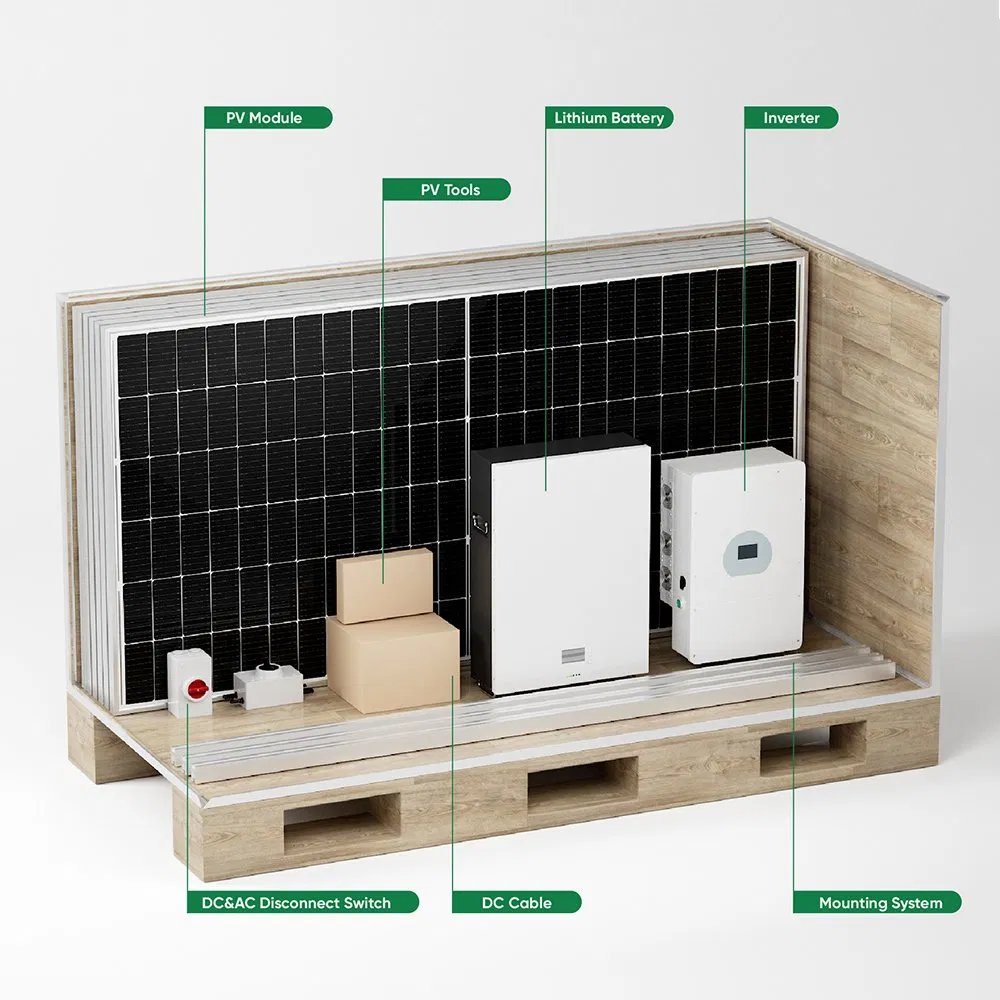

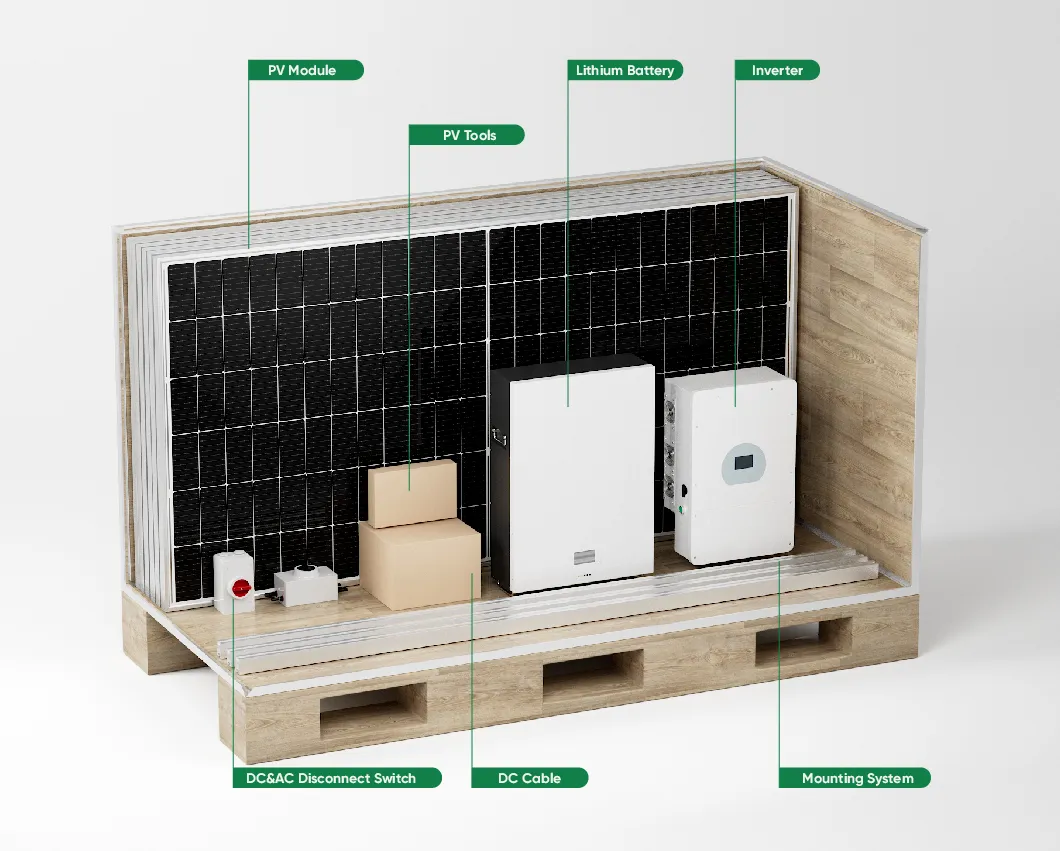

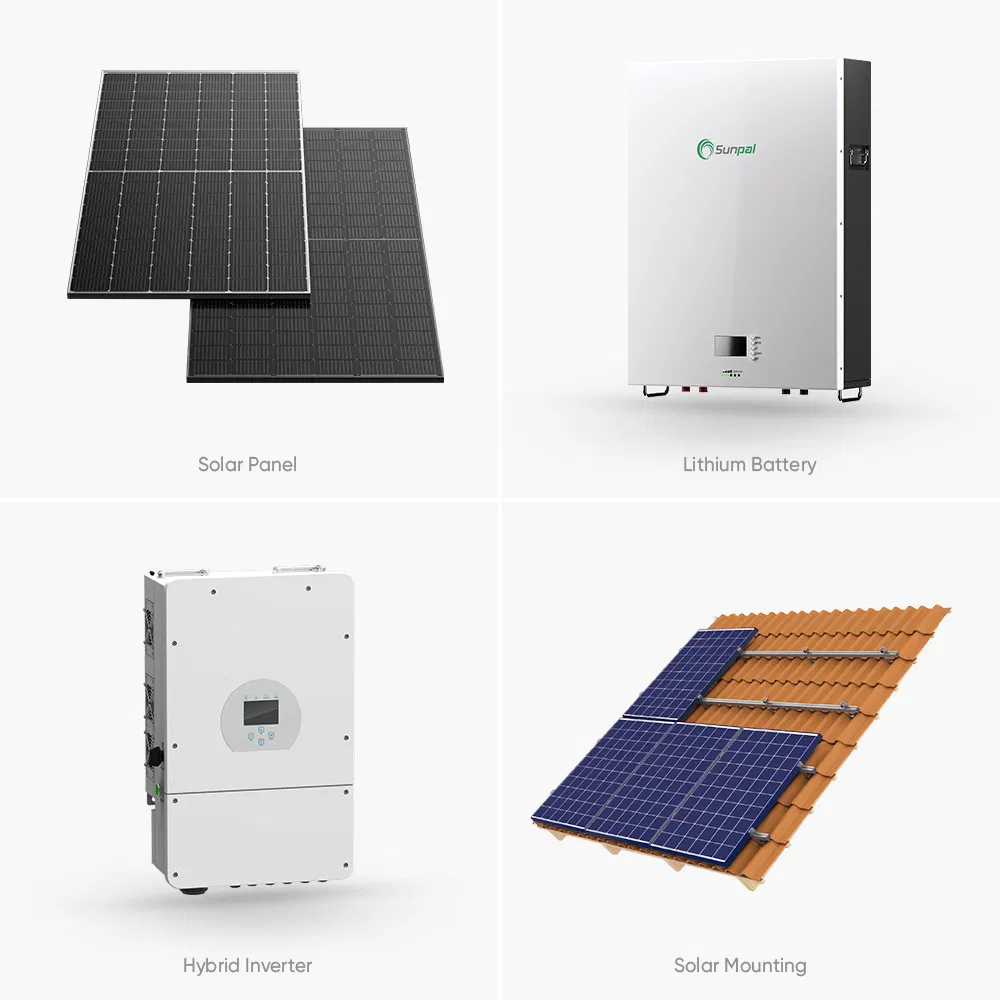

Main Components

High Efficiency Solar Panels

Peak Power: 550W Mono Crystalline
Dimensions: 2279x1134x35mm
Half-cut cell technology for better performance under shade.

Intelligent Hybrid Inverter

48V low voltage battery design with transformer isolation. Supports 6 time periods for charging/discharging. Max 10pcs parallel capability.

LiFePo4 Energy Storage

6000+ Cycle Life with 15-20 years design life. Scalable modular design with built-in high quality BMS for home safety.

🏭

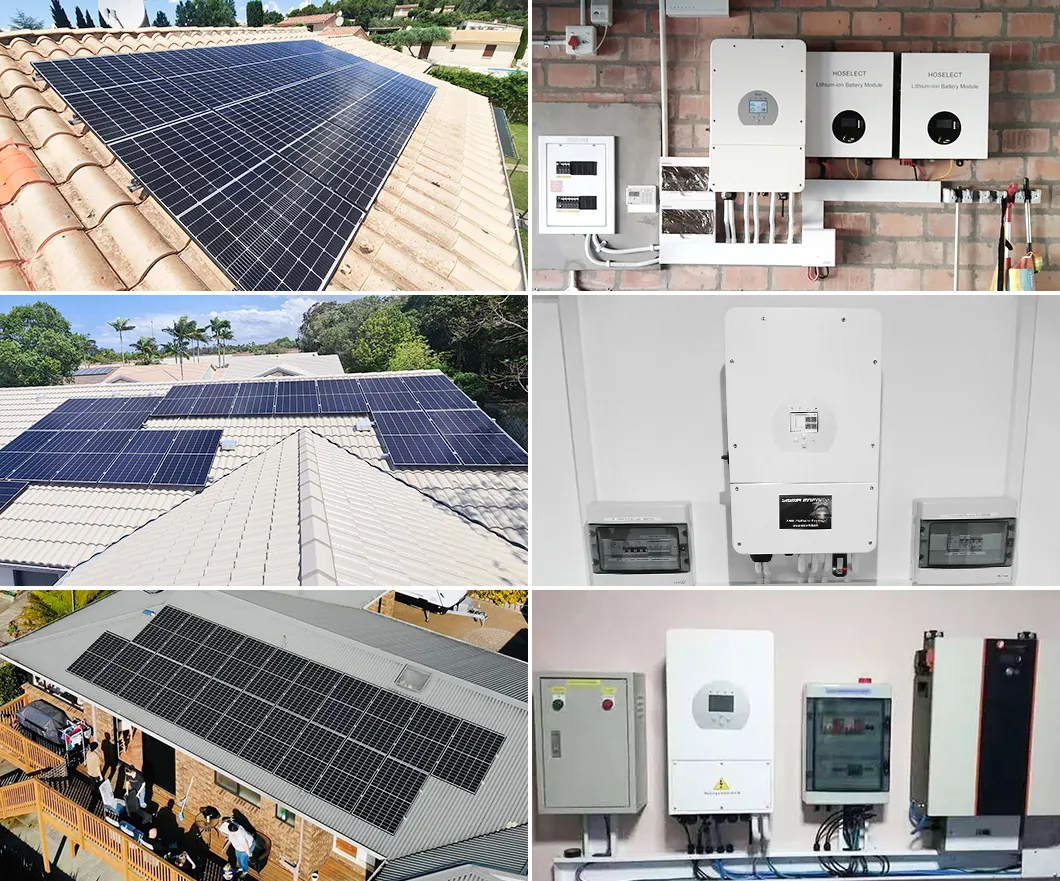

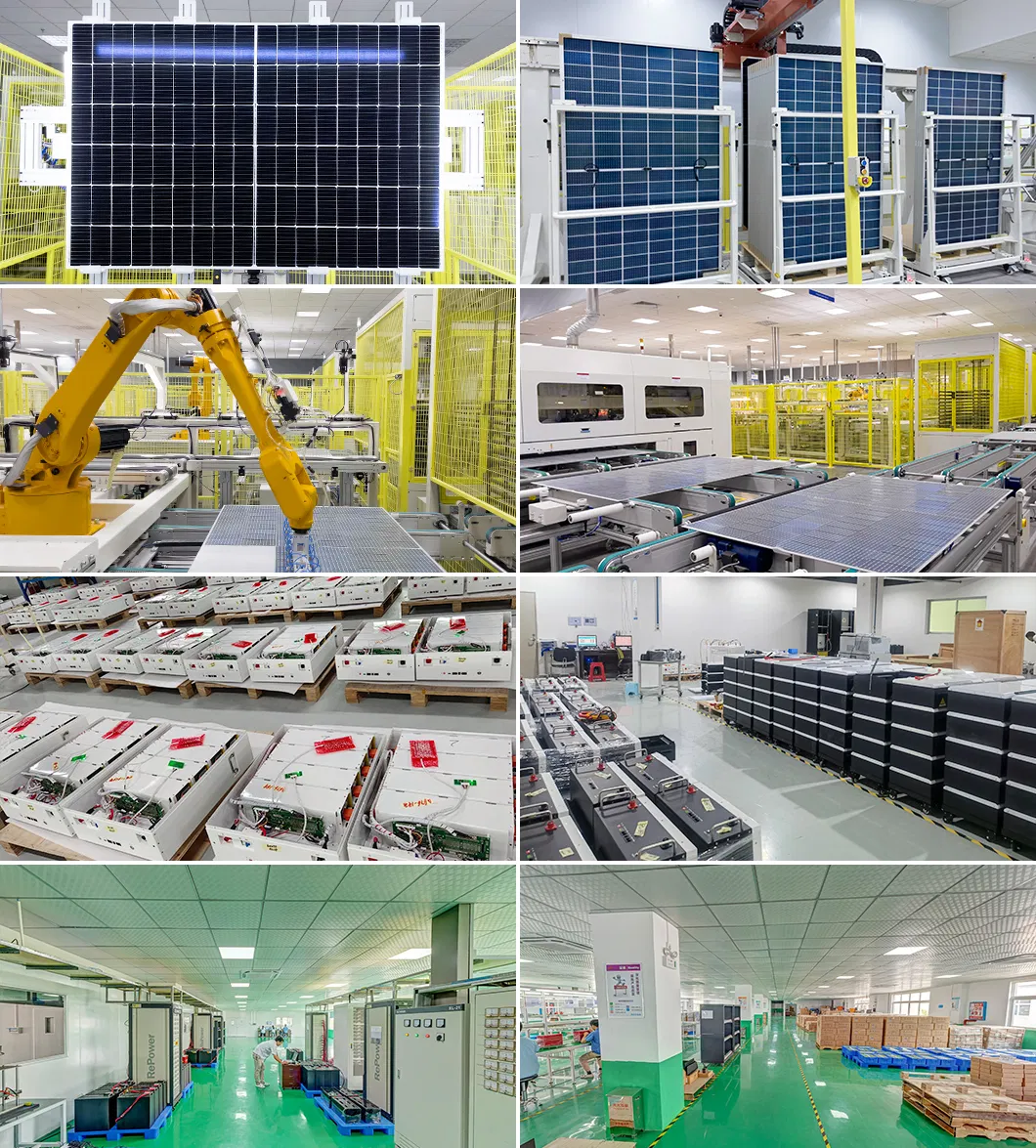

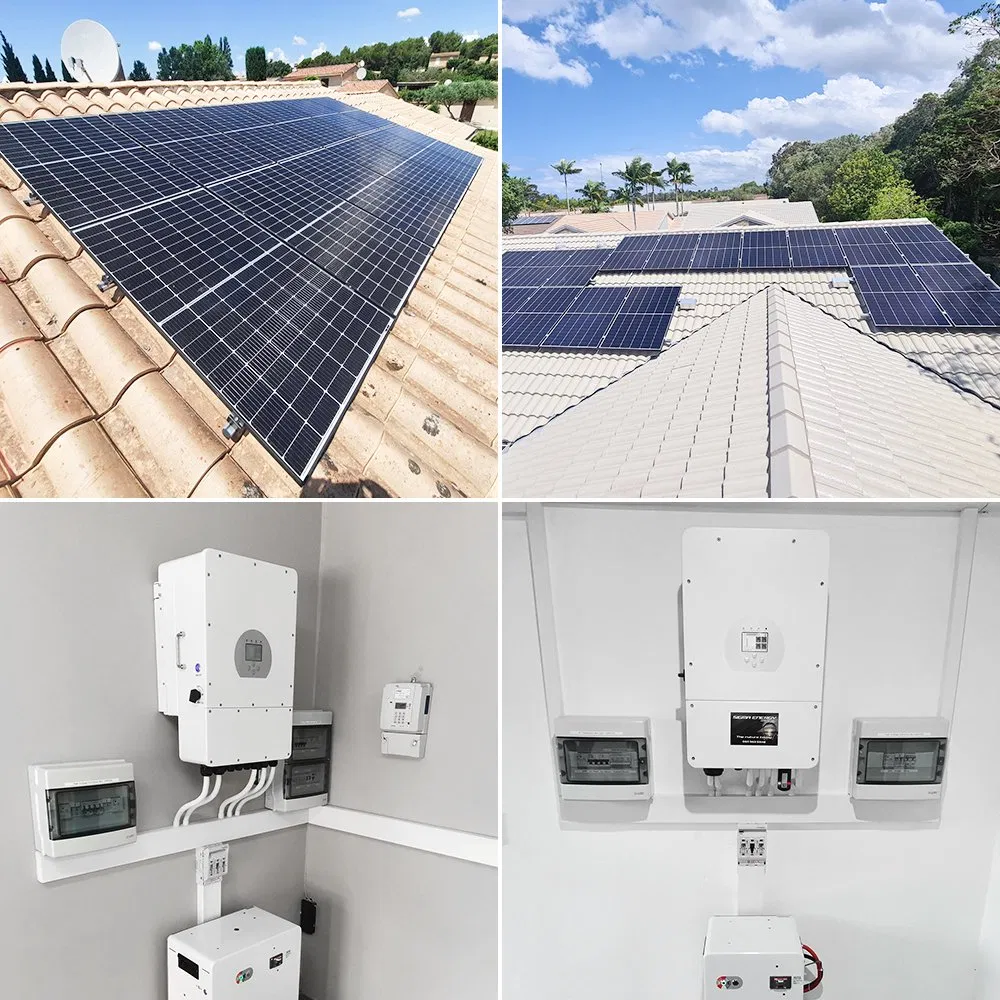

Manufacturing & Projects

Frequently Asked Questions

1. What is a hybrid solar system?

A hybrid solar system combines solar panels, batteries, and a connection to the utility grid. It allows you to store energy for night use or power outages while still being able to draw from or sell back to the grid.

2. How long do the LiFePO4 batteries last?

Our LiFePO4 batteries are designed for over 6000 cycles, which typically equates to a 15-20 year service life depending on usage patterns.

3. Can the system be expanded in the future?

Yes, the battery modules and inverters are scalable. You can add more battery capacity or parallel multiple inverters to increase the total power output as your energy needs grow.

4. Does the system work during a power outage?

Yes, during a grid failure, the hybrid inverter automatically switches to "off-grid" mode, drawing power from the solar panels and battery storage to keep your essential appliances running.

5. What kind of maintenance is required?

Solar systems require very low maintenance. We recommend cleaning the panels twice a year to remove dust and checking the electrical connections annually. The monitoring system will alert you to any performance issues.

6. Is remote monitoring available?

Absolutely. Every system includes a WiFi/GPRS logging device that allows you to track energy production, battery status, and household consumption via a smartphone app or web portal.
