Basic Specifications
Configuration
12*(1p104s*4)
Voltage Range
1164.8V - 1497.6V DC
Product Description

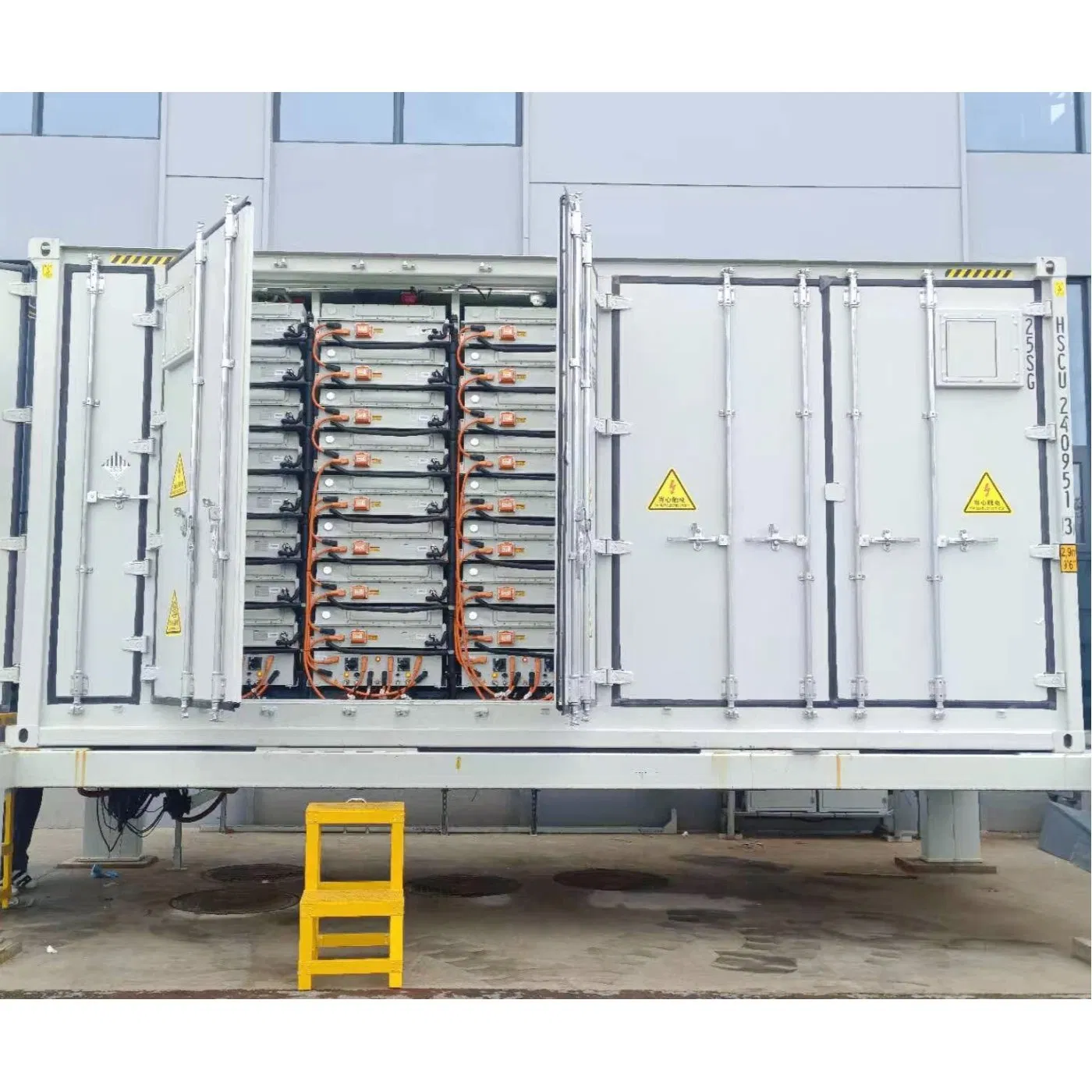

5MWh Integrated Liquid Cooling Energy Storage Solution
The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

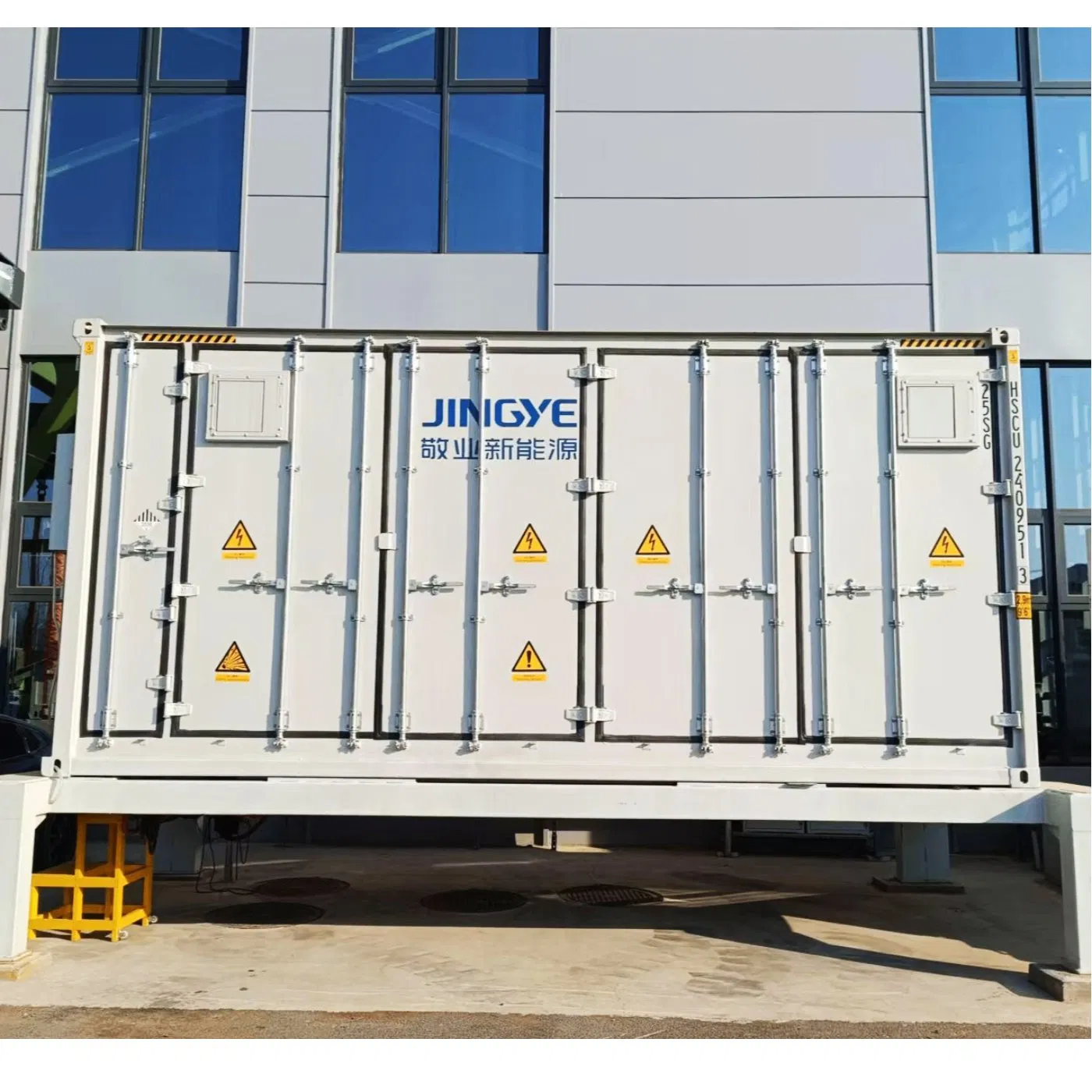

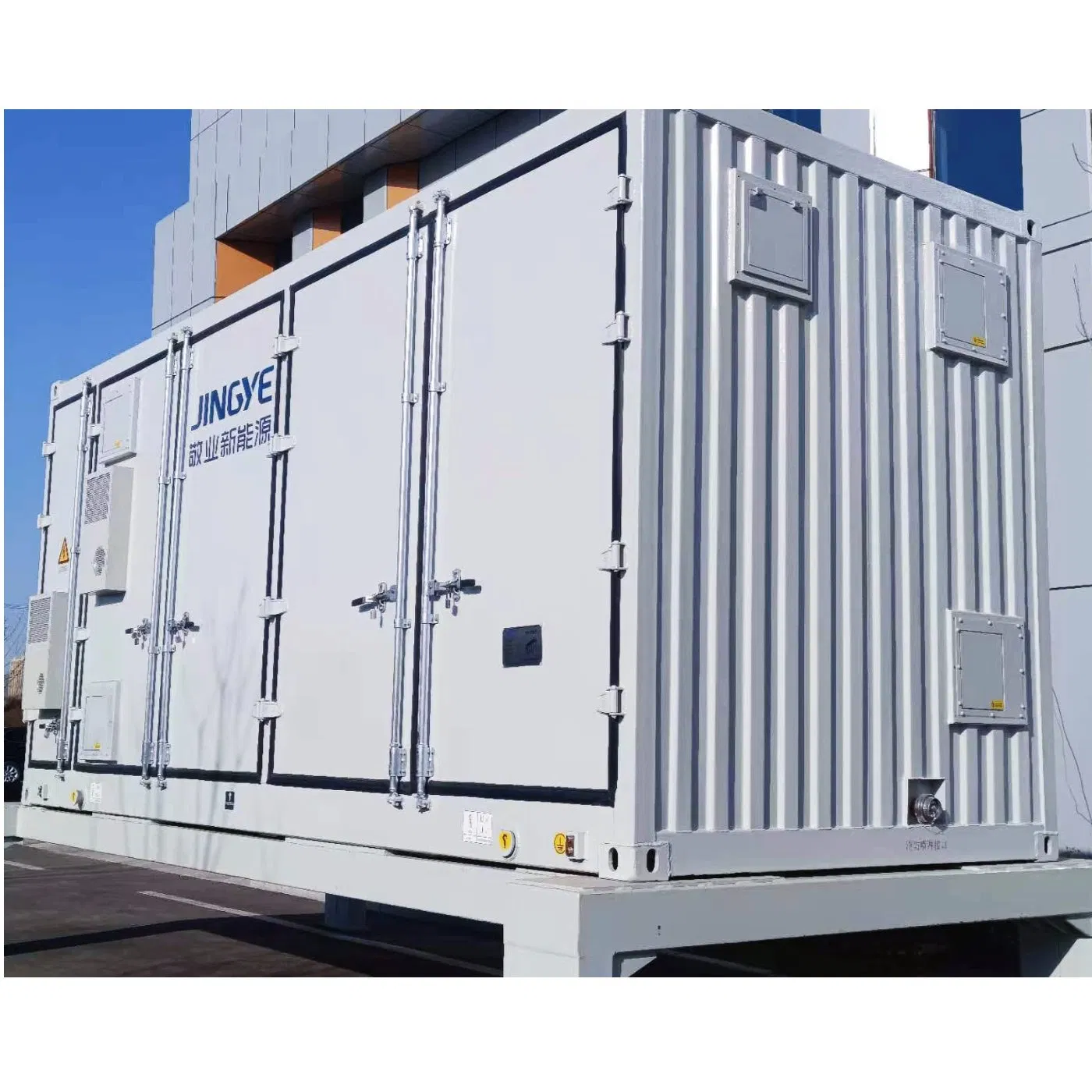

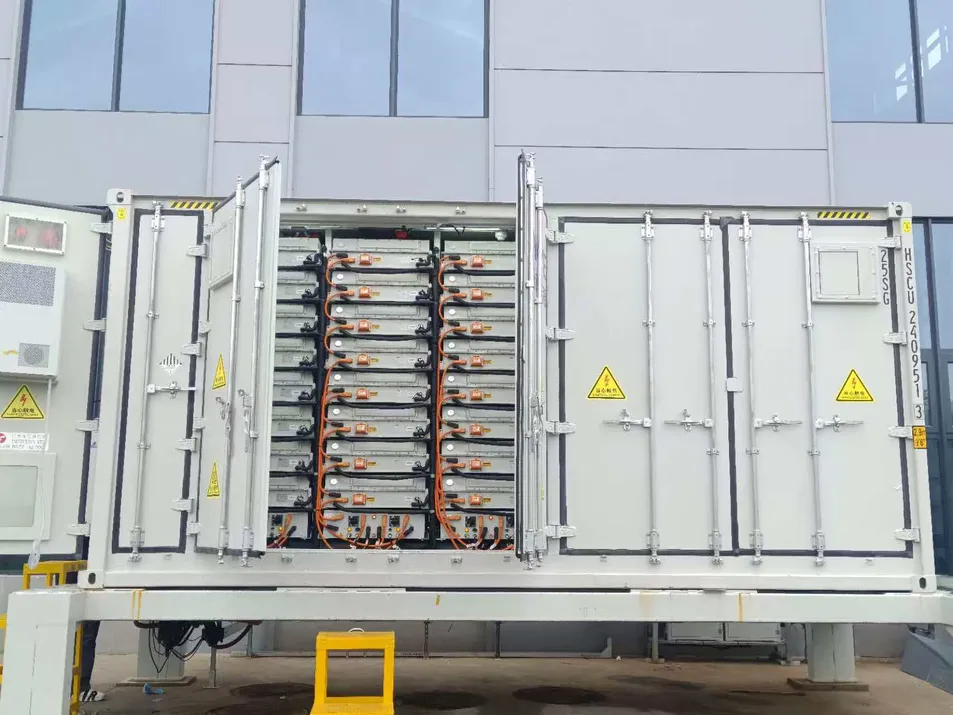

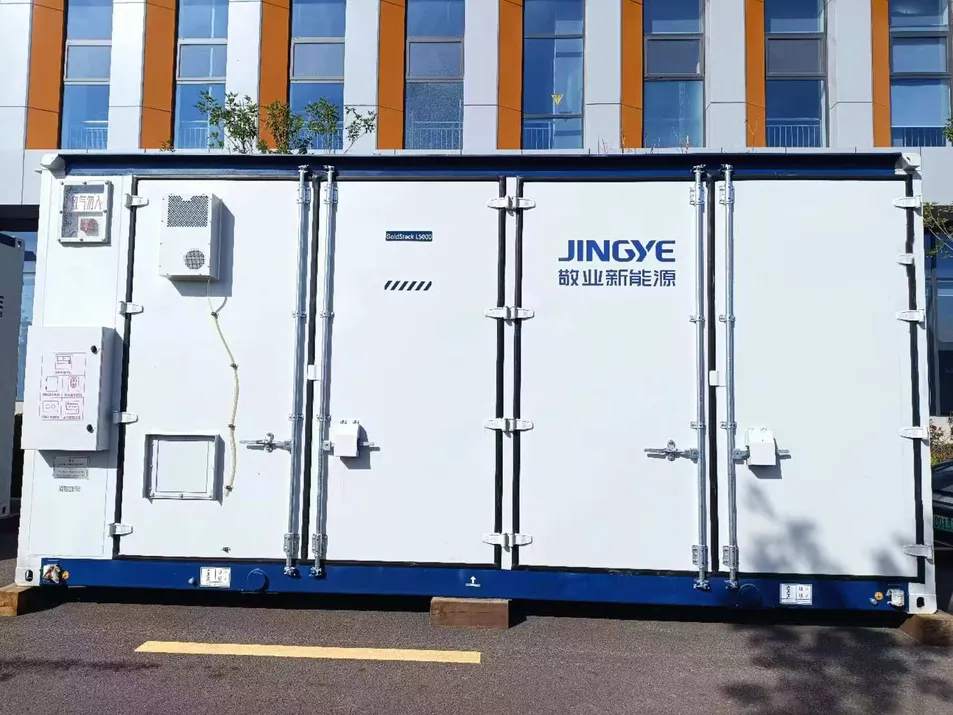

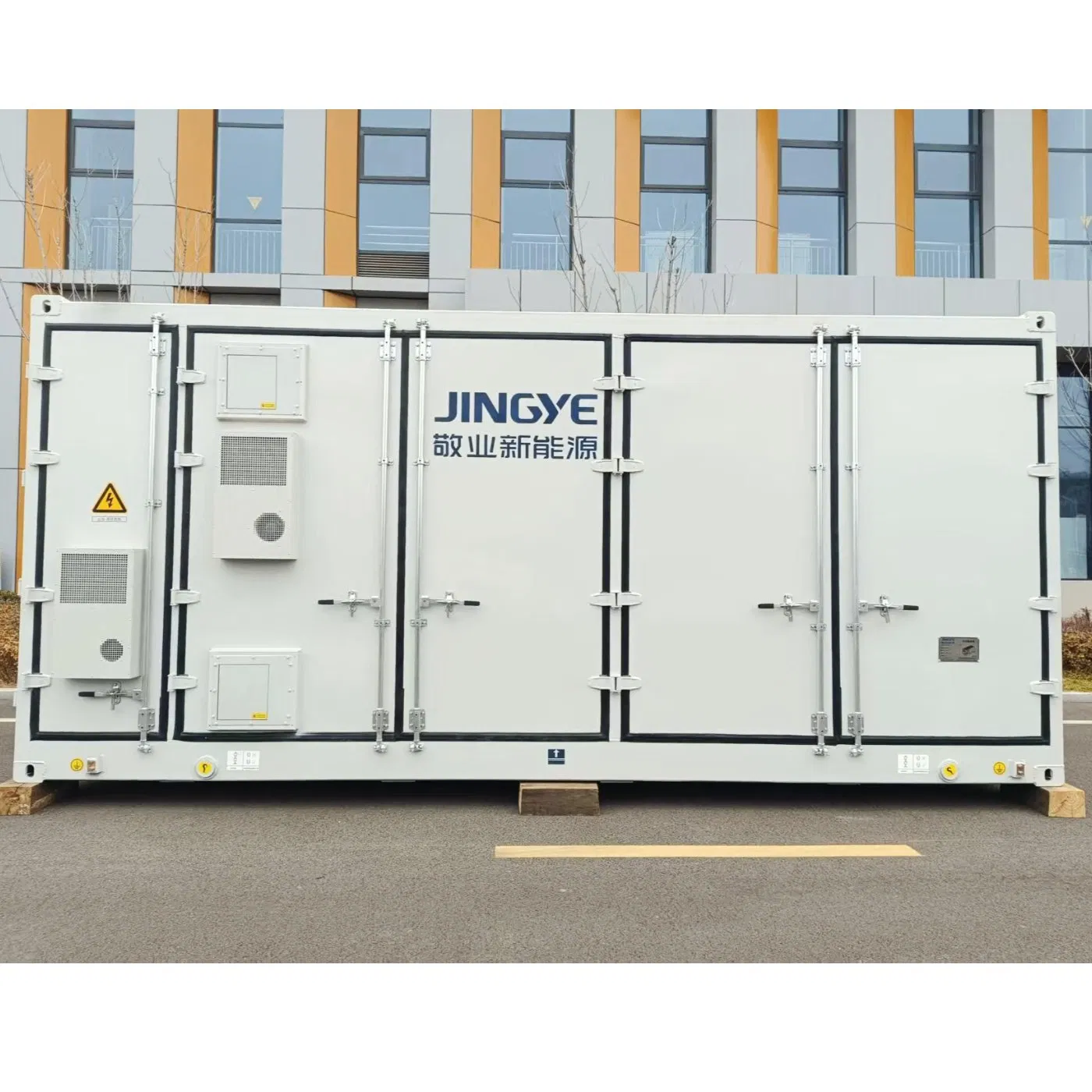

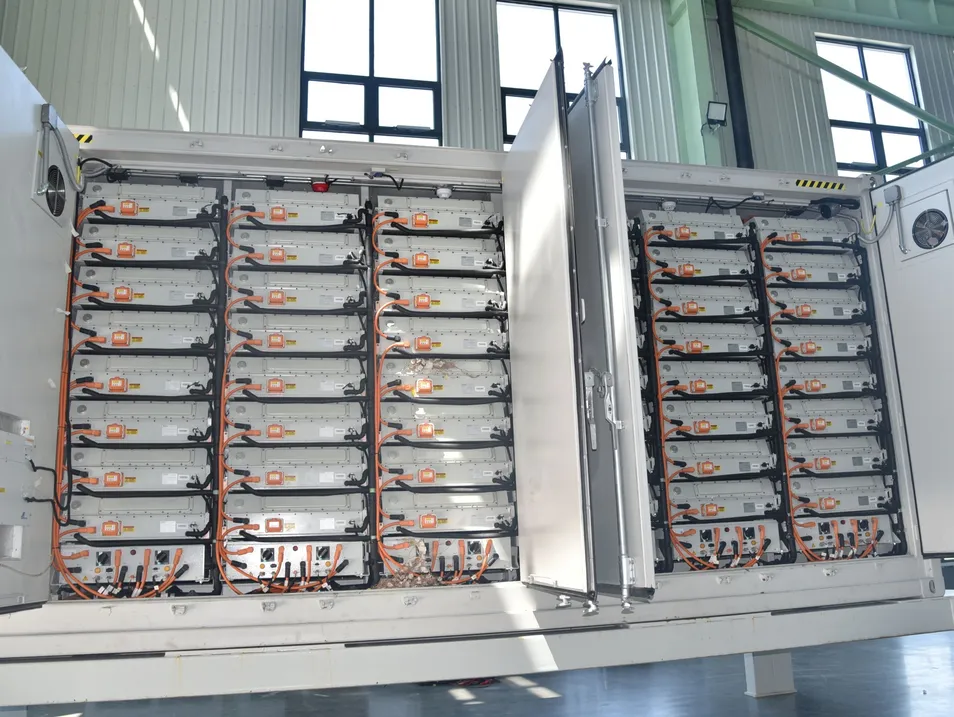

Using simplified integration technology, the system installs PACK, distribution busbars, liquid cooling units, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm). Arranged in three compartments, it ensures safety control while being suitable for various transportation conditions and site designs.
Key Features
- Battery Technology: Mature, high-efficiency, long-life lithium iron phosphate batteries.
- Battery Management: Advanced intelligent BMS to ensure maximum product safety.
- Thermal Management: Industrial-grade air conditioning achieving temperature differences within 3℃ inside PACKs.
- Safety Protection: Multi-level fire extinguishing systems using perfluorohexane or aerosol.
- Intelligent Monitoring: Real-time monitoring of temperature, humidity, smoke, and video access.
- Modular Design: Highly modular structure for easy transportation, installation, and maintenance.
Technical Specifications
| Item |
Specification Detail |
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Voltage Range | 1164.8V -1497.6VDC |
| Rated Charging/Discharge Power | ≤ 2.5MW |
| Auxiliary Power Supply | 400VAC±5% 50Hz/ 220VAC |
| Operating Temperature | 0℃ to 60℃ (Charge) / -30℃ to 60℃ (Discharge) |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | Approx. 43t |
| Cooling Method | Liquid Cooling (50% ethylene glycol) |
| Communication | Ethernet, CAN, ModbusRTU |

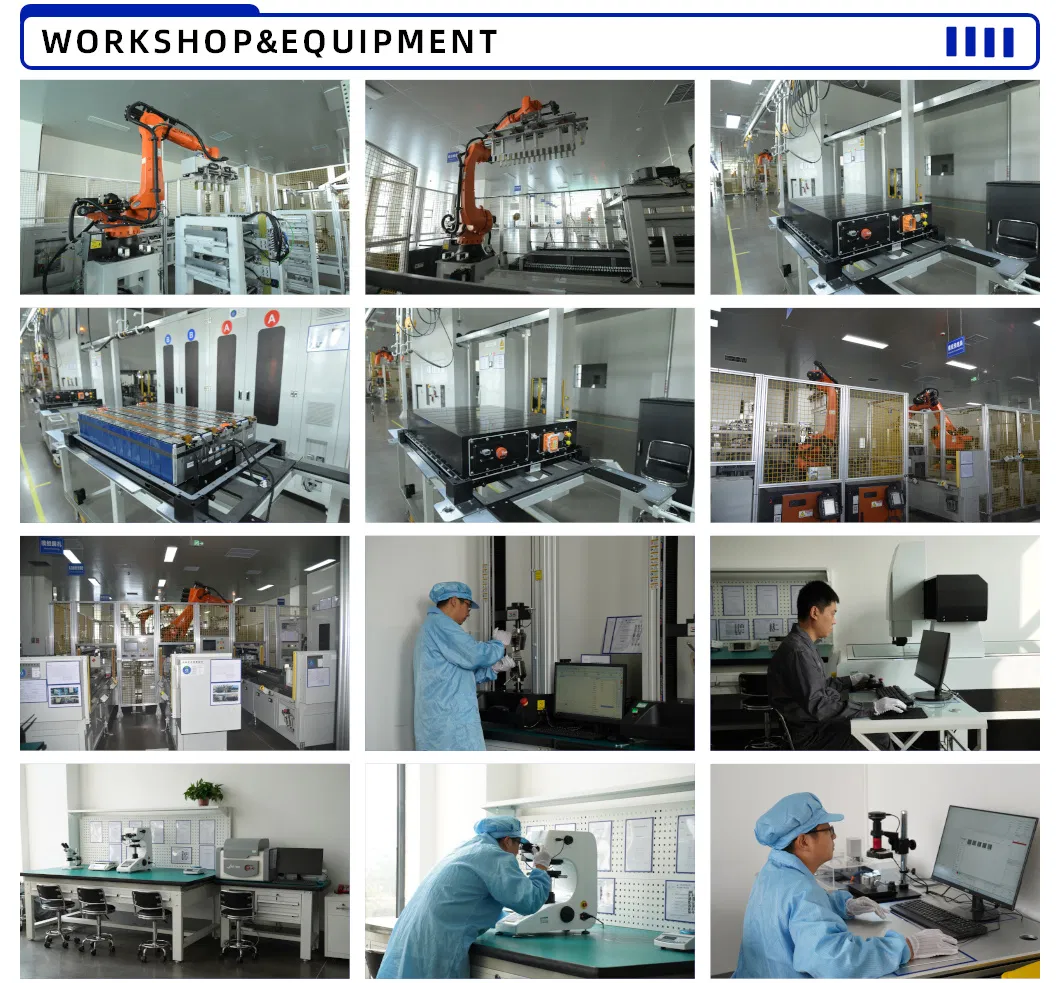

Workshop & Equipment
Our facilities feature advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. These products are widely utilized in smart grids, renewable energy storage, industrial sectors, and green transportation.
Frequently Asked Questions
Q1: What are the primary energy storage products available?

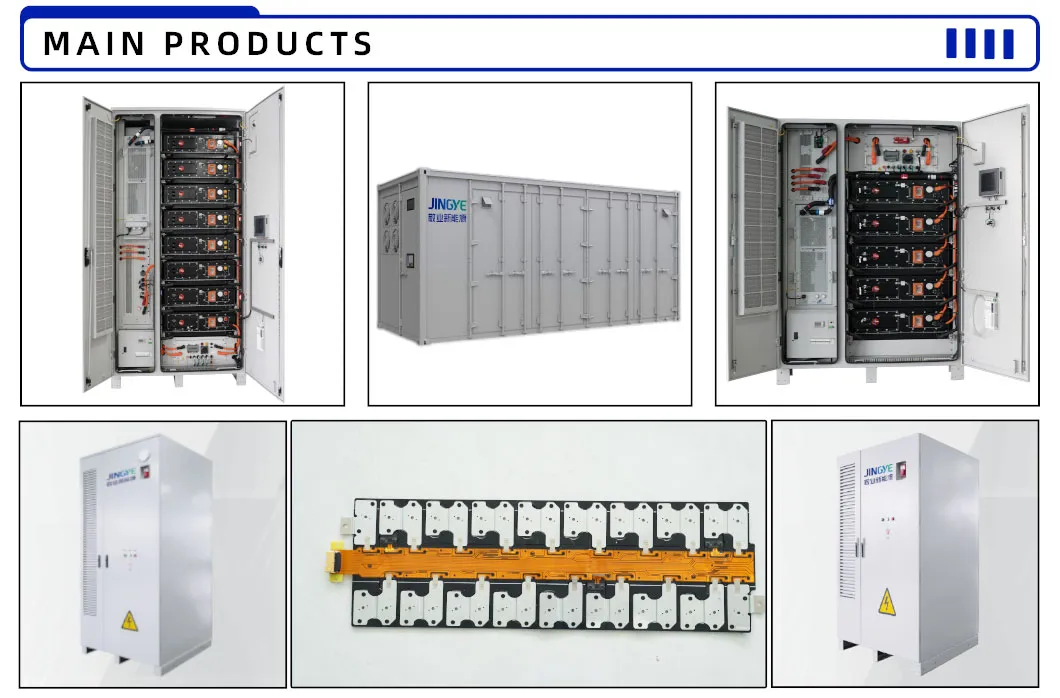

A: Our main offerings include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.
Q2: Is customization available for specific technical requirements?
A: Yes, we provide flexible customization services tailored to diverse process types and energy requirements.
Q3: How is the production and delivery timeline managed?
A: With a fully automated production line and a professional technical team, we ensure stable manufacturing cycles and on-time global delivery.
Q4: How can I request a detailed technical quotation?
A: You can contact our support team directly through the website interface; they will provide a comprehensive quotation promptly.
Q5: Are you a direct manufacturer or a trading company?
A: We are a formal source factory with standardized production processes, allowing us to offer competitive pricing and high-quality control.
Q6: What cooling technologies are used in the containers?
A: We utilize advanced liquid cooling systems with ethylene glycol solutions to maintain optimal temperature uniformity across all battery cells.
