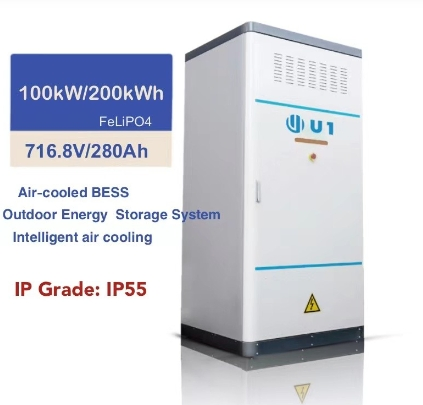

ISO9001 Certifiedall in One 100kw 200kwh LiFePO4 Solar Energy Storage Solution

1 / 5

ISO9001 Certifiedall in One 100kw 200kwh LiFePO4 Solar Energy Storage Solution

Customization:	Available
Container Size:	128011502370 mm
Weight:	2.5t

Send Inquiry

Product Description

📊 Basic Info.

Model NO.U1-01-200

Nominal Voltage716.8V

Warranty3 Years

Nominal Capacity100 Kw

Cycle Life8000 Times

TypePower

CertificationISO9001:2000

FormAll- Packaged Type

Operation VoltageLow Voltage

Size1 Unit

Application RangePower Plants

Shell Protection GradeIP55

StructureAll in One

Capacity200kwh

BatteryLiFePO4

Package Weight2.5t

Rated Voltage380 V

Specification1280*1150*2370 mm

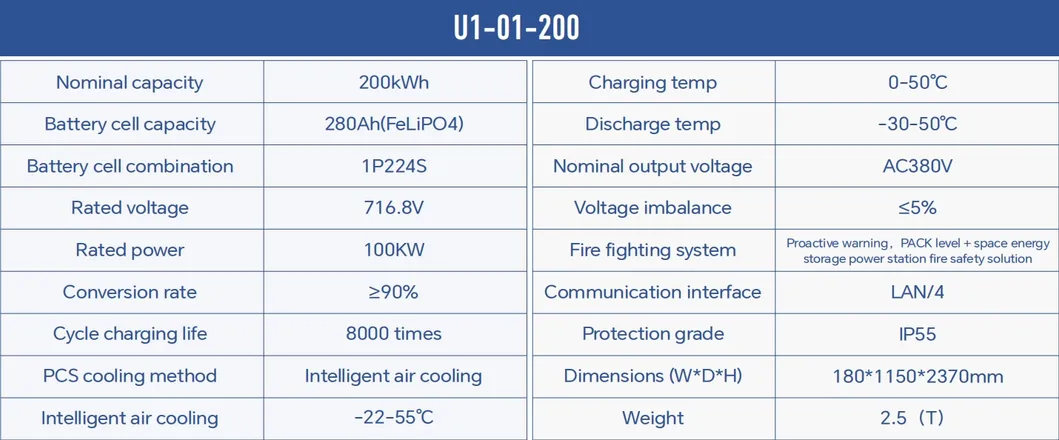

⚙️ Product Parameters

Nominal Capacity: A robust 200kWh; designed to meet demanding energy storage needs.

Charging Temperature: Efficiently operates between 0~50ºC, ensuring reliability across various climates.

Battery Cell Capacity: 280Ah (FeLiPO4), engineered for maximum efficiency and longevity.

Discharge Temperature: Reliable performance from -30~50ºC, adapting to diverse conditions.

Battery Cell Combination: Configured as 1P224S for optimal energy density and performance.

Nominal Output Voltage: AC380V, delivering consistent energy output for seamless integration.

Rated Voltage: Precisely set at 716.8V; ensures system stability and performance.

Voltage Imbalance: Maintained at ≤5% for efficient power management and distribution.

Rated Power: A powerful 100kW; ideal for commercial and industrial applications.

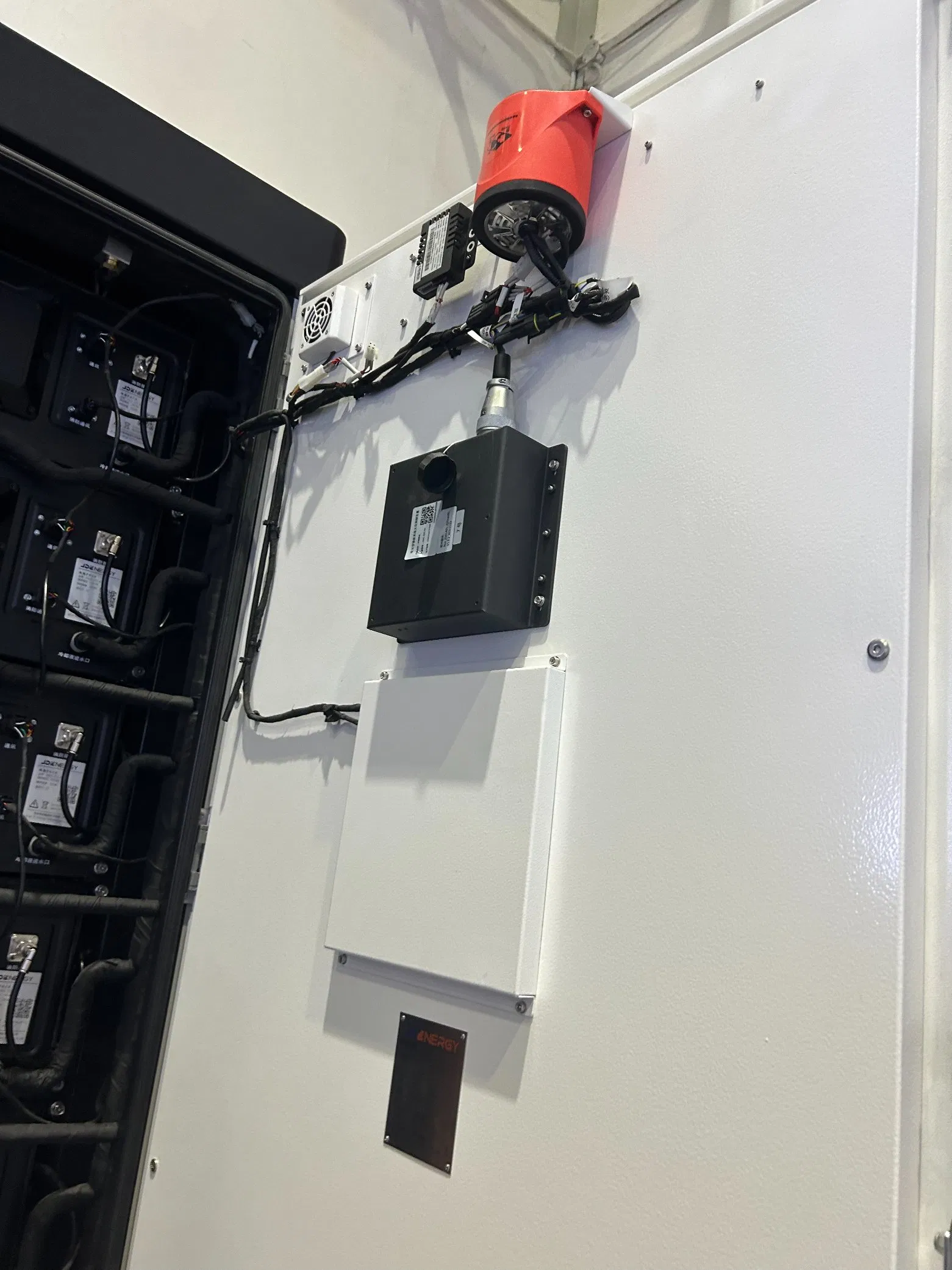

Fire Fighting System: Advanced proactive warning mechanisms for enhanced safety and peace of mind.

Fire Safety Solution: Comprehensive PACK level and space energy storage power station solution with a conversion rate of ≥90%.

Communication Interface: LAN/4, providing seamless and reliable connectivity.

Cycle Charging Life: An impressive 8000 cycles, ensuring durability and long-term performance.

Protection Grade: IP55, offering robust protection against dust and water ingress.

PCS Cooling Method: Air cooling, designed for optimal thermal management and system longevity.

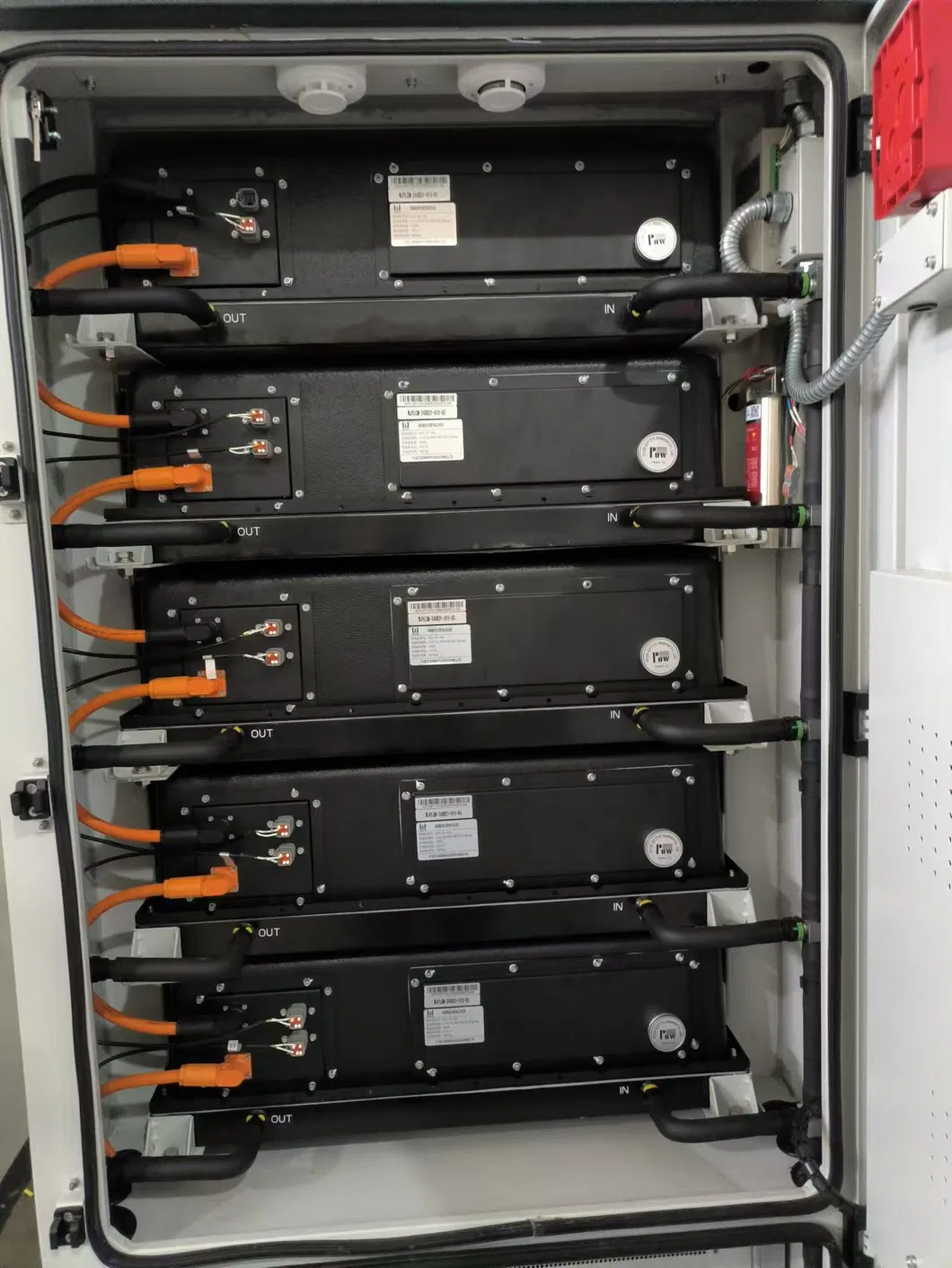

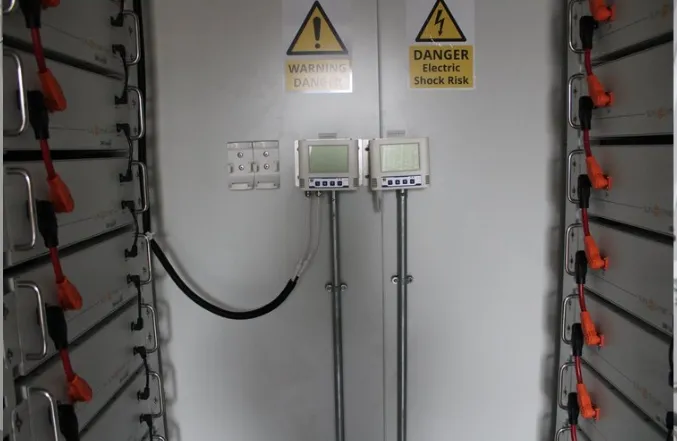

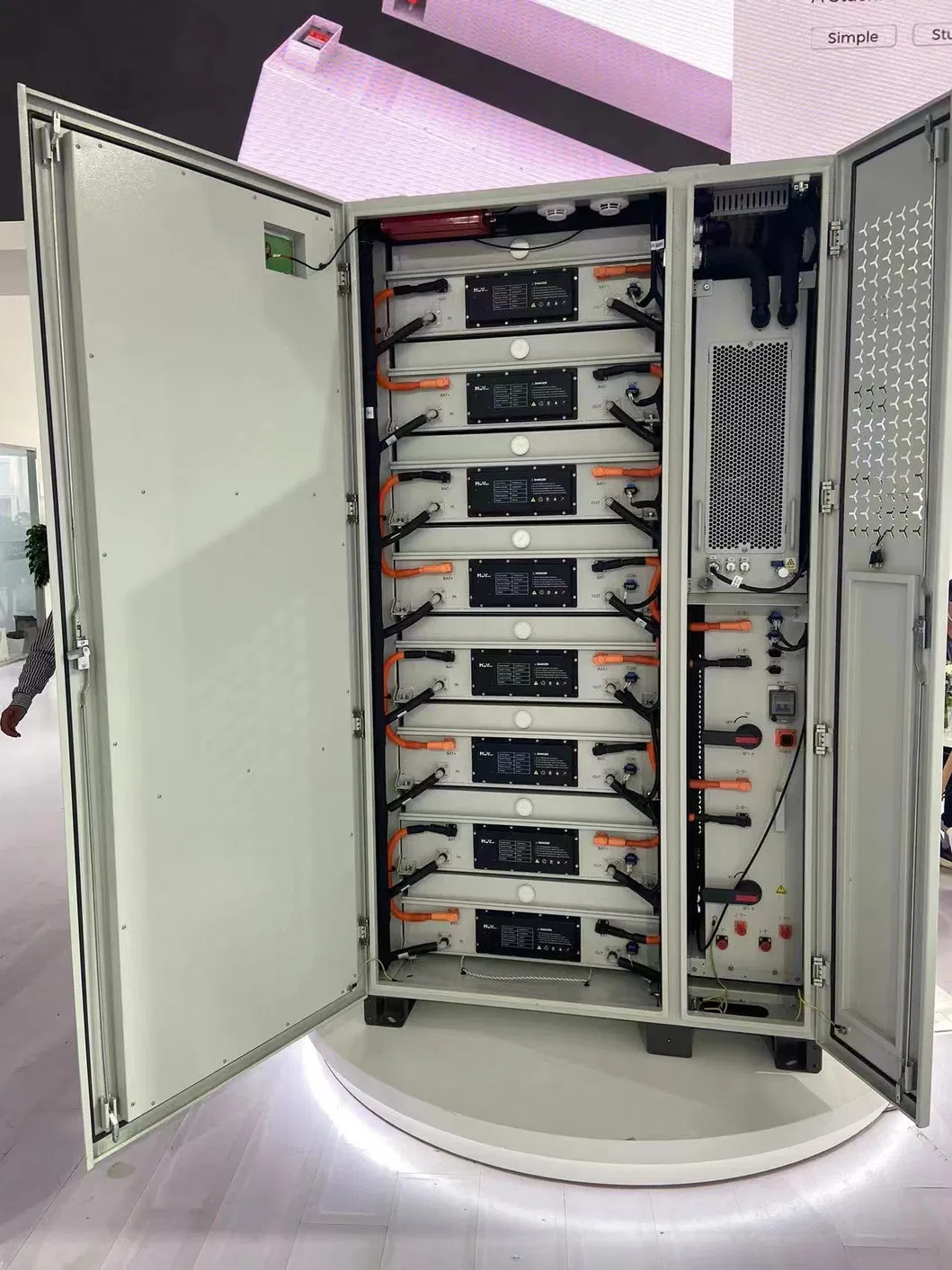

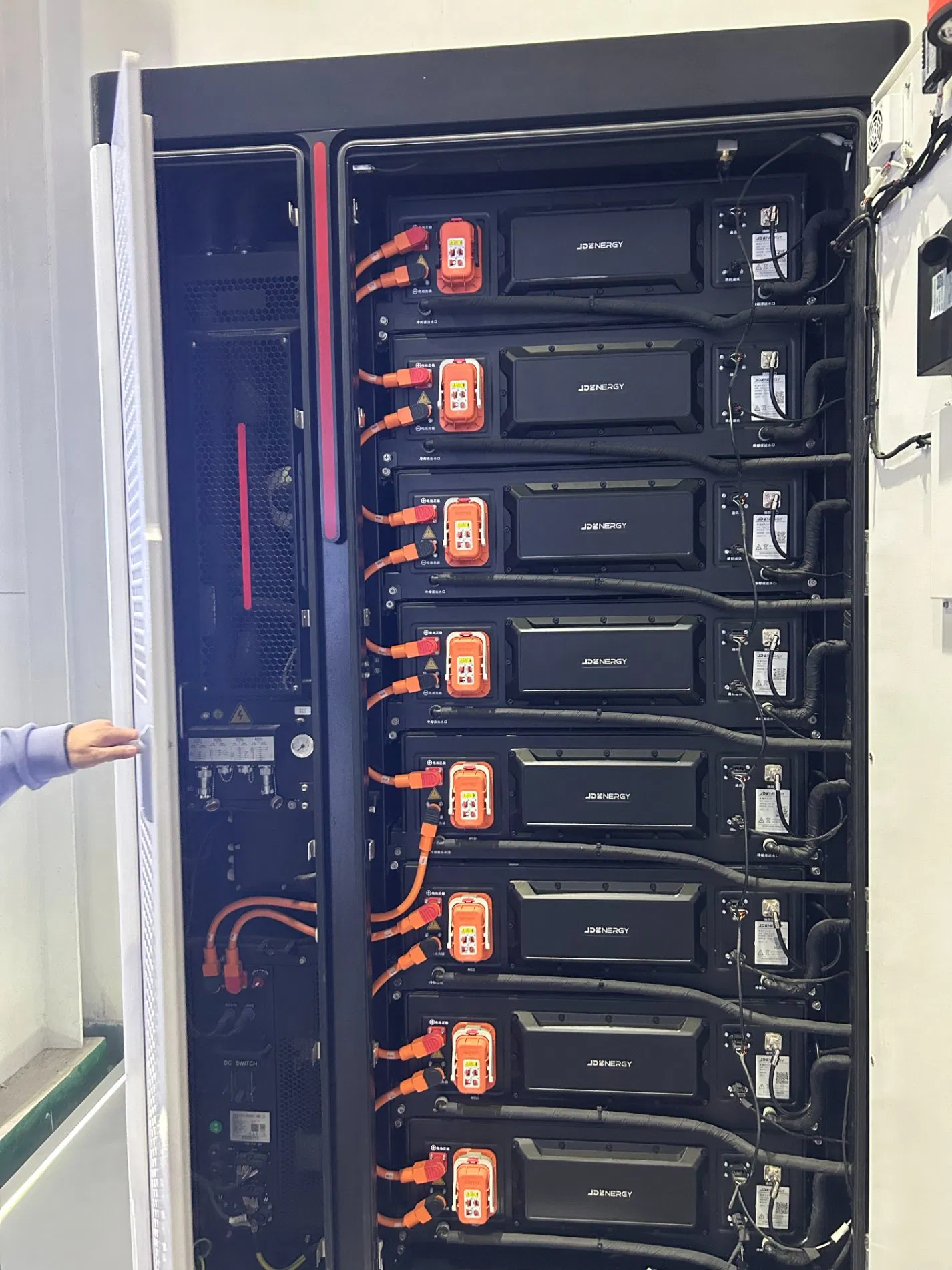

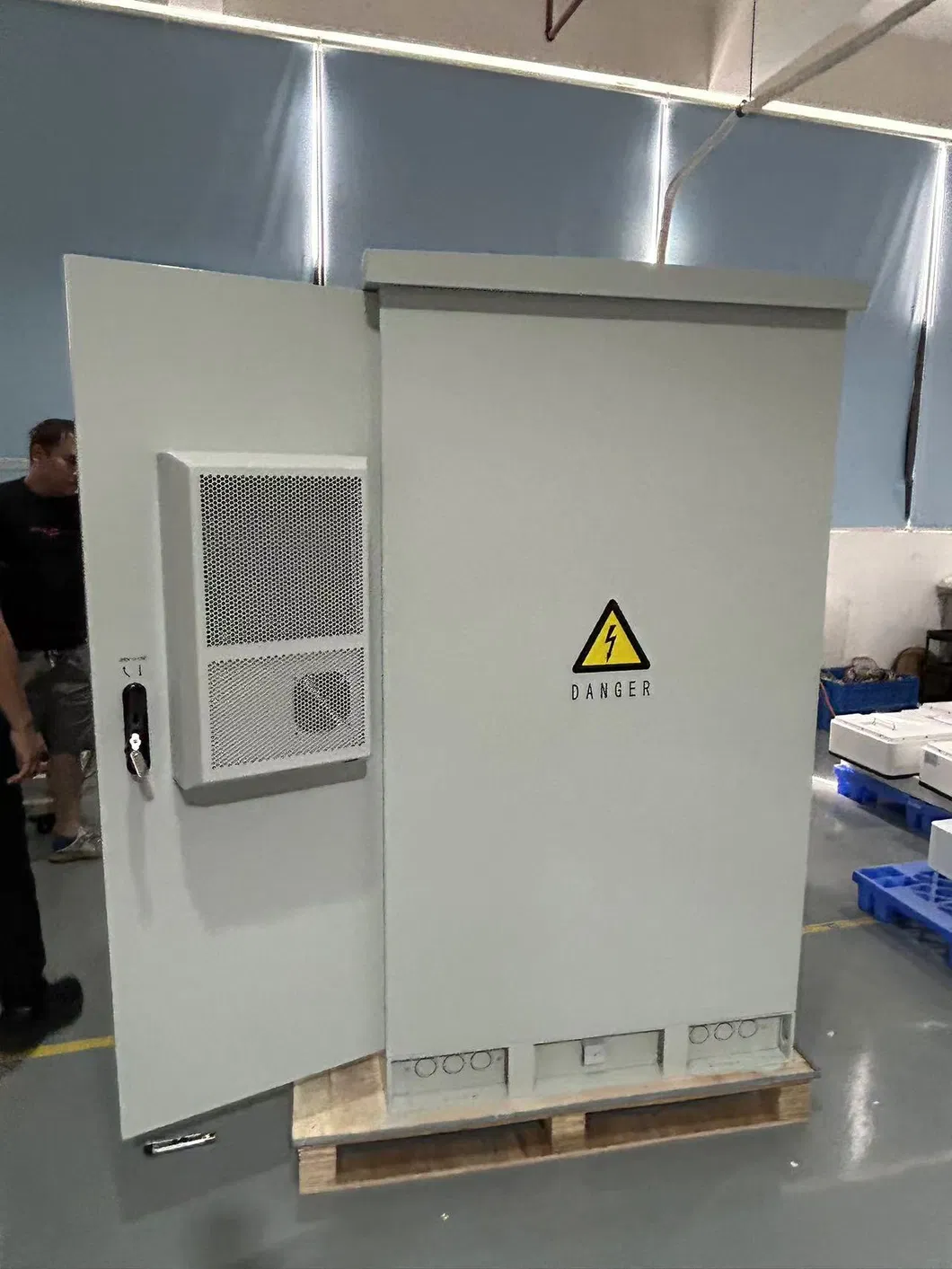

📸 Detailed Photos

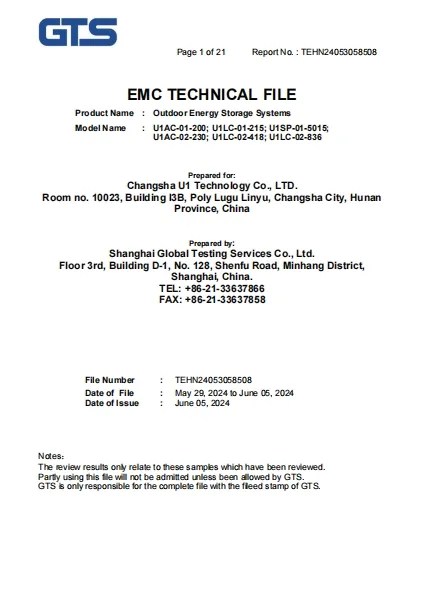

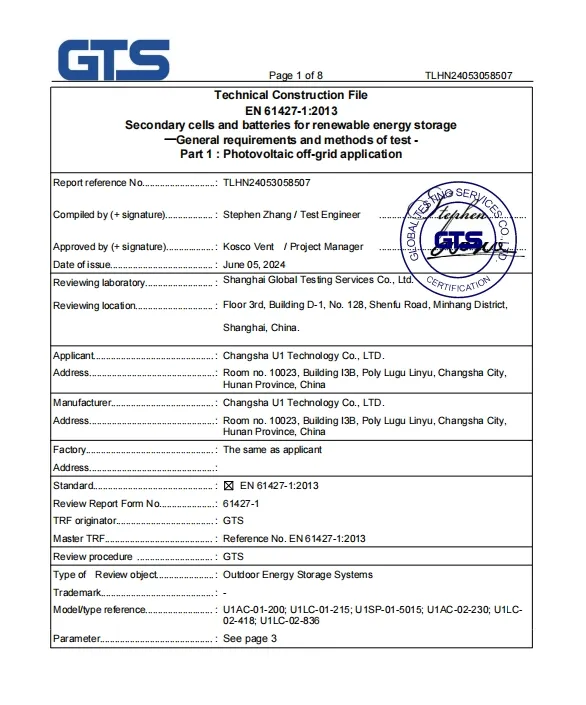

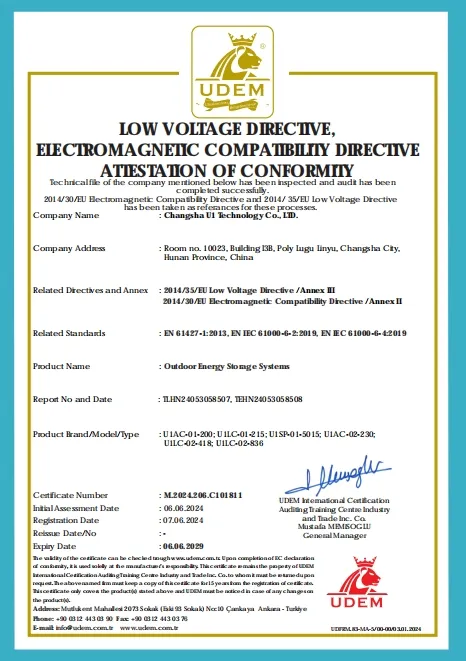

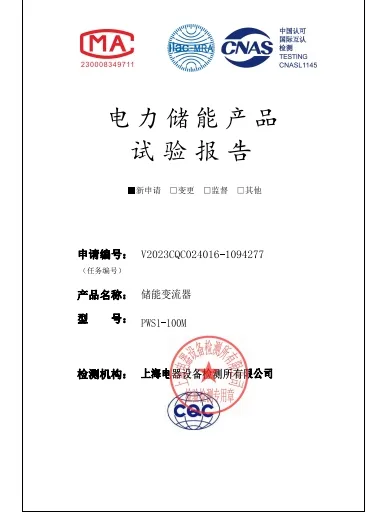

📜 Certifications

❓ Frequently Asked Questions

What is the expected lifespan of this energy storage system?

The system features high-quality LiFePO4 cells with a cycle life of up to 8000 times, ensuring long-term durability for over a decade under standard operating conditions.

Can the system be installed outdoors?

Yes, the system is designed with an IP55 protection grade, making it robust against dust and water ingress, suitable for various outdoor commercial and industrial environments.

What is the operating temperature range?

The system is highly adaptable, with a charging temperature range of 0~50ºC and a discharge temperature range of -30~50ºC, allowing it to function in both extremely cold and hot climates.

How is safety managed in this "All-in-One" solution?

It includes an advanced fire fighting system with proactive warning mechanisms and a PACK-level fire safety solution, ensuring a conversion rate of ≥90% while prioritizing user safety.

What are the primary applications for this 200kWh unit?

This 100kW/200kWh solution is ideal for power plants, commercial industrial sites, and large-scale solar energy storage projects requiring reliable high-voltage power.

What kind of communication interfaces are supported?

The system provides LAN/4 communication interfaces, allowing for seamless integration and remote monitoring of the energy storage station performance.
