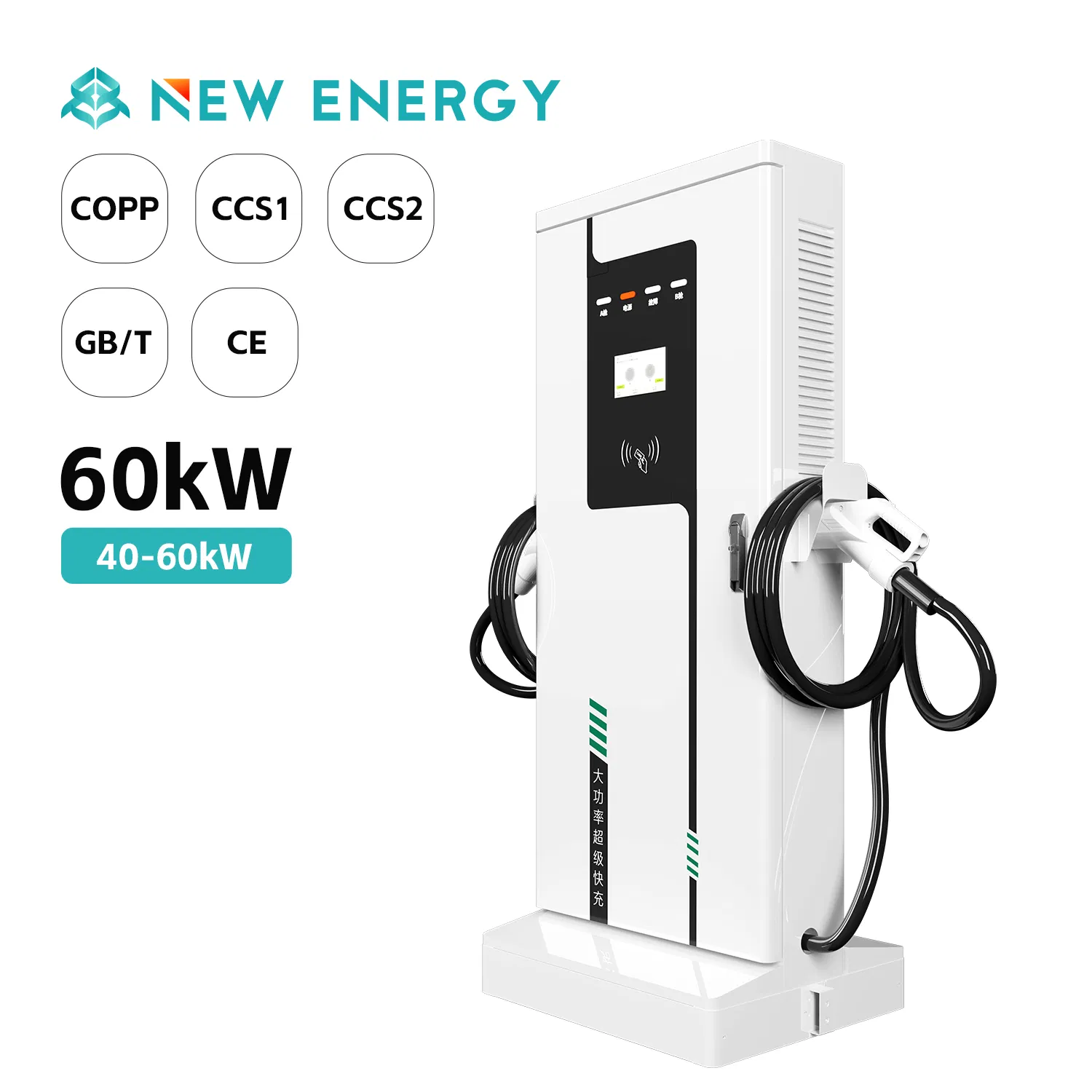

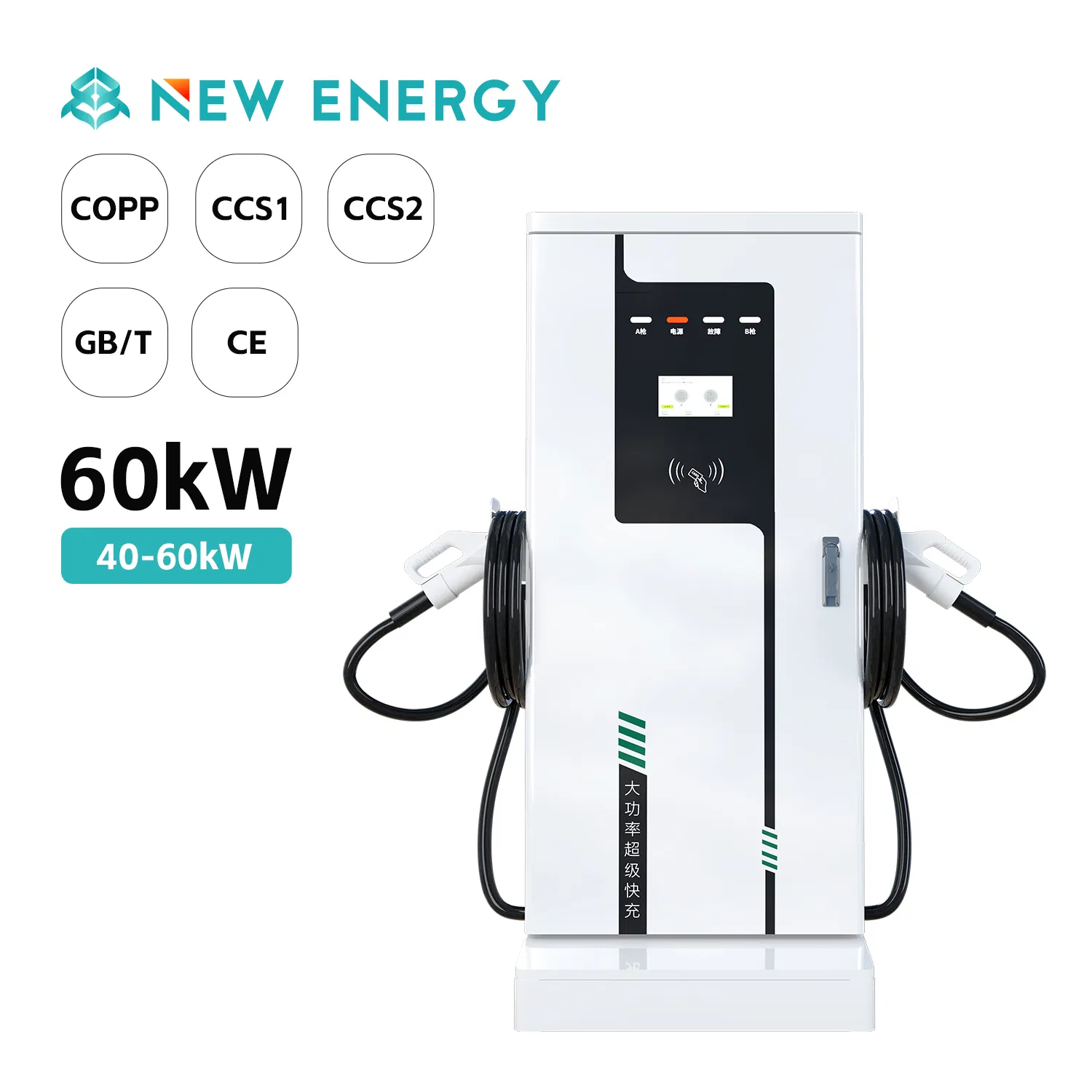

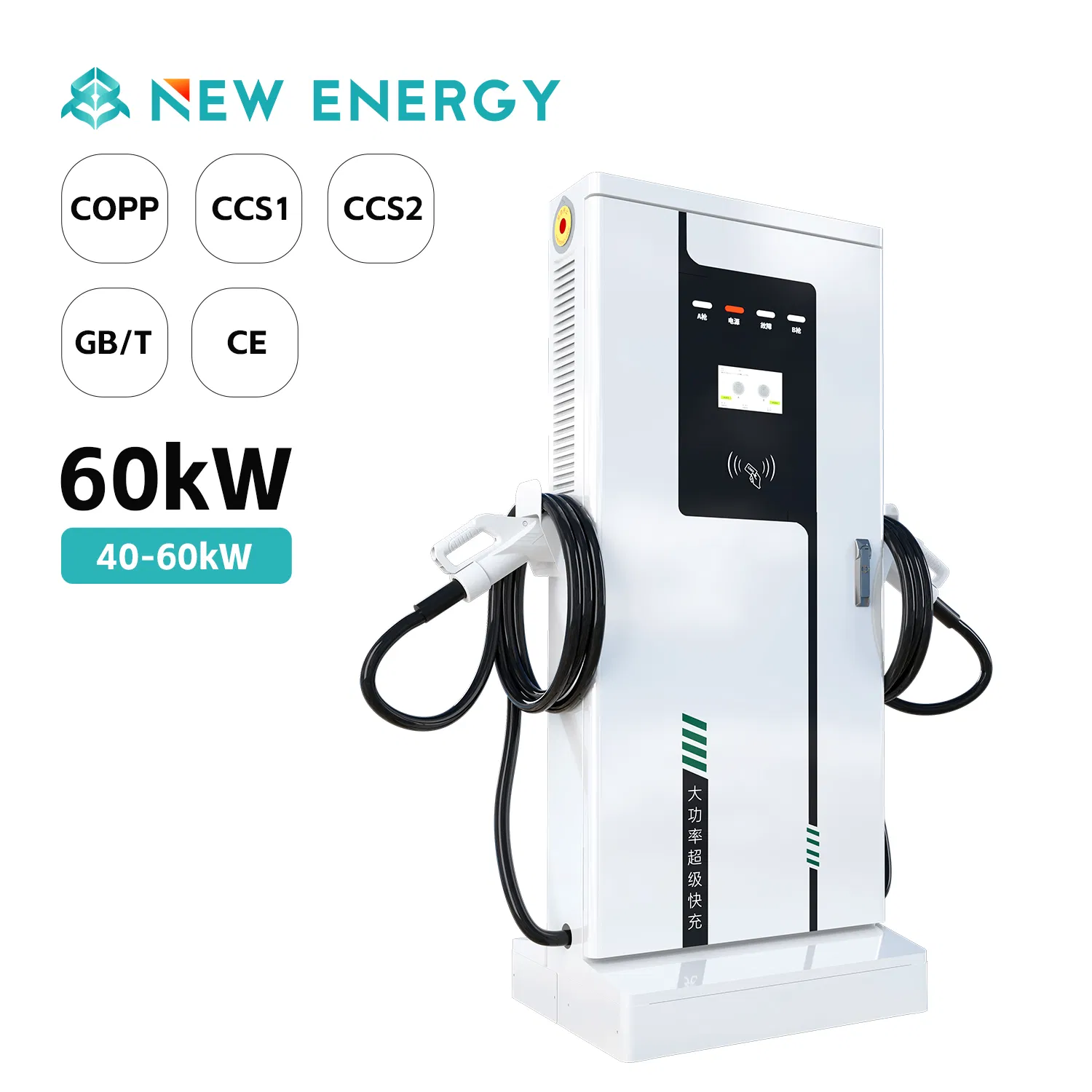

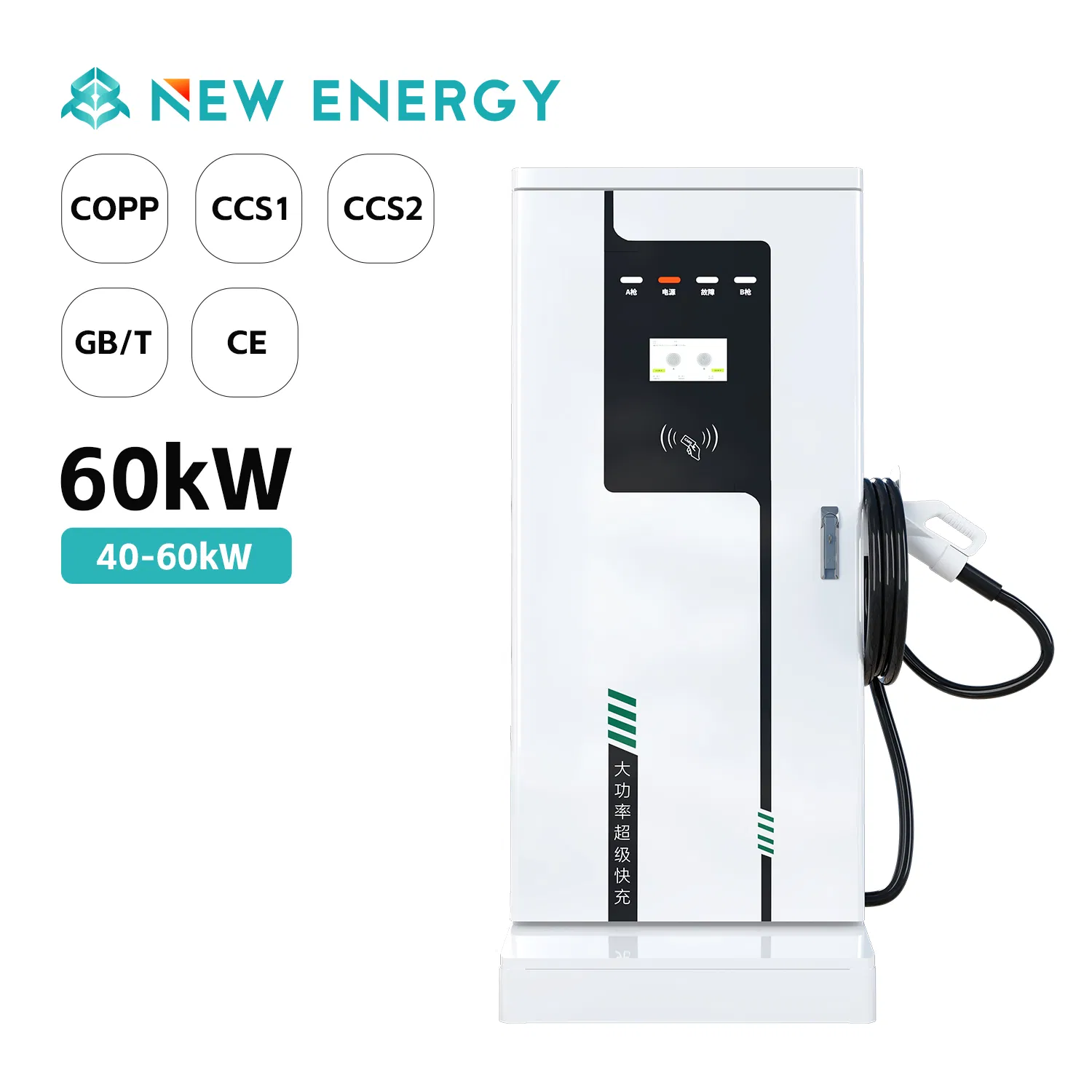

60kw Charging Station Electric Vehicle Charging Station (CCS2 & GB/T) EV Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

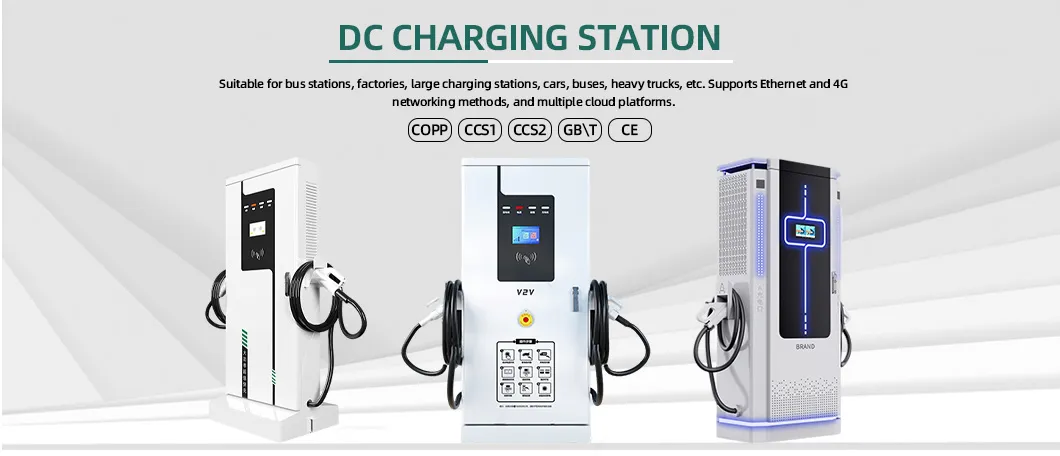

EV Charging Station 60kw
Fast Charging Details

Basic Specifications

Model No. 80KW-600KW Range
Application Public Use, Bus Stations, Large Charging Hubs
Charging Interfaces Multiple Charging Guns (2 individual)
Start Mode Credit Card, Mobile Remote, RFID Authentication
Rated Power 40KW to 600KW
Protection Level IP54 Waterproof Rating
Dimensions 750 x 410 x 1700 (mm)
User Interface 7-Inch LCD Touch Screen + LED

Product Introduction

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection.

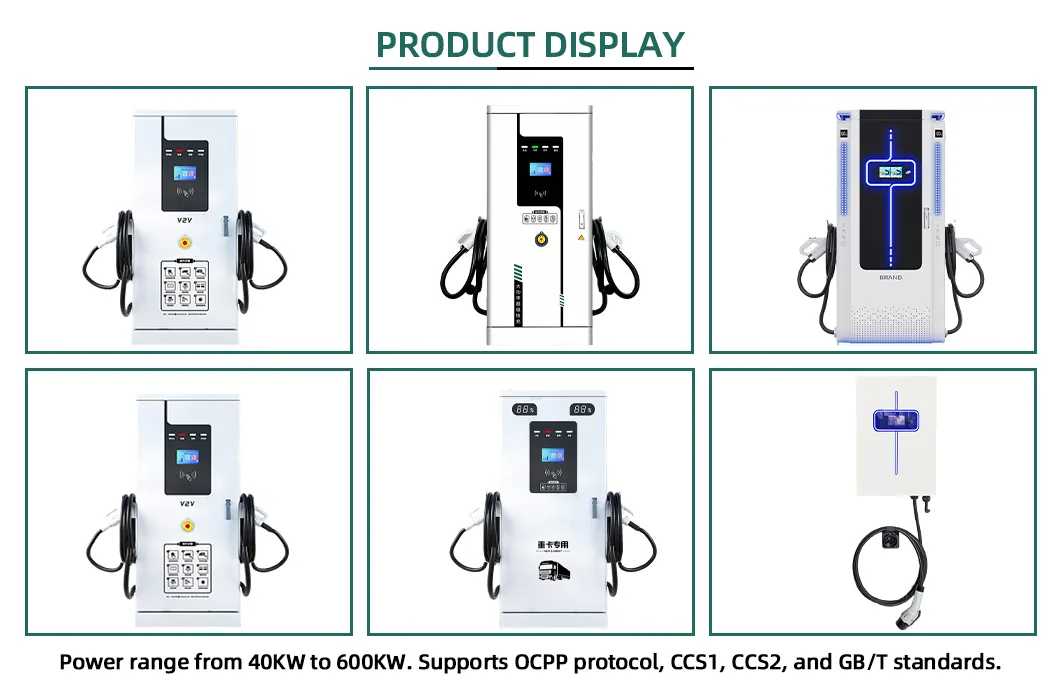

Product Layout
Internal Structure
Charging Gun Details

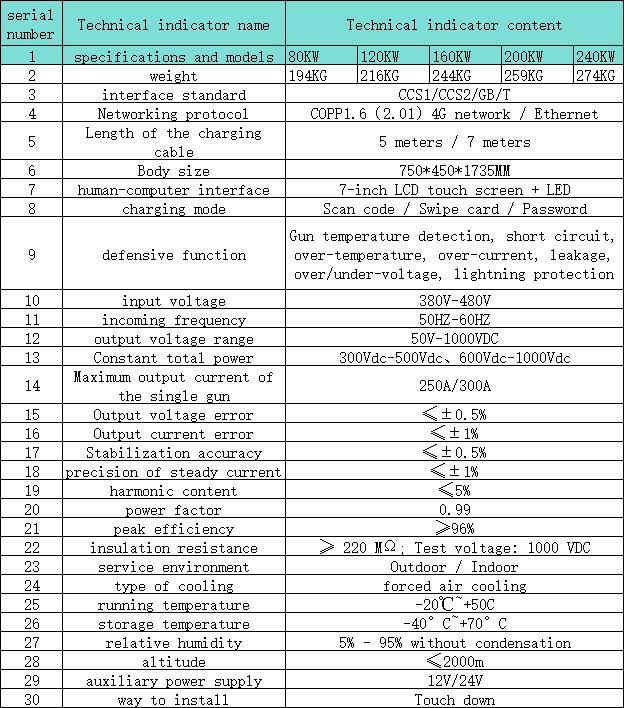

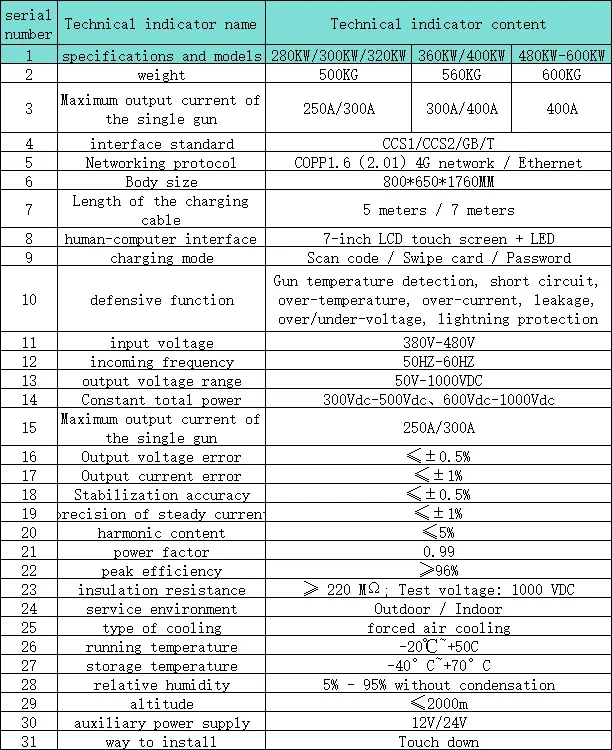

Technical Specification

Product Model 40KW-600KW External Dimension 750x410x1700(mm)
Rated Power 40KW-600KW Weight 194KG-274KG
Design Criterion CCS1, CCS2, GB/T Gun Barrel Length 5 Meters
Protection Level IP54 Connection Method 4G / Ethernet
Charging Mode Scan QR, RFID Card, VIN Code Defensive Function Short circuit, Over-temp, Leakage, Lightning

Operation Showcase

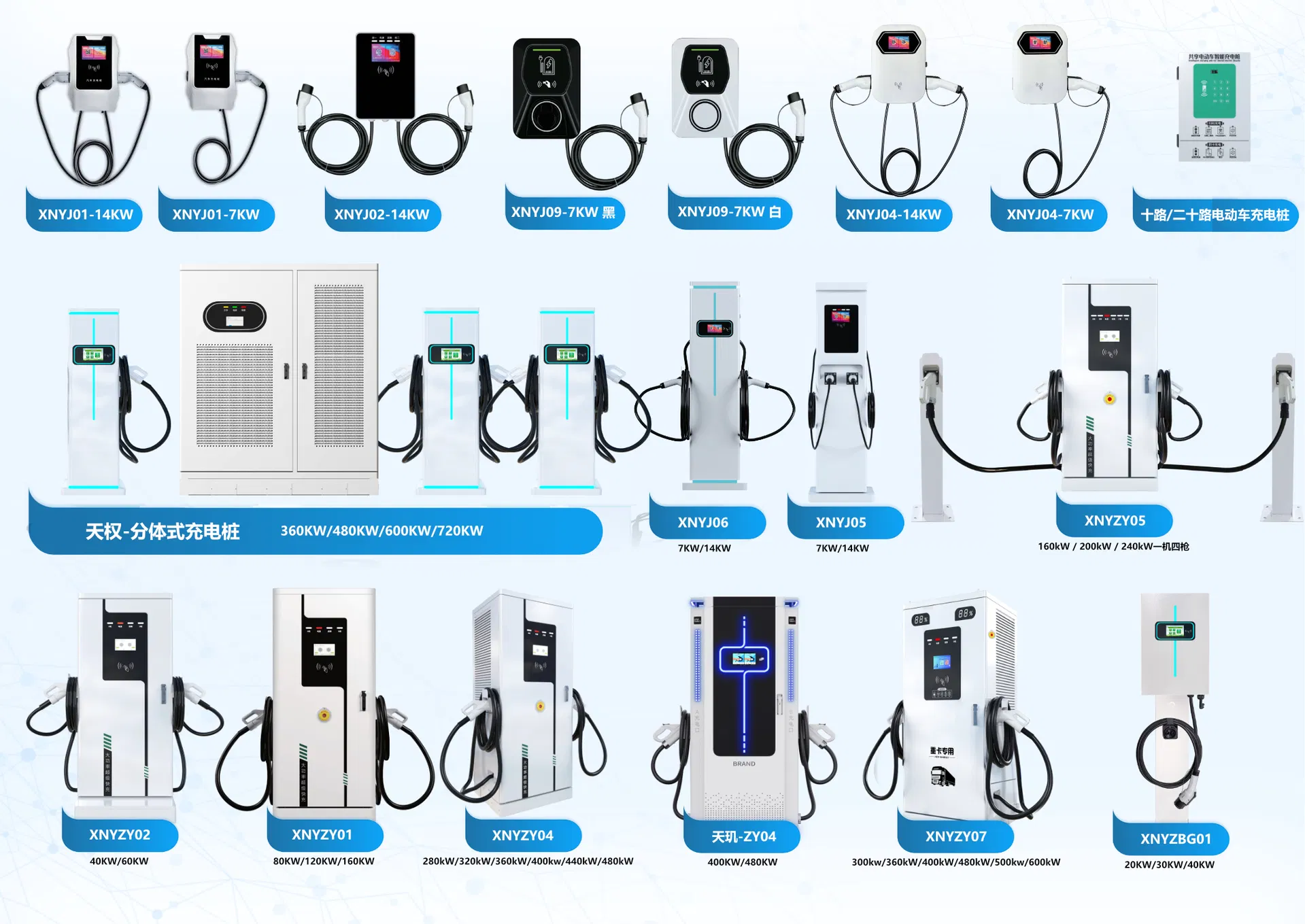

Industrial Charger

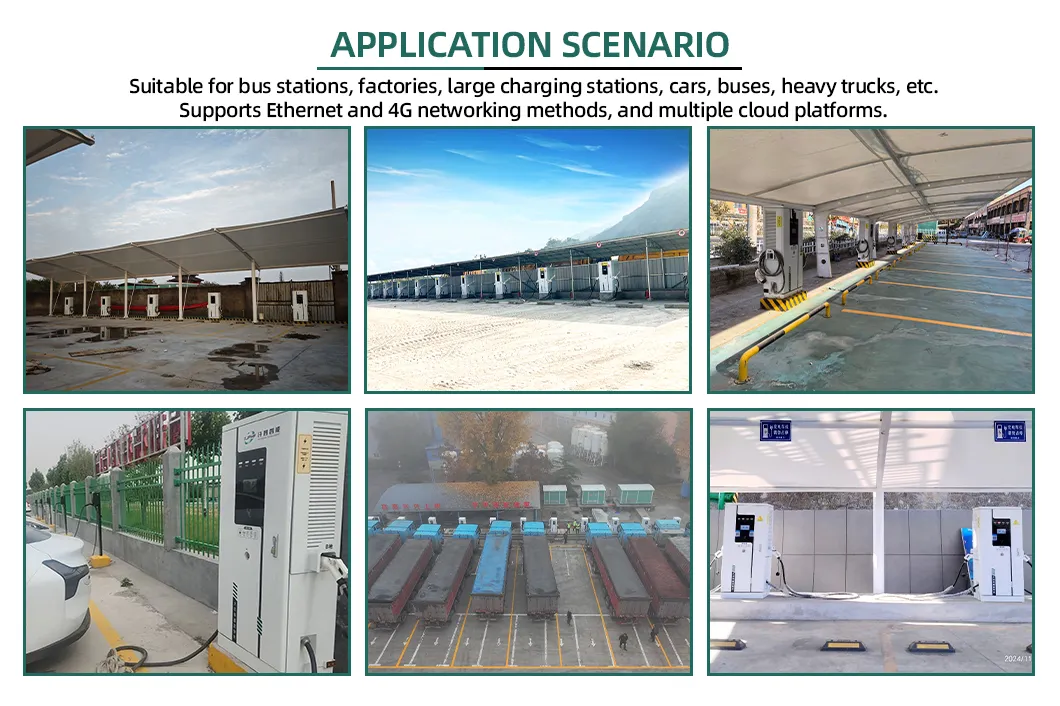

Charging Site Display

Quality Assurance & Delivery

We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We actively participate in large-scale international exhibitions and have established partnerships with numerous renowned enterprises globally. We adopt packaging methods that are sufficient to protect the equipment during sea, air, and land transportation.
Certification Showcase
Exhibition Presence
Packaging and Loading

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a professional manufacturer, and you are welcome to visit our production facilities at any time.
What types of EV charging solutions do you offer?
We offer a wide range of products including AC Wallbox/Portable chargers (3.5kw-44kw), floor-mounted fast DC Charging stations (30kw-480kw/600kw), mobile chargers with energy storage, and solar system products.
Do you support customization and OEM branding?
Yes, we can provide design customization and place your logo on the products, provided the minimum order quantity (MOQ) requirements are met.
What are your standard payment terms?
Our standard terms are T/T 30% as a deposit and 70% balance paid before delivery. We provide photos of the finished products and packaging before final payment.
How long is the typical delivery time?
Generally, delivery takes between 7 to 35 days after receiving the advance payment, depending on the specific items and the quantity of your order.
Do you test the goods before they are shipped?
Yes, we conduct a rigorous final inspection and testing of all goods before they leave our factory to ensure full functionality.
