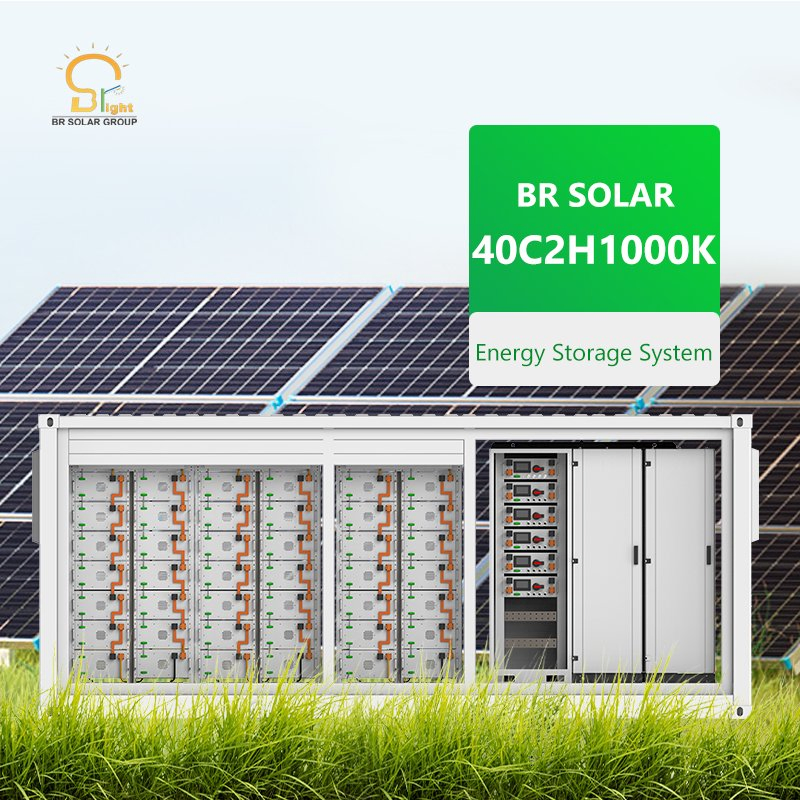

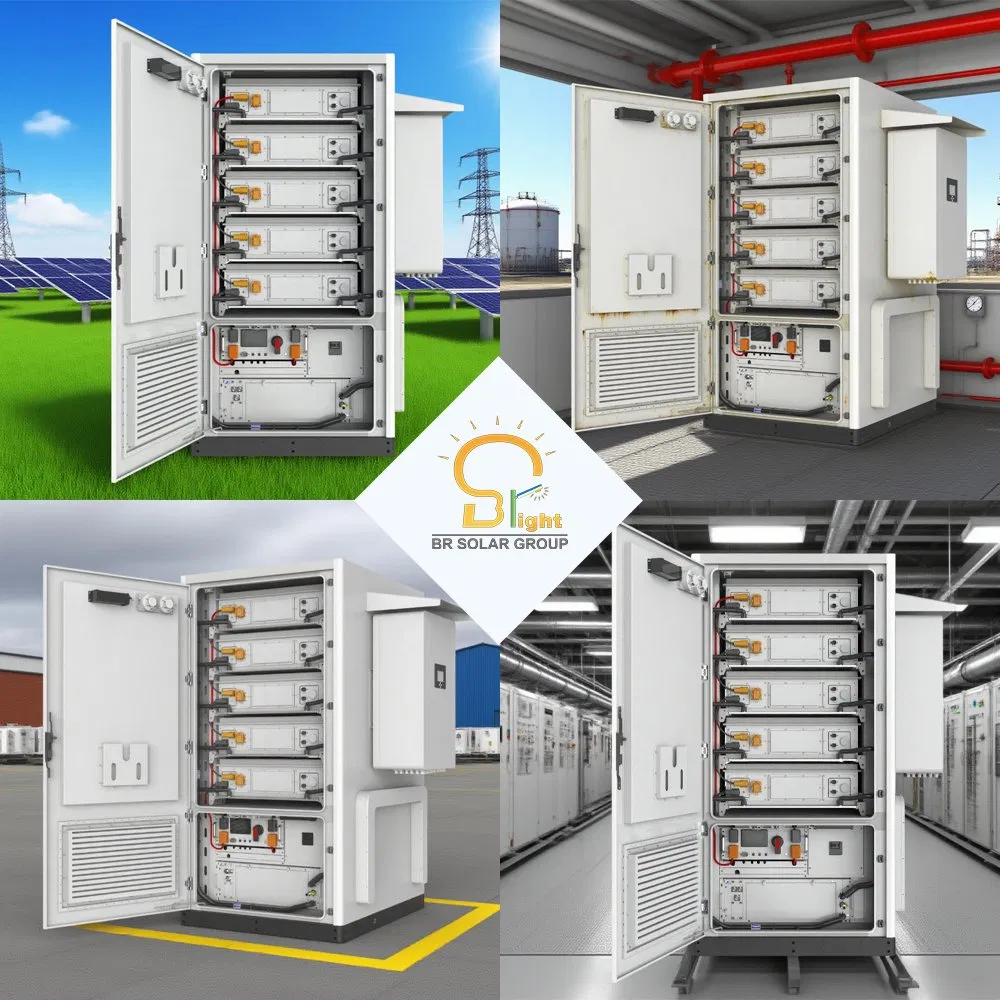

CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
1 / 5
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System
CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System

CE Approved Industrial Br Solar Carton and Pallet Containerized Energy Storage System

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

Basic Specifications

Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Power
0.5c Charge/Discharge
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Origin
China

Packaging & Delivery

Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Transport Package
Carton and Pallet

Product Description

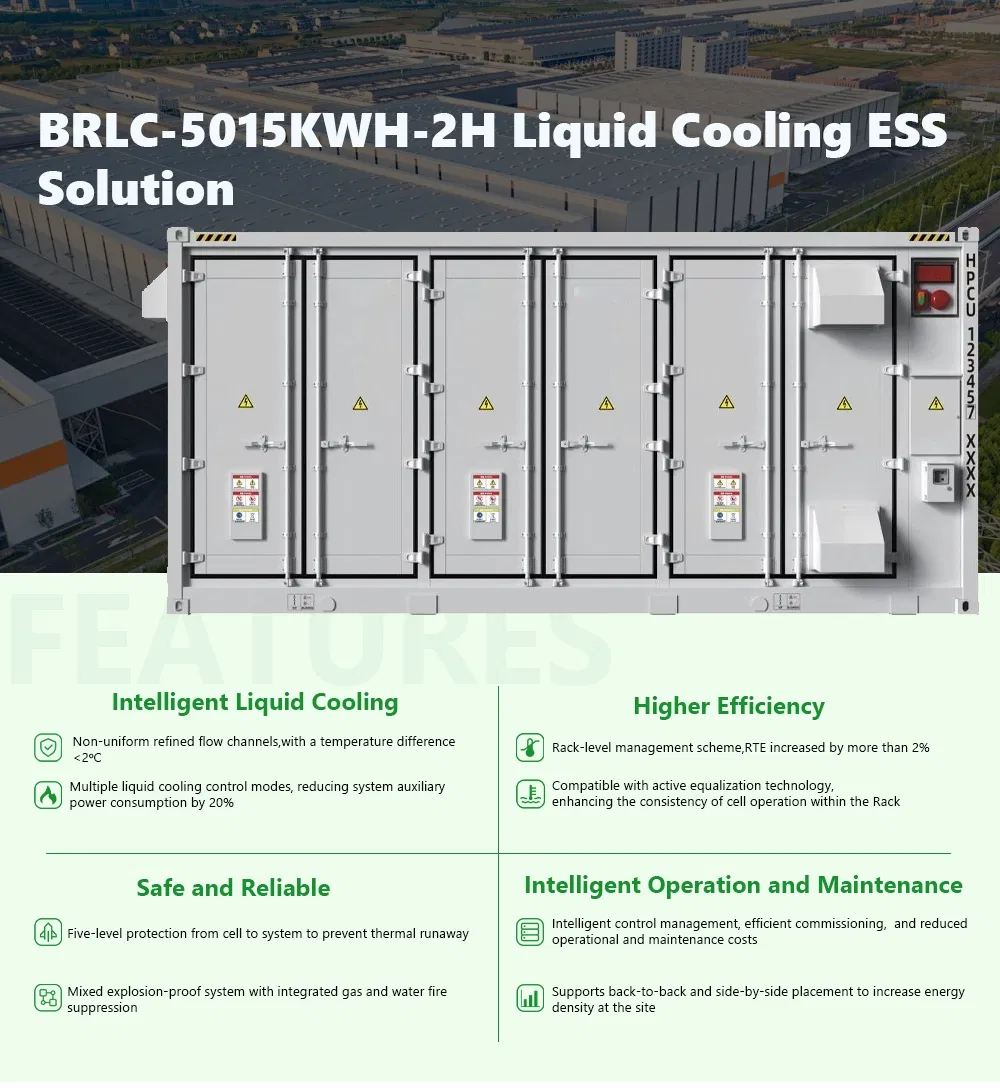

Energy Storage System Intro
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

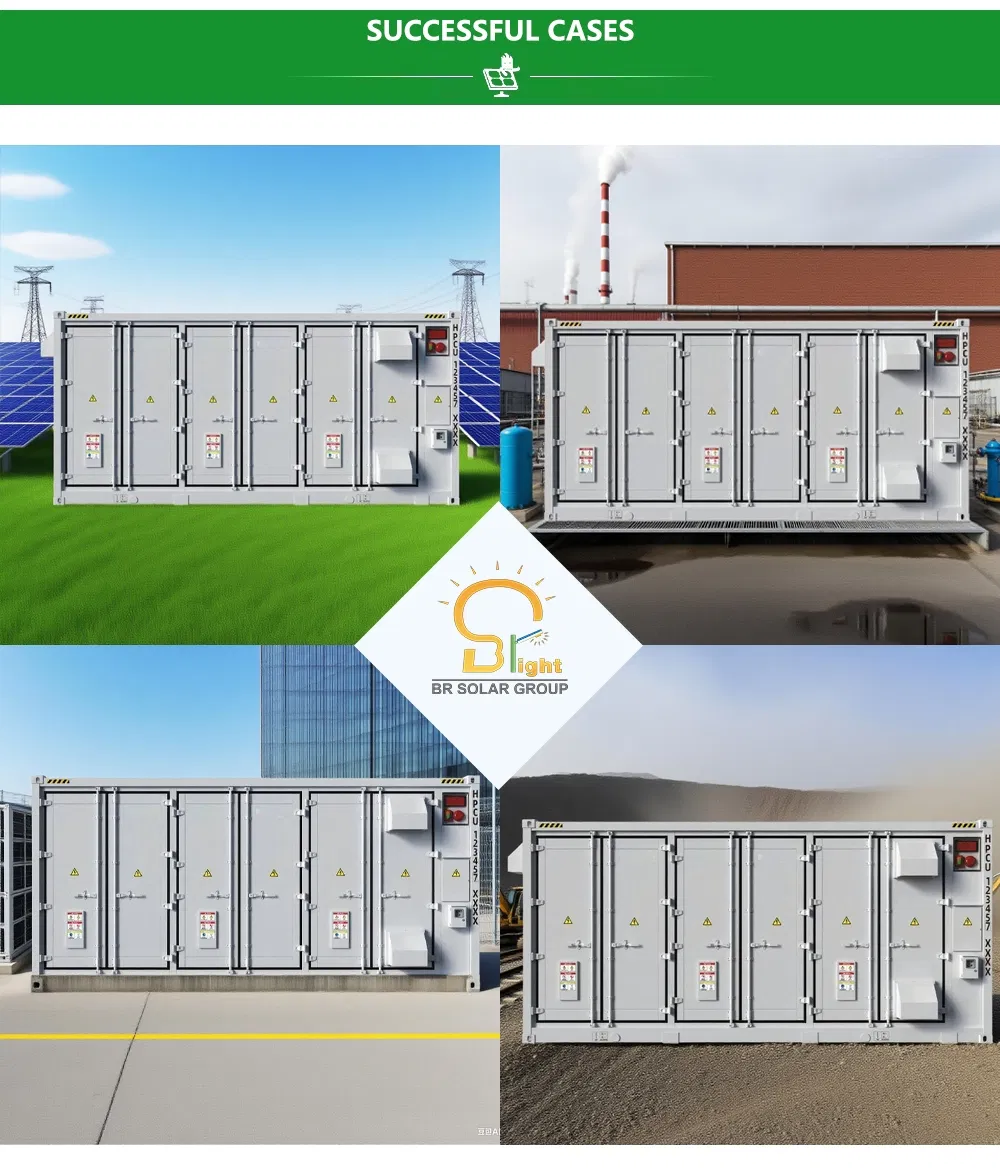

Detailed View 1

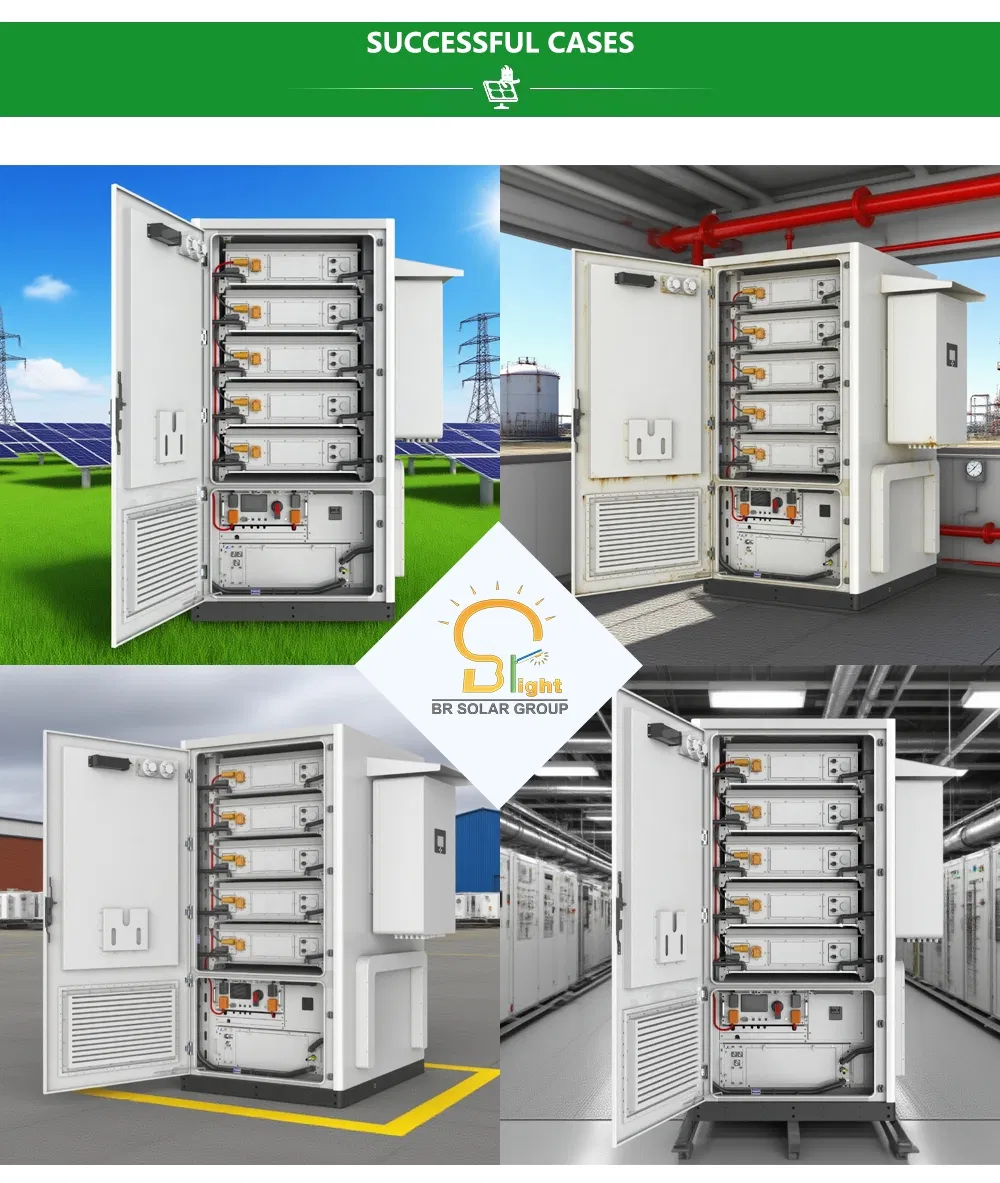

Detailed View 2
System Feature
Components 1

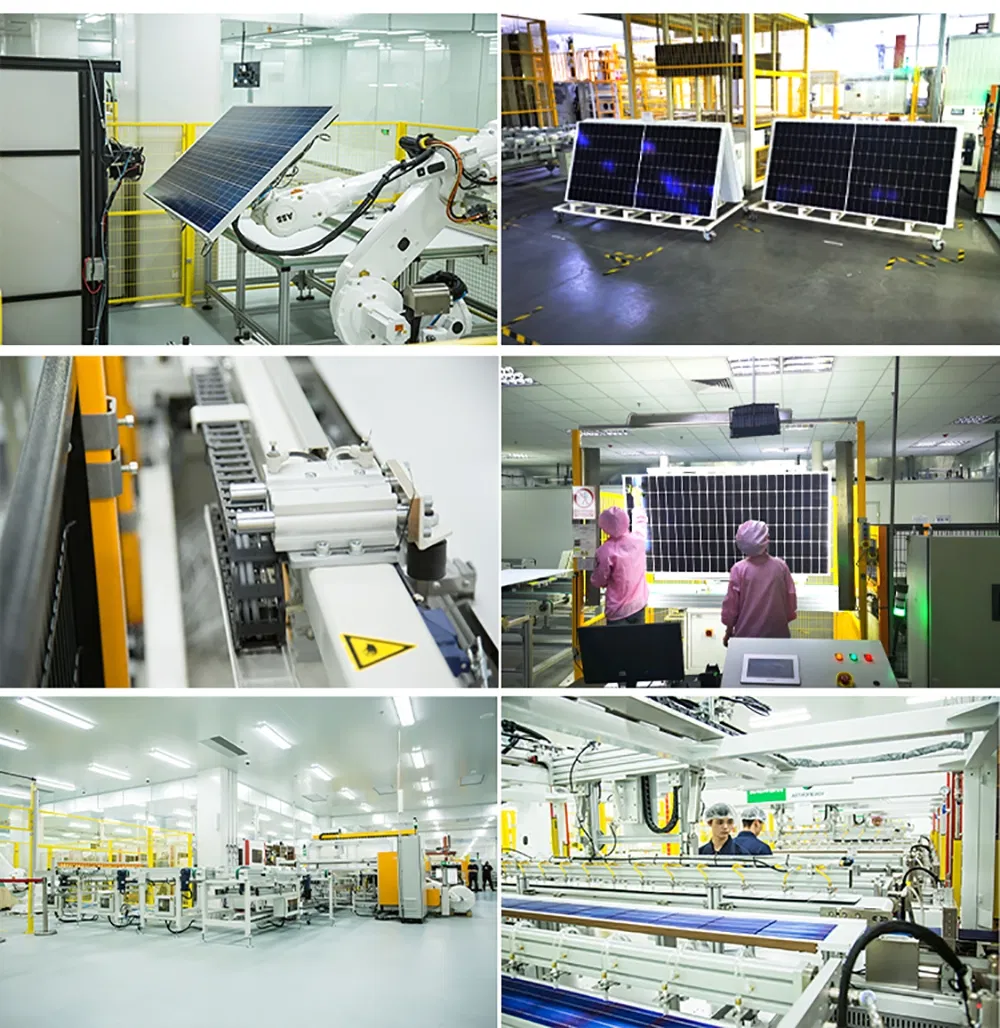

Components 2
Components 3

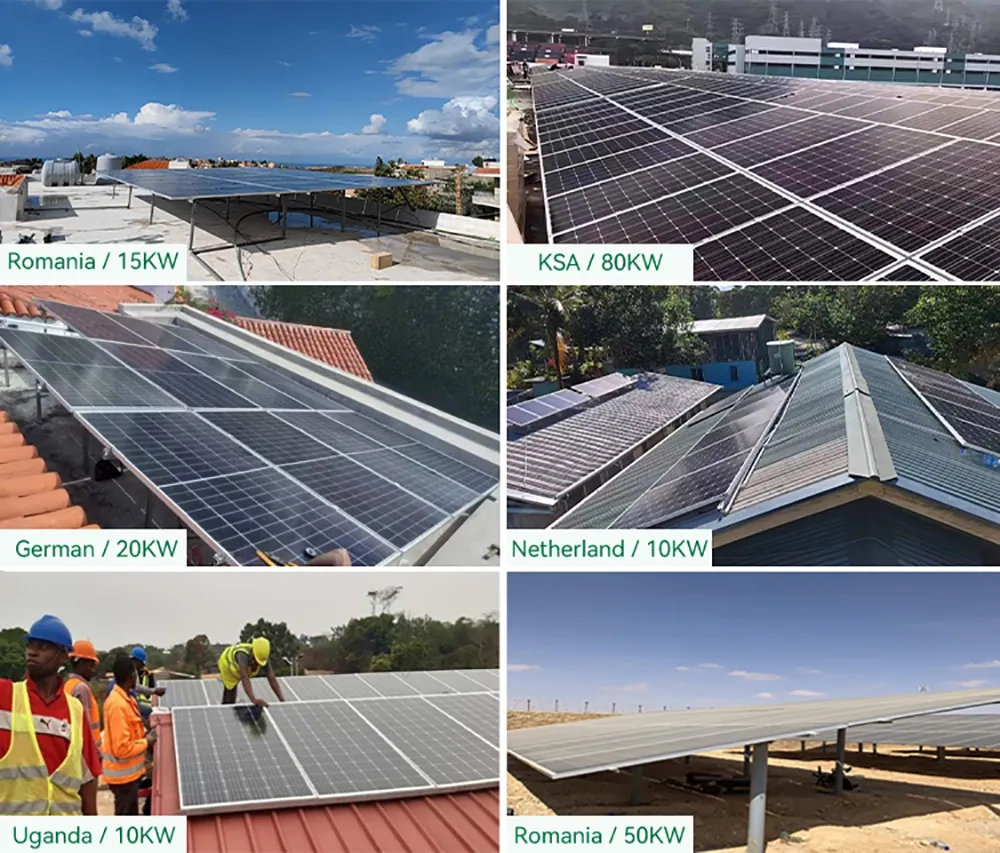

Installation 1
Installation 2

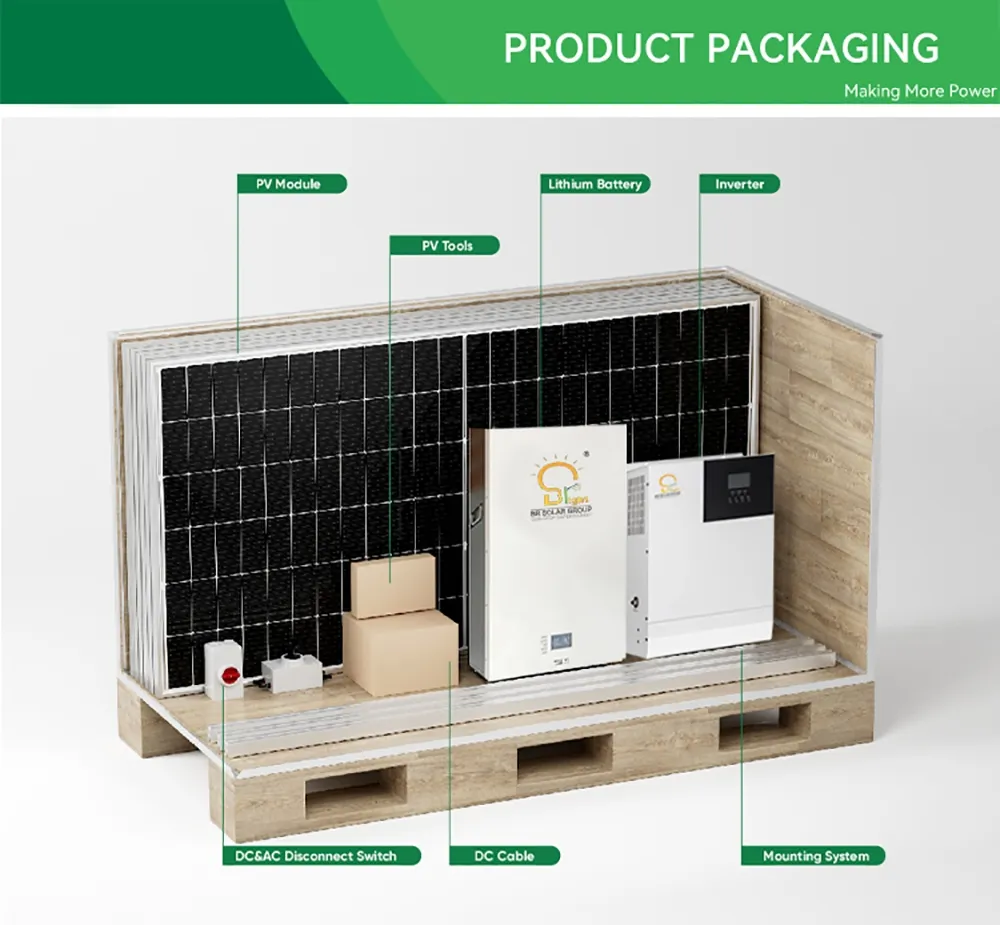

Installation 3

Frequently Asked Questions

What is the total rated capacity of this energy storage system?
The system offers a high-rated capacity of 5.01 MWh, suitable for large-scale industrial and commercial applications.
What type of battery technology is used?
It utilizes Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
How is the system kept cool during operation?
The system employs an advanced Liquid Cooling method to maintain optimal operating temperatures and ensure efficiency.
Is this system suitable for extreme outdoor environments?
Yes, with an IP55 protection grade and an operating temperature range of −30 to 50ºC, it is designed for various challenging conditions.
What fire safety features are integrated?
Safety is prioritized with temperature sensors, smoke and combustible gas detectors, deflagration venting, and fire extinguishing gas/water sprinkler systems.
What are the external communication options?
The system supports multiple communication interfaces, including Ethernet, CAN, and RS485 for seamless integration.
