A01W / A01T Series Monoblocks

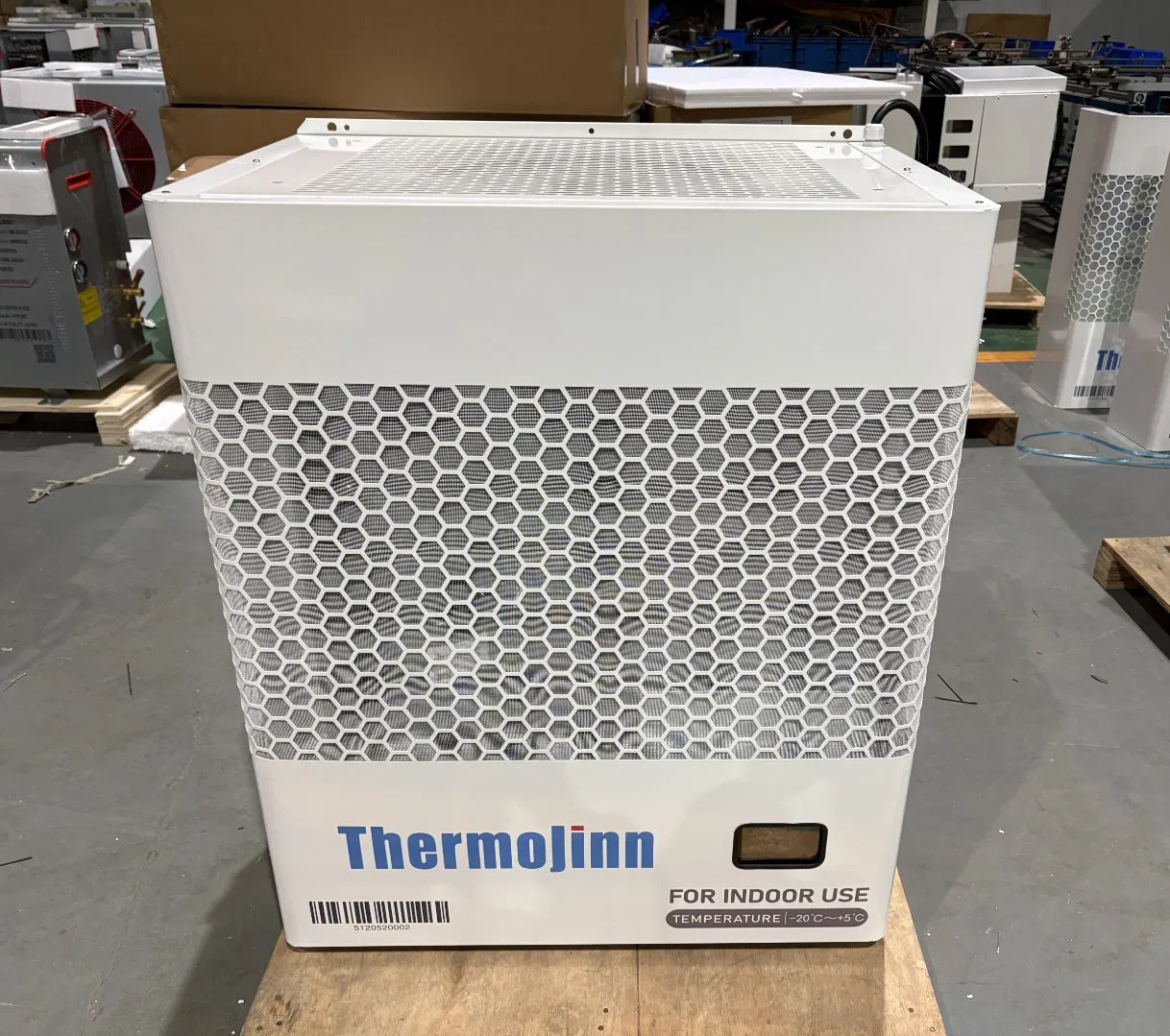

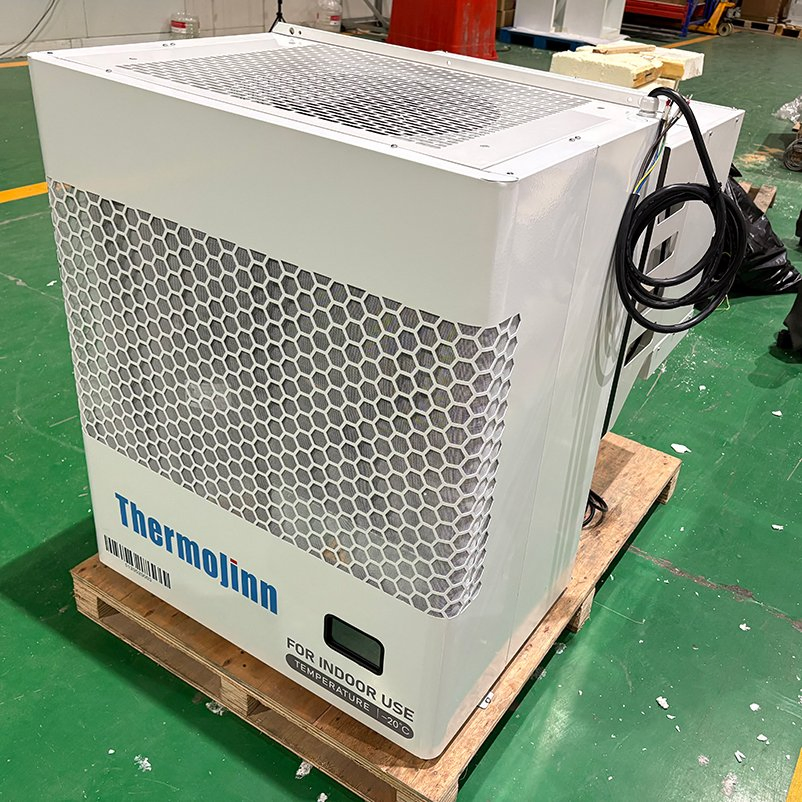

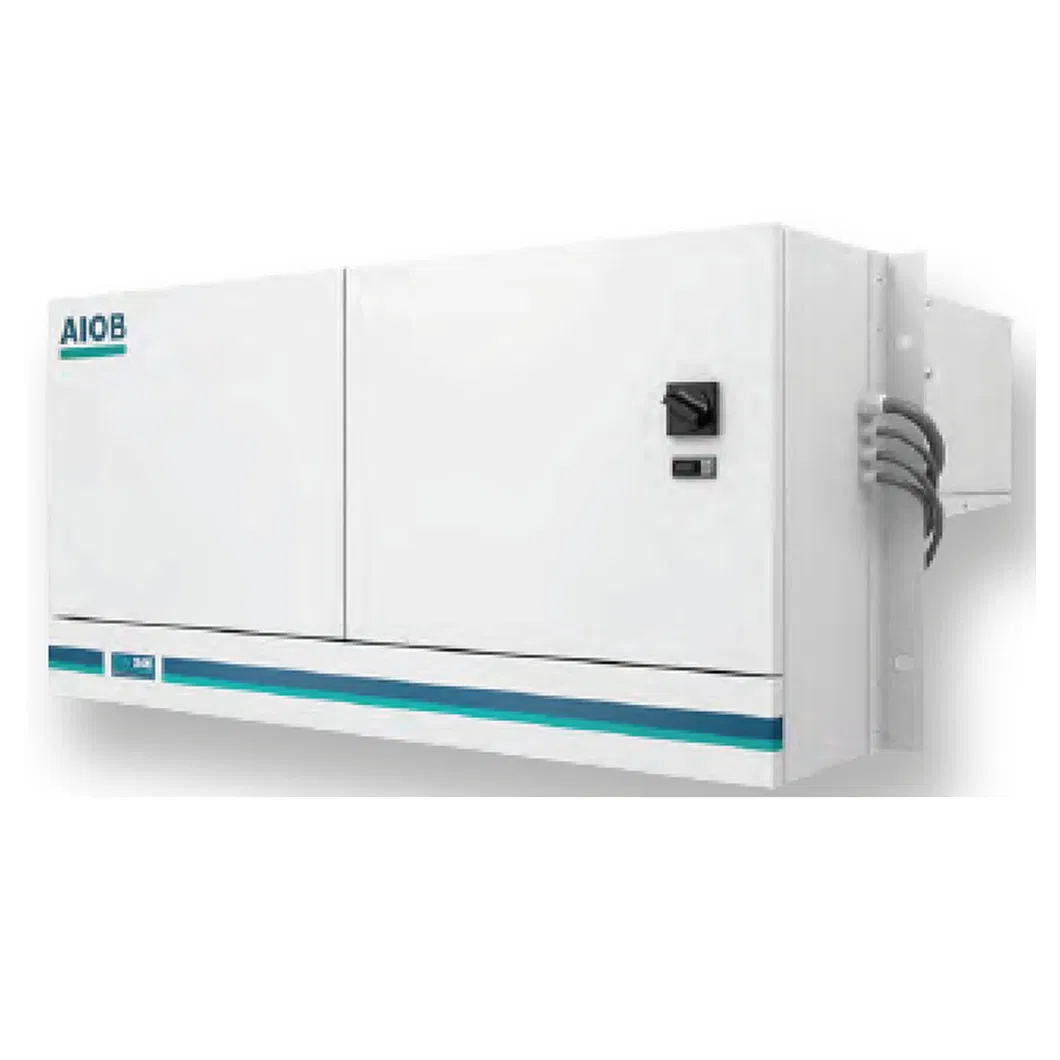

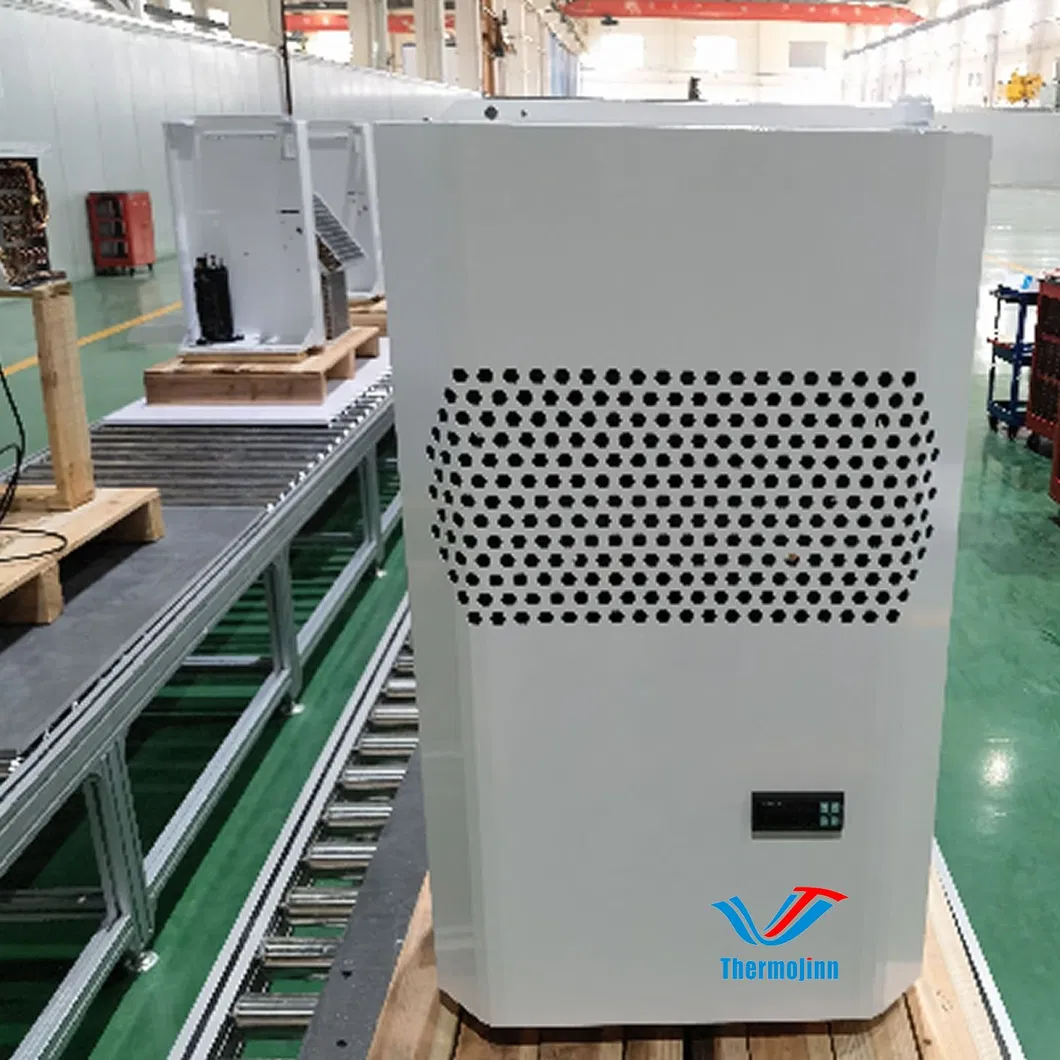

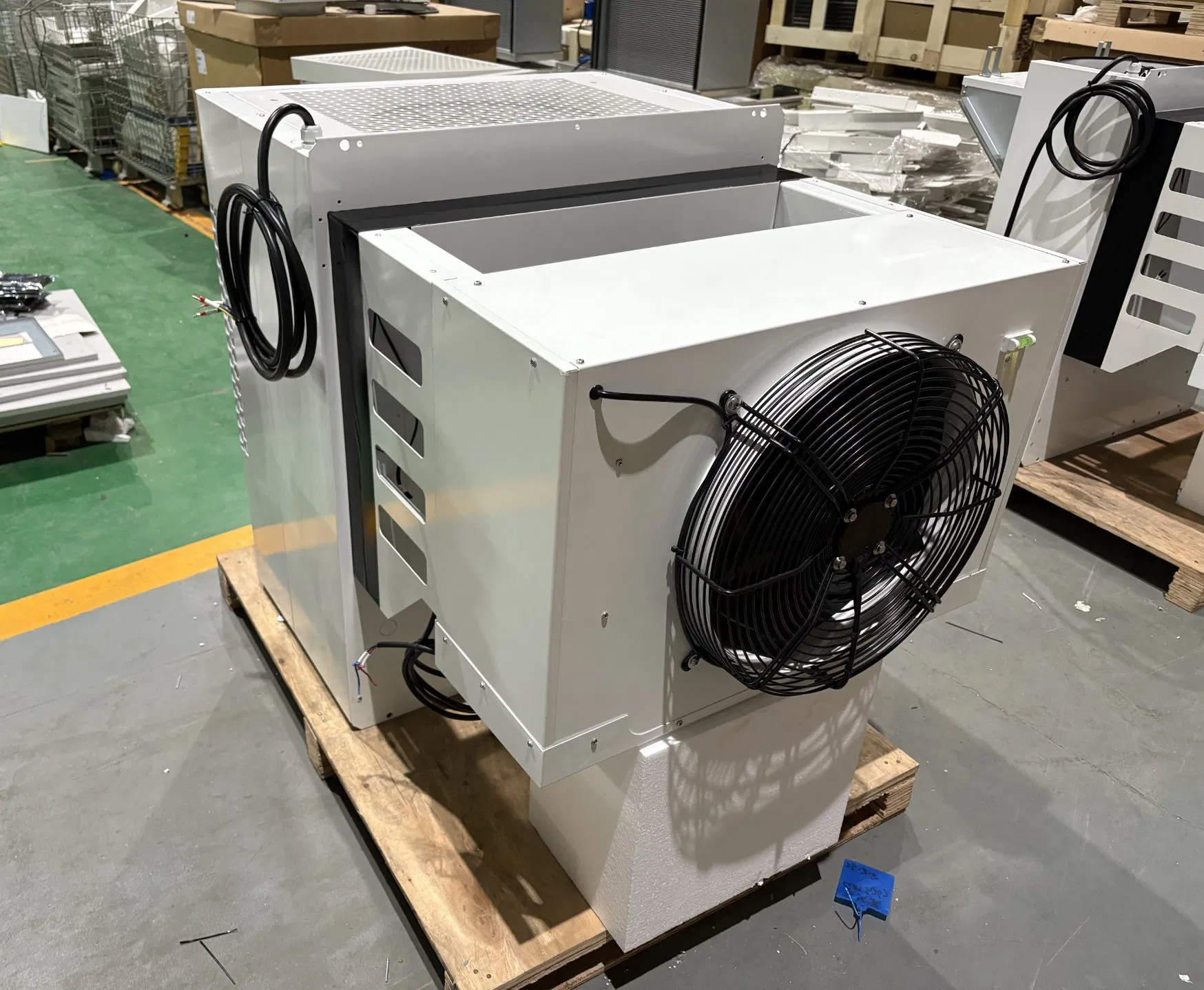

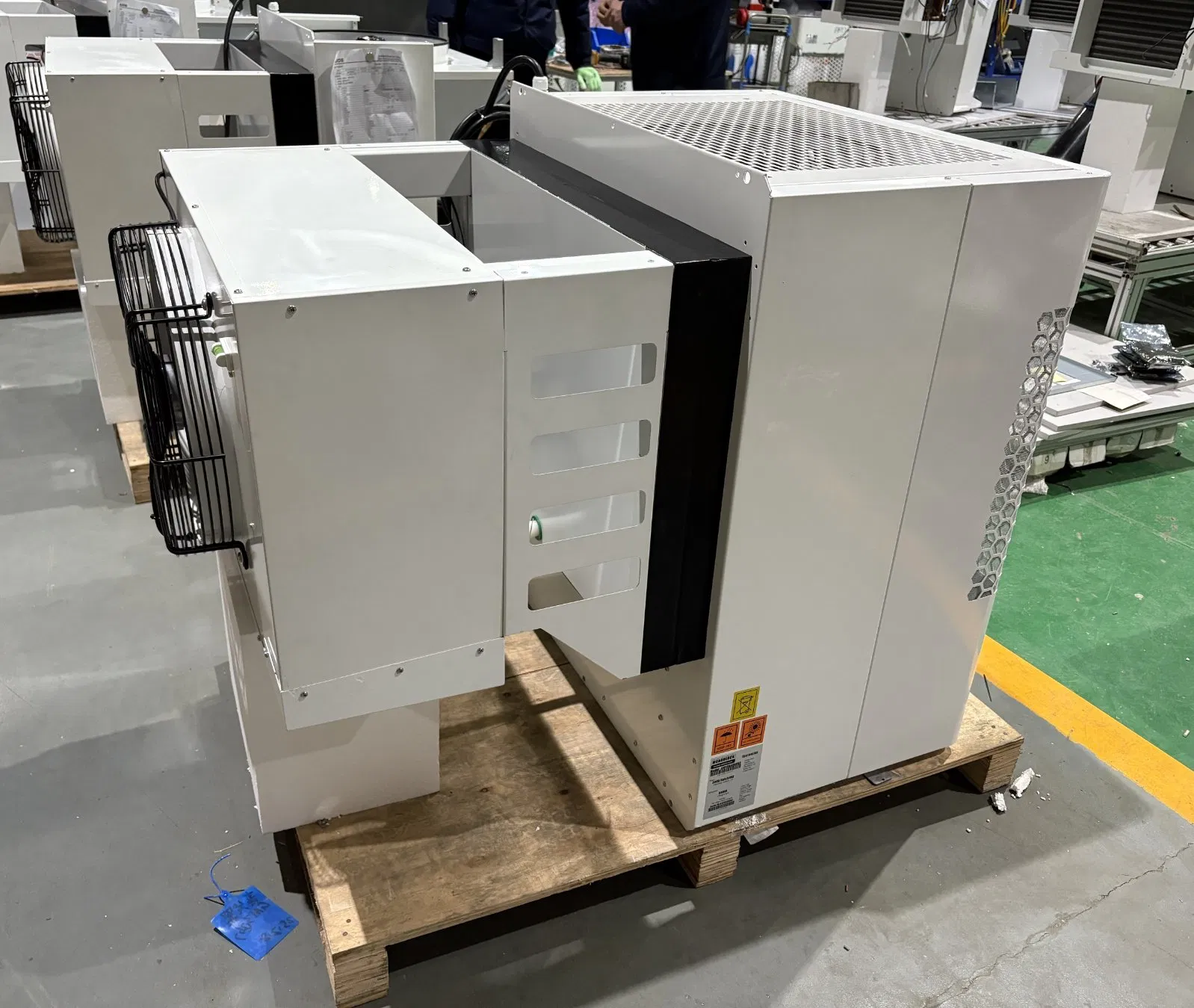

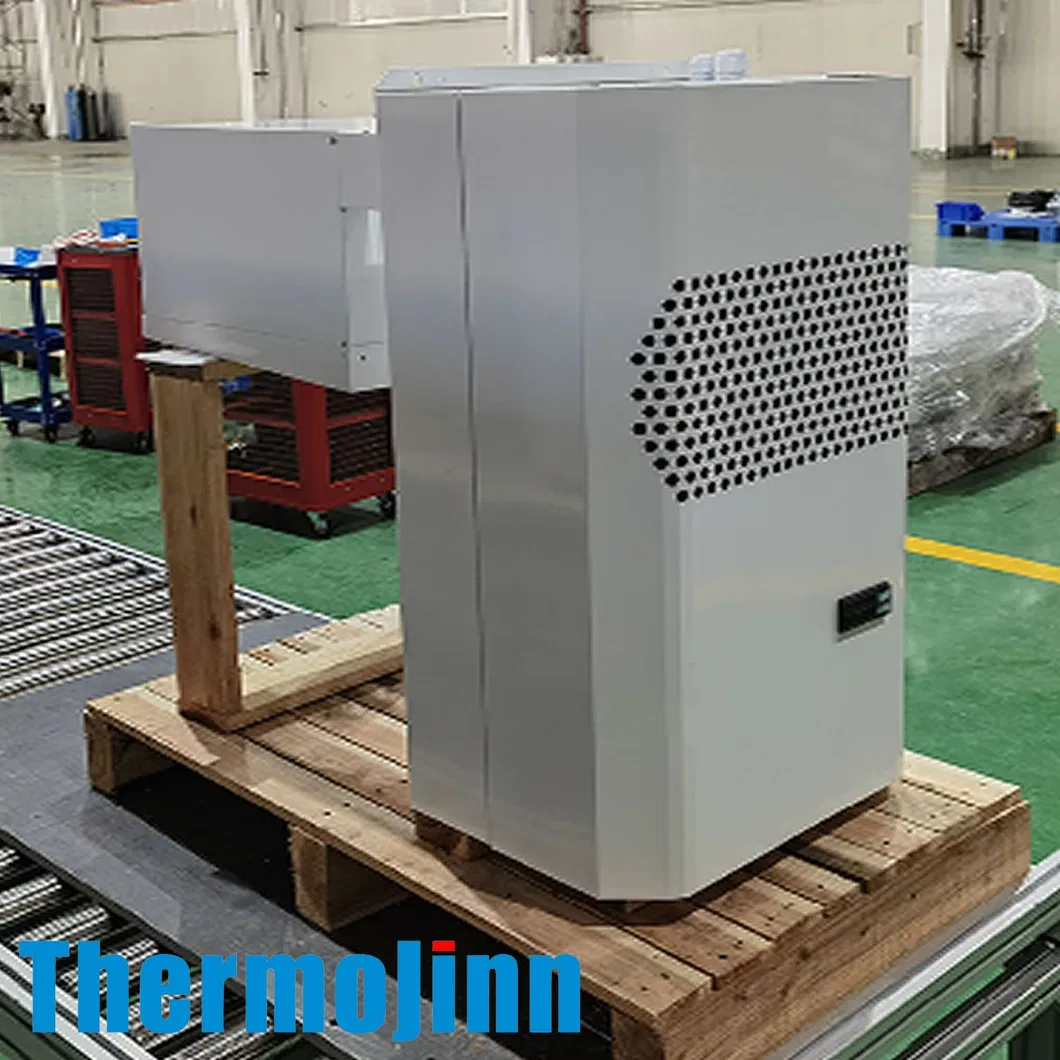

A01W Wall straddle Monoblock & A01T Through wall Monoblock applies to various cold storages. The unit can be installed on the wall, and can be assembled with multi units stacked together. Cases of the Monoblock are with Epoxy sprayed steel plates. Hermetic piston compressors are applied, with R404A as the refrigerant.
Medium Temperature Arguments - A01W
| Model | WMA010C2 | WMA015C2 | WMA018C2 | WMA025C2 |
|---|---|---|---|---|
| Compressor (HP) | 1HP | 1.5HP | 1.8HP | 2.5HP |
| Power supply | 220V/1P/50Hz | 220V/1P/50Hz | 380V/3P/50Hz | 380V/3P/50Hz |
| Condenser Air flow (m3/h) | 630 | 1260 | 2670 | 2670 |
| Installation power (kw) | 0.995kw | 1.477kw | 1.662kw | 2.135kw |
Low Temperature Arguments - A01W
| Model | WLA010C2 | WLA015C2 | WLA020C2 | WLA030C2 | WLA040C2 |
|---|---|---|---|---|---|
| Compressor (HP) | 1HP | 1.5HP | 2HP | 3HP | 4HP |
| Power supply | 220V/1P | 220V/1P | 380V/3P | 380V/3P | 380V/3P |
| Installation power (kw) | 0.86kw | 1.243kw | 1.538kw | 1.992kw | 2.539kw |
It generally takes within 1 month from the receipt of the deposit to the preparation of the goods for shipment.
The warranty period is 1 year, and after-sales service is available 24 hours to ensure continuous operation.
Our FOB prices are based on the quantity, materials, and sizes required. Bulk orders typically qualify for lower pricing per unit.
Yes, we can customize material and size specifications to meet your specific application requirements.
These units primarily use R404A refrigerant, combined with hermetic piston compressors for high efficiency.
The unit must be positioned in an environment with good air circulation, away from high heat sources and obstacles that could limit air suction or discharge.
