| Parameter | Details |
|---|---|
| Model | Optional |
| Battery Type | LiFePO4 Lithium Ion Battery |
| Available Capacities | 215kWh / 305kWh / 362kWh |
| Rated Capacity | >100MAH |
| Standard Voltage | 250V - 750V DC |
| Voltage Range | 200V - 1000V |
| Cycle Life | 6000 Cycles @ 80% DoD |
| Communication | CAN / RS-485 / RS-232 |
| Protection Level | IP54 |
| Warranty | 2 Years |
| Usage | Solar Energy Storage / EV Charging Integrated System |
| Certification | CE / UN38.3 / MSDS |
Our fully-integrated solar-storage-charging solutions seamlessly blend rooftop or ground-mounted PV, high-density battery storage, and ultra-fast EV chargers into a single, intelligent ecosystem. During daylight hours, premium bifacial solar modules harvest sunlight and immediately route clean power to charge vehicles; any surplus is captured in modular, liquid-cooled LFP battery racks for later use. At night or during grid outages, the stored energy is dispatched on demand—eliminating peak charges, shaving demand spikes, and ensuring your fleet is always ready.
| Model | 215kWh+100kW | 305kWh+100kW | 362kWh+100kW |
|---|---|---|---|
| Battery Energy | 215kWh | 305kWh | 362kWh |
| PCS Power | 100kW | 100kW | 100kW |
| MPPT Power | 120kW | 120kW | 120kW |
| MPPT Range | 250~850Vdc | 250~850Vdc | 250~850Vdc |
| AC Voltage | 400V/230V | 400V/230V | 400V/230V |
| Parallel Qty. | Up to 10 | Up to 10 | Up to 10 |
| Size (mm) | 1580*1050*2090 | 1580*1190*2355 | 1580*1190*2355 |
| Weight (kg) | ~2500kg | ~2930kg | ~3230kg |
Optimizing self-use during the day and providing peak shaving to reduce operational electricity costs.
Ideal for urban parking lots and highway service areas, alleviating grid expansion pressure.

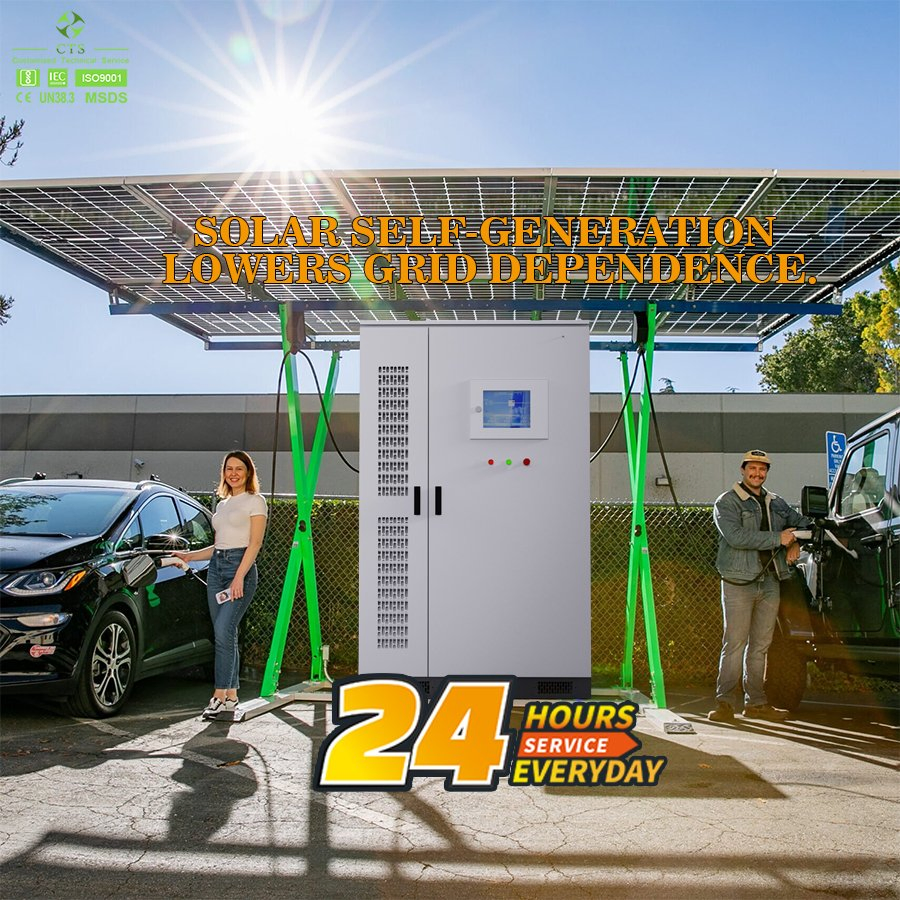

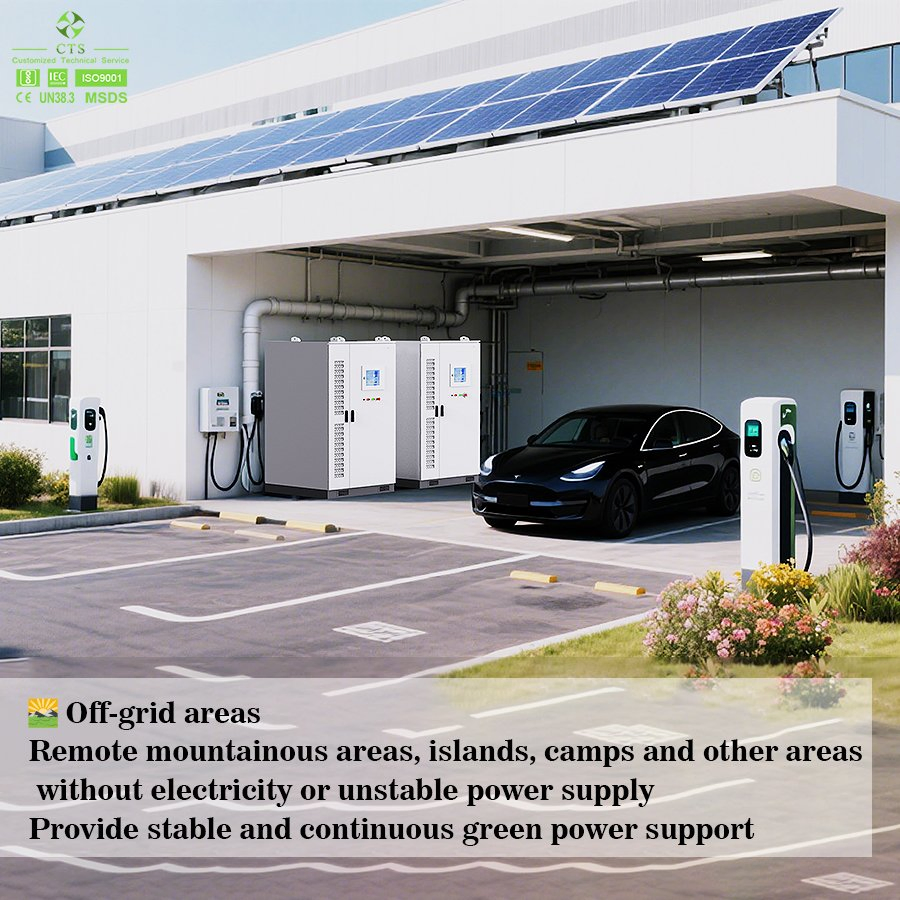

Providing stable, continuous green power for mountainous regions, islands, and research camps.
Full coverage of "self-generation + smart storage + emergency power" for intelligent infrastructure.
Established in 2011, we are a manufacturer specializing in the R&D, production, sales, and service of lithium battery packs. We focus on one-stop customized lithium battery products, including energy storage battery systems and mobile charging stations. With a dedicated 30-person R&D team, we prioritize middle and high-end markets by selecting first-grade lithium cells with high energy density. Our production follows strict management systems to ensure every battery is tested rigorously before delivery. Our global footprint covers America, Australia, Canada, Europe, and Asia, with certifications including MSDS, UN38.3, CE, and IEC 62619.
