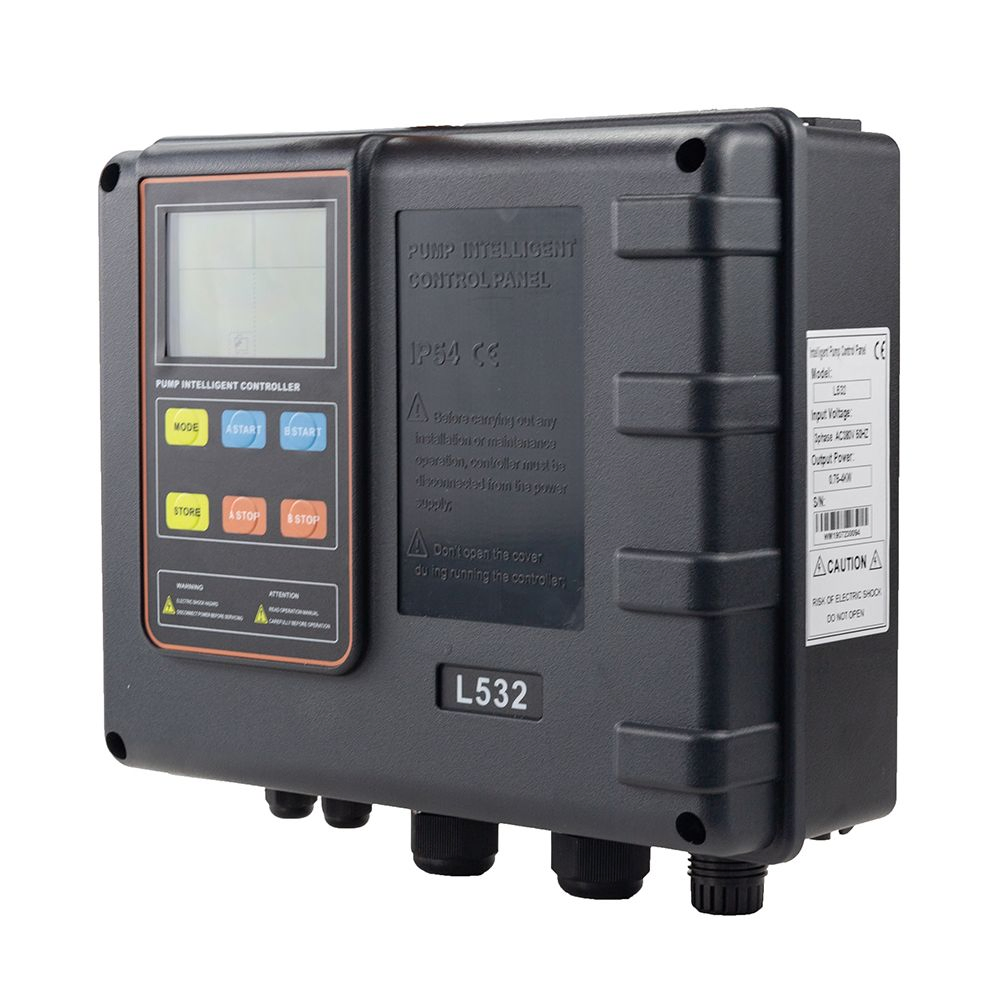

Advanced Energy-Efficient Smart Pump Management System for Savings

📊

Basic Information

Model NO.

L532

Mathematical Model

Linear

Signal

Continuous

Function

Automatic Control, Protection, Monitoring

Certification

ISO: 9001, CE

Material

ABS

Protection Grade

IP54

Phase Number

3 Phase

Rated Output Power

0.75kw~15kw

Rated Input Voltage

AC380/AC400V Three Phase

📦

Packaging & Delivery

Package Size

45.00cm * 34.00cm * 20.00cm

Package Gross Weight

4.350kg

📷

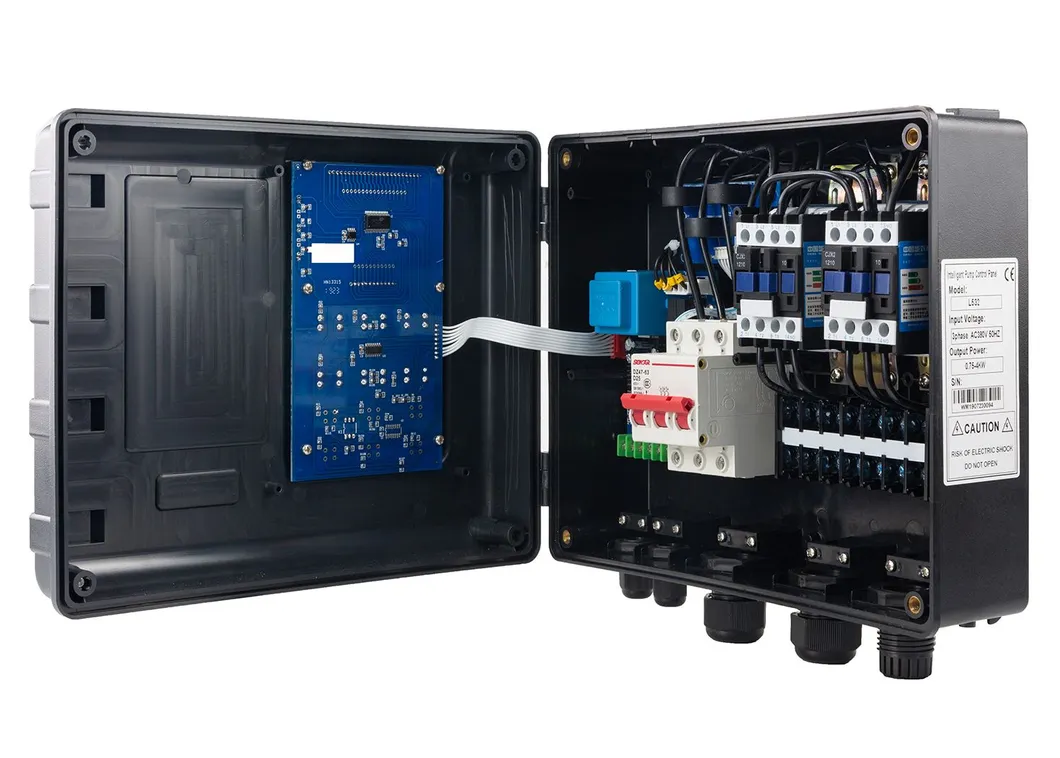

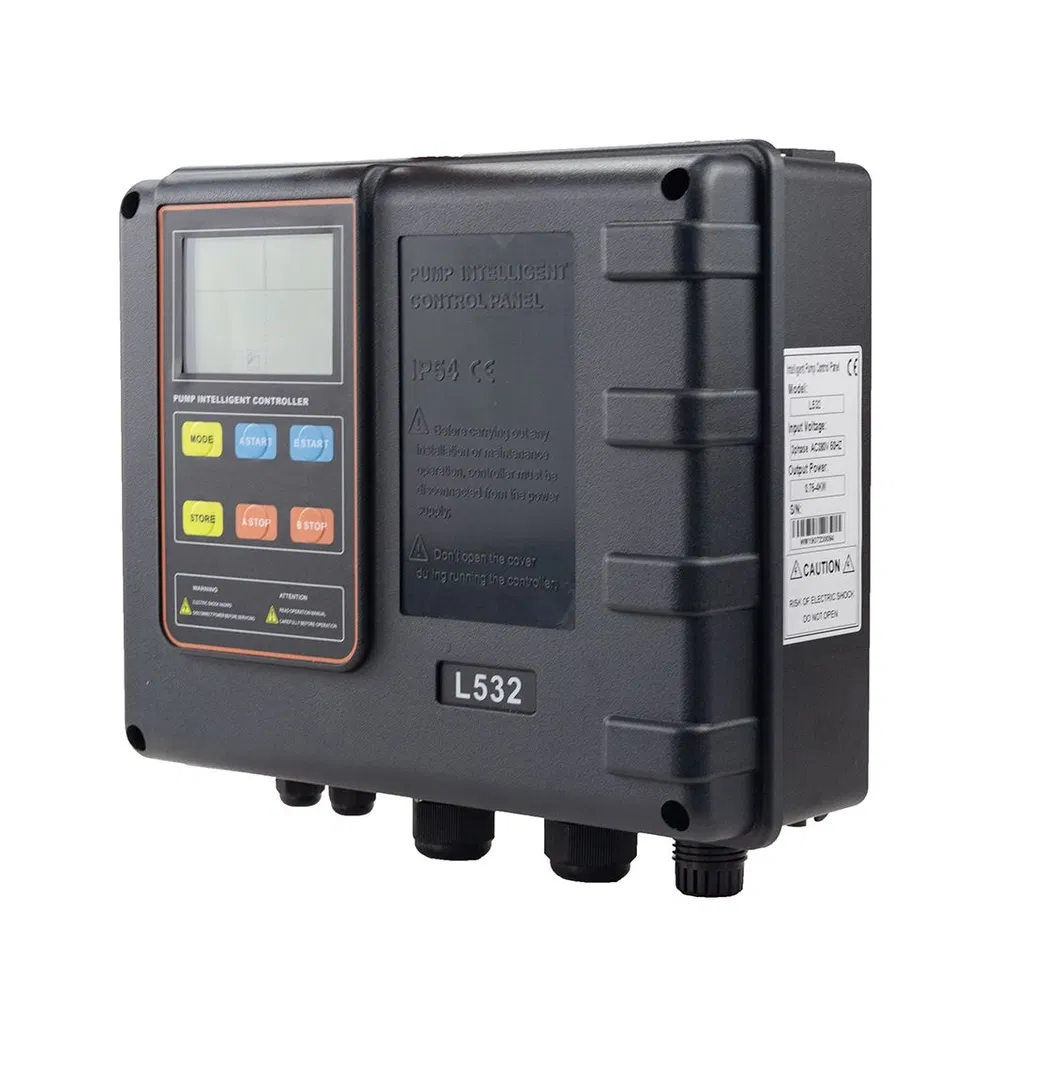

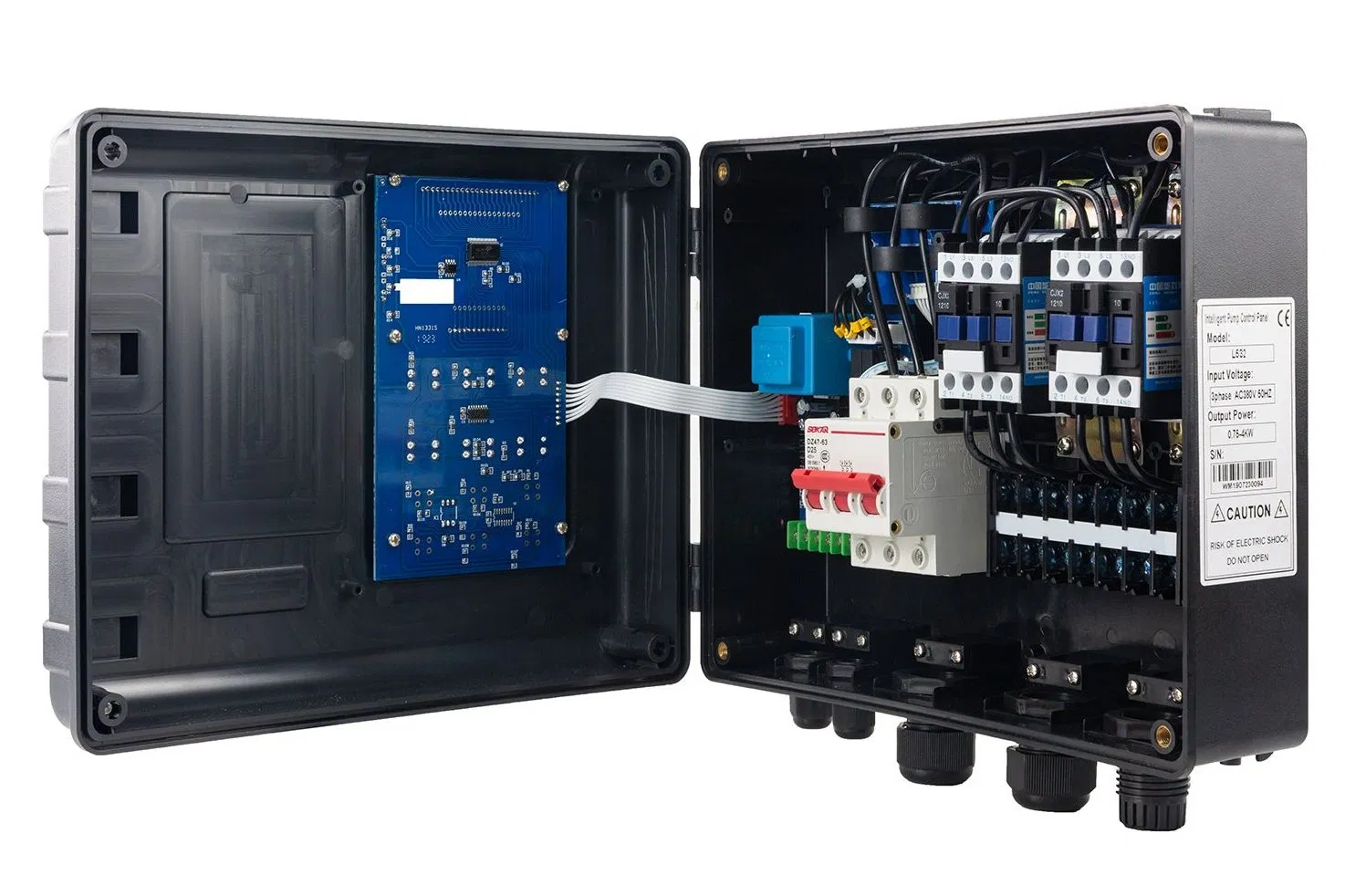

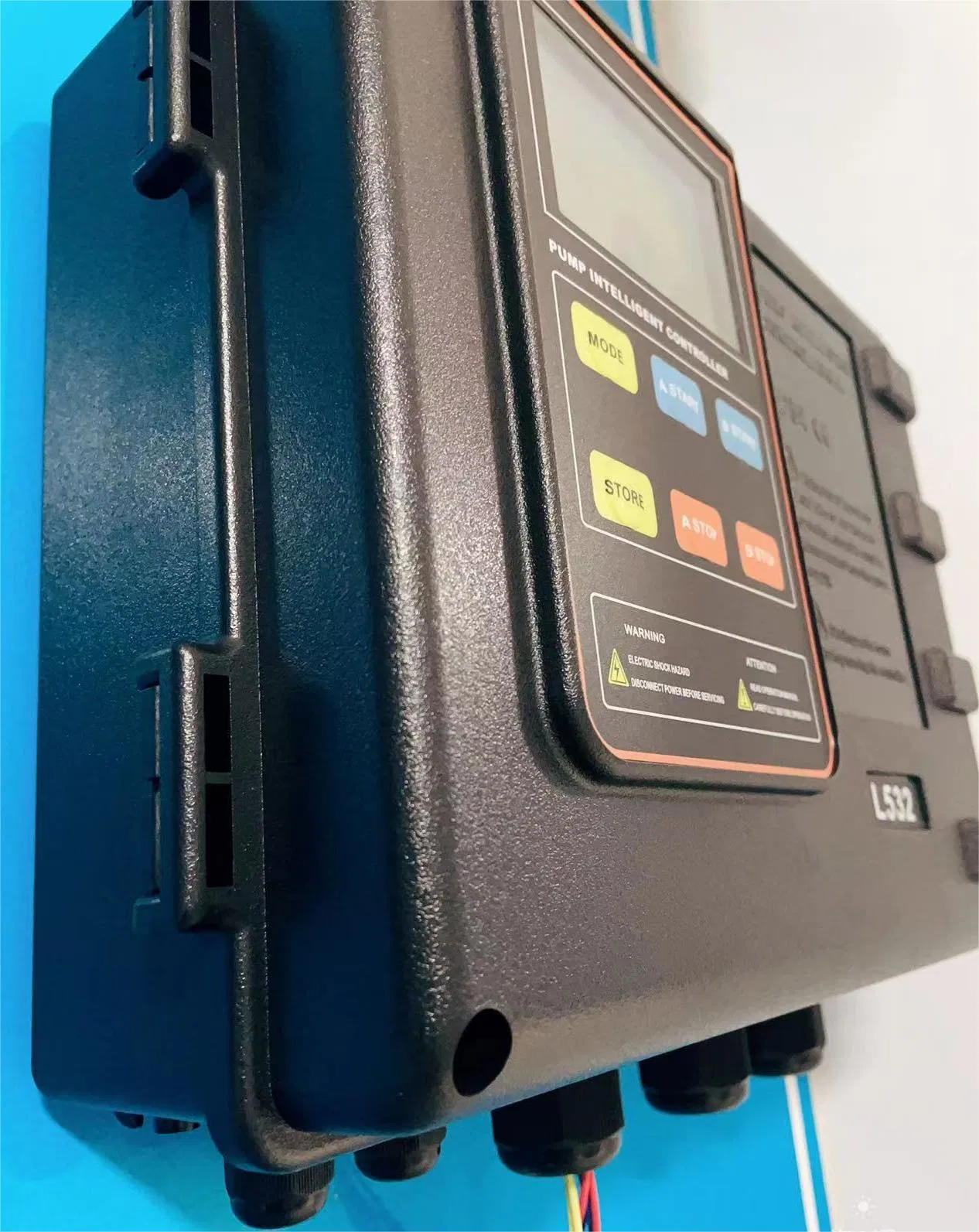

Detailed Photos

🖥️

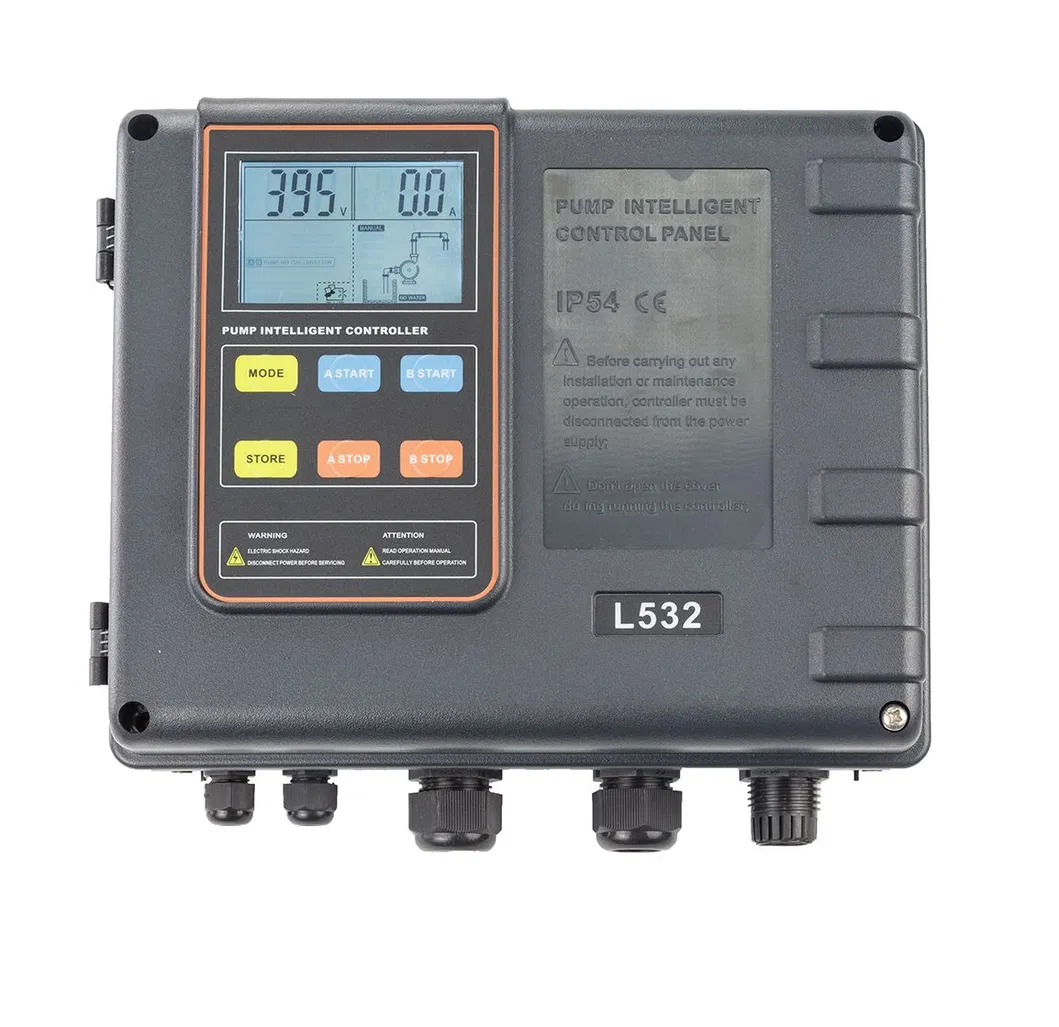

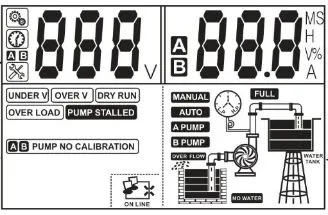

LCD screen: Displaying real-time pump running status and fault records for intuitive monitoring.

📋

Product Specifications

Main Technical Data
Start type	Direct on line
Qty of controlled pump	Dublex pump
Rated input voltage	AC380V/AC400V Three Phase 50HZ/ 60HZ
Rated output power	0.75kw-15kw (1hp-20hp)
Protection function	Over load, Pump stalled, Dry run (sensor free), Under/Over voltage, Repeat start, Open phase
Control Characteristic	Duplex pump control; Auto alternate; Auto switch against malfunction; Standby pump participation

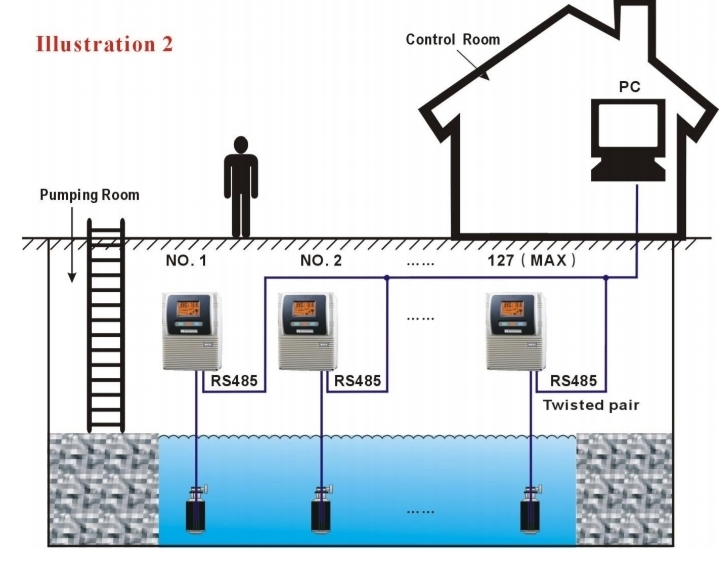

Signal Transmission	Up to 1000m
Protection Grade	IP54

⚙️

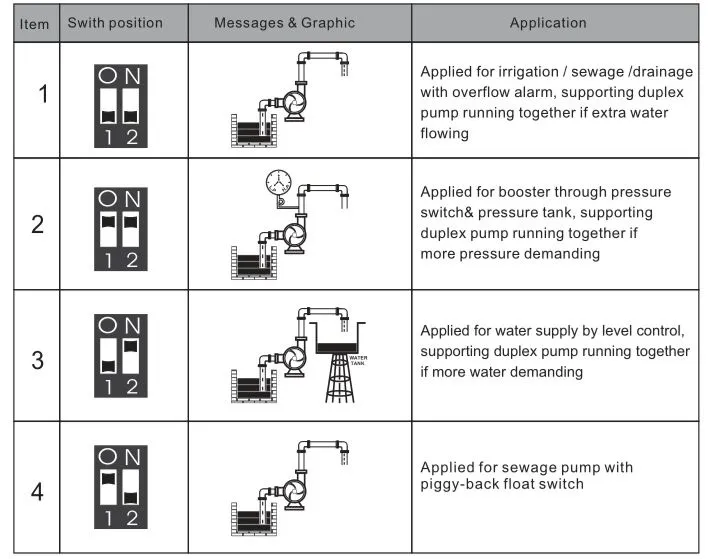

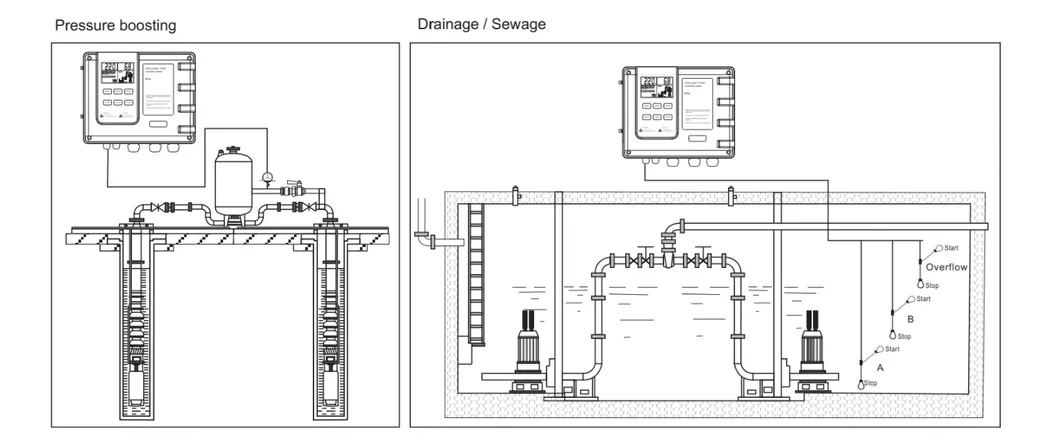

Function Switch Setting

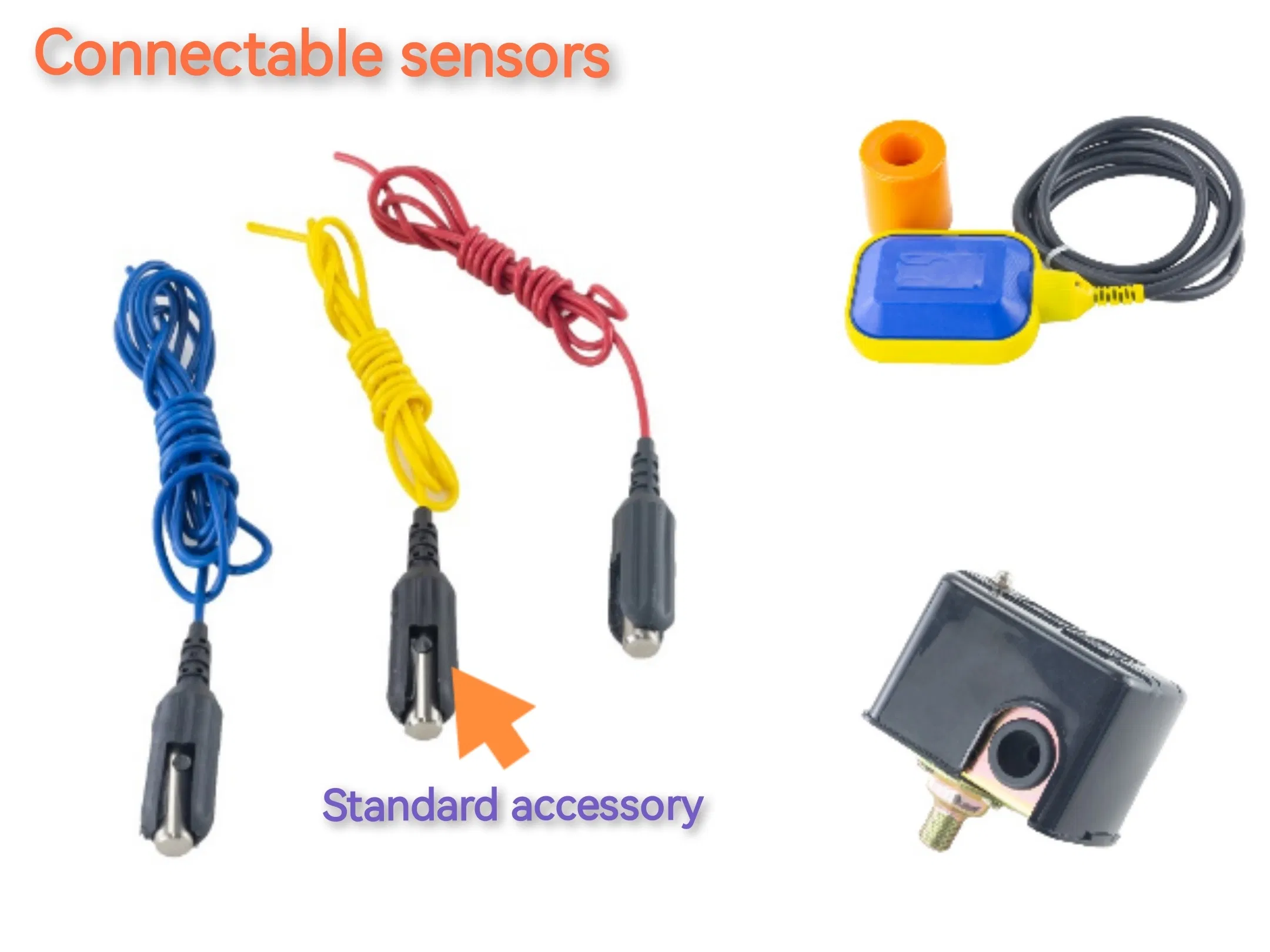

Connectable sensors: Liquid probe (standard) / Pressure switch / Float switch

📉

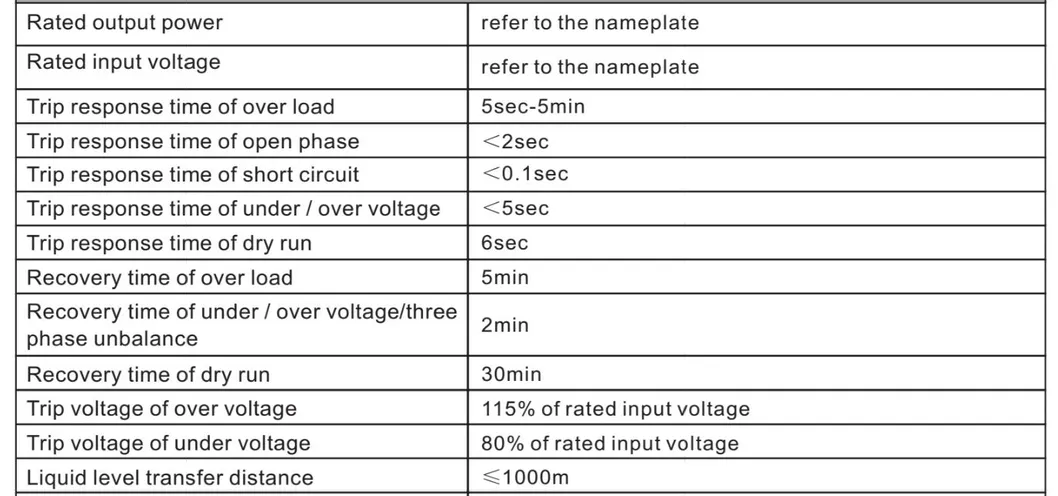

Technical Parameters

🤝

Trading Fair & Feedback

🏭

Manufacturing Facility

🚢

Payment & Delivery Terms

❓

Frequently Asked Questions

Can I have some samples for testing?

Yes, we can provide samples for quality evaluation and testing. Please contact our team for specific sample arrangements.

What is the typical delivery time?

For standard pump control panels, it usually takes about 7 working days. Non-standard or customized orders typically take 15-20 days.

Do you support OEM or ODM services?

Yes, we have a professional engineering team to handle OEM and ODM requirements, subject to specific order quantity conditions.

How do you ensure product quality?

Our production follows ISO standards strictly. We control quality from raw material inspection to the finished product, with every panel being fully tested before shipping.

What is the expected lifespan of the control panel?

The control panels are designed with a technical life expectancy of approximately 8 years under standard operating conditions.

What is your after-sales service policy?

Depending on the order volume, we provide free spare parts or controllers for maintenance and offer comprehensive technical training support.
