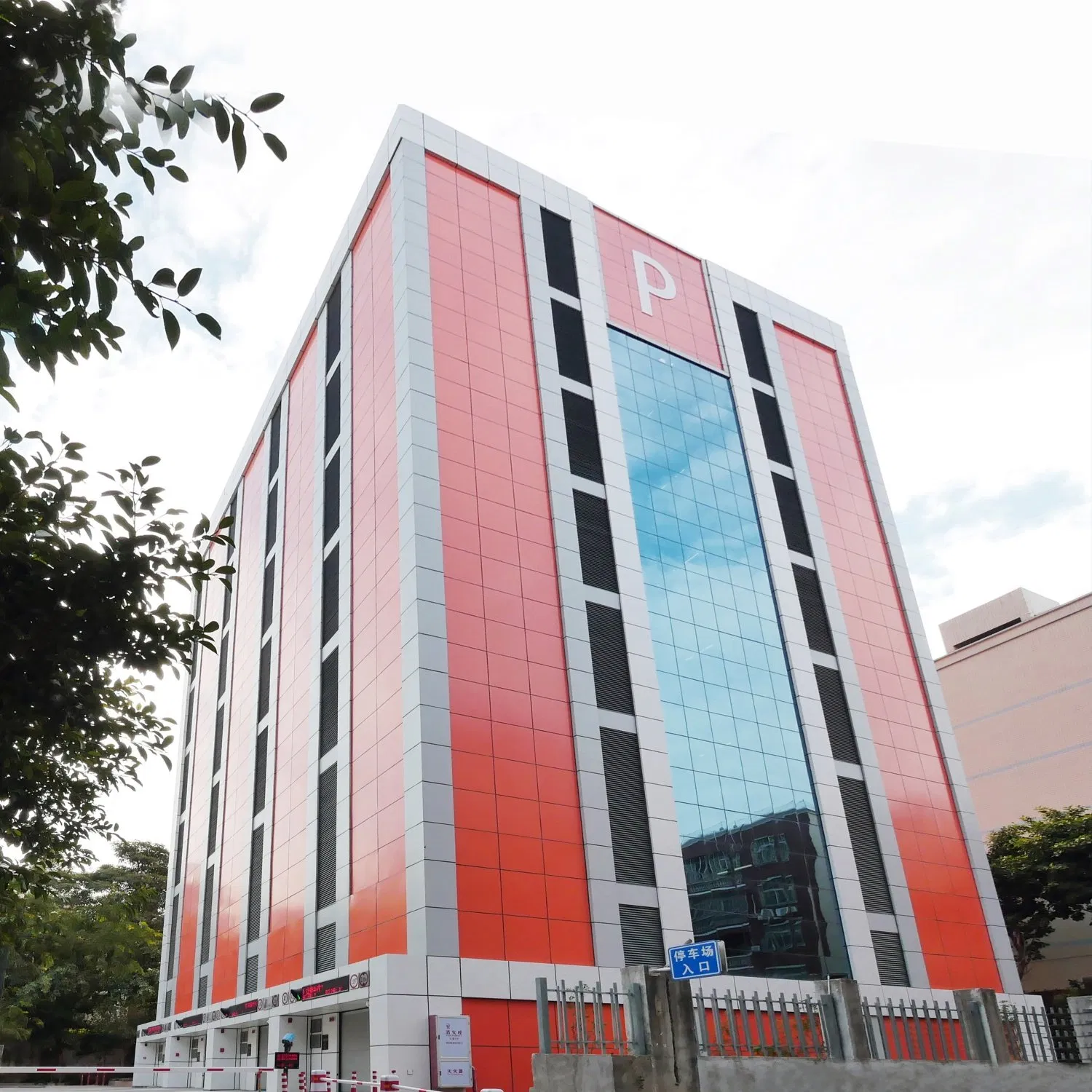

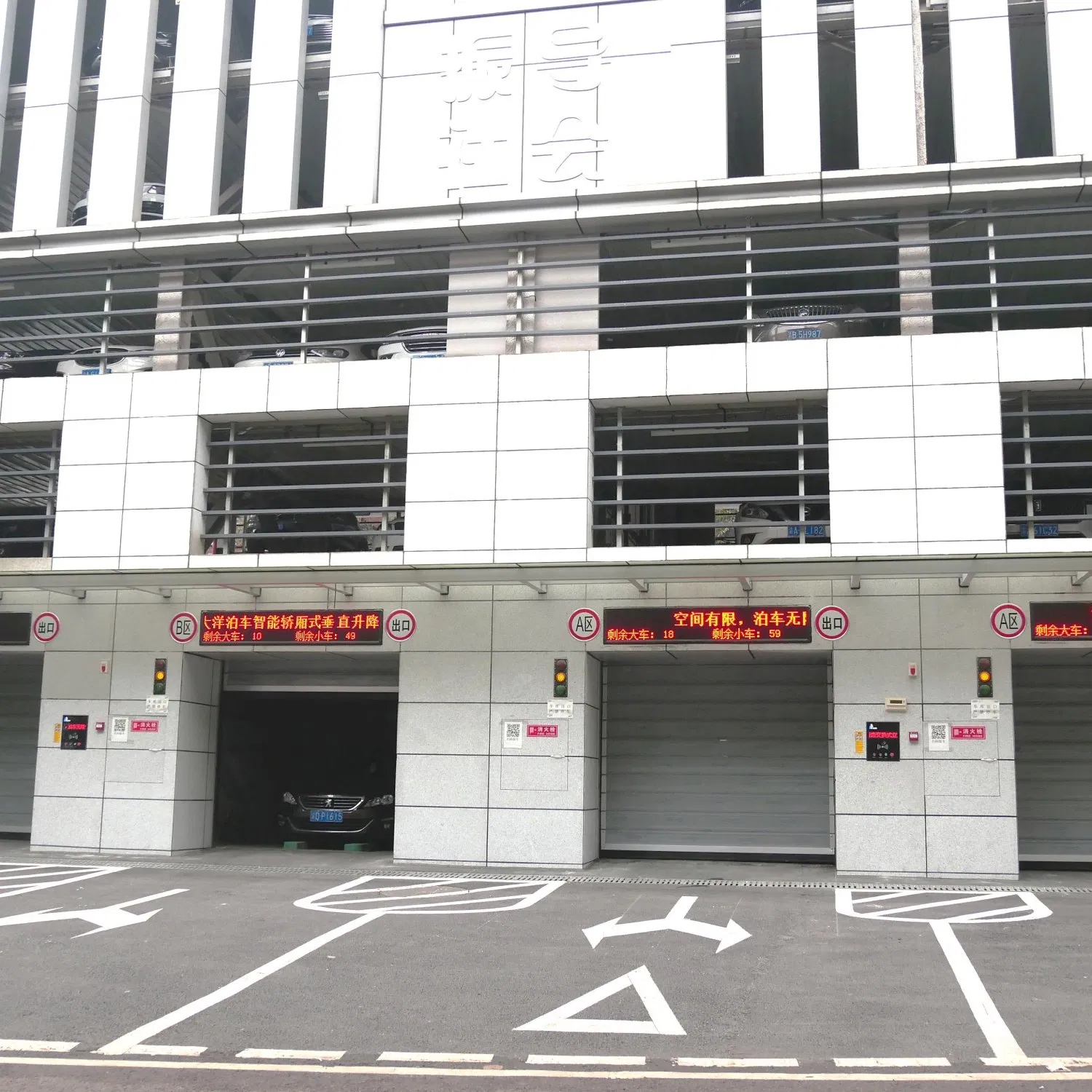

Automated Parking Tower with Smart Lighting and Energy Management System

Customization:	Available
Level:	5-9 Levels
Parking Post:	25-99 Posts

Basic Specifications

Parameter	Specification
Color	Black
Installation Type	Multi-Level
Material	Steel
Operation Mode	Automatic
Power Source	Electric (3P 380V 50Hz / Custom)
Safety Features	Anti-slip Surface, Emergency Stop, Overload Protection, Safety Railings, Sensors
Suitable for	Commercial Use, Public Parking, Residential Use
Drive Mode	Traction + Wire Rope
Vehicle Size (Sedan)	≤5300 × 1900 × 1550 mm
Vehicle Size (SUV)	≤5300 × 1900 × 2050 mm
Max Vehicle Weight	≤2350 kg
Lifting Speed	Max 95 m/min (30kw)
Turning Speed	4.5 Rpm (2.2kw)
Access Method	Forward in and Forward out

Key System Advantages

🏙️

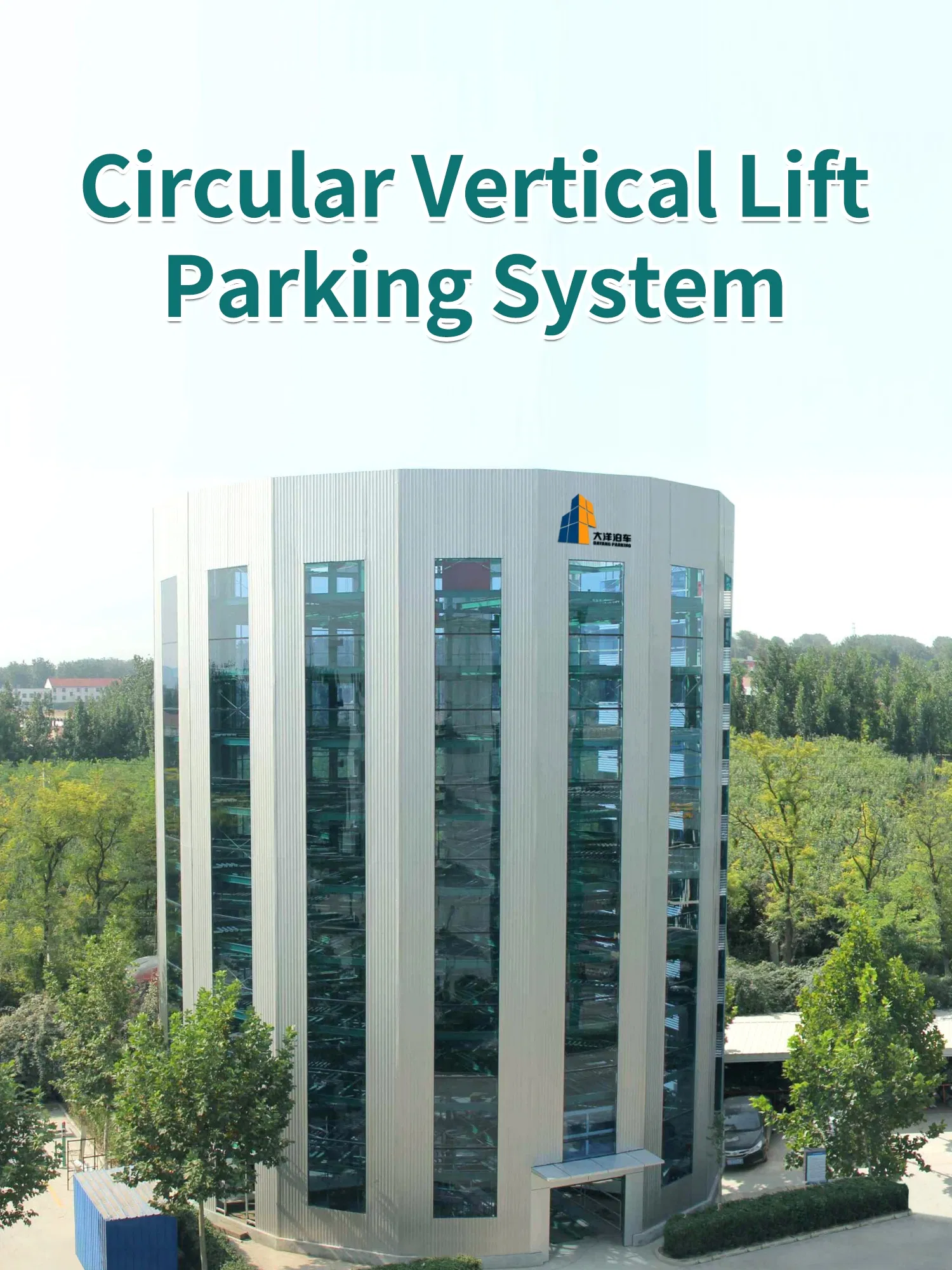

1. Extremely High Space Utilization

The system adopts a vertical tower design, requiring only a small circular foundation to construct dozens of levels upwards. By using elevators for vertical transport, it eliminates the need for ramps or driveways, dedicating all space purely to parking.

⚡

2. Excellent Access Efficiency

Equipped with high-speed elevators and 360-degree rotating platform technology. Vehicles exit directly facing forward ("head-in, head-out"), greatly simplifying operation and reducing retrieval time.

🛡️

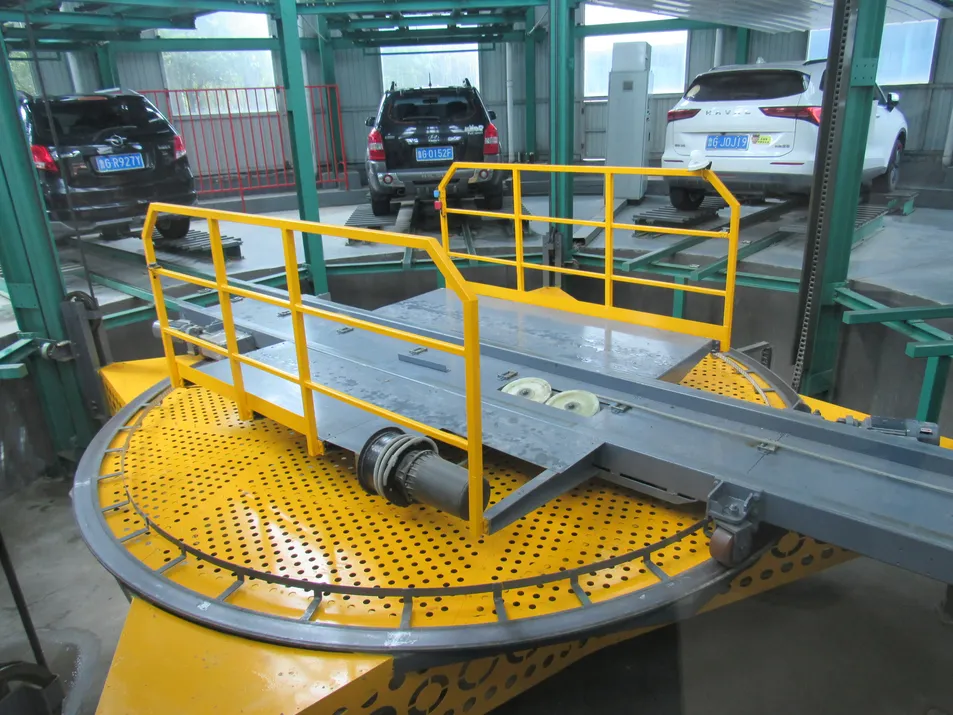

3. Outstanding Safety & Protection

Fully enclosed steel structure protects vehicles from weather and vandalism. Automated operations eliminate human error and collision risks. Systems include personnel intrusion detection and fall prevention devices.

🌱

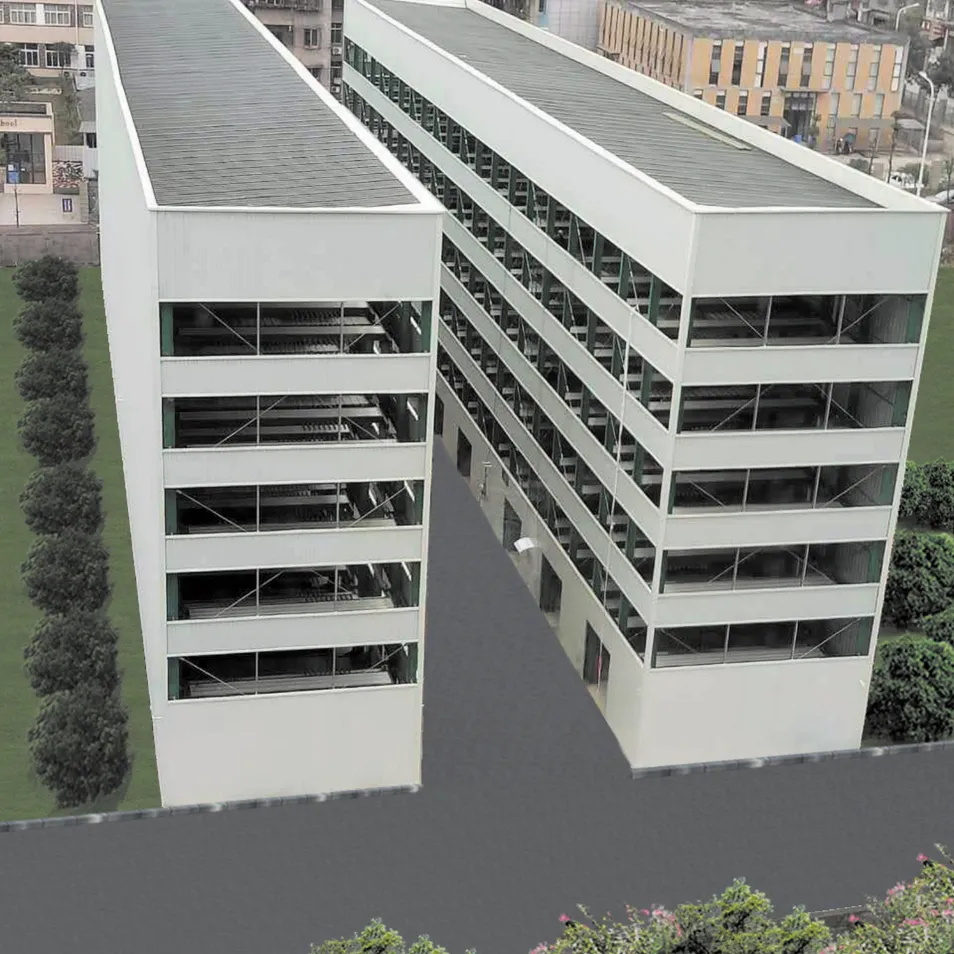

4. Eco-Friendly & Energy Saving

Reduces vehicle emissions by eliminating the search for parking. The electric drive system is highly efficient, and advanced models incorporate energy recovery systems during descent.

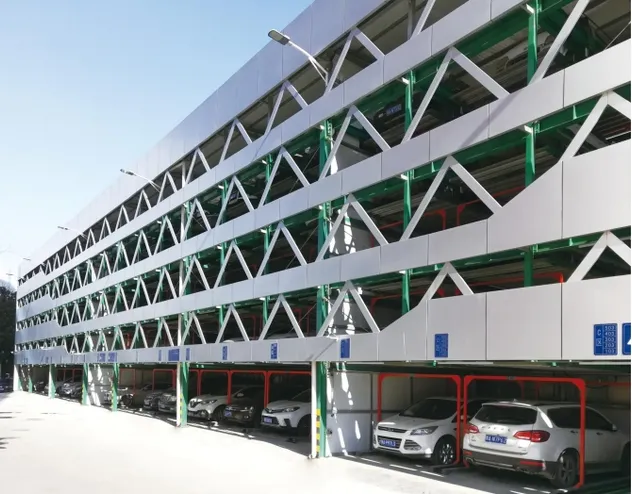

Global Project References

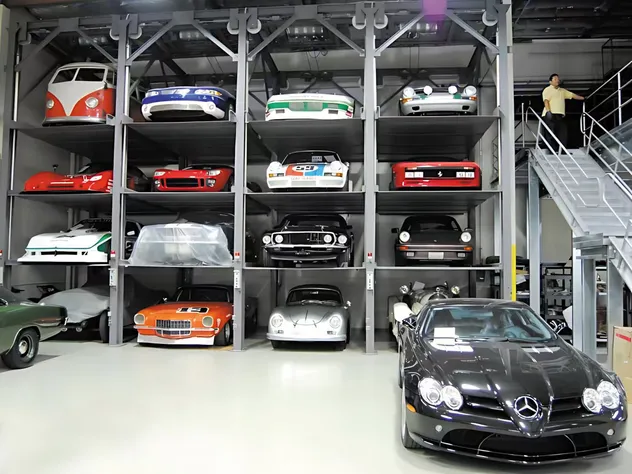

United States
Vertical Horizontal System
38 Spaces

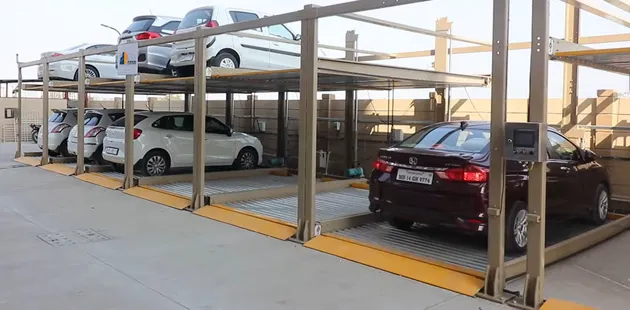

Saudi Arabia
Mechanical Puzzle System
926 Spaces

Construction Committee
Smart Vertical System
1,338 Spaces

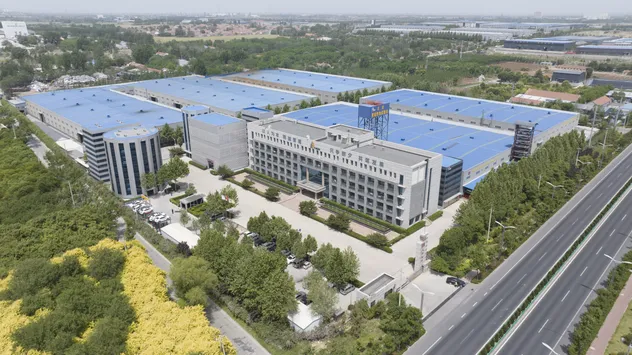

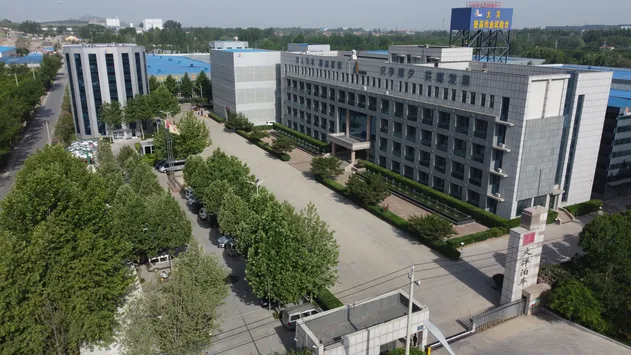

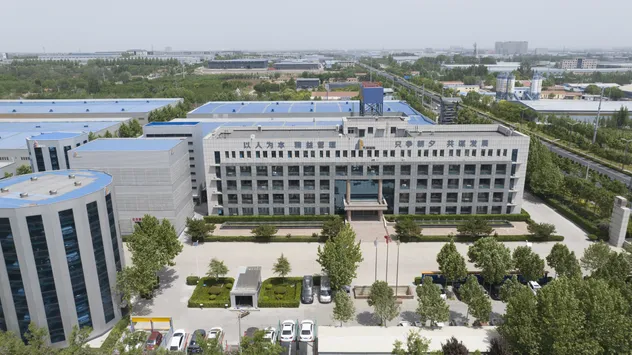

Manufacturing Excellence

Industry Leader: Top manufacturer of mechanical and smart parking systems since 2001. Our annual output exceeds 200,000 parking spaces, making us one of the industry's largest producers.

Global Reach: We export to North America, the Middle East, Europe, Southeast Asia, and Latin America, providing innovative and sustainable parking solutions worldwide.

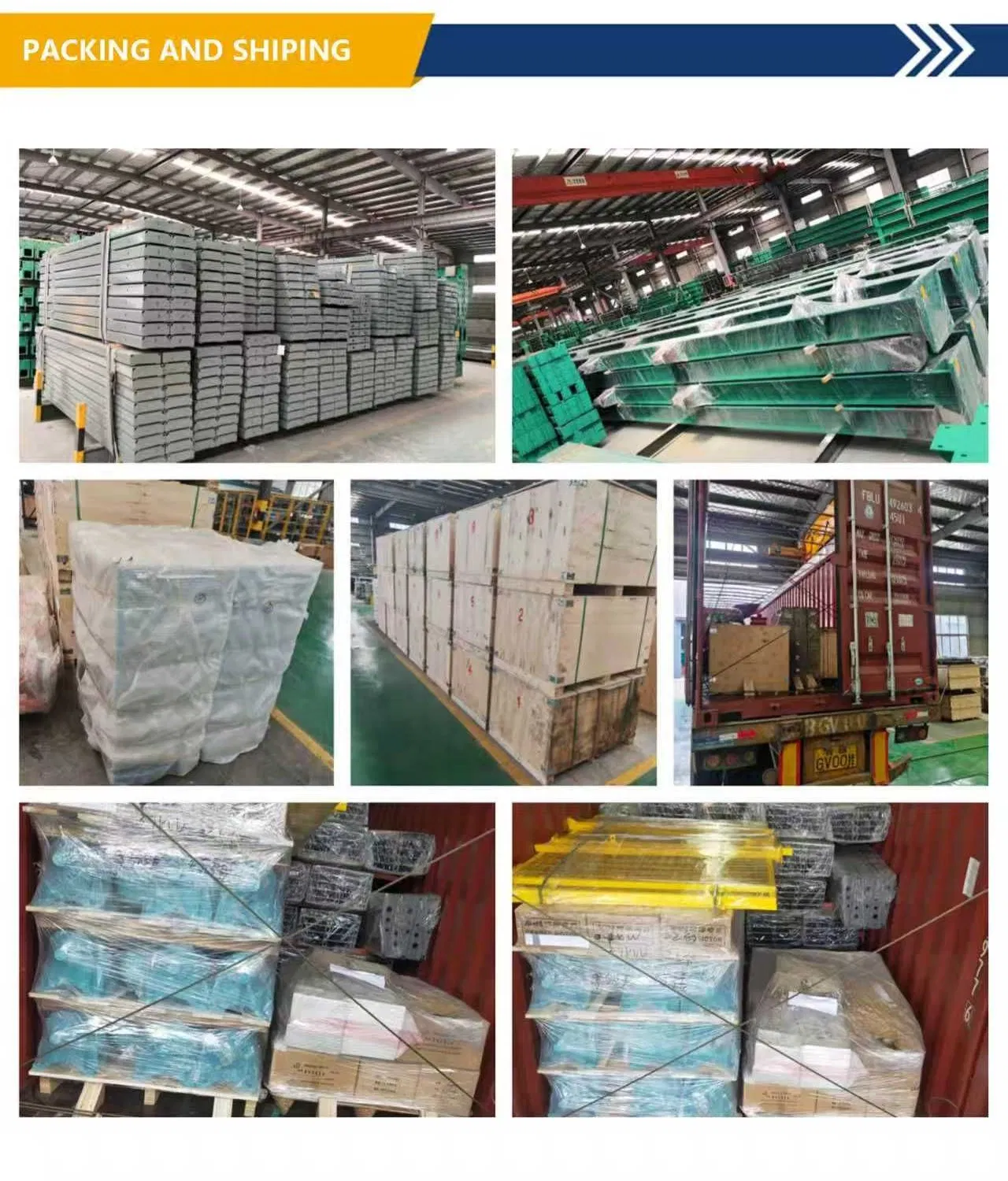

Packing & Delivery

Frequently Asked Questions

1. How to prevent equipment corrosion in high-humidity areas?

We use hot-dip galvanized steel and fluorocarbon spraying technology, passing 1000-hour salt spray tests. Optional dehumidification systems are available to maintain humidity below 60%.

2. How is icing handled in extremely cold regions?

Systems are equipped with heated car carriers (operational from -30ºC to 50ºC) and anti-slip rail coatings. Our low-temperature start-up technology ensures reliable operation even at -40°C.

3. Can the system be managed without personnel?

Yes, it supports AGV robots and automated IoT monitoring. Owners simply park at the entrance and leave; the system handles the rest and alerts of any abnormalities automatically.

4. What are the typical construction costs?

Lifting/traversing types range from 15,000-30,000 CNY per space, while vertical tower types range from 60,000-100,000 CNY per space. We provide optimized solutions that reduce energy consumption by 20%.

5. Is there support for government subsidy applications?

In many regions, subsidies up to 20,000 CNY per space are available for public parking. We assist customers with policy interpretation and declaration services to secure funding.

6. What is the average vehicle retrieval time?

The system optimizes paths automatically, with average retrieval times between 1 to 3 minutes, ensuring high turnover efficiency even during peak hours.
