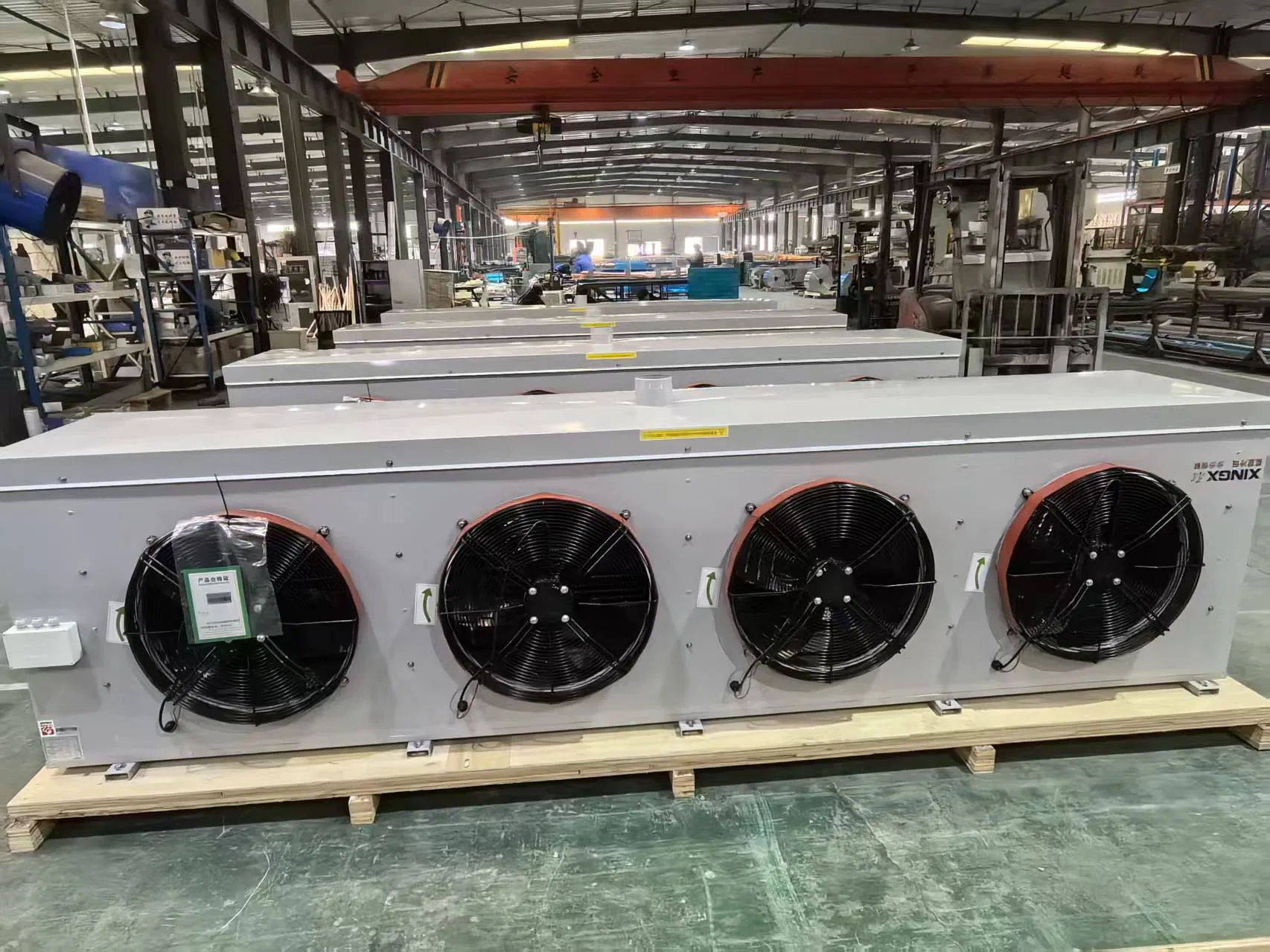

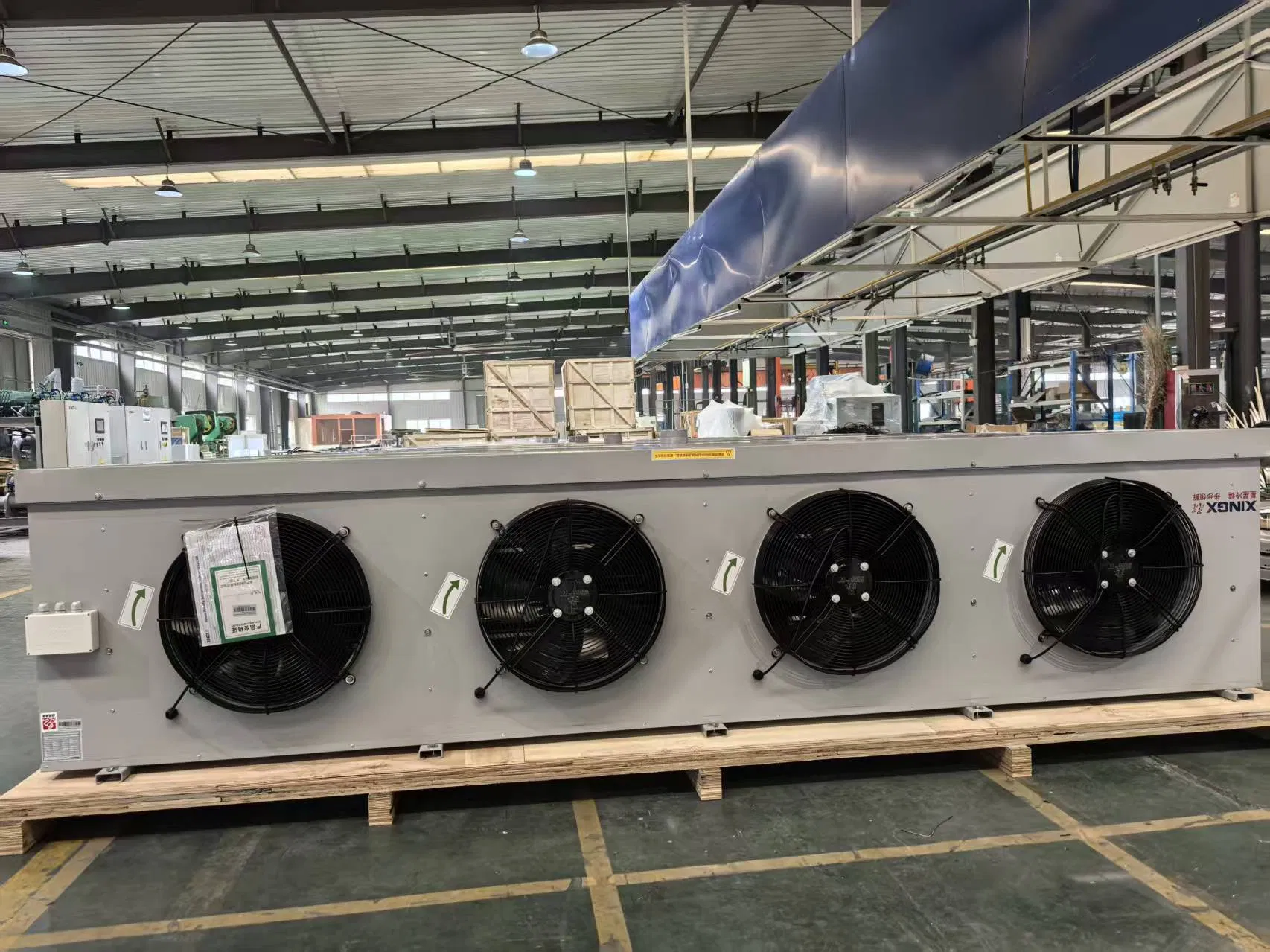

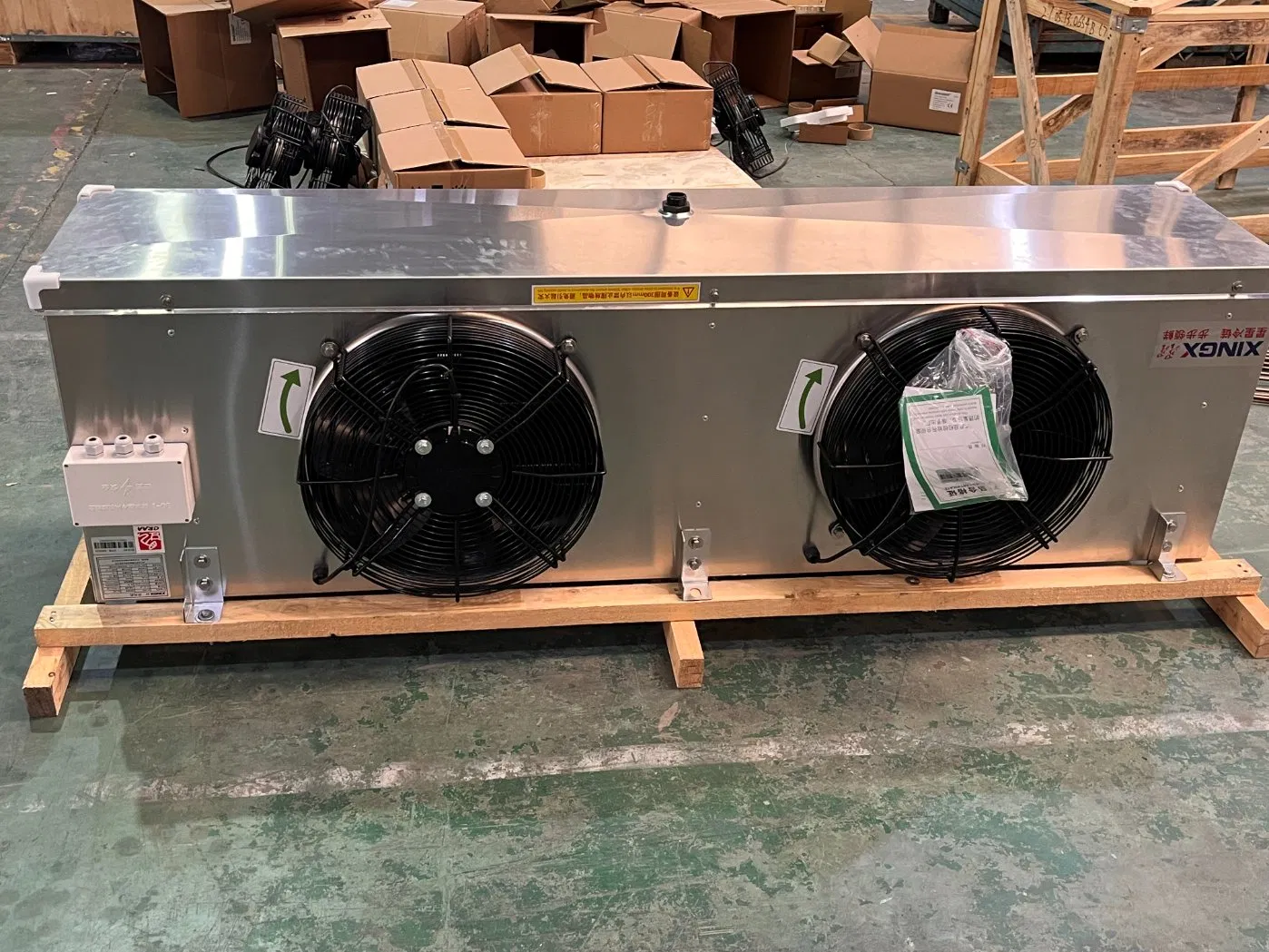

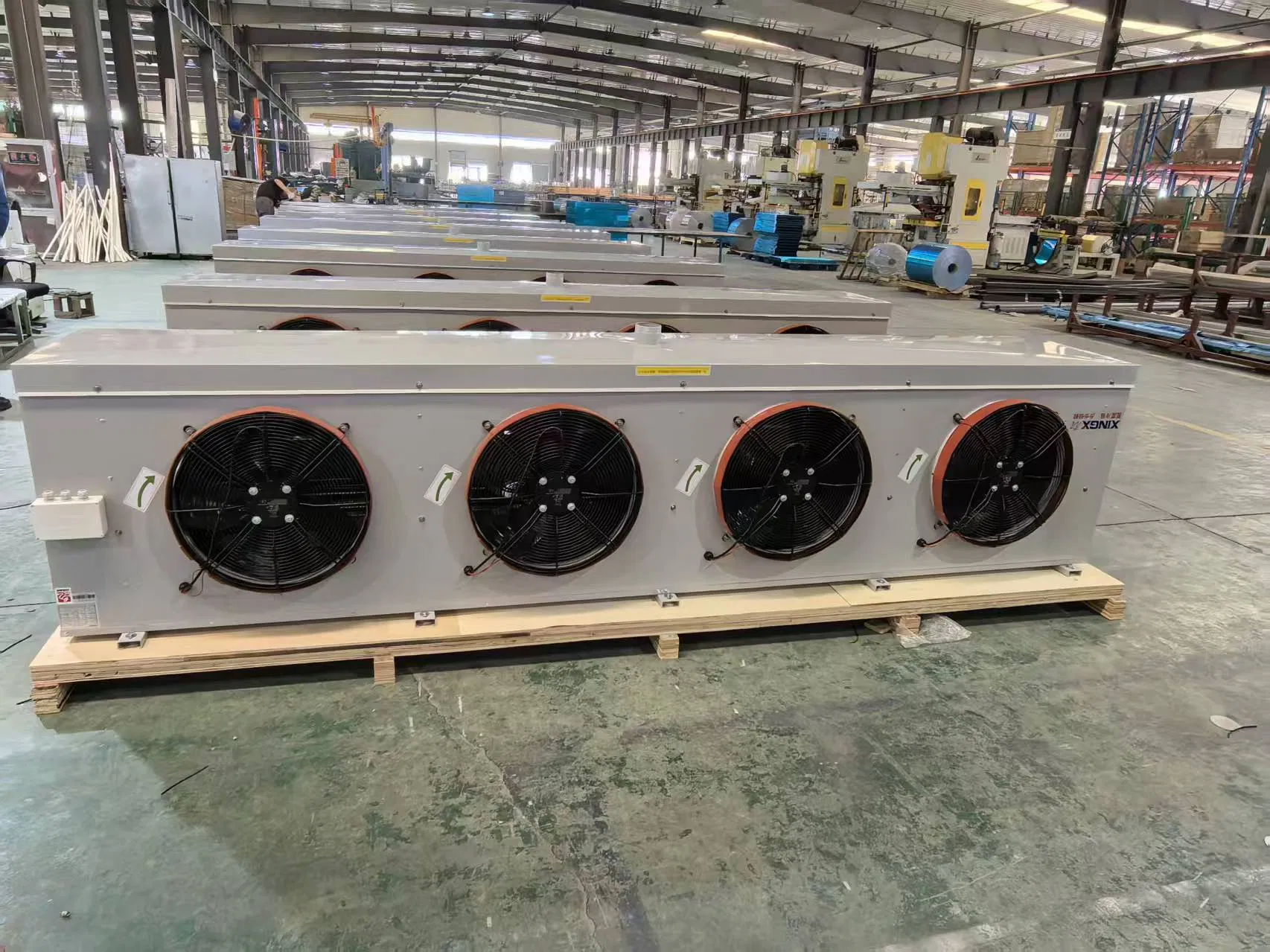

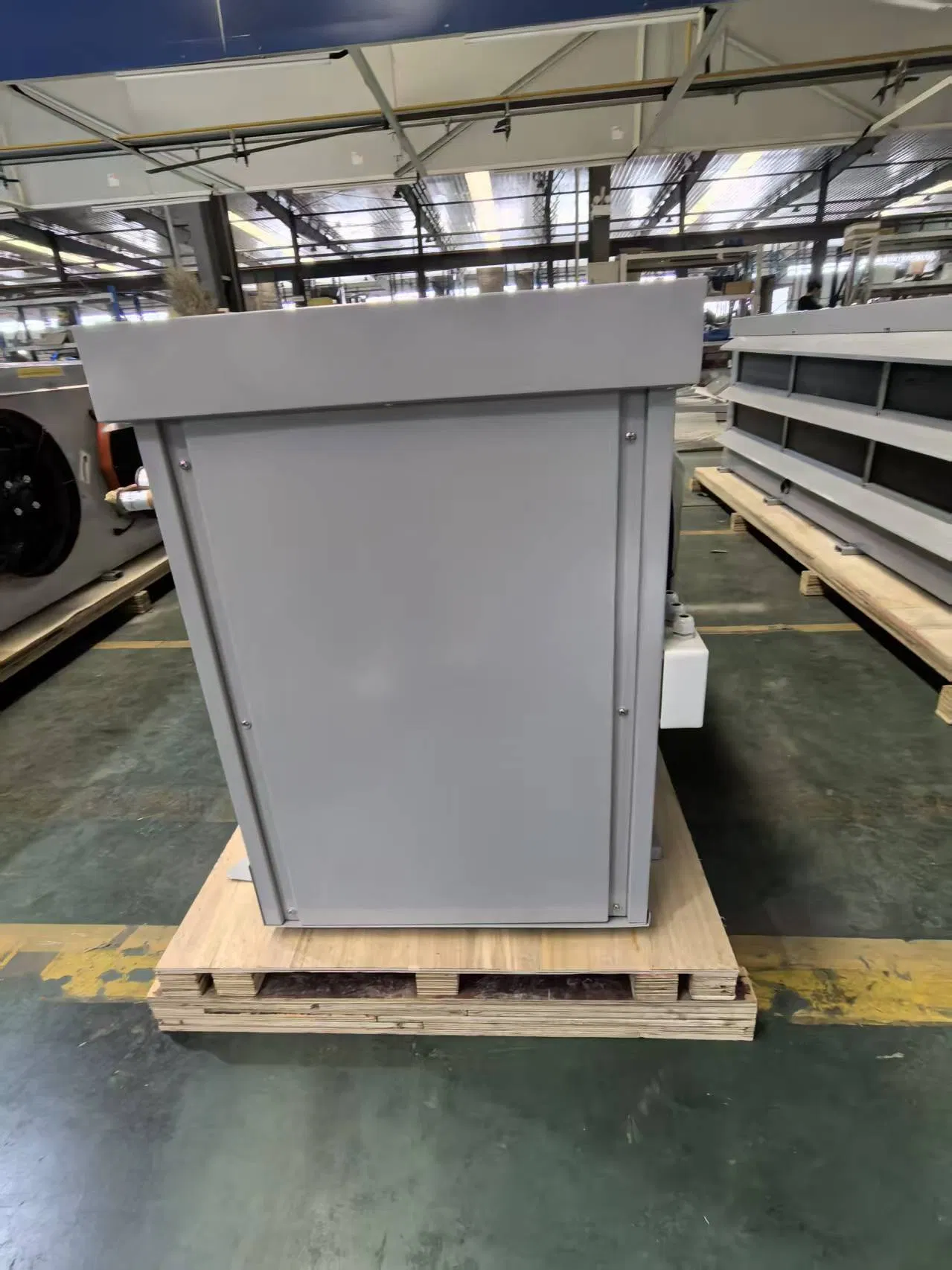

Xingxing Energy-Saving Industrial Evaporator Refrigeration Unit for Cold Storage

Customization: Available
After-sales Service: 1~10 Years
Warranty: Engineers Available to Service Machinery Overseas

Product Description

i

Basic Specifications

Model NO.
Ceiling Mounted Air Cooler
Certification
CE, ISO, FM etc
Application
Heater, Cooler, Vaporizer, Condenser
Principle
Regenerative Heat Exchanger
Style
Steel Type
Material
Steel
Power Supply
220~240V/1p/50Hz, 380~420V/1p/50~60Hz, 440~460V/3p
Installation
Easy Installation
Transport Package
Wooden and Plastic Package
Specification
10m2 ~ 600m2
HS Code
841869
Capacity
200 Pieces Per Week

Product Overview

Refrigerated Medicine Cabinet & Cold Room for Pharmaceuticals

Suitable for Hospitals, Drugstores, Pharmaceutical Factories, and Sanitation facilities.

Top 500 Manufacturing Companies in China
National R&D center, 3200 after-sales service outlets.
Products are exported to over 150 countries and regions around the world.

The company is an industry-leading cold chain equipment manufacturer and comprehensive service provider. The main business includes R&D, production, and sales of refrigeration equipment for commercial refrigeration, commercial kitchens, household, and medical applications. We provide customers with cold storage engineering construction services and supporting equipment. Solutions are widely used in supermarkets, convenience stores, farmers' markets, hotels, catering enterprises, and hospitals.

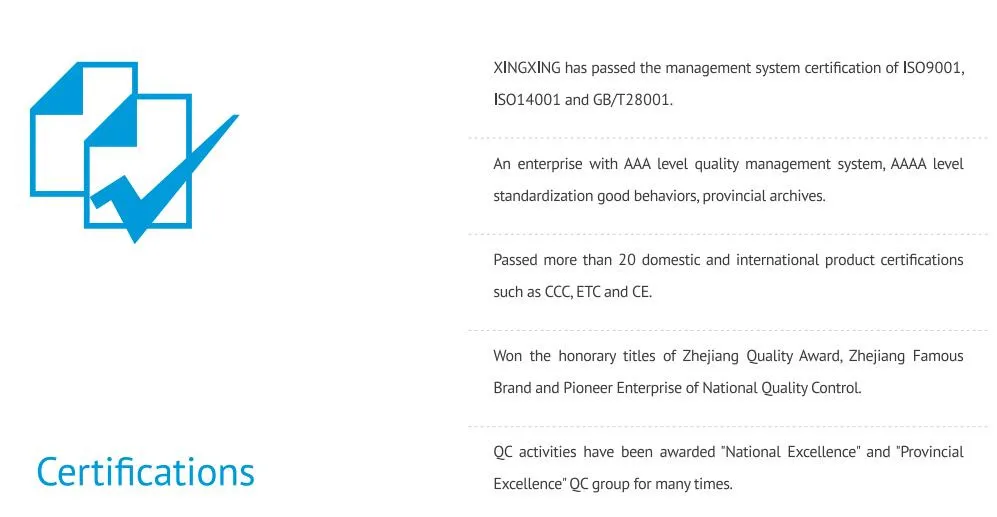

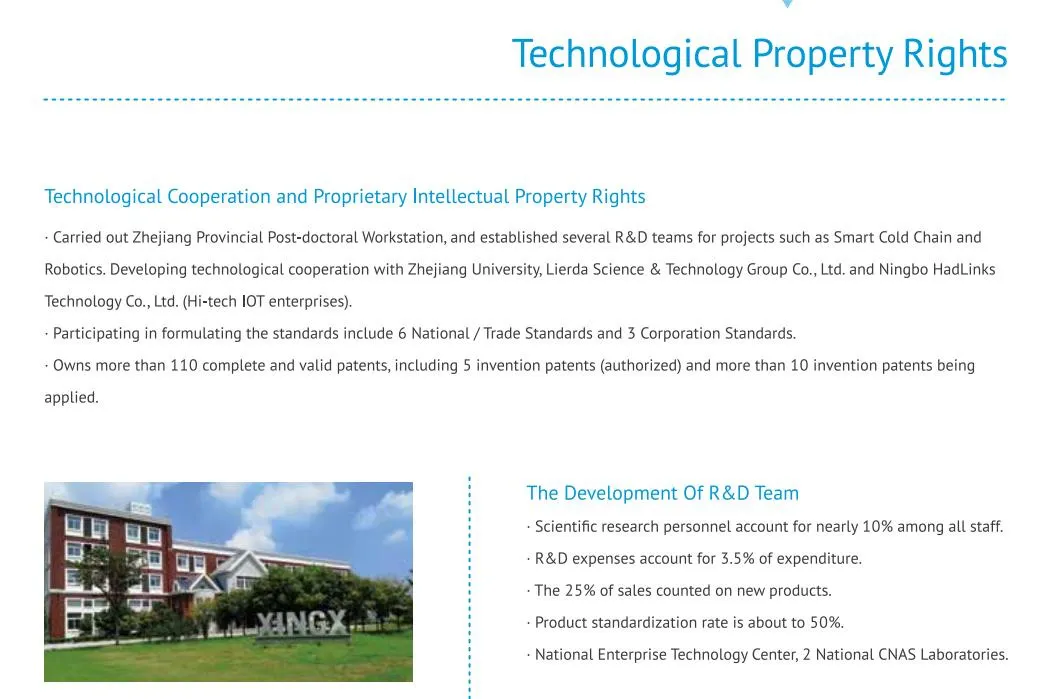

Certification & R&D

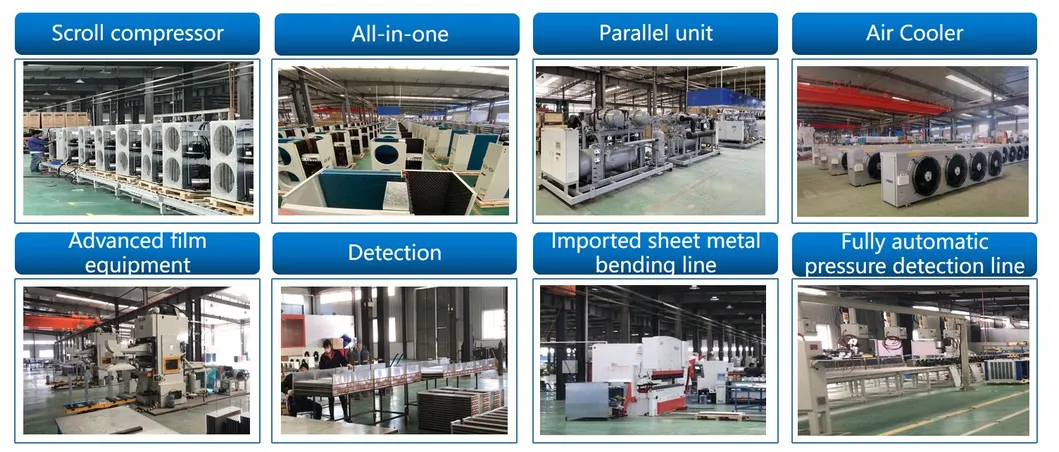

Production Line & Projects

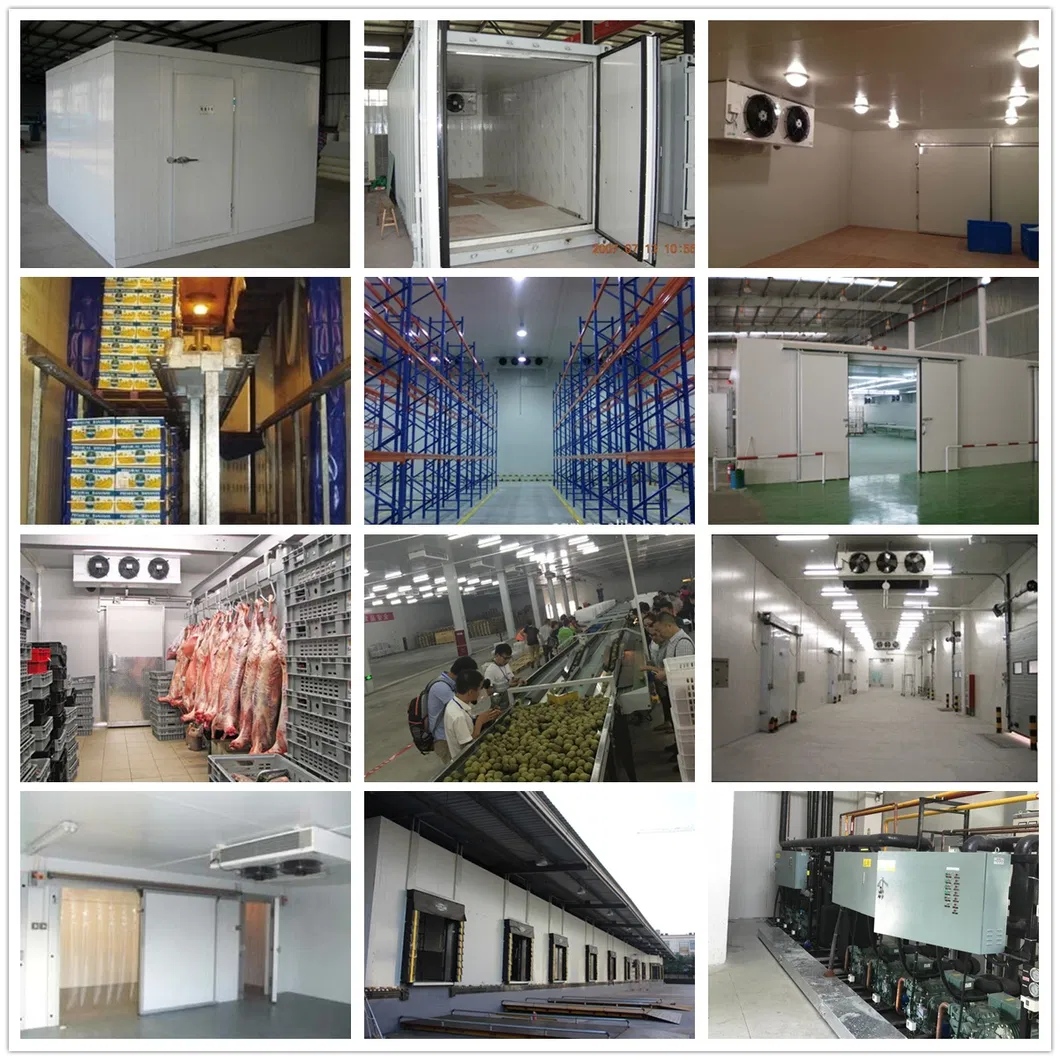

Production Line Project Cases

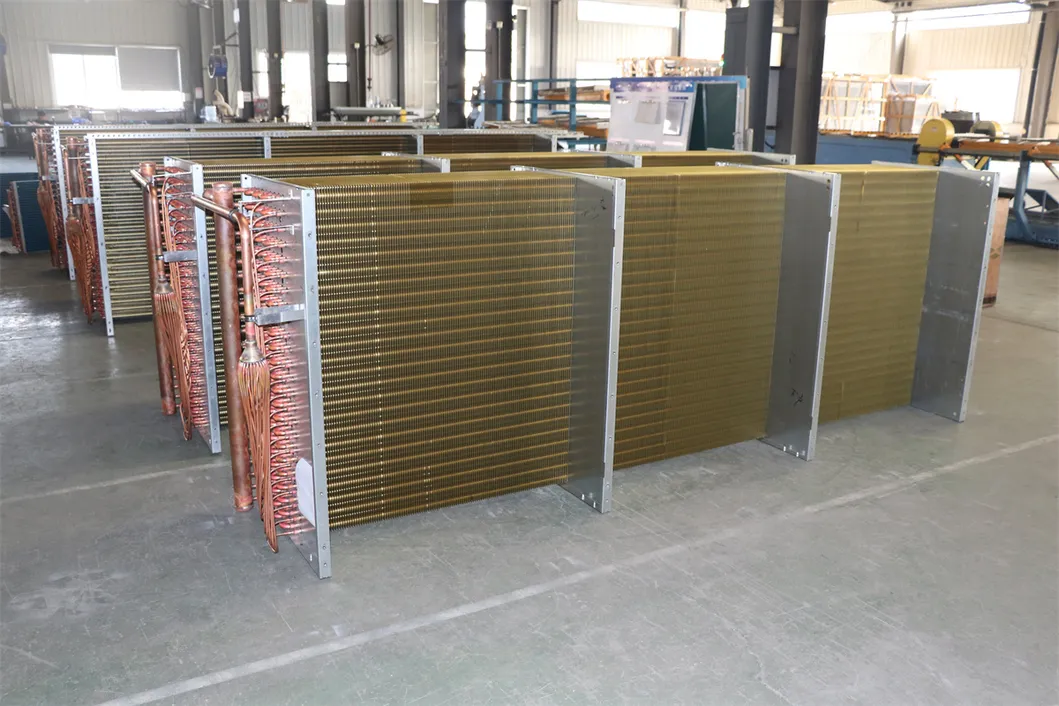

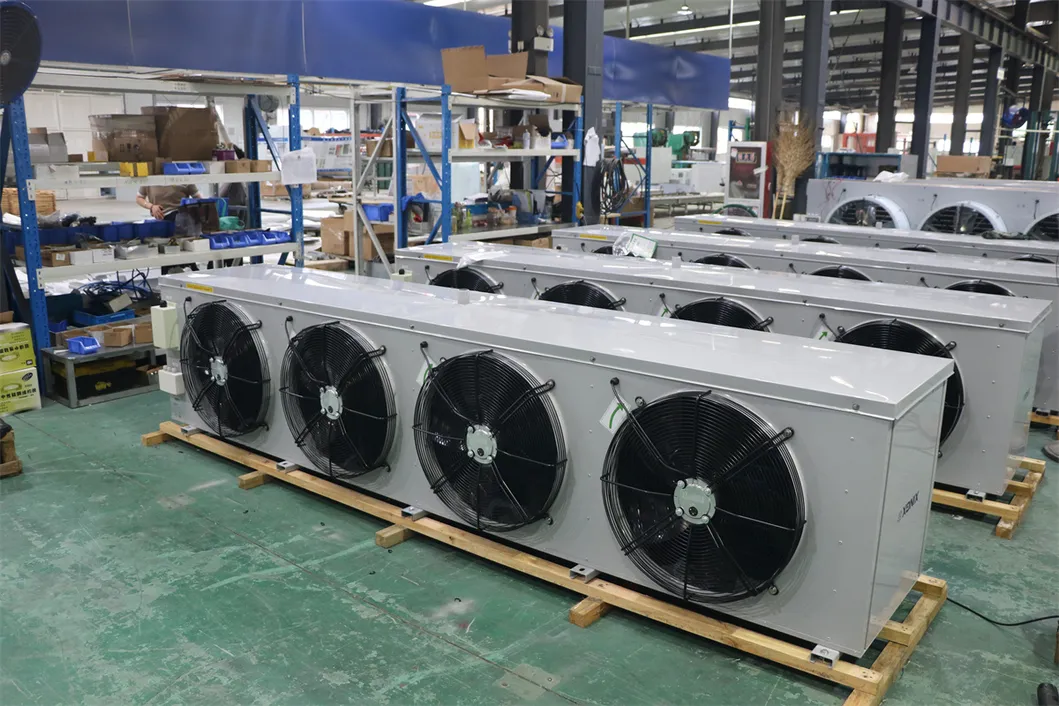

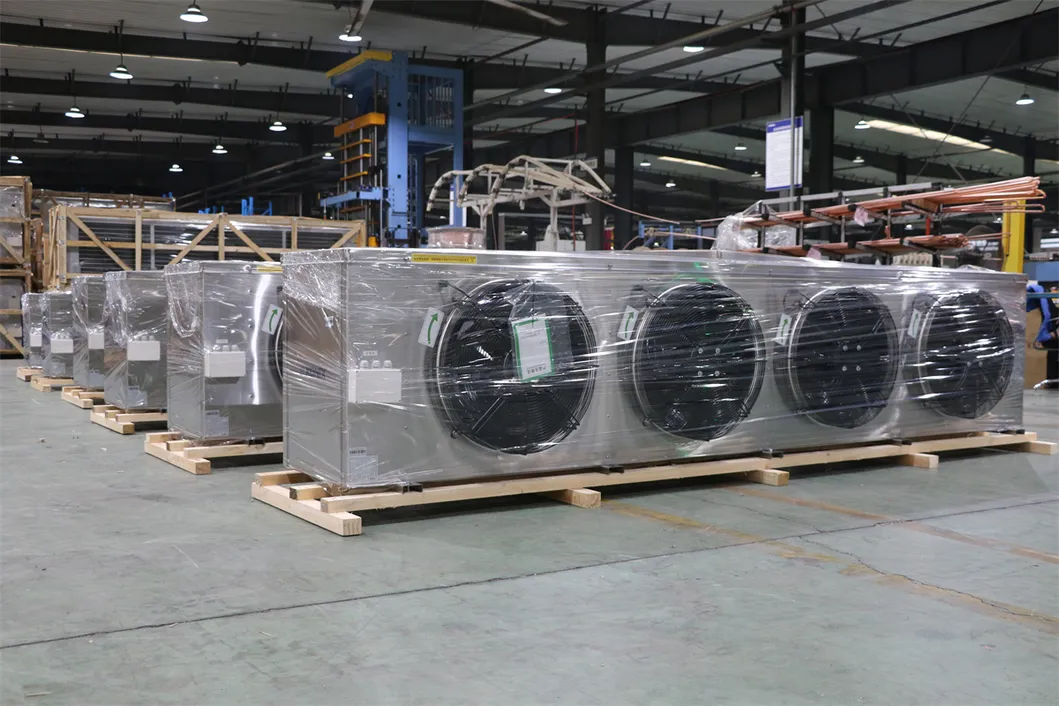

Various Evaporators

Product Gallery

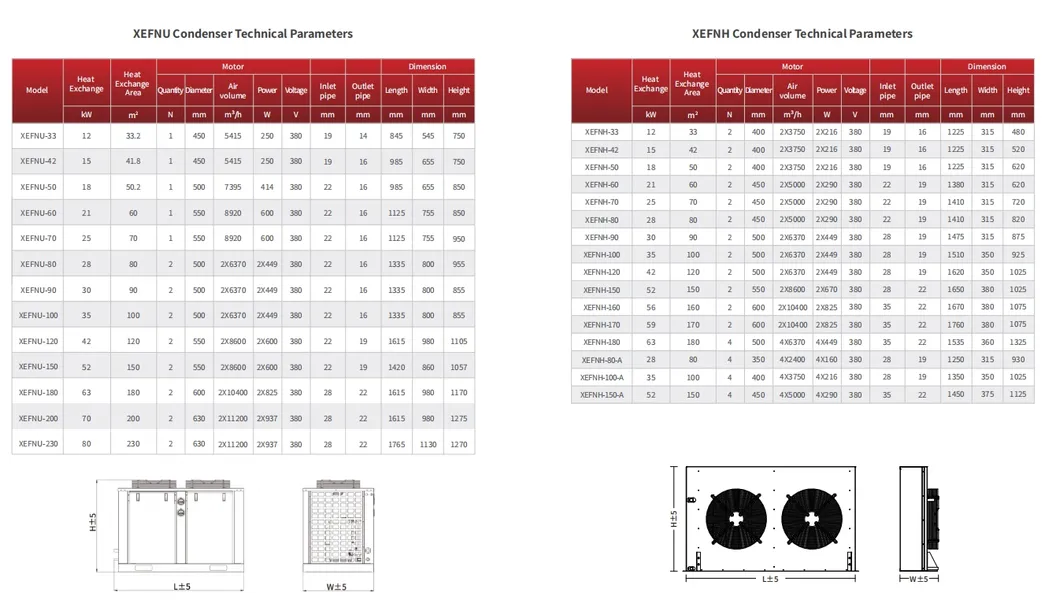

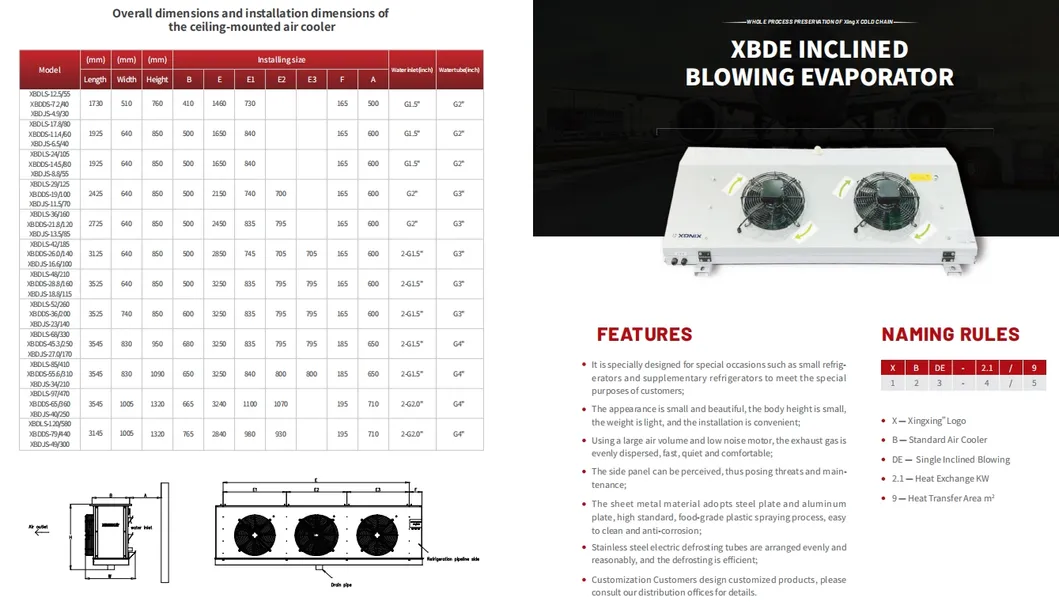

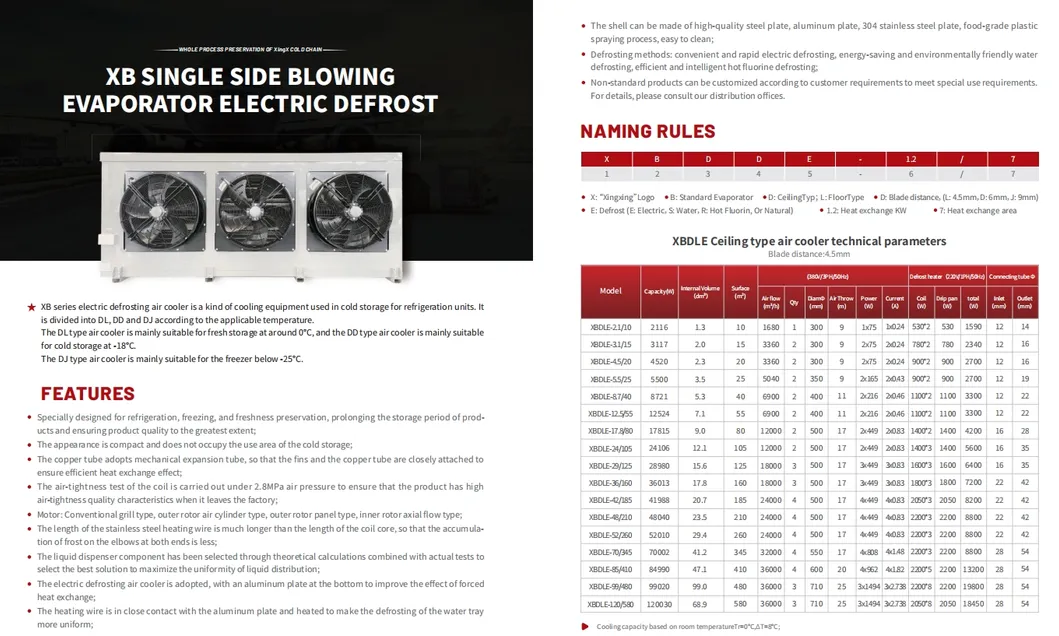

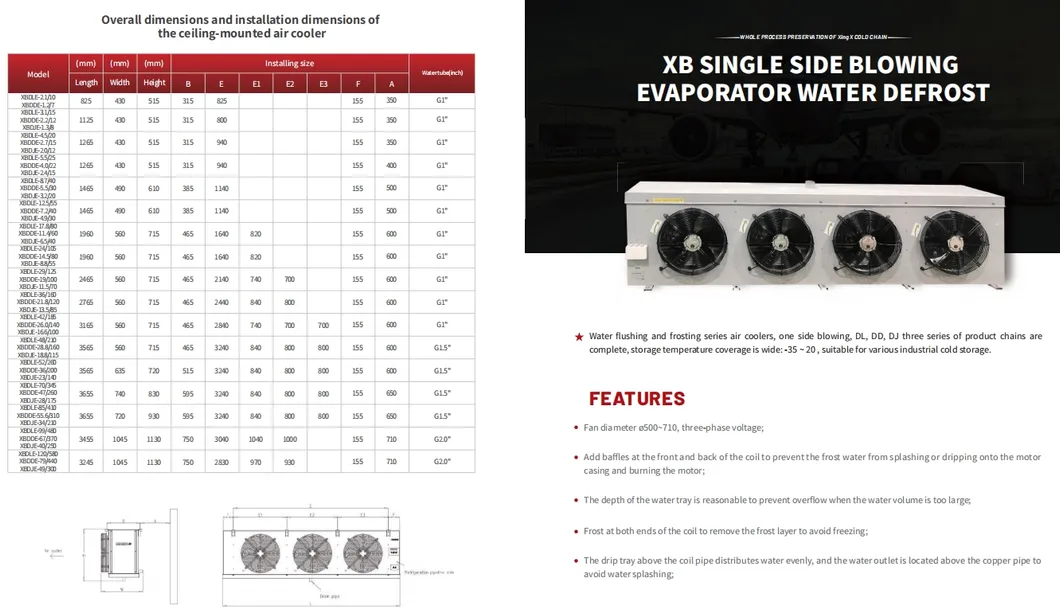

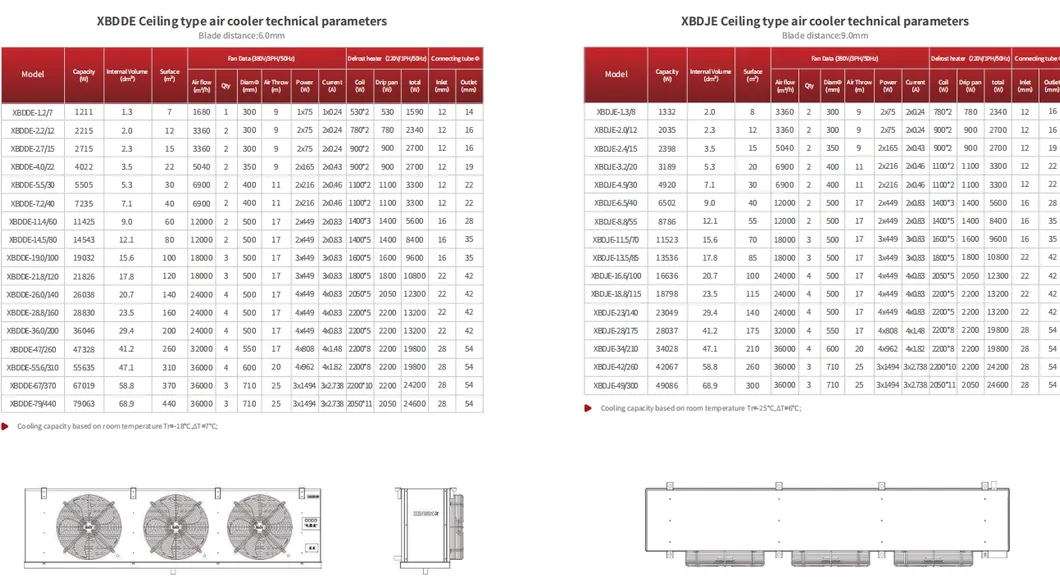

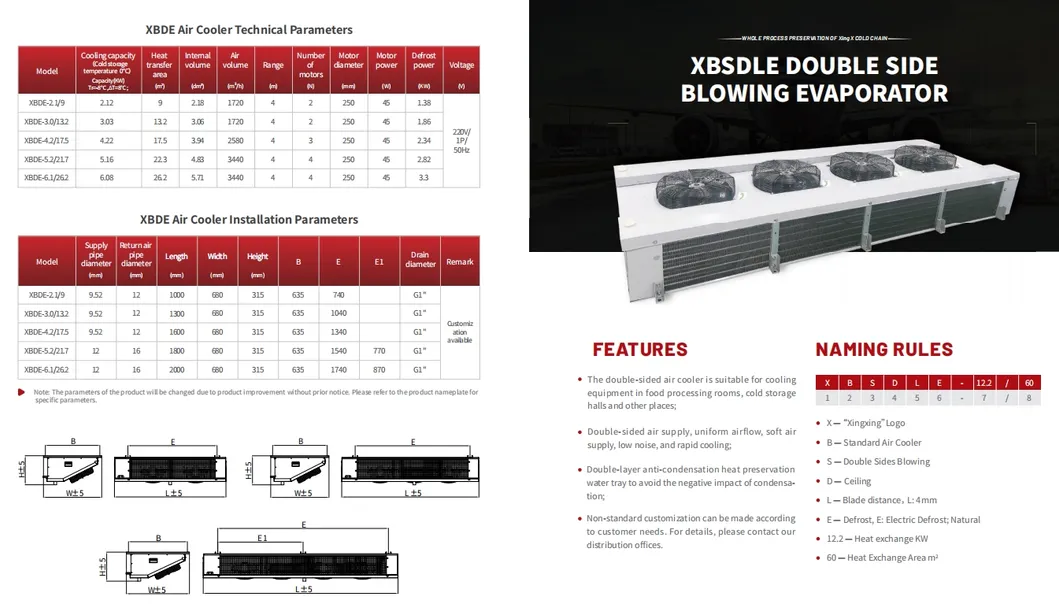

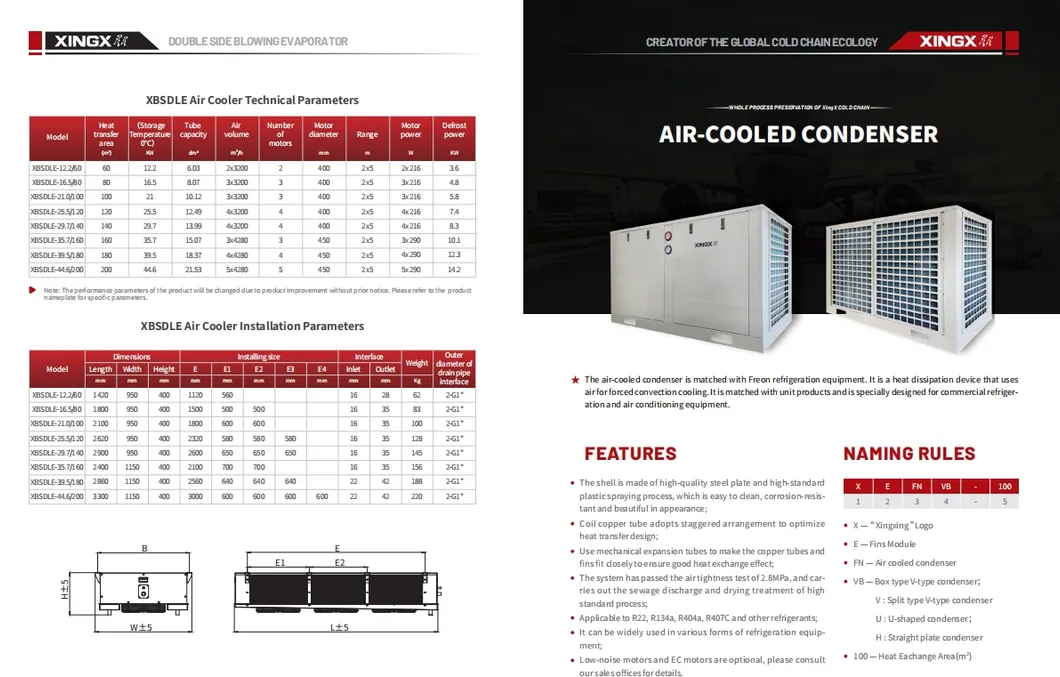

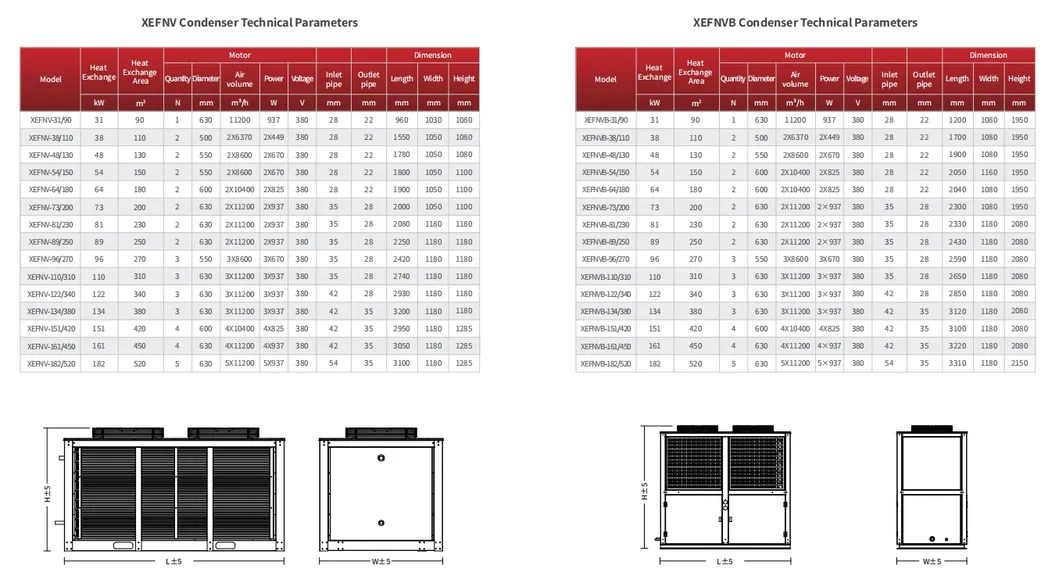

Display 1 Display 2 Display 3 Display 4 Display 5 Display 6 Display 7 Display 8

Detailed Introduction

Available in DL, DD, and D types, specifically suitable for High, Medium, and Low temperature storage:

  • DL Type: Suitable for 0°C (Vegetables, fruits, tea, edible fungi).
  • DD Type: Suitable for -18°C (Meat, fish, frozen food).
  • D Type: Suitable for below -25°C (Livestock, seafood, dairy products).
Key Technical Features:
• Compact structure saving storage space.
• Optimized coil design for high heat exchange efficiency.

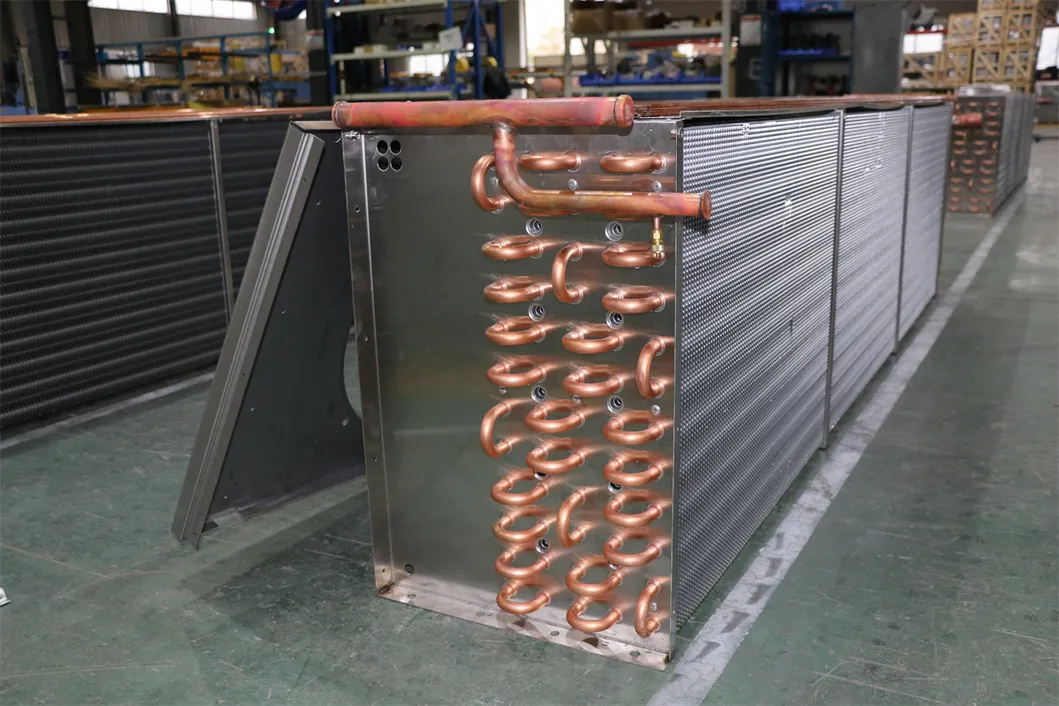

• Copper tubes processed by mechanical expansion for tight foil contact.
• Air tightness tested under 2.6MPa pressure.
• A-list brand motors for long lifespan and reliability.
• High-quality steel shell with food-grade plastic-sprayed surface (Stainless steel available).

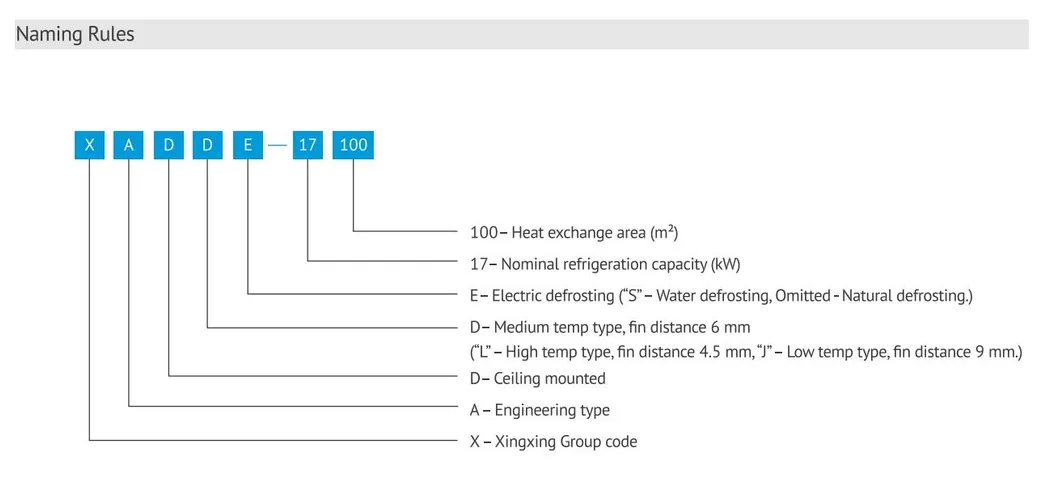

Technical Specifications
High Temperature Medium Temperature Low Temperature
XADLE-1.9/10XADDE-1.1/7-
XADLE-2.8/15XADDE-2.0/12XADJE-1.1/8
XADLE-4.1/20XDDE-2.5/15XADJE-1.8/12
XADLE-5.0/25XADDE-3.6/22XADJE-2.2/15
XADLE-7.9/40XADDE-5.0/30XADJE-2.9/20
XADLE-11.3/55XADDE-6.6/40XDJE-4.4/30
XADLE-16/80XADDE-10.3/60XDJE-5.9/40
XADLE-21.5/105XADDE-13.3/80XDJE-8/55
XDLE-26.5/125XADDE-17/100XADJE-10.4/70
?

Frequently Asked Questions

Are you a manufacturer?
Yes. We are a large professional manufacturer of refrigeration units, evaporators, air-cooled condensers, IQF, truck units, and display freezers since the 1970s.
How about the warranty for your products?
All of our products have a one-year warranty. During the guarantee period, we provide technical support via pictures, videos, or free spare parts to resolve issues. Post-guarantee support is also available.
Can you provide OEM services?
Yes, we can perform OEM/ODM services according to your specific requirements.
What are the main differences between DL, DD, and D models?
DL is for high-temperature storage (around 0°C), DD is for medium temperature (around -18°C), and D is for low-temperature applications (below -25°C).
What information is needed to get a quotation?
Please provide the required quantity, cooling capacity, condensing temperature, evaporating temperature, power supply, and type of refrigerant.
What materials are used for the evaporator shell?
The shell is constructed from high-quality steel sheet with a food-grade plastic-sprayed surface. Stainless steel material is also available as an option.
