⚡ Basic Information
Model NO.

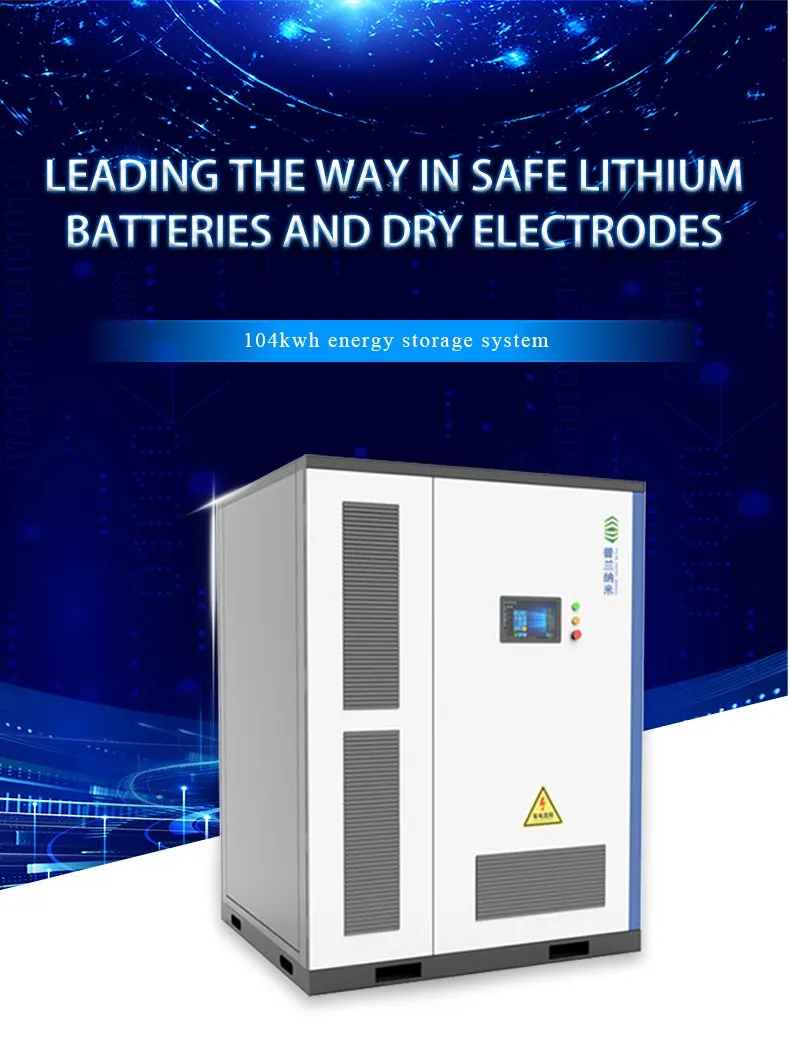

104KWH100KW LTO BESS
Cycle Life
≥6000 @100%Dod, 80%Eol
Rated Output Power
110kVA
📦 Packaging & Delivery
Package Size
300.00cm * 158.30cm * 200.00cm

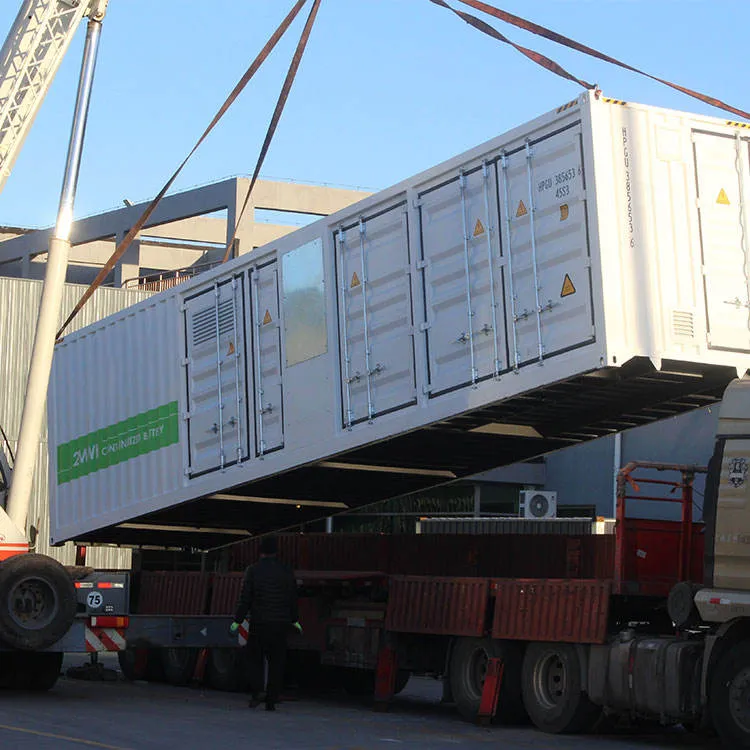

Transport Package
Container

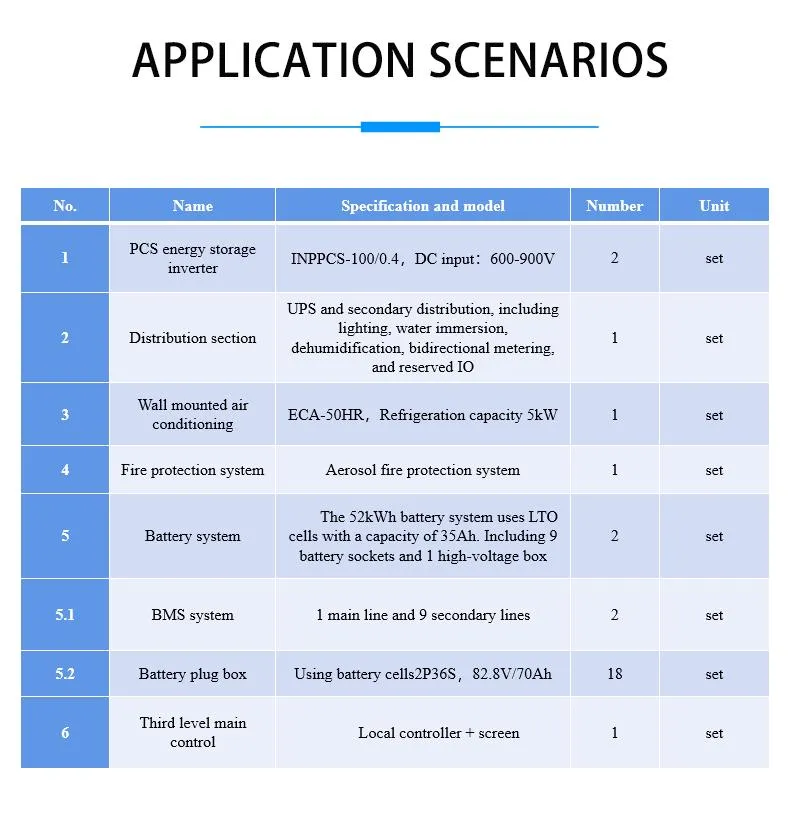

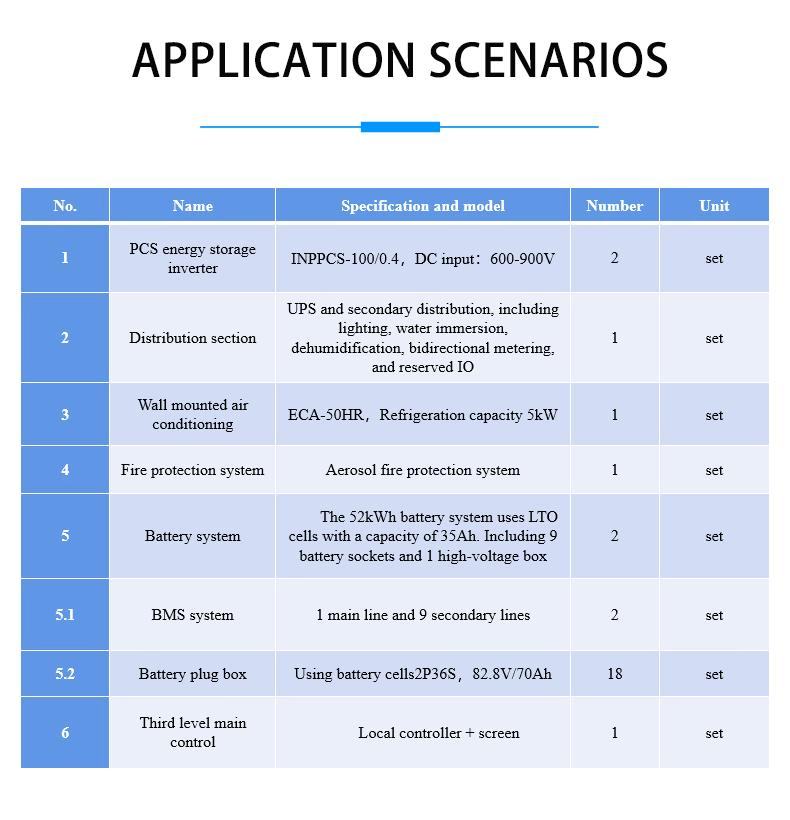

📋 Technical Specifications
| No. |
Name |
Specification and Model |
Qty |
Unit |
| 1 |

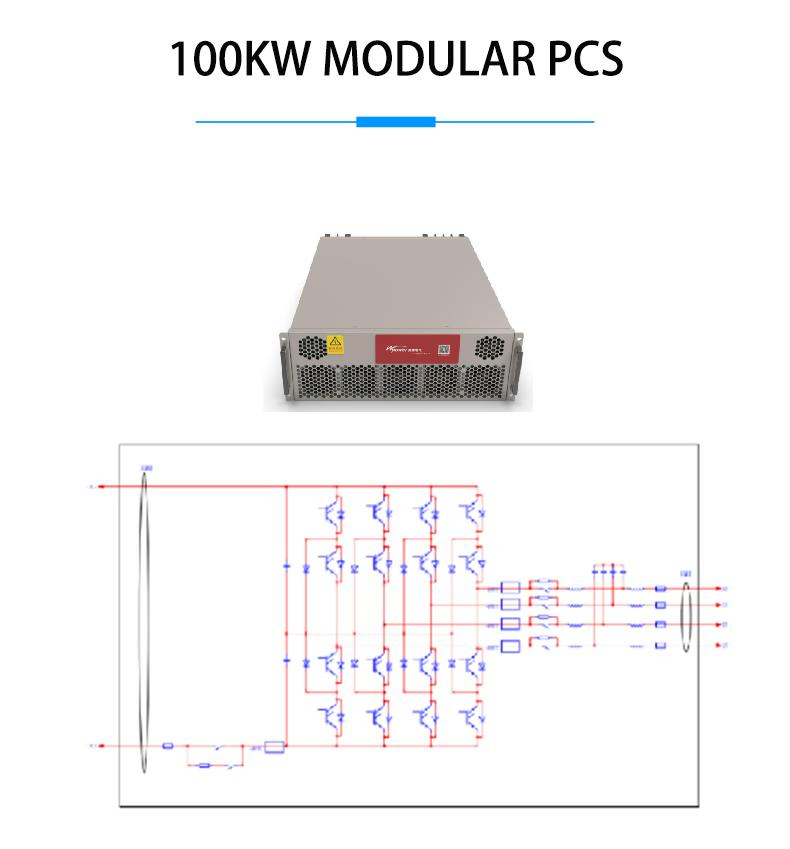

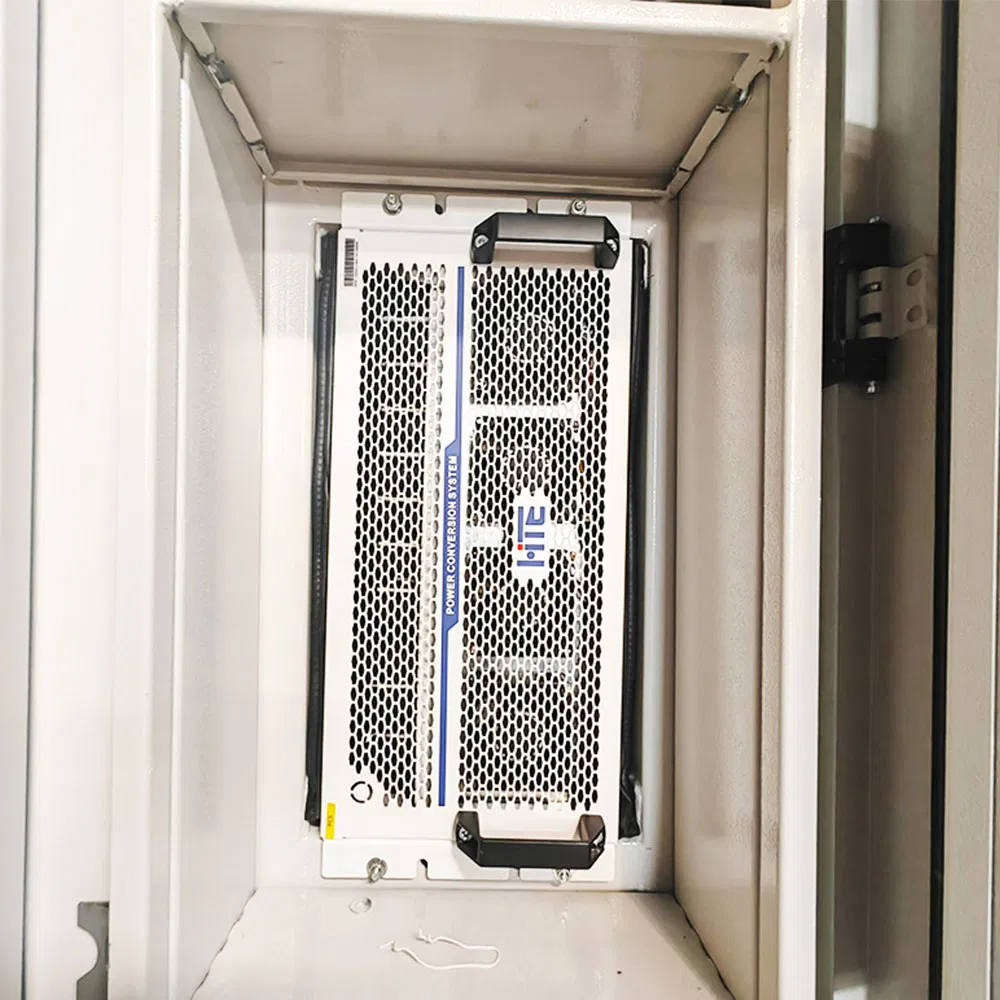

PCS energy storage inverter |
INPPCS-100/0.4, DC input: 600-900V |
2 |
set |
| 2 |
Distribution section |
UPS and secondary distribution, including lighting, dehumidification, and IO |
1 |
set |
| 3 |
Wall mounted air conditioning |
ECA-50HR, Refrigeration capacity 5kW |
1 |
set |
| 4 |
Fire protection system |
Aerosol fire protection system |
1 |
set |
| 5 |

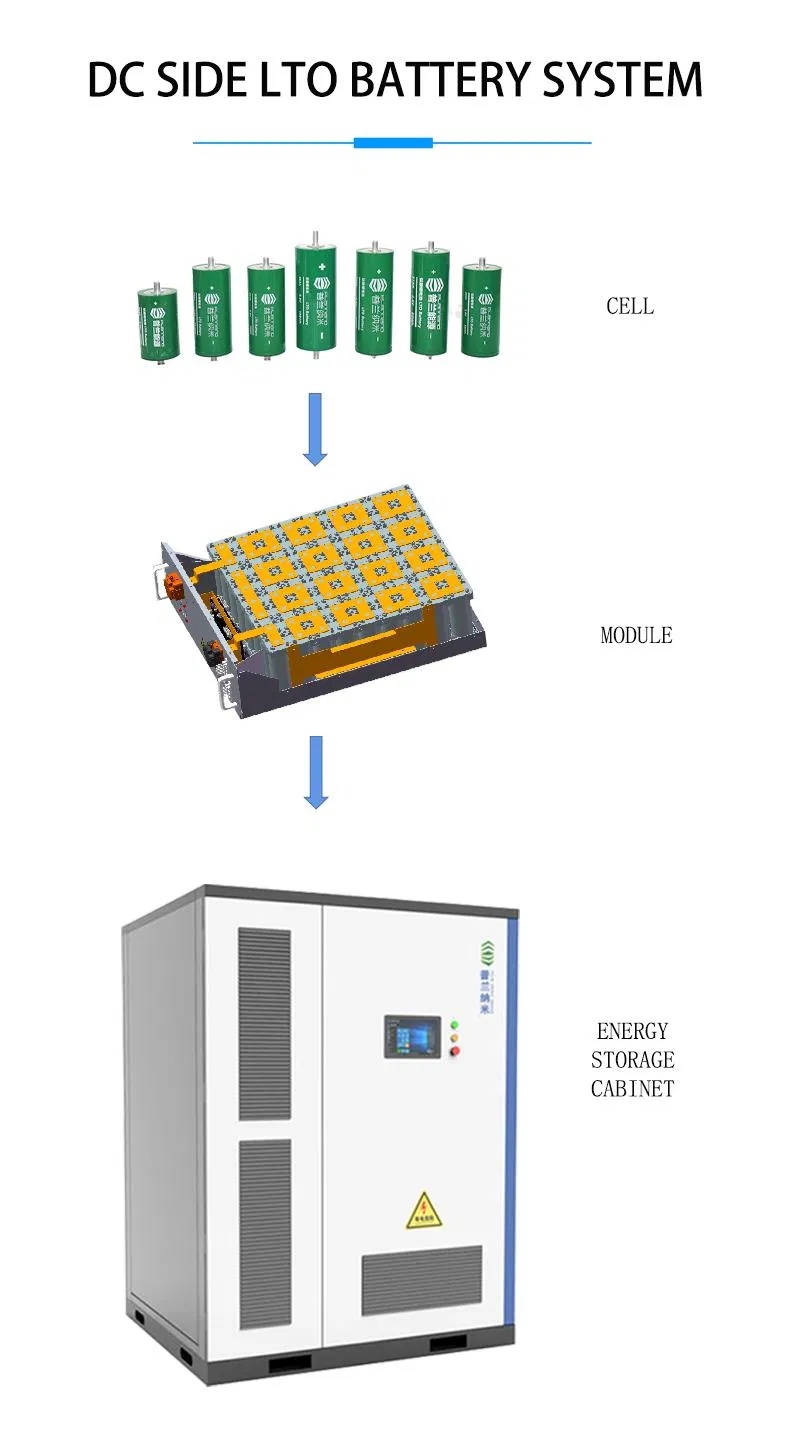

Battery system |
52kWh battery system uses LTO cells (35Ah) |
2 |
set |
| 5.1 |

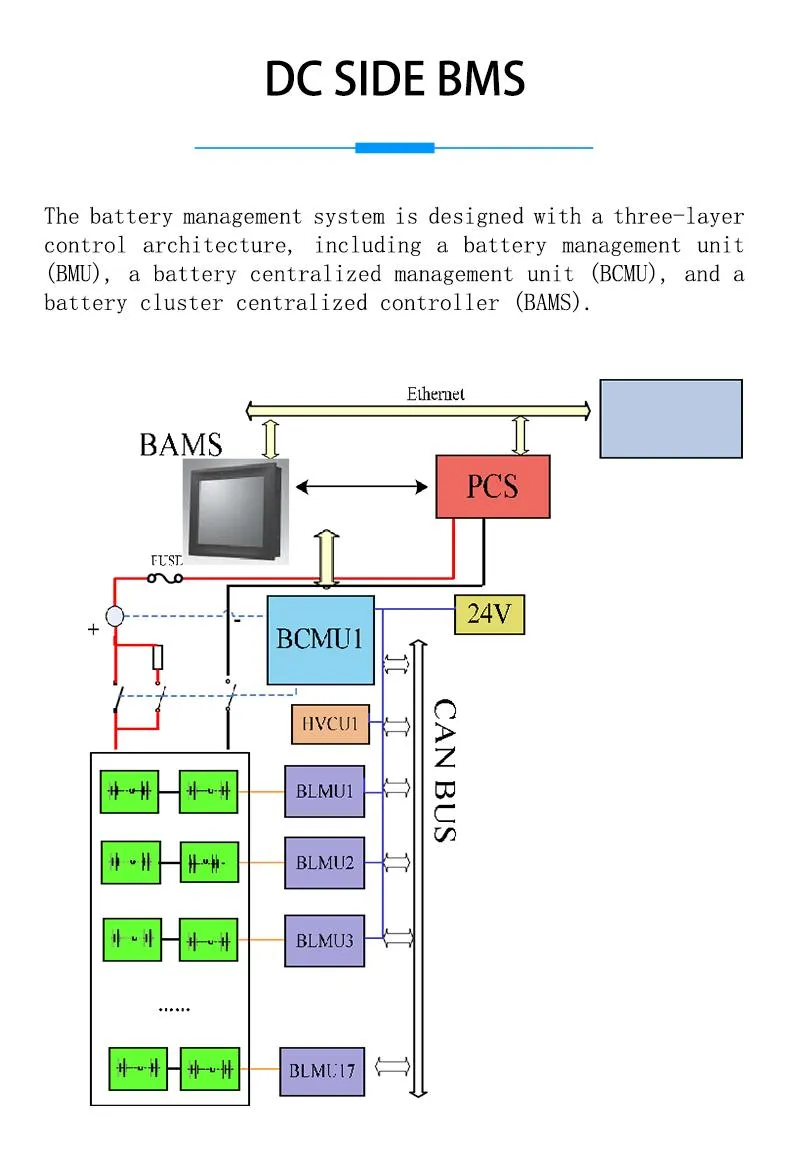

BMS system |
1 main line and 9 secondary lines |
2 |
set |
| 5.2 |
Battery plug box |
Using battery cells 2P36S, 82.8V/70Ah |
18 |
set |
| 6 |
Third level main control |
Local controller + screen |
1 |
set |
🏢 Industry Profile
A high-tech company focusing on the research and development, manufacturing, marketing, and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the objective is to supply a complete solution to green-energy storage and products in power systems for clients worldwide.
Collaborating with leading research labs, the team owns high-standard test instruments and a top-class technical management team. With more than 50 patents in preparation and application of graphene-based material, production lines for various materials and products have been established.

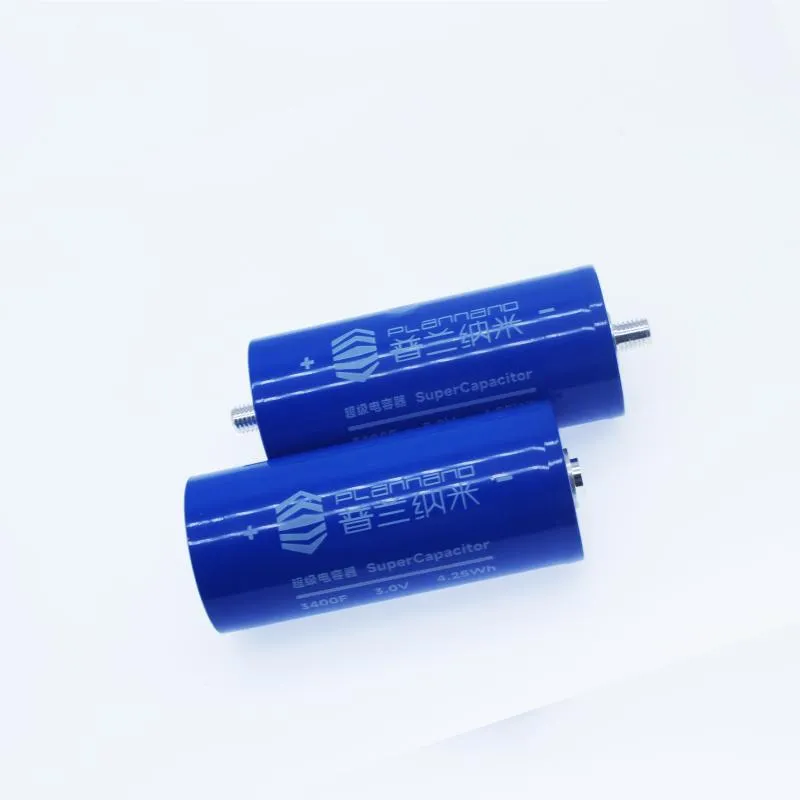

Successfully developed and mass-produced products include graphene, LTO, Si/C material, super capacitor cells (0.1F to 3000F), super capacitor modules, and LTO battery cells/modules ranging from 20Ah to 500Ah. These products are widely applied in new-energy vehicles, rail transportation, smart grids, micro grids, engineering machinery, and industrial energy-saving fields.
❓ Frequently Asked Questions
What are the main advantages of the LTO battery system?
LTO (Lithium Titanate) batteries offer exceptional safety, high charge/discharge rates, and a long cycle life of over 6,000 cycles at 100% depth of discharge.
Does the ESS include a cooling system?
Yes, the system is equipped with a wall-mounted air conditioning unit (ECA-50HR) with a 5kW refrigeration capacity to ensure optimal operating temperatures.
Is there an integrated fire protection mechanism?
Absolutely. The system includes a dedicated aerosol fire protection system as part of its safety distribution section.
Can this system be used for off-grid energy storage?

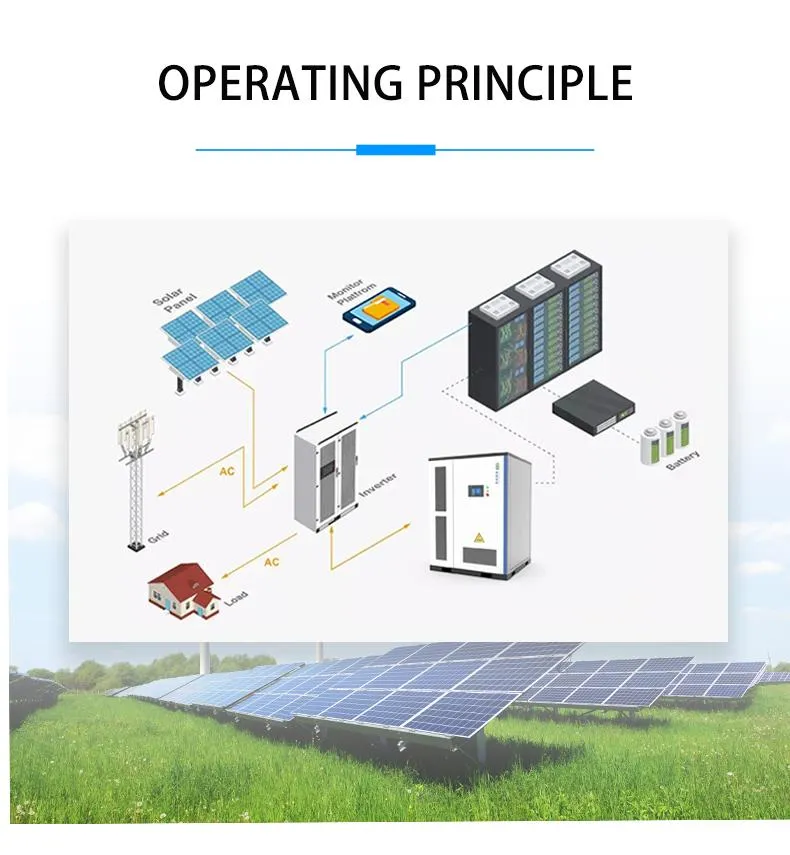

Yes, this equipment is designed for both grid-connected and off-grid energy storage applications, including smart grids and micro-grids.
What is the rated power output of this 104kWh system?
The system has a rated output power of 110kVA with a rated grid frequency of 50Hz/60Hz.
What is the warranty period for this equipment?
The system comes with a standard 2-year warranty covering the core components.
