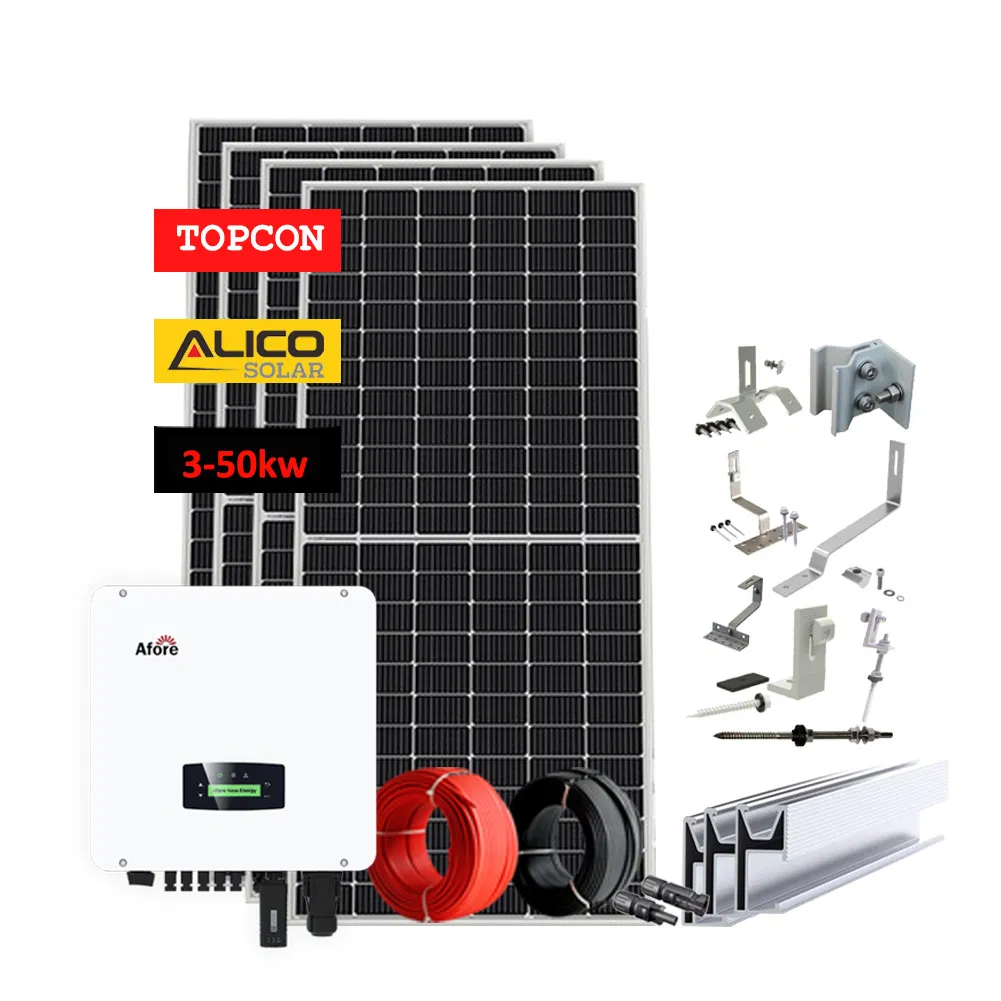

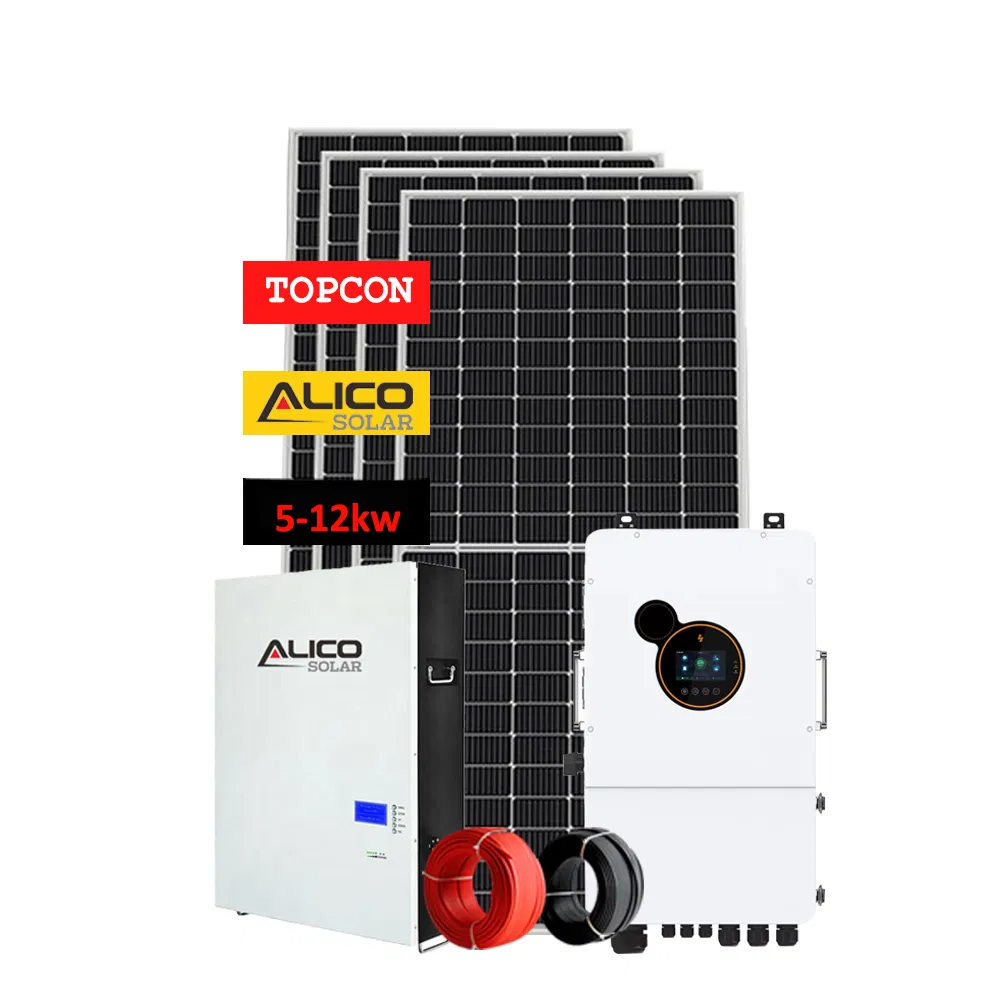

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Basic Information

Model NO.AS-ON-10K

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial

Solar InverterGrid-Tied Inverter

Solar PanelMono N-Type Hjt

Mounting SupportRoof or Ground Solar Mount Bracket

Production Capacity2 Gw/Year

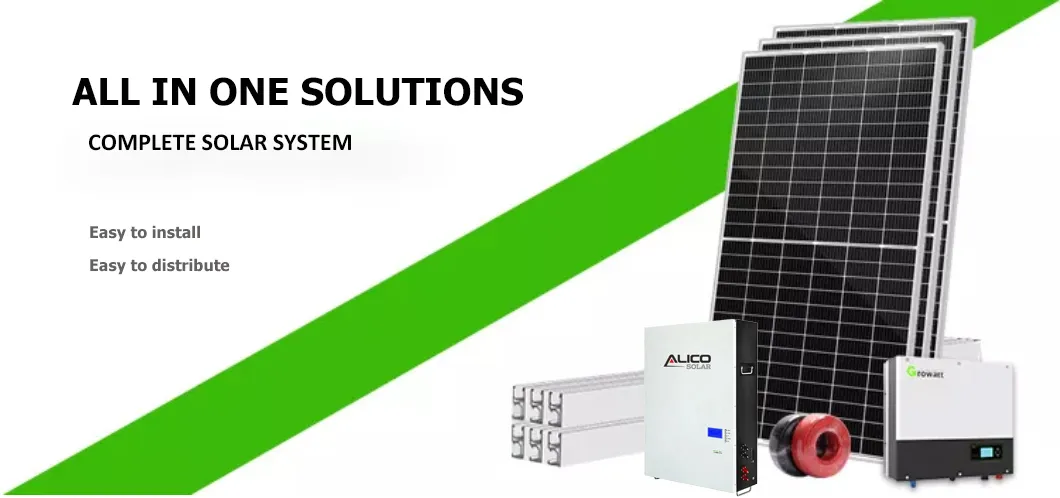

On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

Technical Details

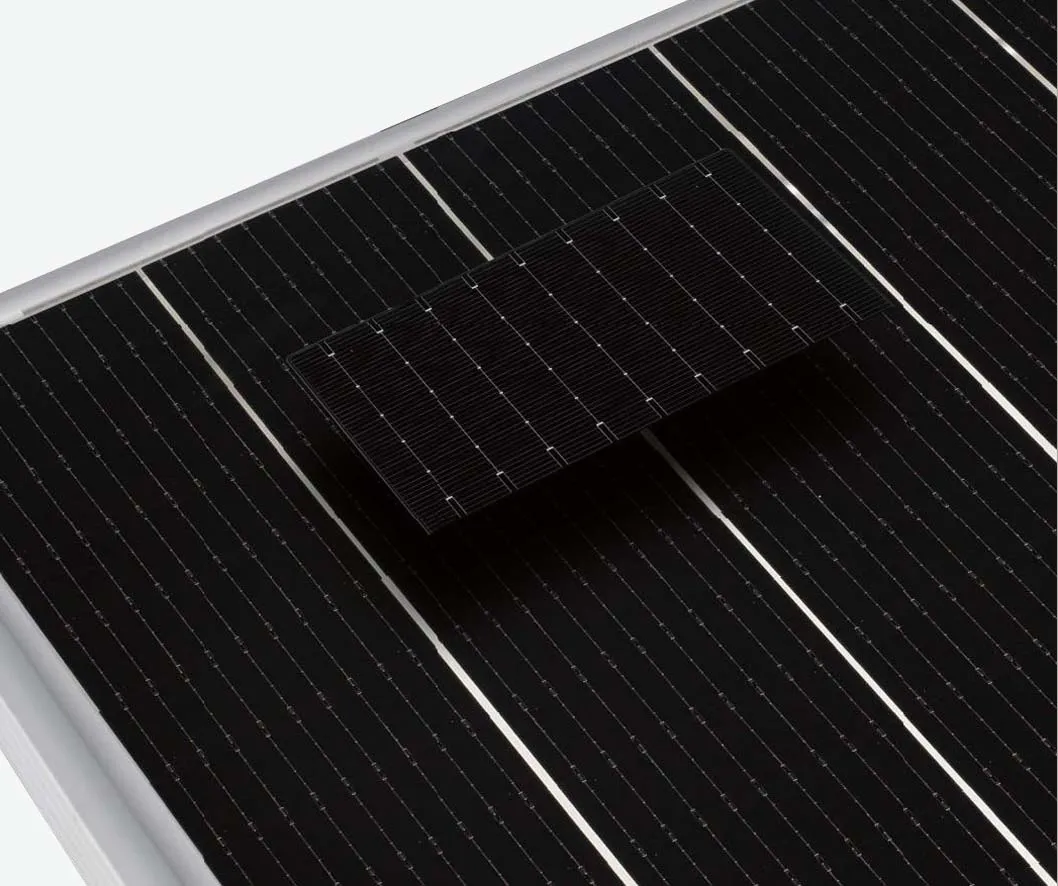

Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

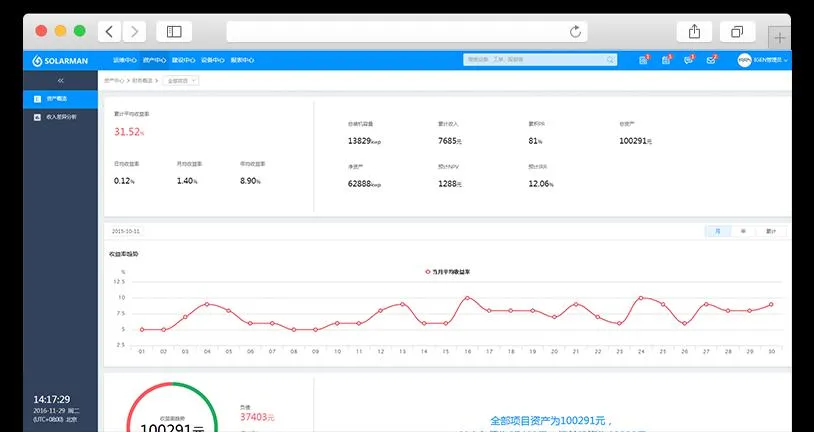

Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via Wi-Fi, Lan or GPRS. Keep informed about the situation of your PV system and atmosphere conditions anywhere and anytime. App Available for PC, IOS & Android.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip, Tie, Ground Clip & Lugs Optional

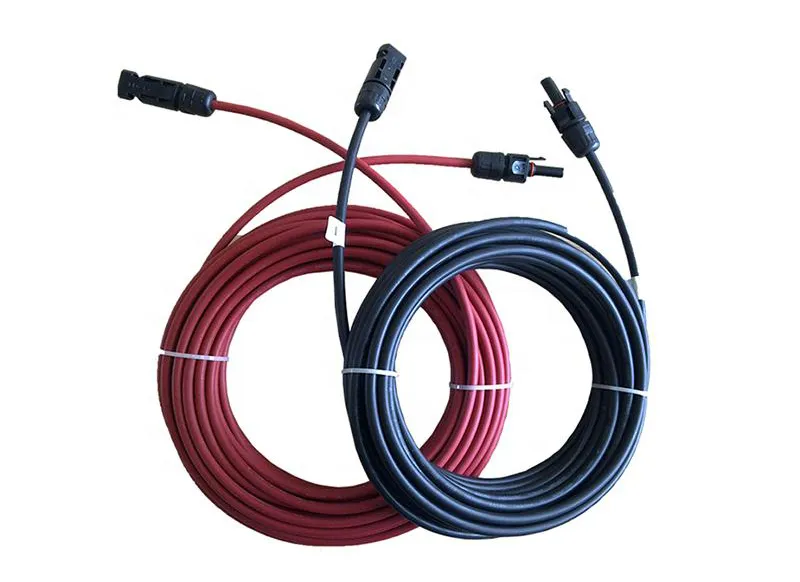

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Colors: Black (Standard), Red Optional.
Lifetime: ≤25 Years

Packaging & Shipping

Package Size4100.00cm * 3200.00cm * 1800.00cm

Gross Weight2000.000kg

Transport PackageCarton/Wooden Box

Projects Shown

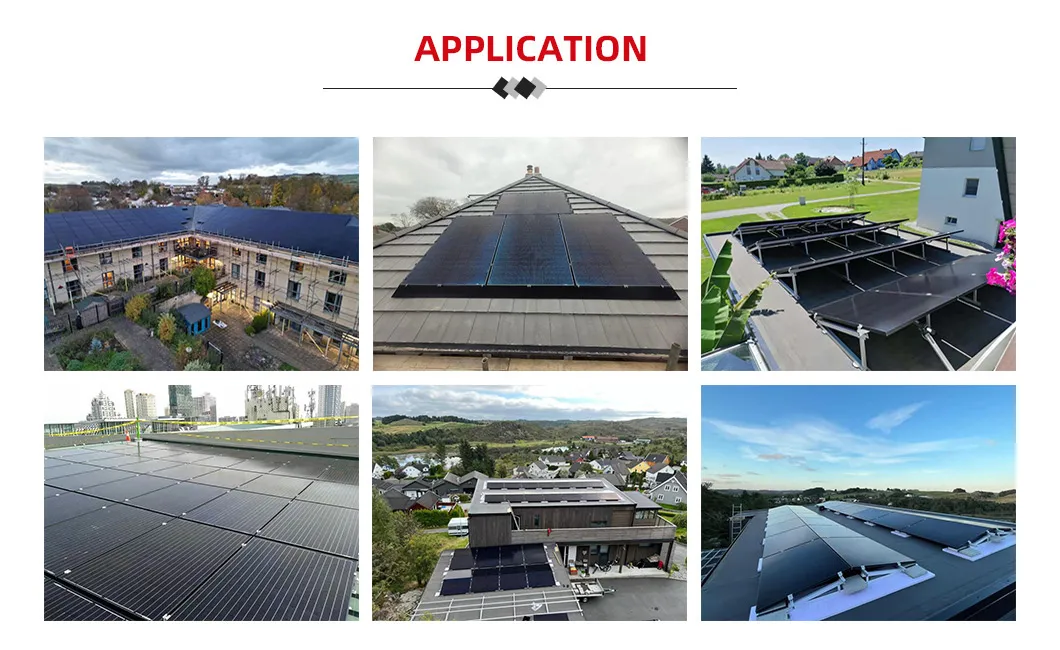

12MW Commercial Metal Roof Solar Plant

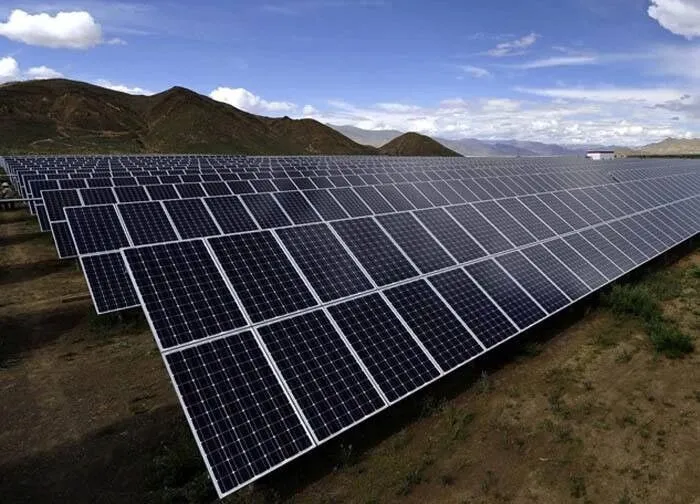

20MW Ground Plant (USA)

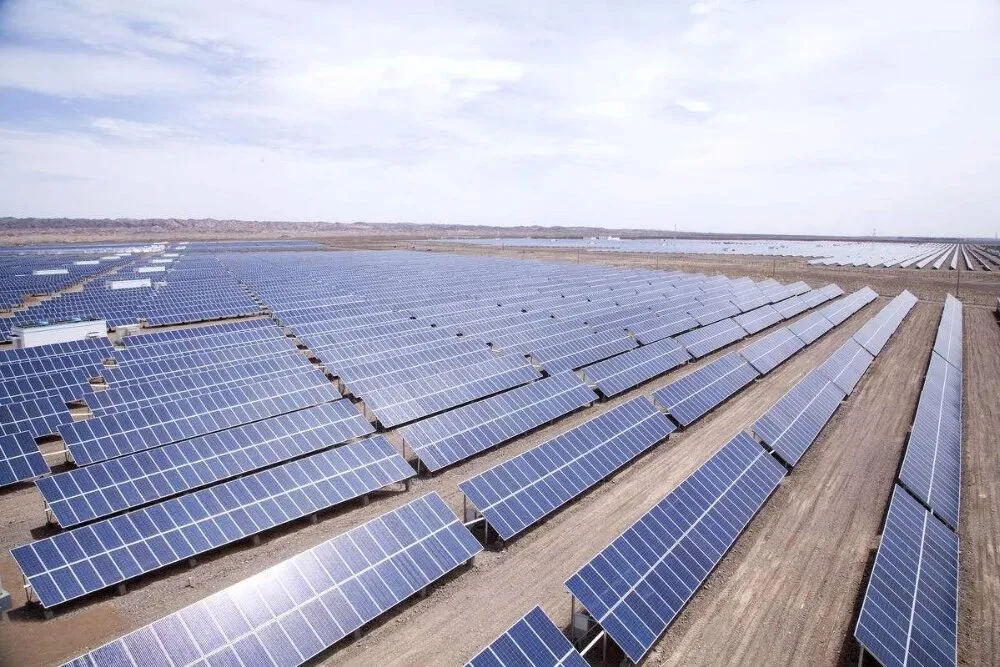

50MW Solar Plant (Brazil)

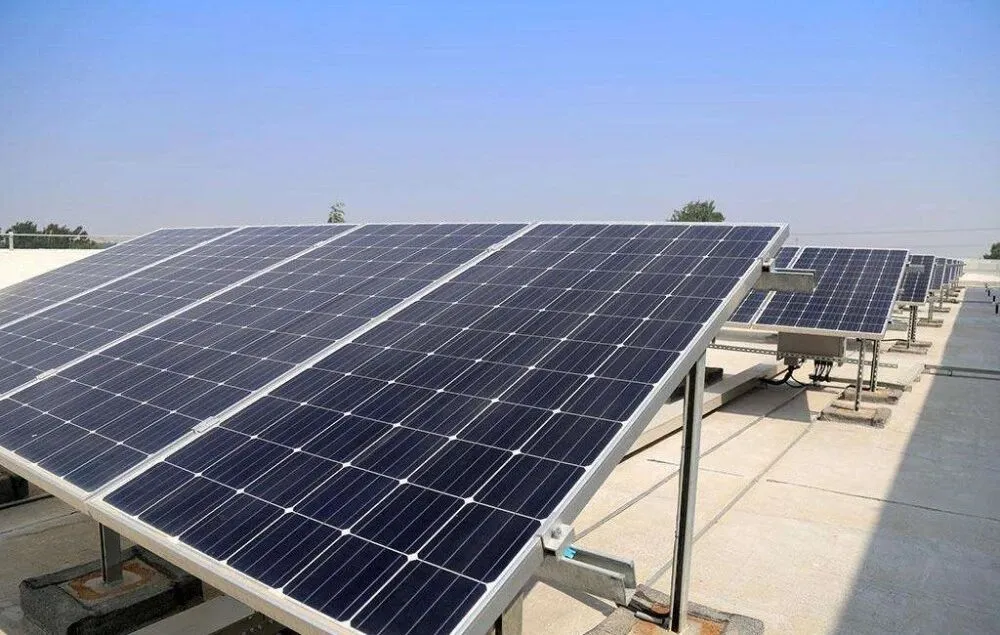

20KW Solar Plant (Mexico)

Frequently Asked Questions

What components are included in the 10kW On-Grid solar system?

The system includes high-efficiency Mono solar panels, a grid-tied inverter (10kW-500kW), DC/AC disconnect switches, specialized DC cabling, MC4 connectors, and a complete mounting system for roof or ground installation.

Is remote monitoring available for this system?

Yes, the system features a remote monitoring solution via a Data Logging Stick. You can track performance and atmospheric conditions in real-time using a web server or dedicated apps for PC, iOS, and Android.

What kind of maintenance tools are provided?

We provide a professional PV tool set that includes a wire cable cutter, stripper, and disassembly tools to ensure proper installation and maintenance.

Can the mounting system be customized for different roof types?

While our standard mounting system is designed for pitched roofs, customized options are available to fit various roof structures or ground-mounted requirements.

What is the expected lifespan of the system cables and connectors?

The high-quality DC cables and MC4 connectors are designed for durability in harsh environments, with a rated lifetime of up to 25 years.

What certifications do these solar systems hold?

Our systems and components are fully certified according to ISO and CE standards, ensuring international quality and safety compliance for residential and commercial use.
