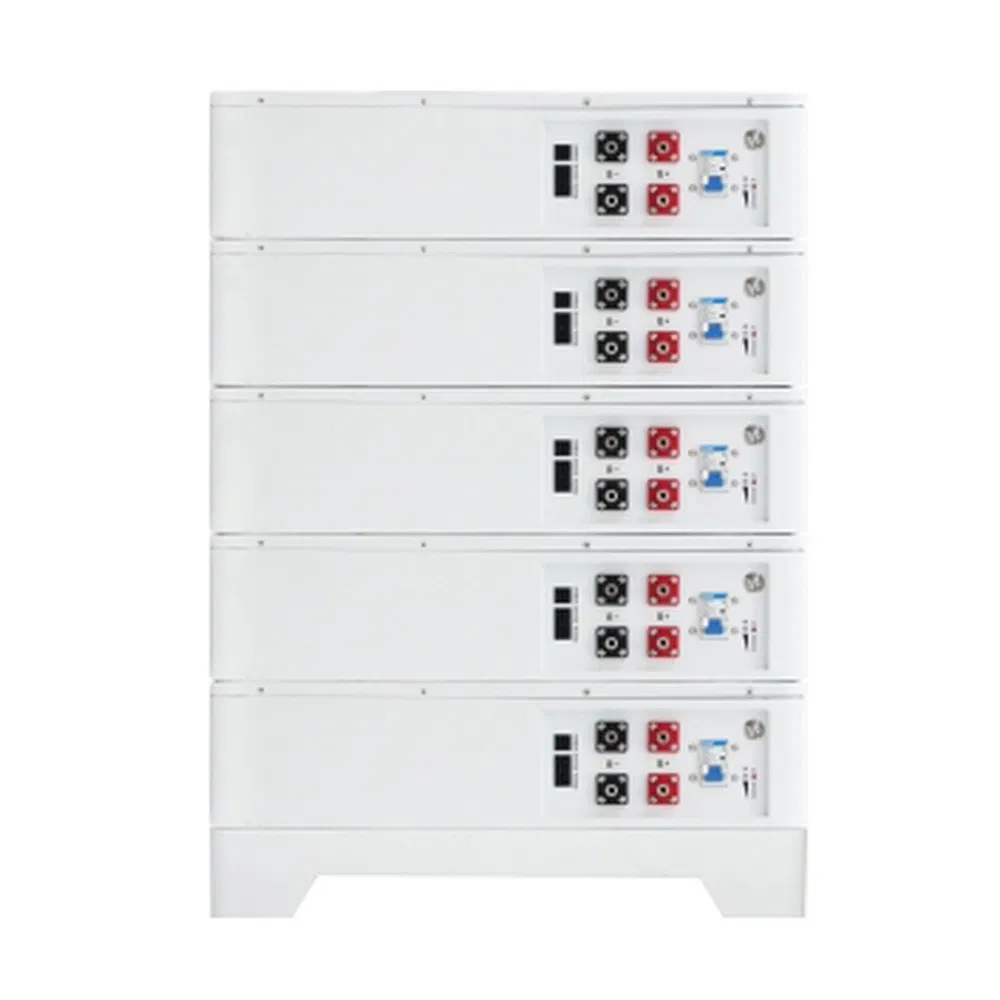

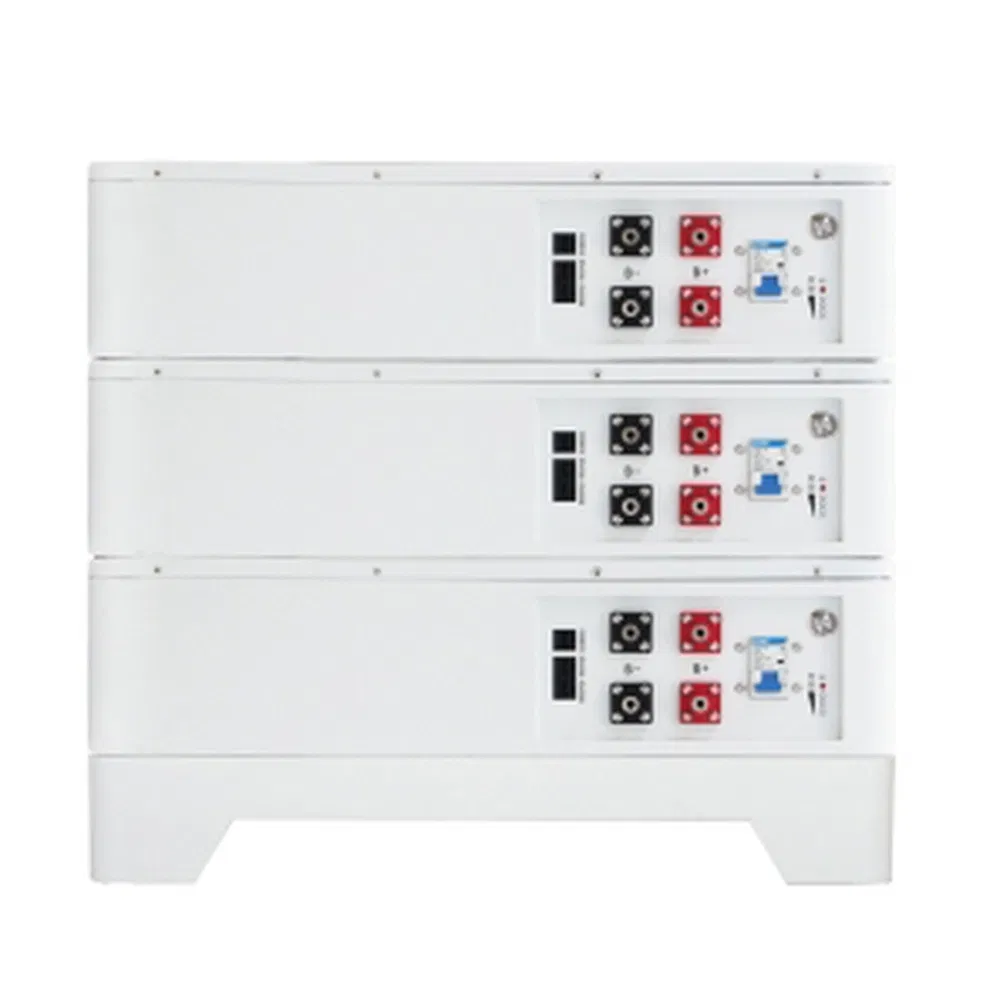

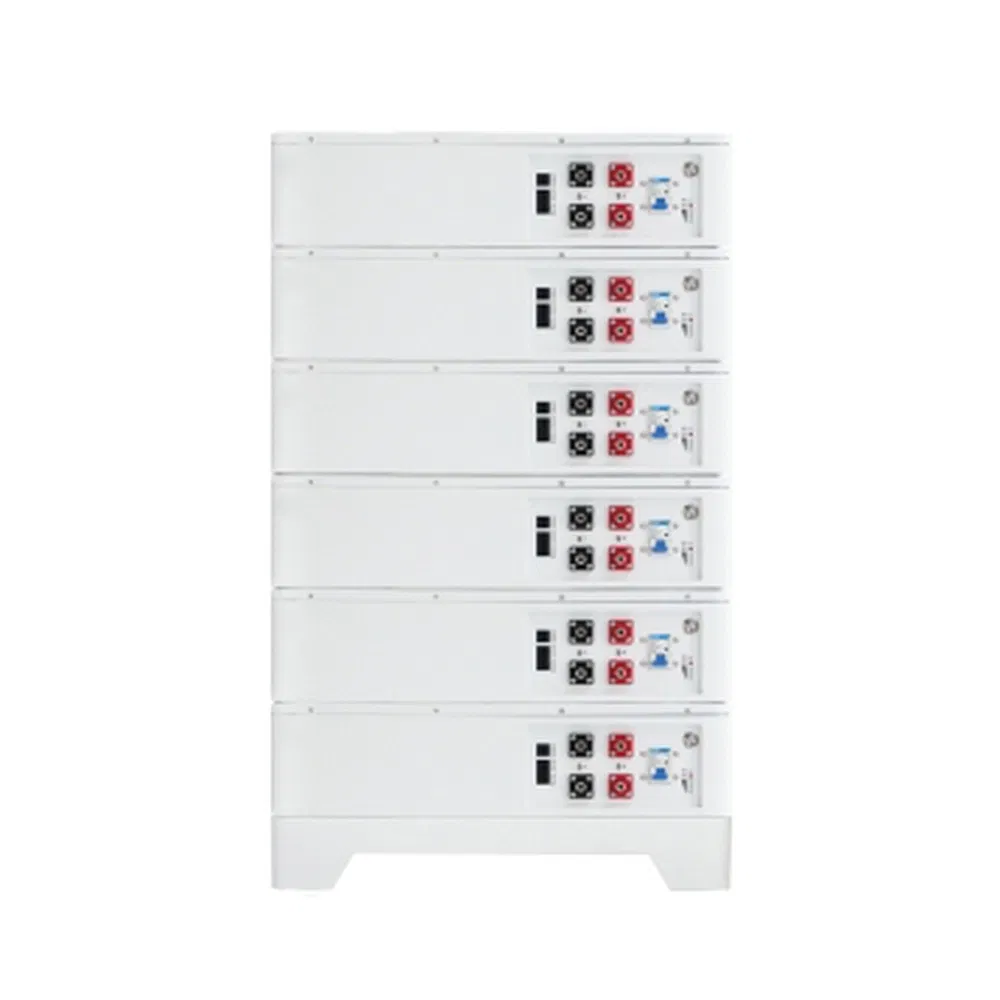

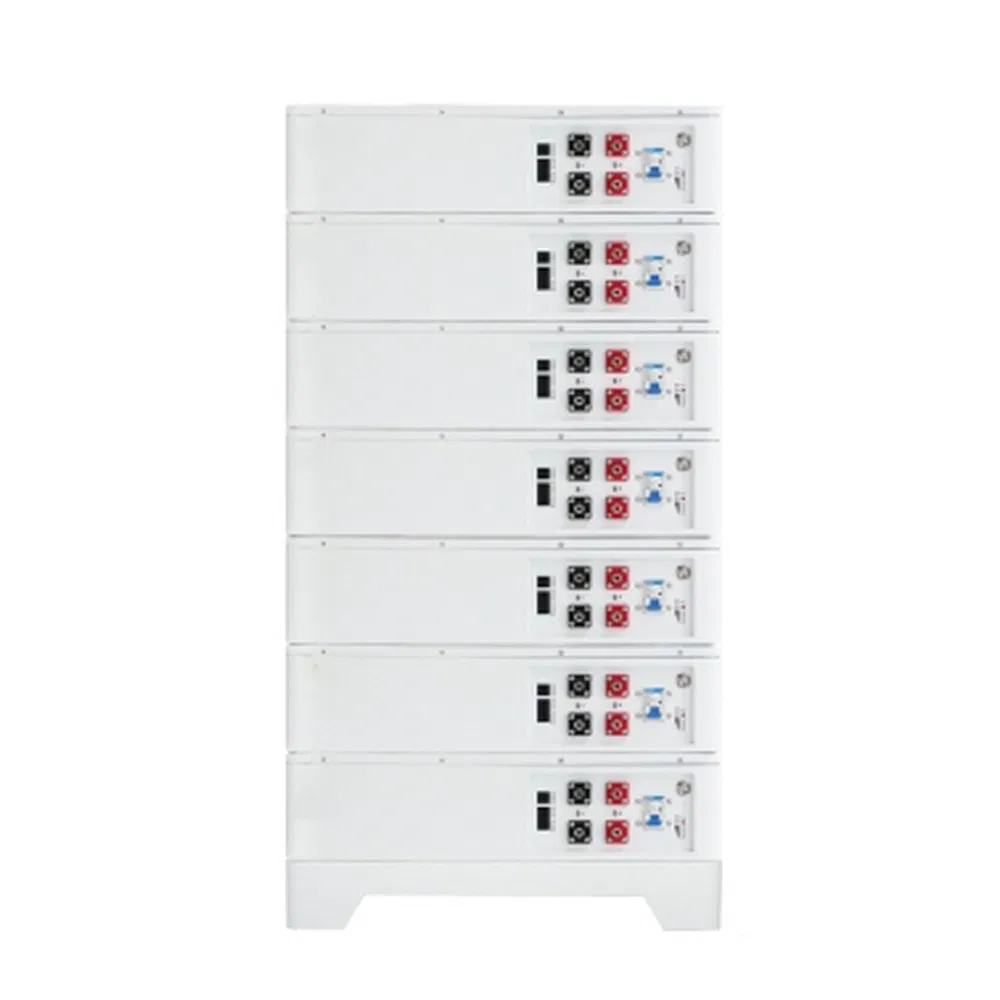

| Model NO. | WRES-L-25-015 |
| Product Name | Home Energy Storage System |
| Total Energy (Kwh) | 27.64 |
| Usable Energy (Kwh) | 25.98 |
| Nominal Voltage (Vd.C) | 51.2 |
| Voltage Range (Vd.C) | 44.8-57.6 |
| Max. Current | 400A (Charge/Discharge) |
| Standard Features | Bluetooth / Button-Controlled Screen |
| Installation Type | Wall-Mounted & Stackable |
| Communication | CAN / RS485 |
| IP Rating | IP20 |
| Specification | 660*708*450 mm |
Our residential energy storage system is a flexible and efficient solution designed for managing household renewable energy across varied home types and power requirements. Featuring a modular design, the system allows easy capacity expansion from 5 kWh to over 30 kWh by adding battery units. For homes with limited space, it offers wall-mount installation to maximize floor area.
PV Energy Storage
Stores surplus electricity generated by solar panels, reducing grid dependence.
Peak-Valley Arbitrage
Charges during low-tariff hours and discharges during high-tariff periods to save costs.
Backup Power
Provides immediate emergency power to essential appliances during outages.
Smart Monitoring
Real-time tracking via mobile app for personalized energy management.

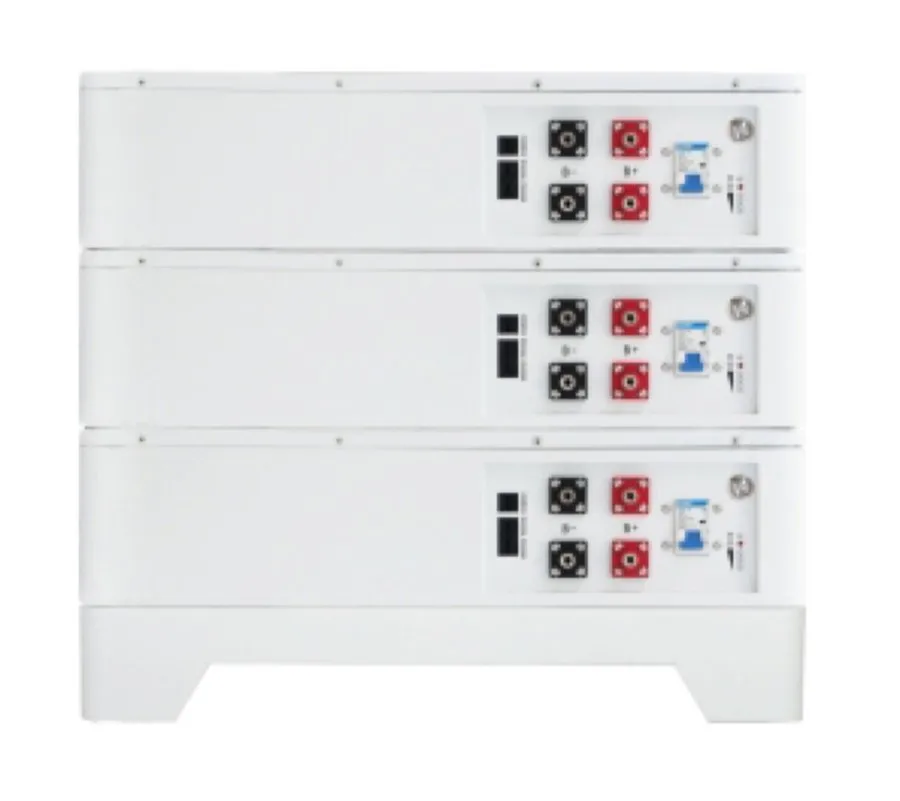

| Feature | WRES-L-25-014 | WRES-L-25-021 |
|---|---|---|
| Total Energy (kWh) | 13.82 | 20.73 |
| Usable Energy (kWh) | 12.99 | 19.48 |
| Nominal Voltage (V) | 51.2 | 51.2 |
| Rated Capacity (Ah) | 270 | 405 |
| Max Current (A) | 200A | 300A |
| BMS Protection | Over-voltage, Over-current, Short-circuit, Temperature Balance | |
| Cycle Life | 15+ Years (at 25°C) | |
| Operating Temp | -20°C to 55°C | |
Residential energy storage (RES) systems offer compelling benefits: blending economic value, energy security, and environmental responsibility. In regions prone to blackouts, RES serves as a reliable backup power source, ensuring the uninterrupted operation of critical medical devices and communication tools. Environmentally, RES promotes clean energy adoption by storing excess solar power, reducing carbon emissions.
We provide secure transportation services with full-process tracking. Products are packed with reinforced, shockproof, and moisture-resistant materials. Large units are secured in sturdy wooden crates or steel frames for maximum protection during transit.
