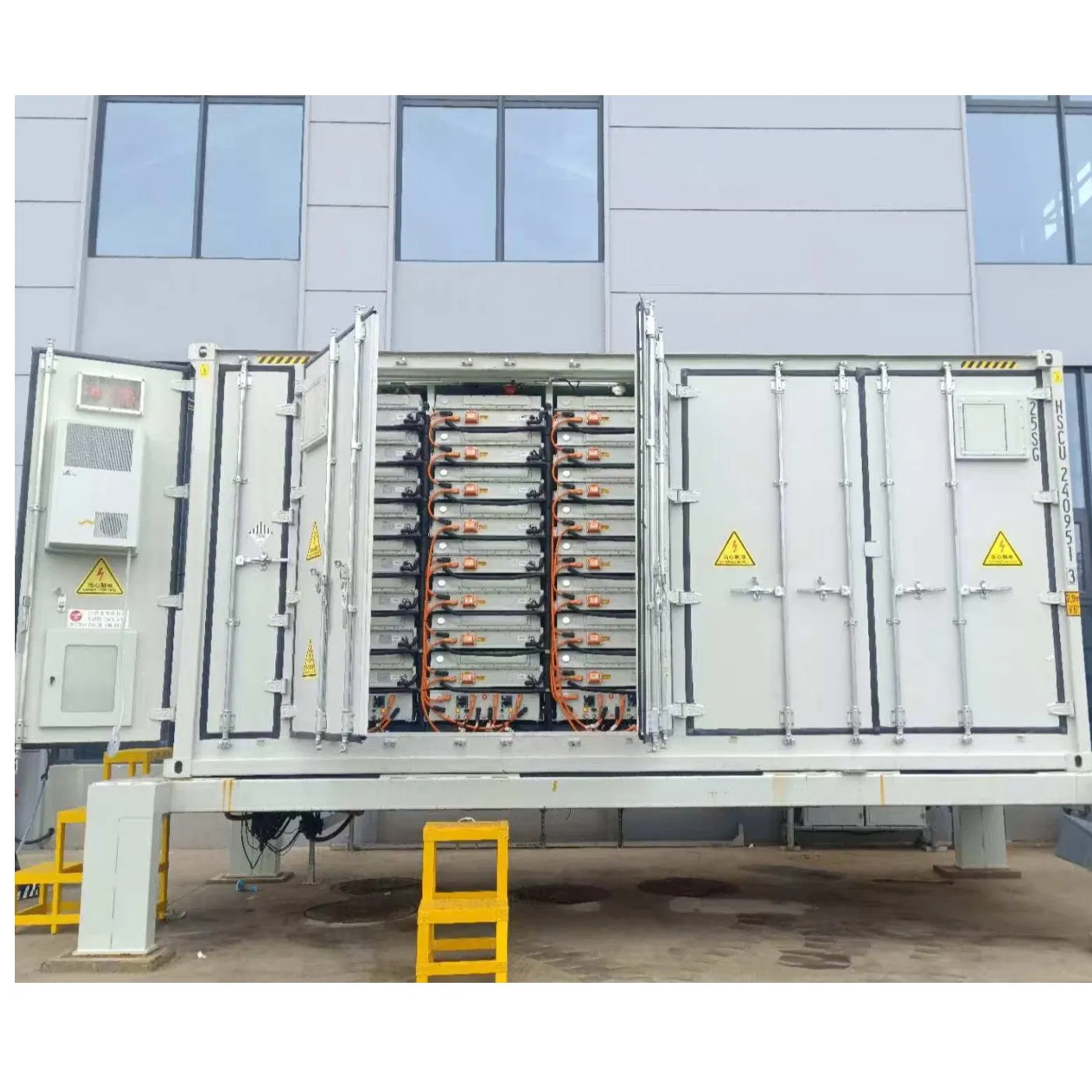

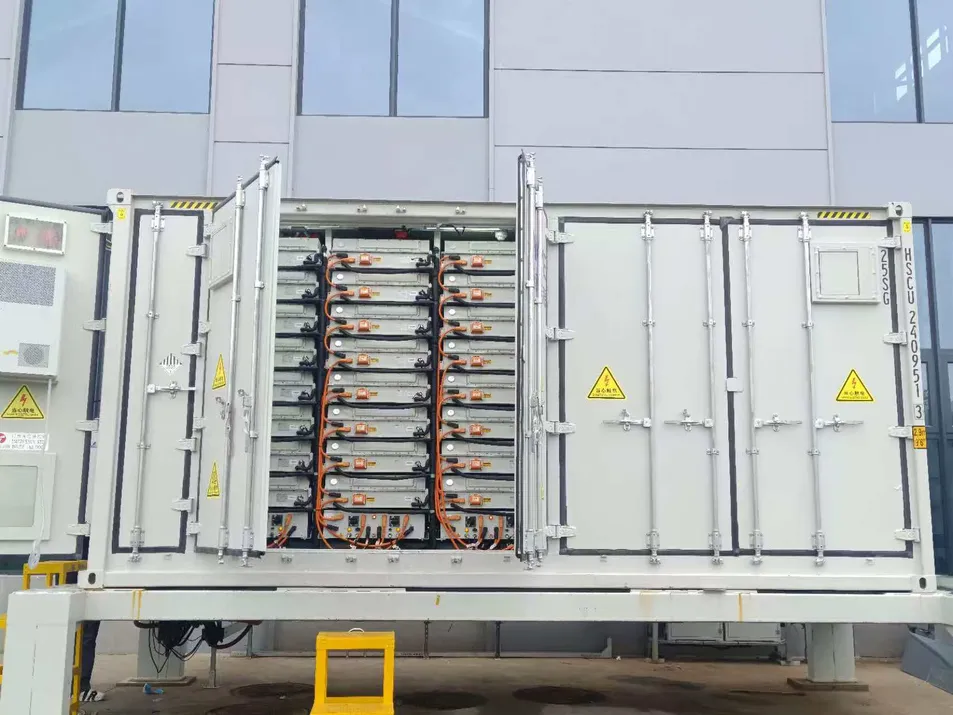

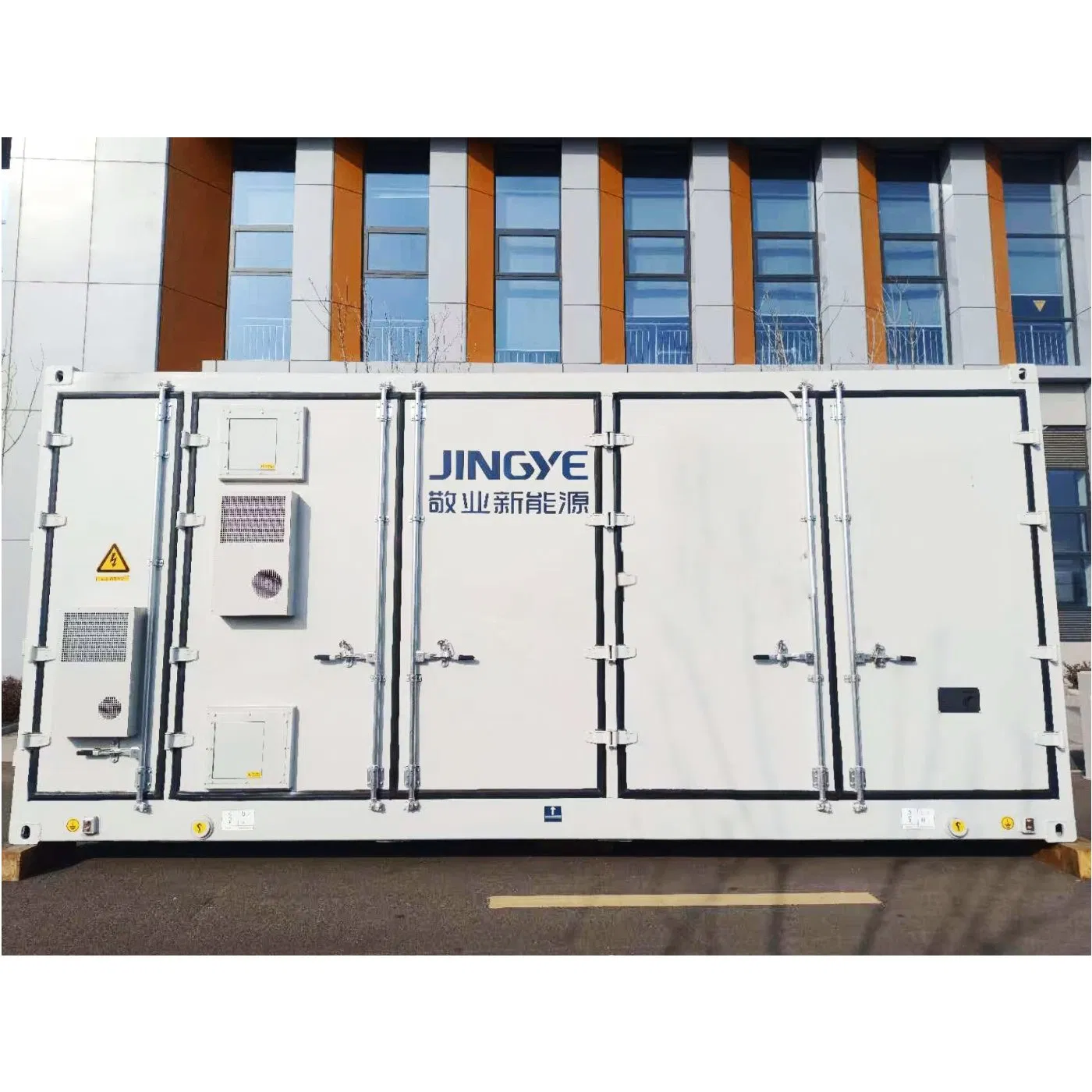

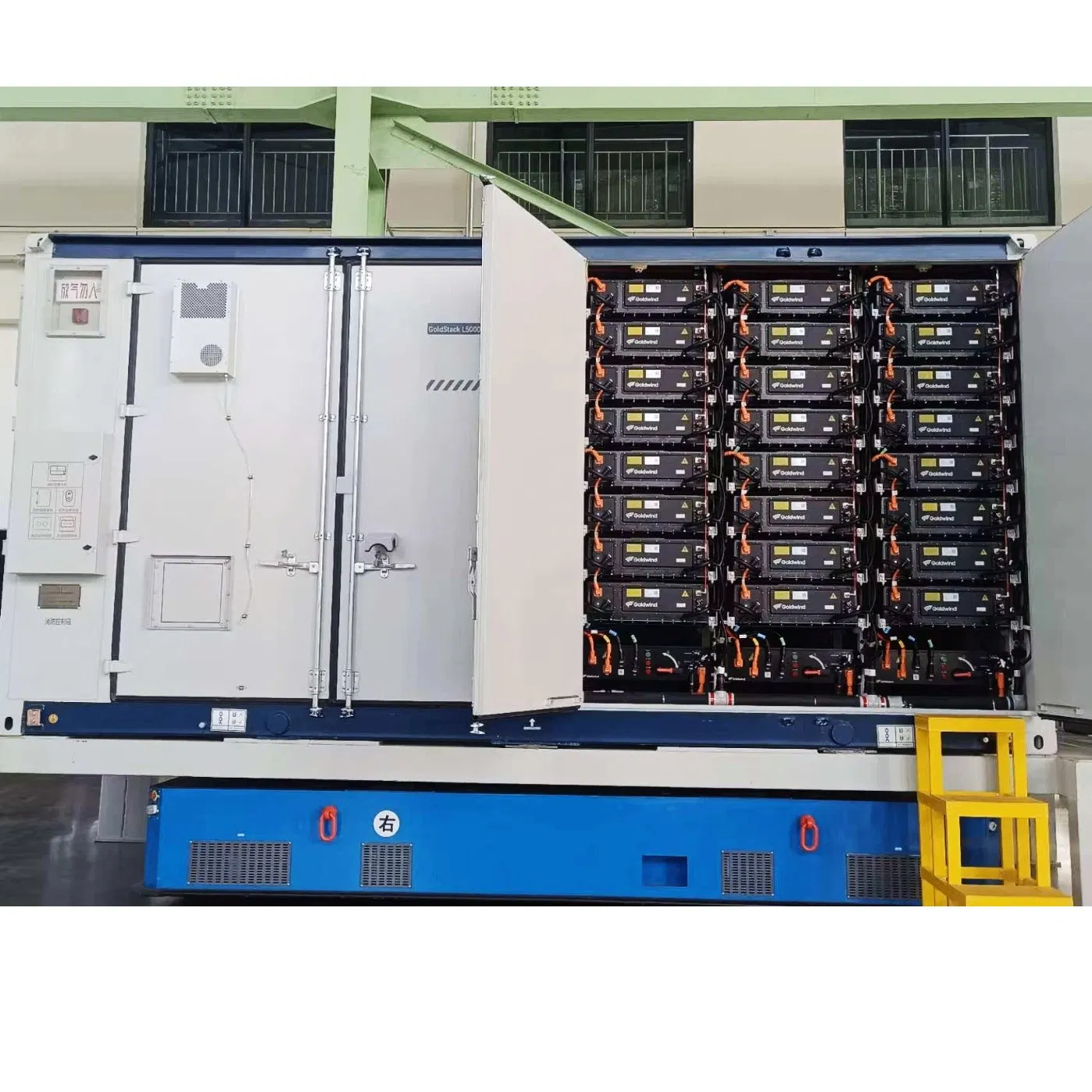

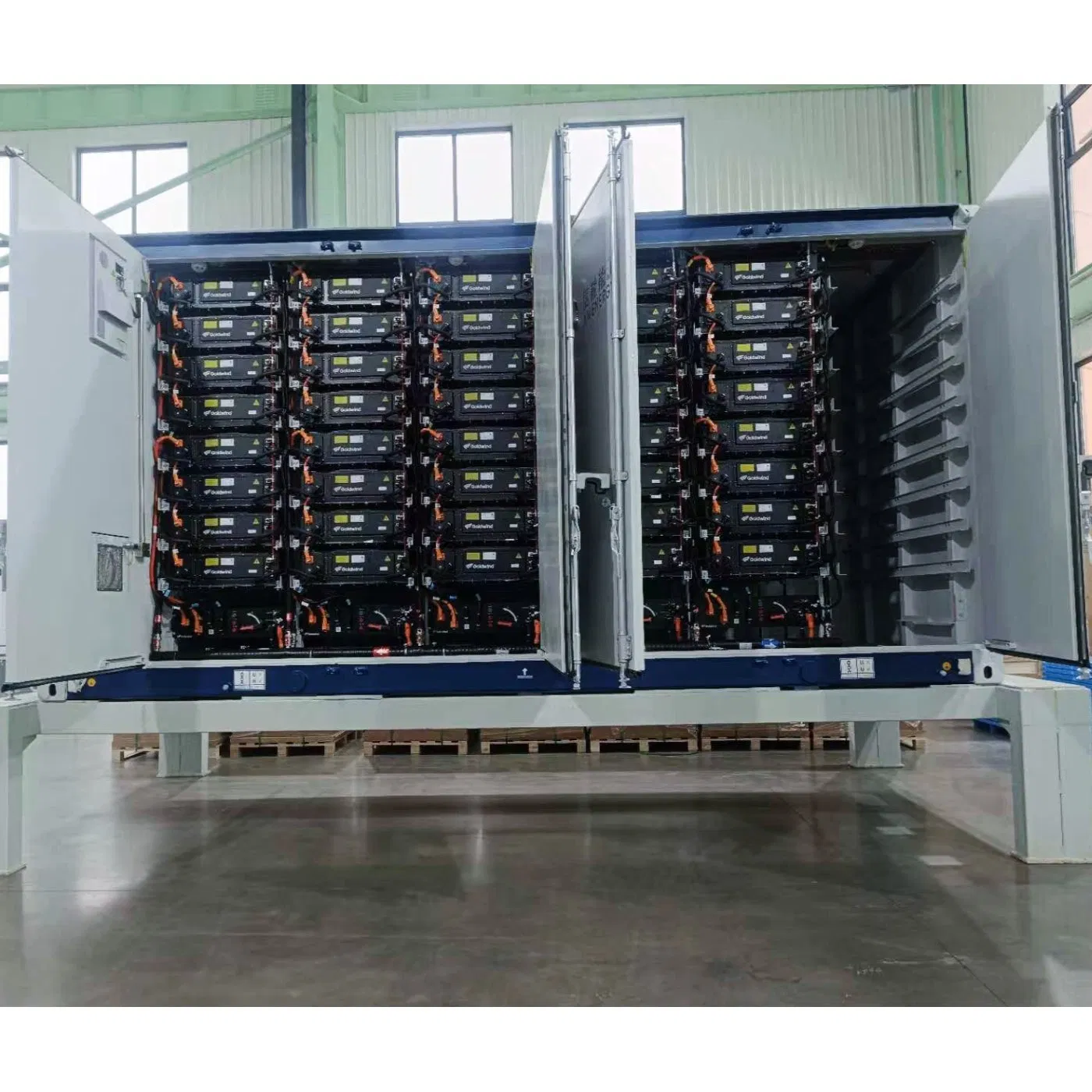

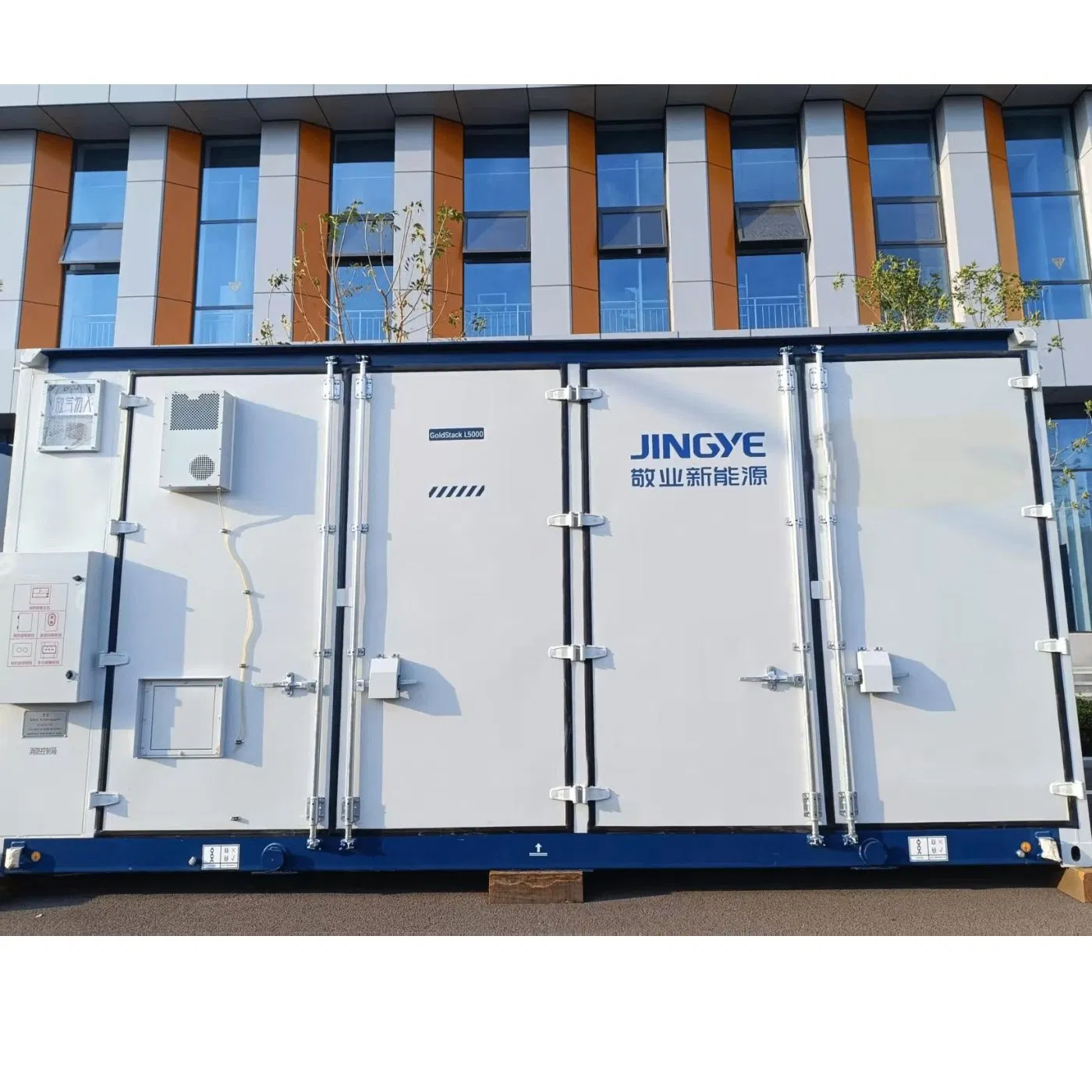

5mwh Active Liquid-Cooling Containerized Energy Storage Unit

1 / 5

5mwh Active Liquid-Cooling Containerized Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

Send Inquiry

Product Description

📊

Basic Specifications

Parameter	Value
Model	5.015MWh
Nominal Voltage	1331.2V
Warranty	3 Years
Nominal Capacity	5015kWh
Cycle Life	9000 Cycles
Configuration	12(1p104s4)
Voltage Range	1164.8V - 1497.6V DC
IP Rating	IP54
Cooling System	Active Liquid Cooling

🔋

Energy Storage Container

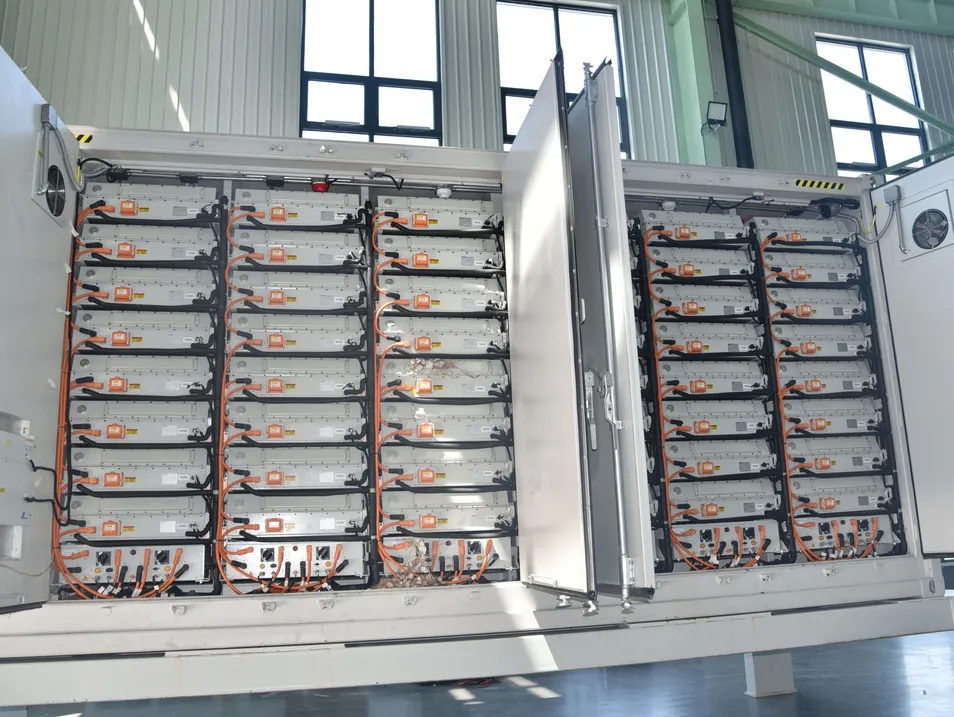

The 5015KWh Liquid Cooling energy storage system is engineered with high-capacity 314Ah energy storage cells. It integrates battery cluster units, advanced management systems (BMS), fire protection, and thermal management into a standardized 20-foot container. This modular design ensures safety and efficiency across diverse environmental conditions and site designs.
