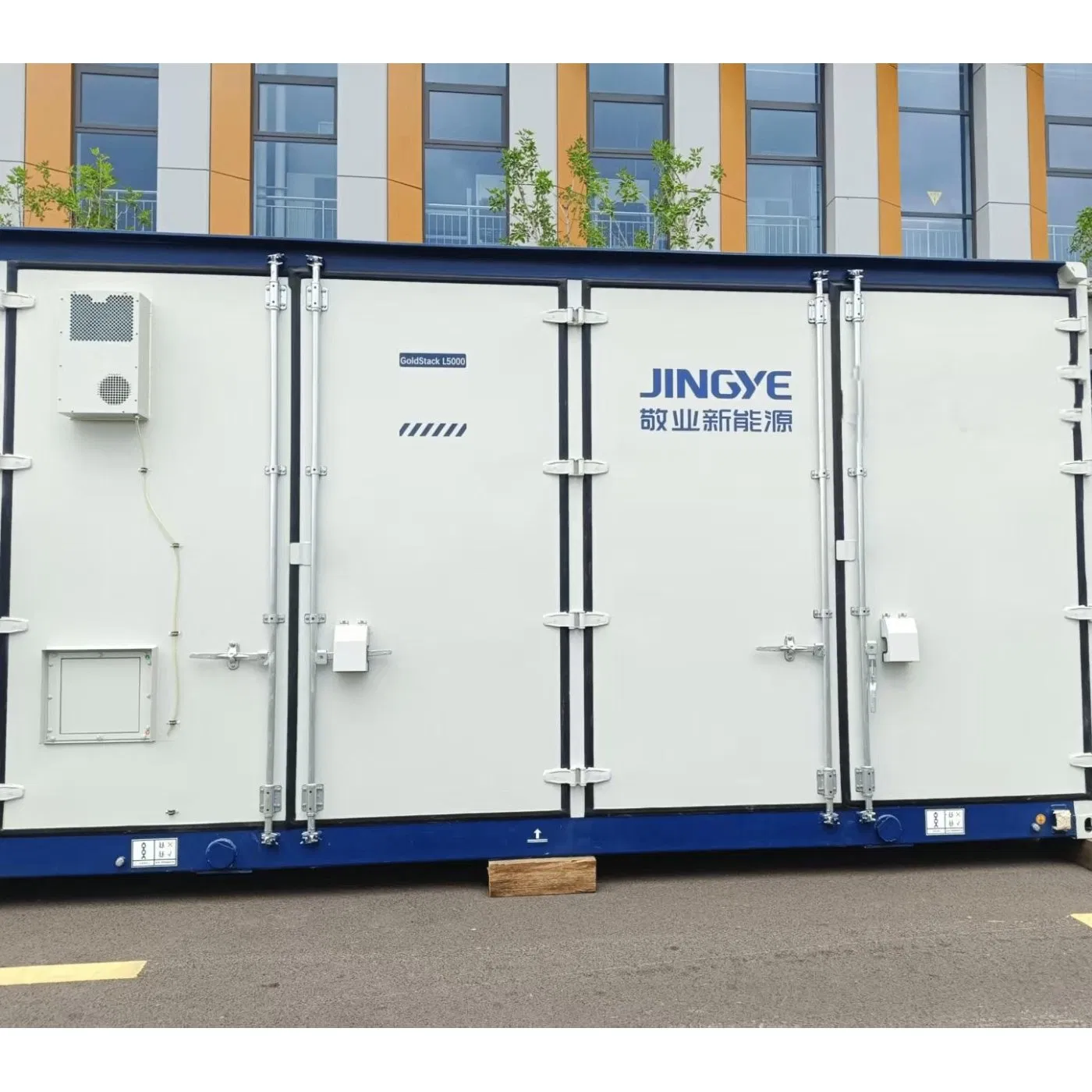

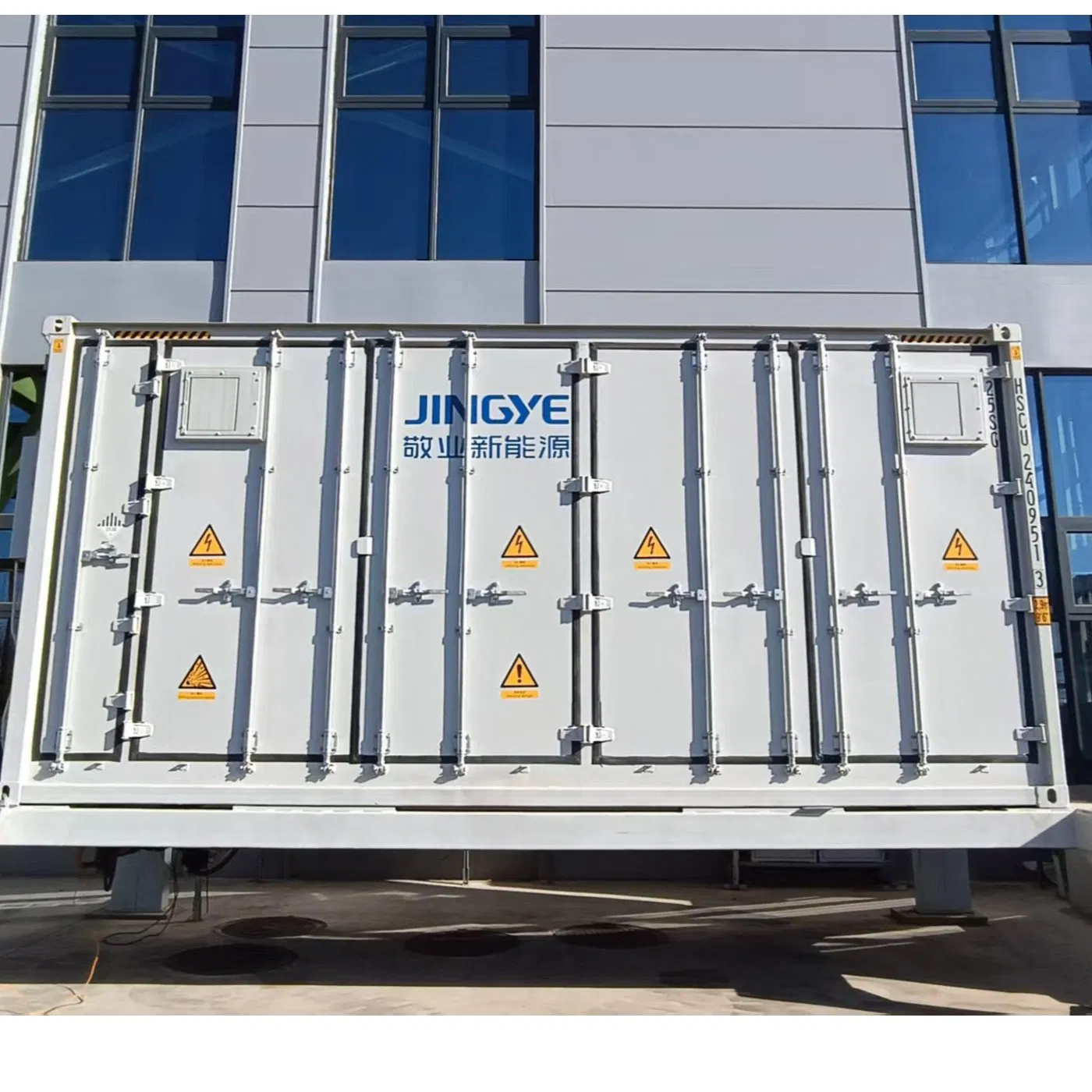

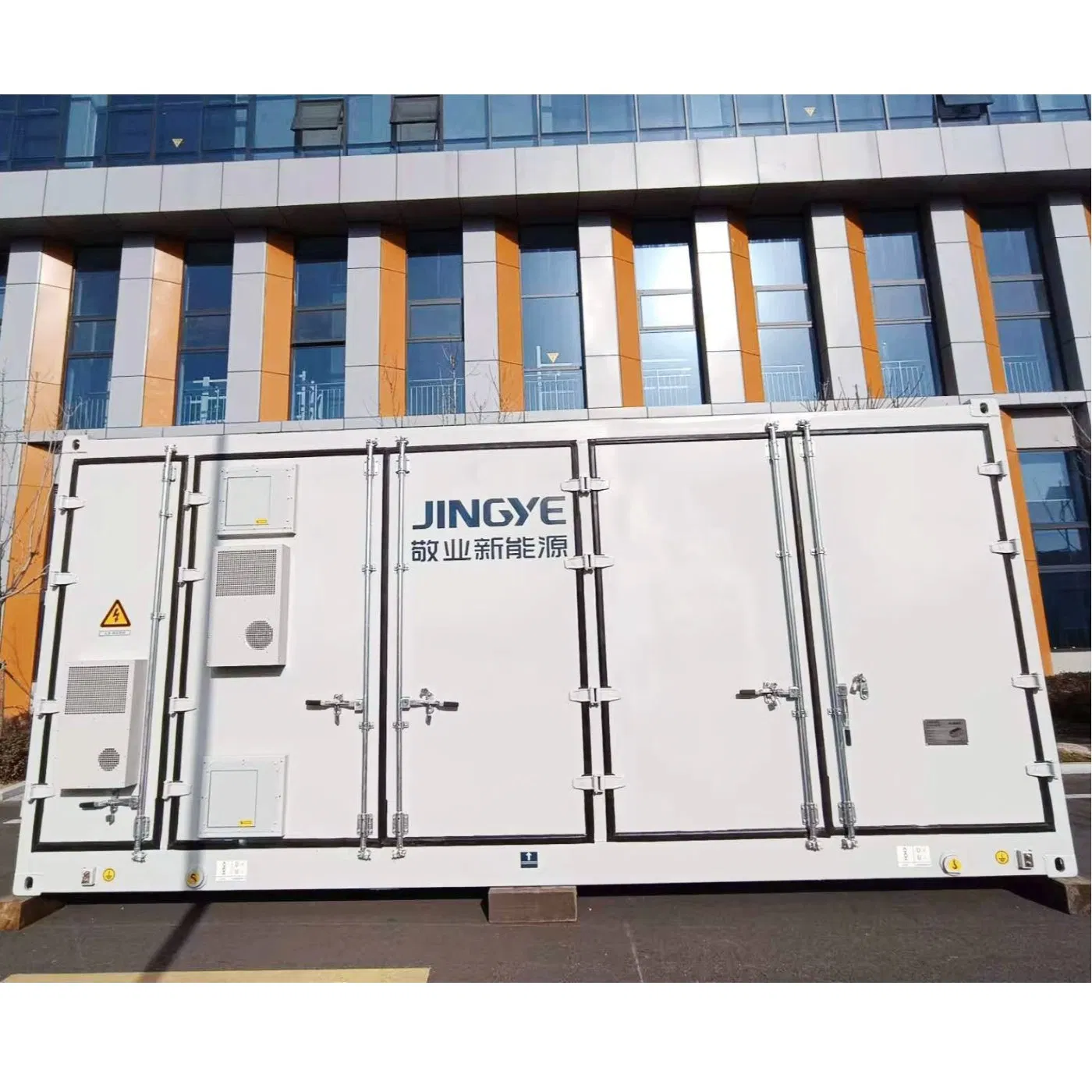

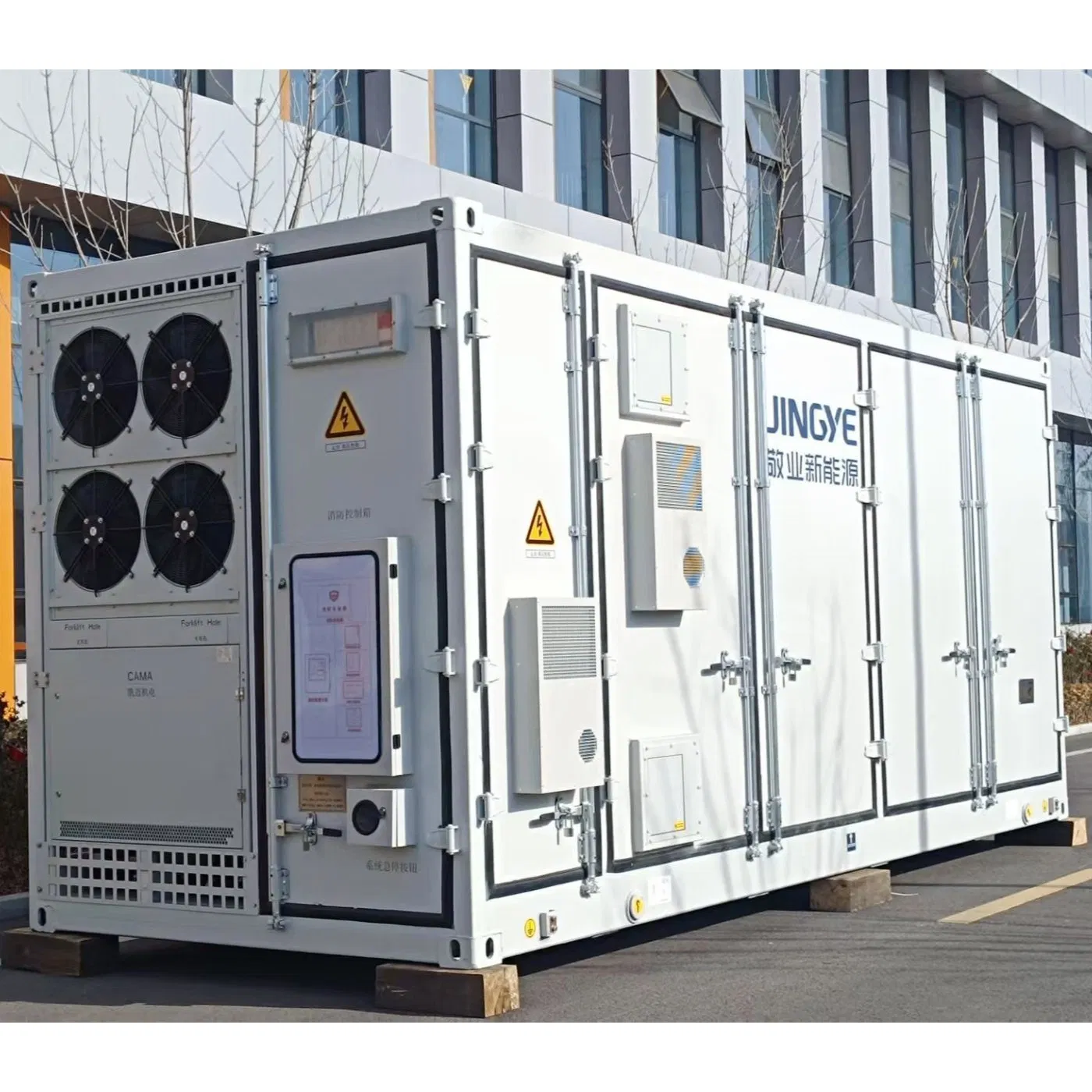

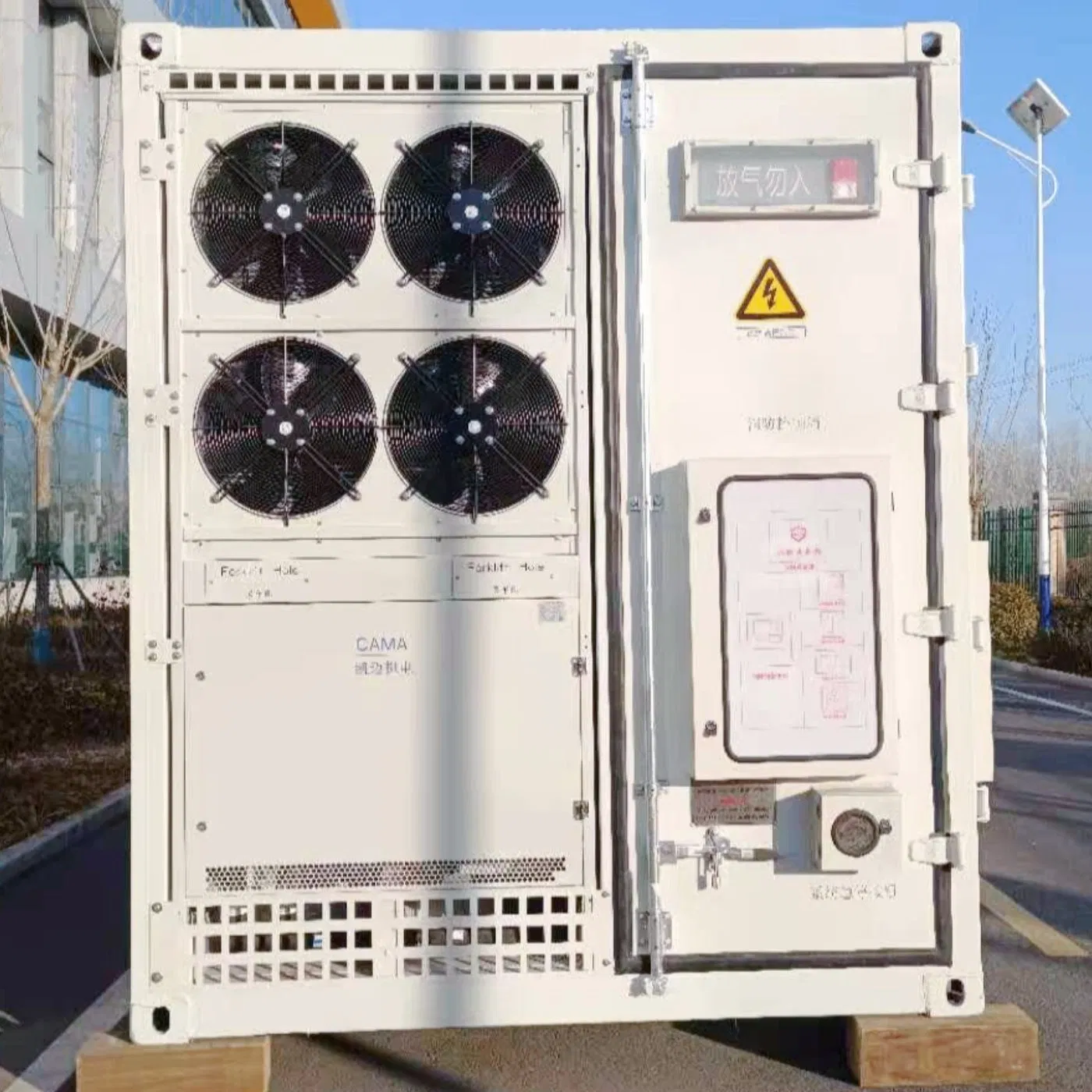

Long-Life LiFePO4 5015kwh Liquid-Cooled Containerized Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Weight:	43t

📊 Basic Specifications

Model: 5.015MWh

Nominal Voltage: 1331.2V

Warranty: 3 Years

Nominal Capacity: 5015kWh

Cycle Life: 9000 Cycles

IP Rating: IP54

Cooling: Liquid Cooling

Configuration: 12*(1p104s*4)

Packaging & Delivery: Package Size 2438.00cm * 2896.00cm * 6058.00cm | Gross Weight: 43000.00kg

🔋 Energy Storage Container Overview

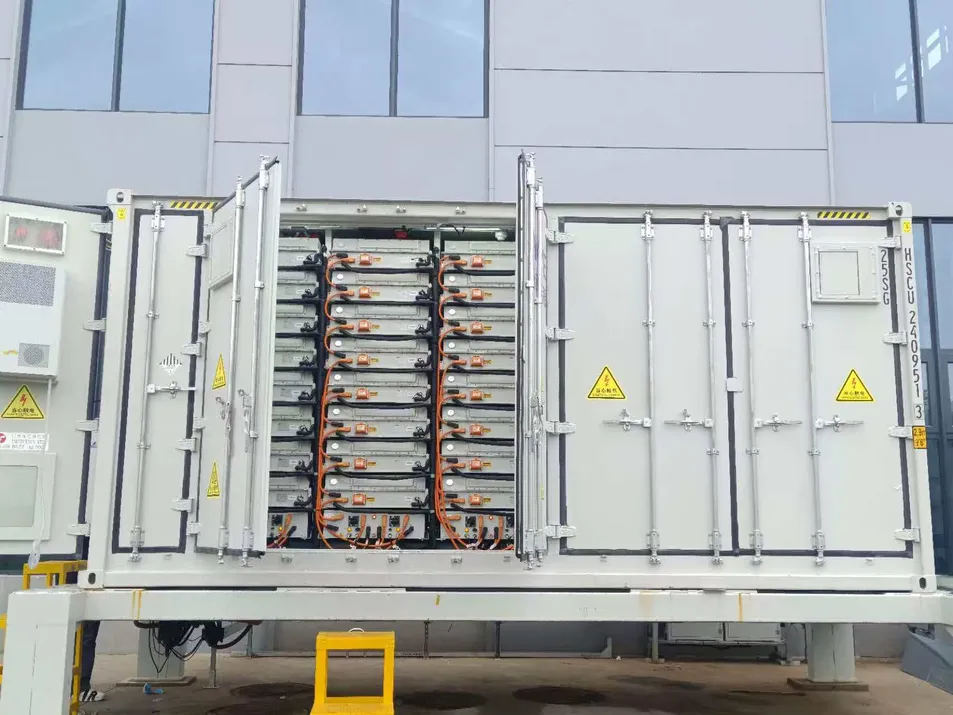

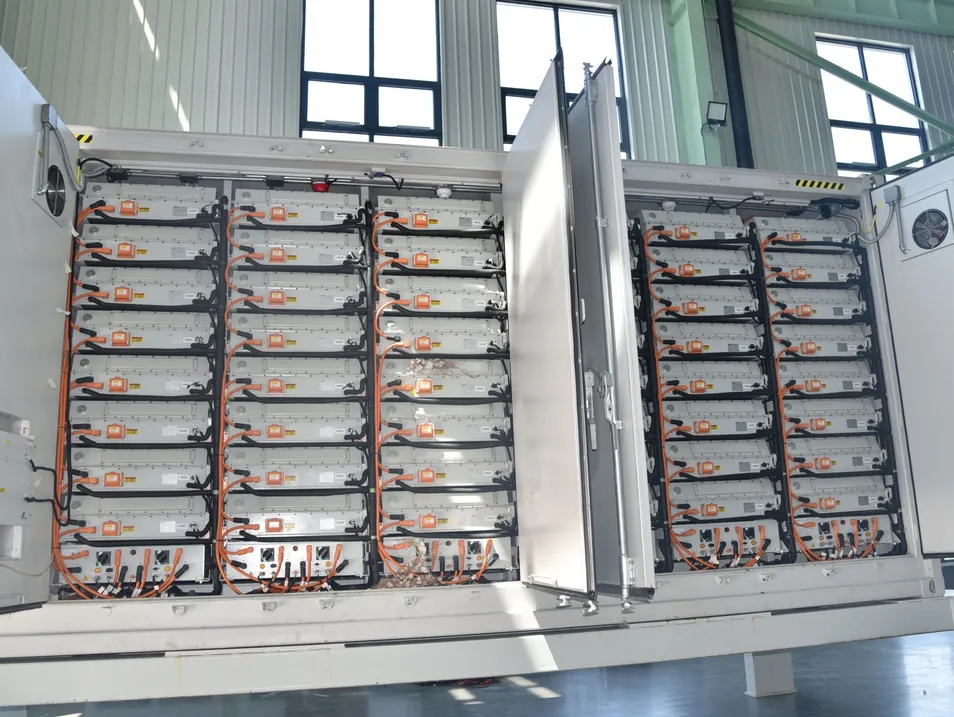

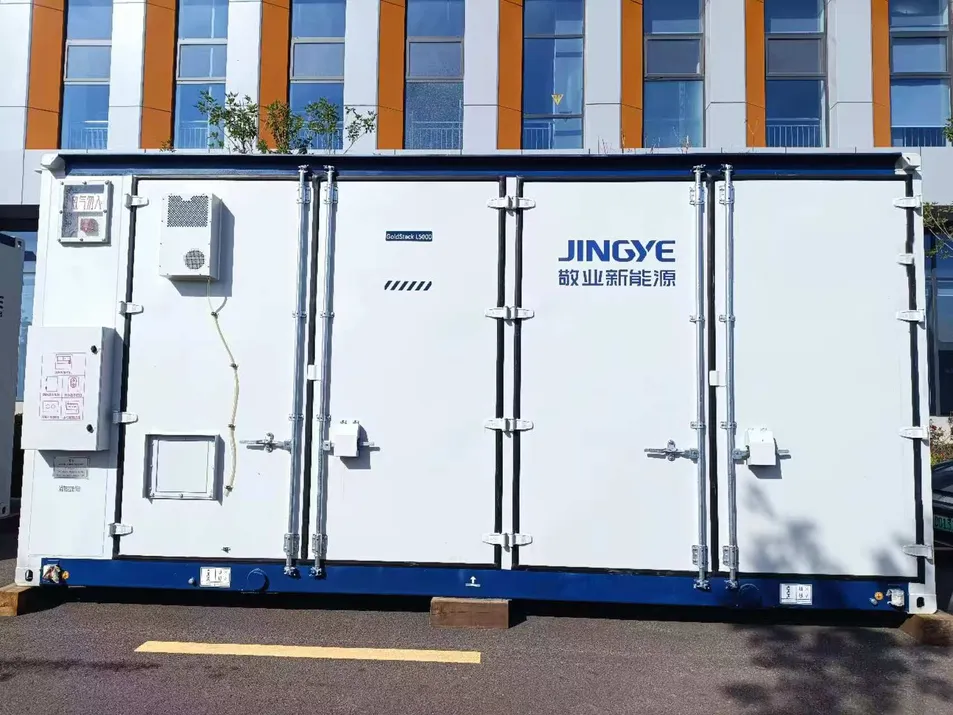

The 5015KWh Liquid Cooling energy storage system is based on high-capacity 314Ah energy storage cells. It consists of a 104S long PACK, battery cluster units, management systems, fire protection, and thermal management. Housed in a standard 20-foot container (2438mm-2896mm-6058mm), it ensures safety control while remaining versatile for various transportation and site designs.

⚙️ Key Product Features

🔋

Battery Technology High-efficiency, long-life lithium iron phosphate (LiFePO4) batteries.

🛡️

Intelligent Management Advanced BMS products ensure comprehensive product safety.

🌡️

Thermal Control Industrial-grade liquid cooling maintains precise temperature (ΔT < 3℃ in PACK).

🔥

Safety Protection Multi-level fire extinguishing system (Perfluorohexane or aerosol).

📱

Monitoring Integrated smoke, video, temperature, and humidity monitoring.

🧩

Modular Design Simplified structure for easy transportation, installation, and maintenance.

📝 Detailed Technical Specifications

Category	Item	Specification
Configuration	System Layout	12(1P104S4)
Power	Rated Energy	5MWh
Voltage	Rated Voltage	1331.2VDC
Voltage	Range	1164.8V - 1497.6VDC
Power	Charging/Discharge	≤ 2.5MW
Environment	Storage Temp	5℃ < T ≤ 35℃
Environment	Operating Temp	-30℃ to 60℃ (Discharge)
Environment	Altitude	≤ 4000m
Physical	Dimensions	L6058 x W2438 x H2896mm
Physical	Weight	Approx. 43t
System	Communication	Ethernet, CAN, ModbusRTU

🏭 Manufacturing & Exhibition

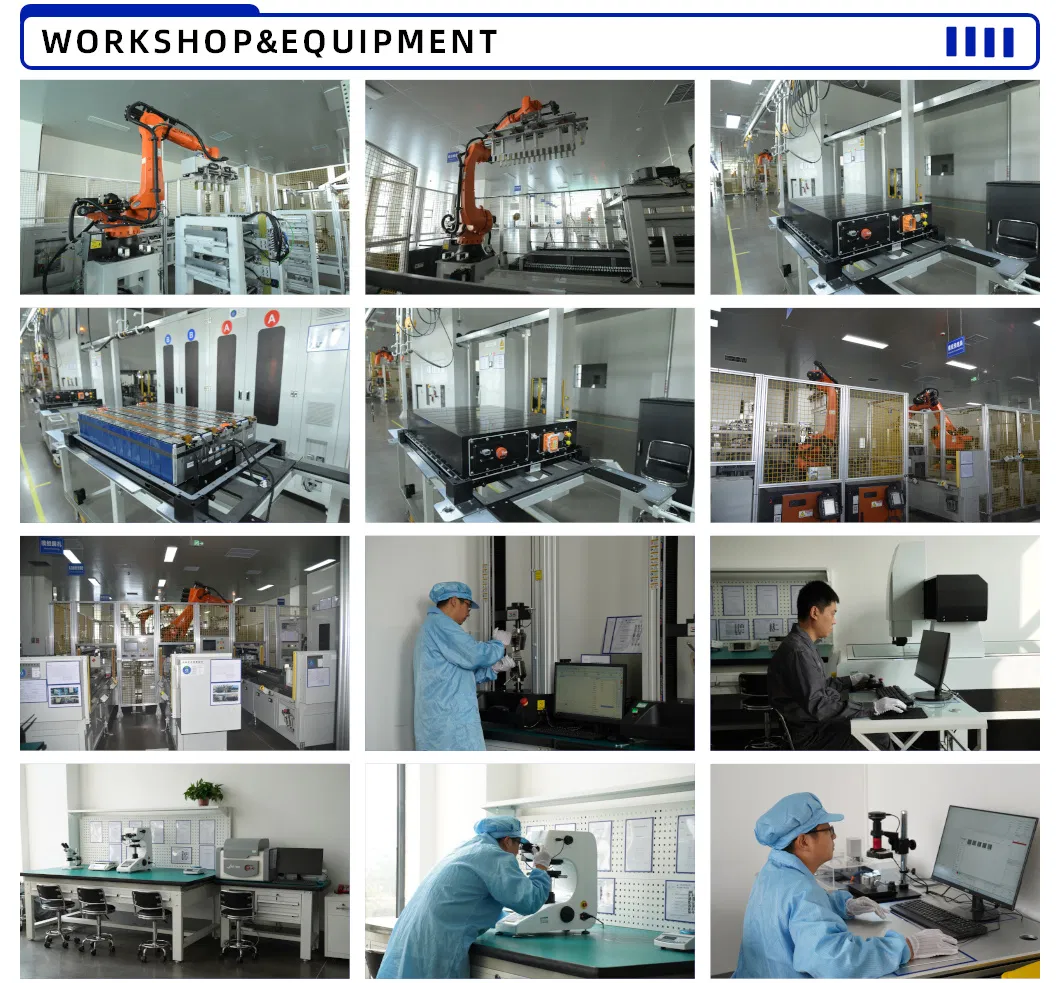

Our automated production lines feature an annual capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. We serve smart grids, wind/solar distribution, and industrial sectors globally.

❓ Frequently Asked Questions

What are the main products available?

Our key offerings include the 5MWh Energy Storage Container, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and high-performance Battery Packs.

Do you support customization services?

Yes, we offer flexible customization services for products across various process types to meet specific project requirements.

How is production and delivery timeline ensured?

With a comprehensive automated production line and a proficient technical team, we guarantee stable production cycles and on-time delivery.

How can I obtain a detailed quotation?

Please contact our online staff through the website interface. They will provide a detailed and prompt quotation based on your needs.

Are you a source factory or a trading company?

We are a formal source factory with standardized production processes, allowing us to offer competitive pricing alongside top-quality product standards.

What cooling technology is used in the 5MWh unit?

The system utilizes advanced liquid cooling technology with a 50% ethylene glycol aqueous solution to ensure optimal thermal performance and safety.
