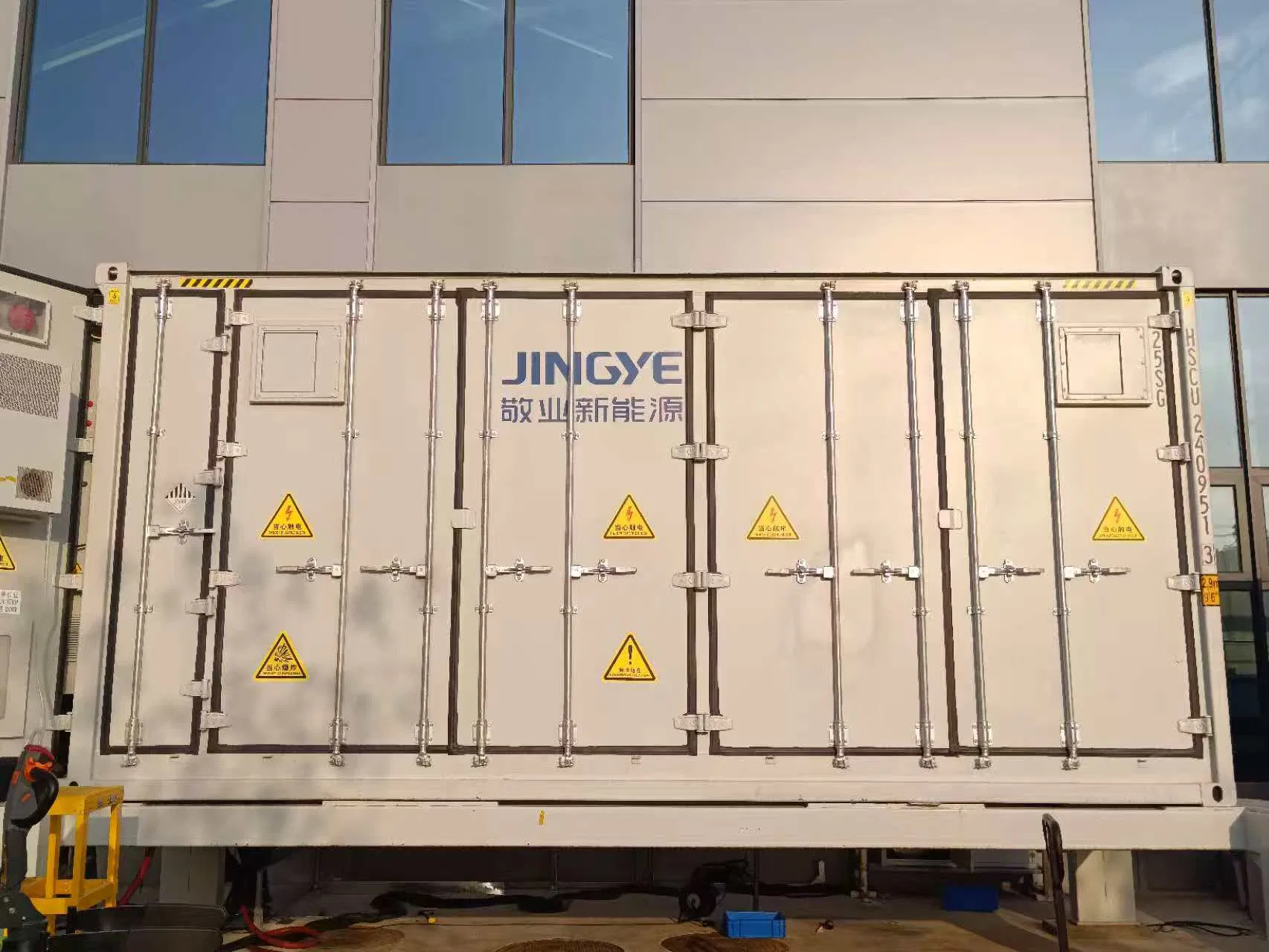

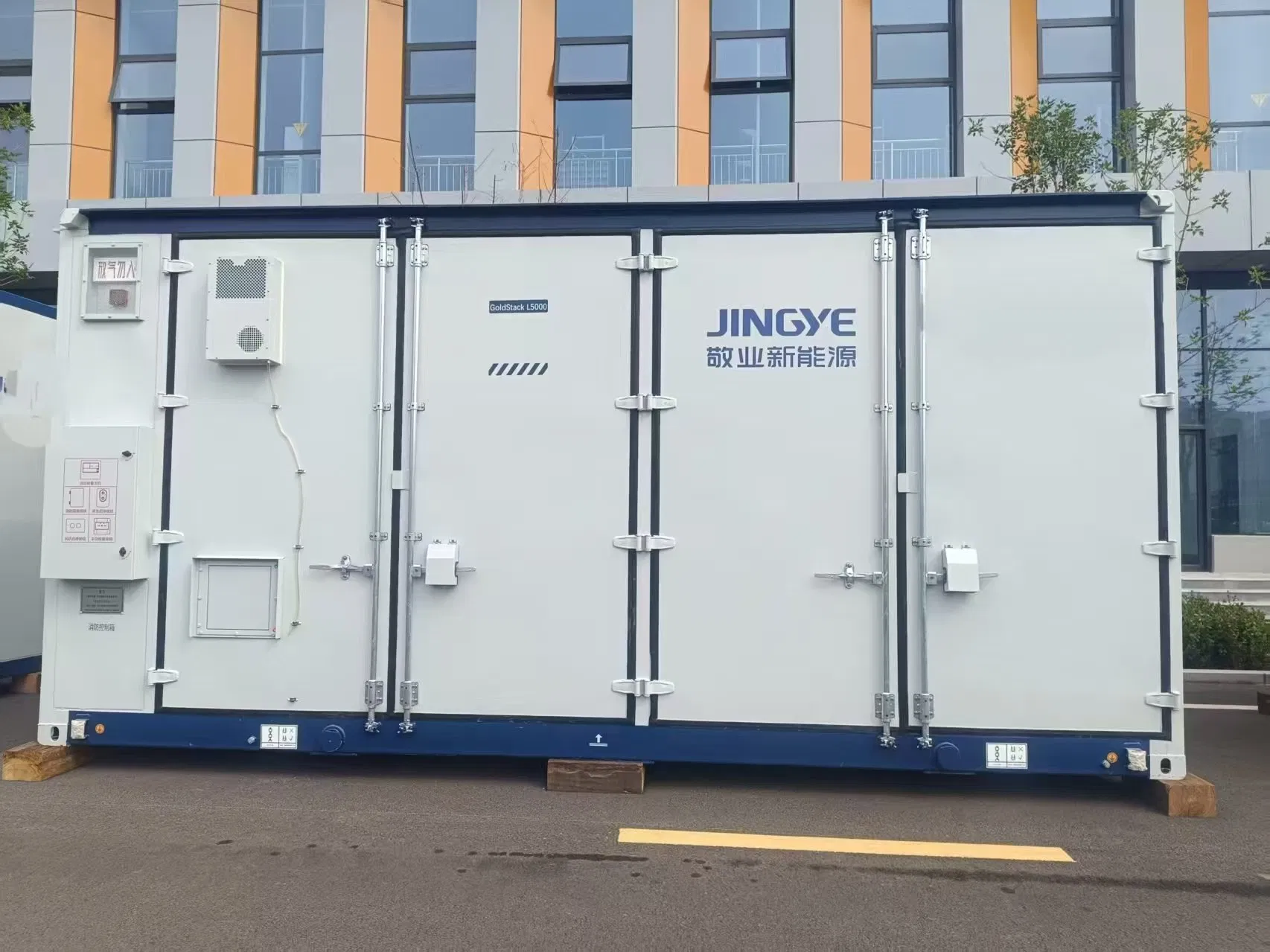

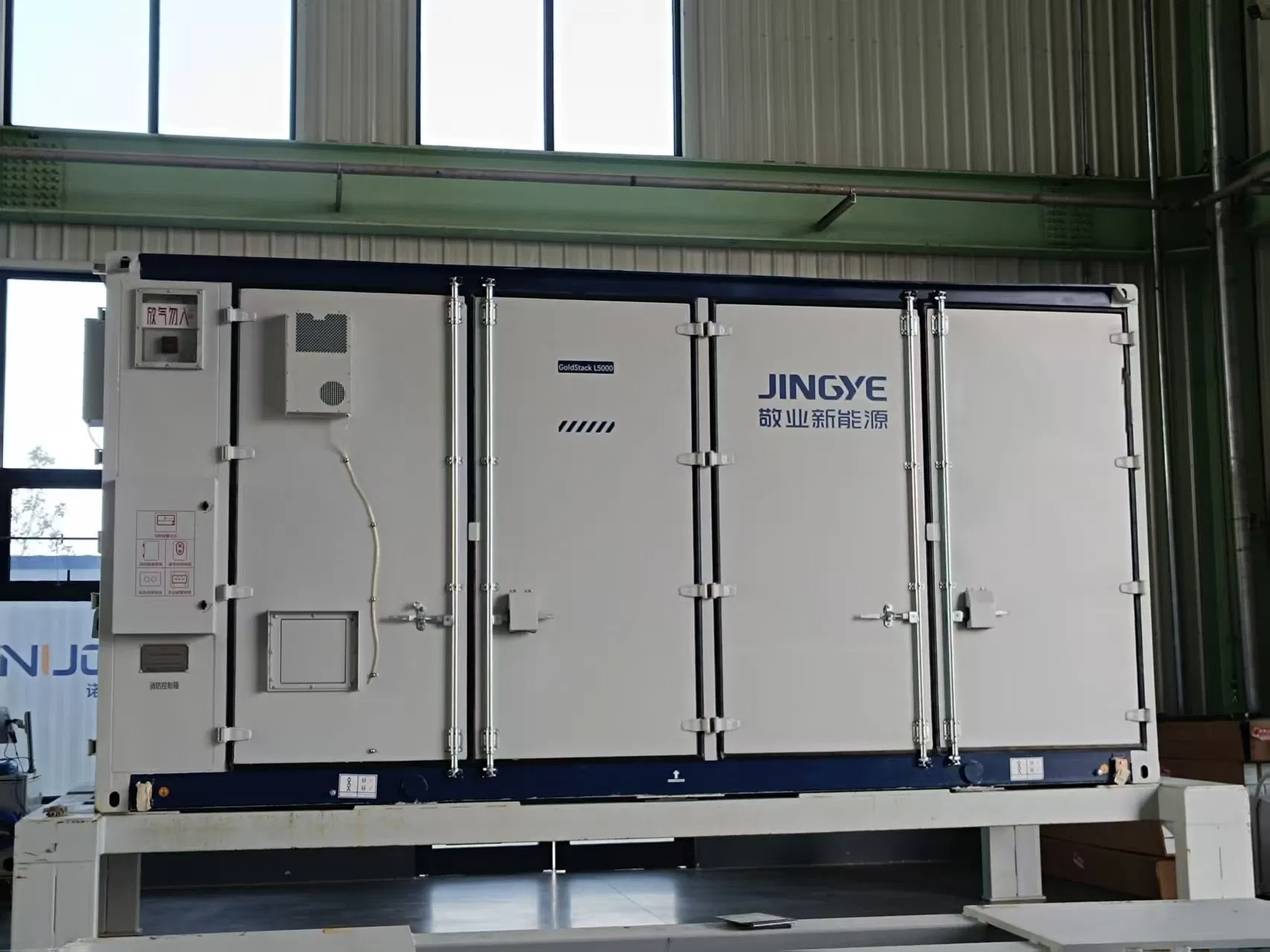

5.015mwh Efficient Liquid - Cooling Energy Storage Unit

1 / 5

5.015mwh Efficient Liquid - Cooling Energy Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Warranty:	3 Years

Send Inquiry

Product Description

⚡ Basic Specifications

Cycle Life 10 Years (2 Charges/Discharges Daily)

Configuration 12*(1p104s*4)

Rated Power 5MWh

Voltage Range 1164.8V - 1497.6V DC

Rated Charging Power ≤ 2.5MW

Rated Discharge Power ≤ 2.5MW

📦 Product Description

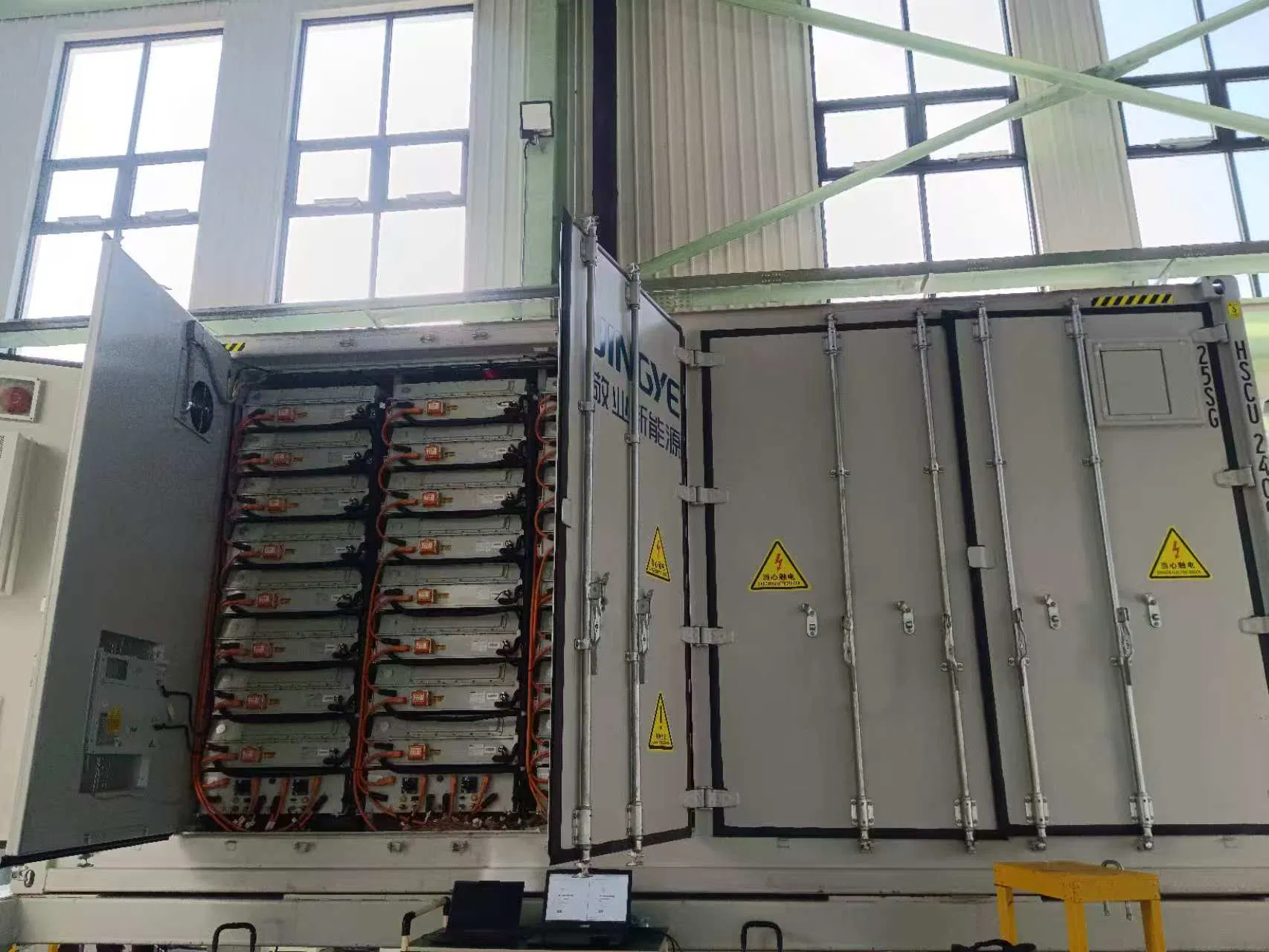

Efficient Liquid-Cooling Energy Storage Unit

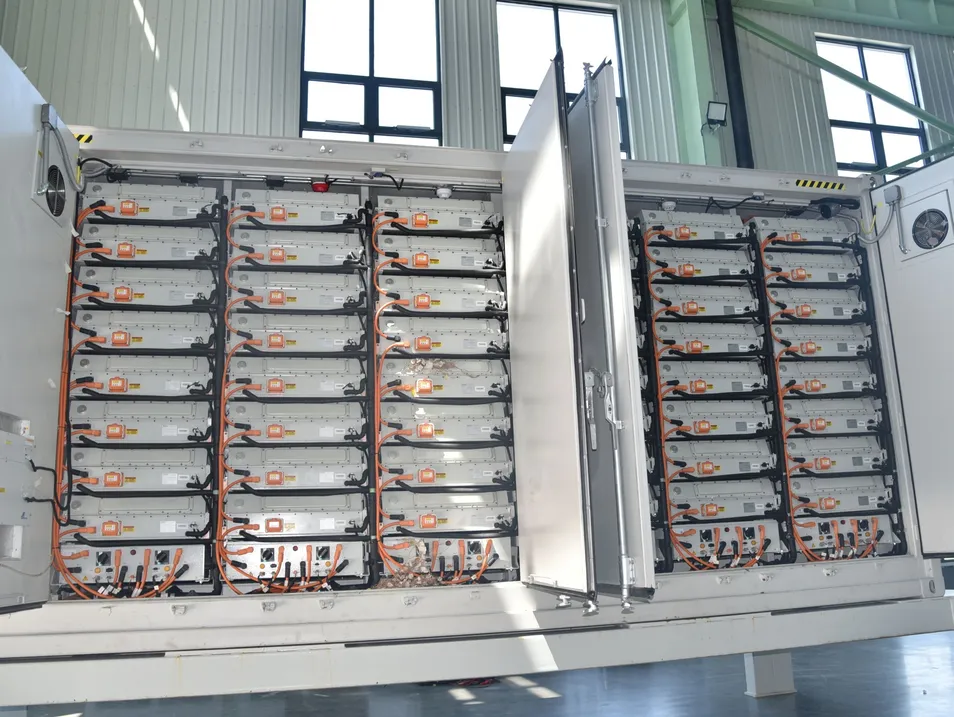

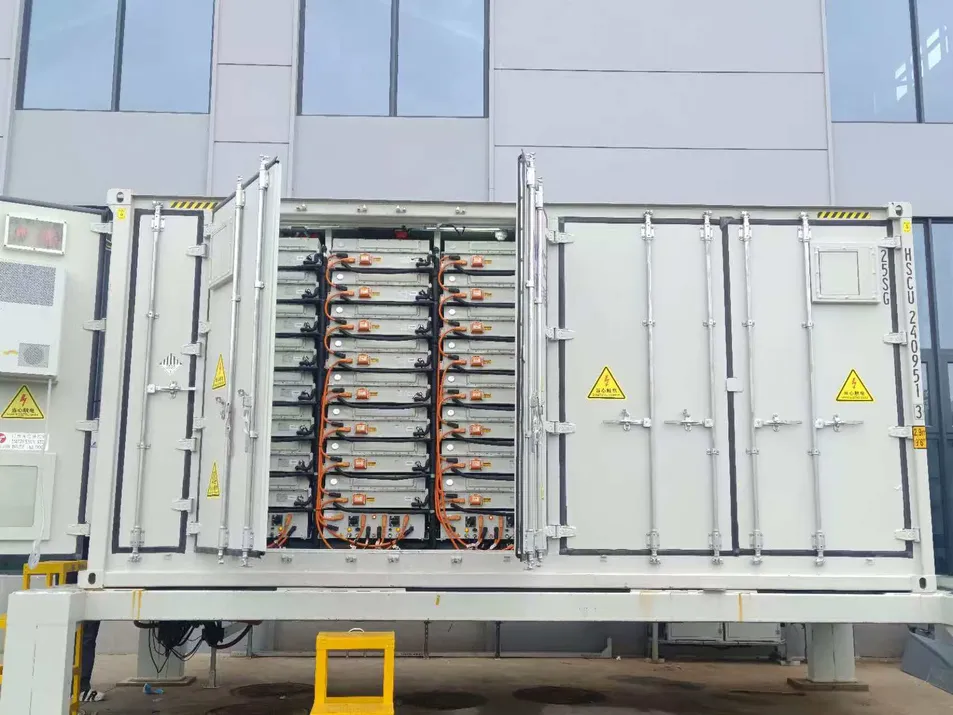

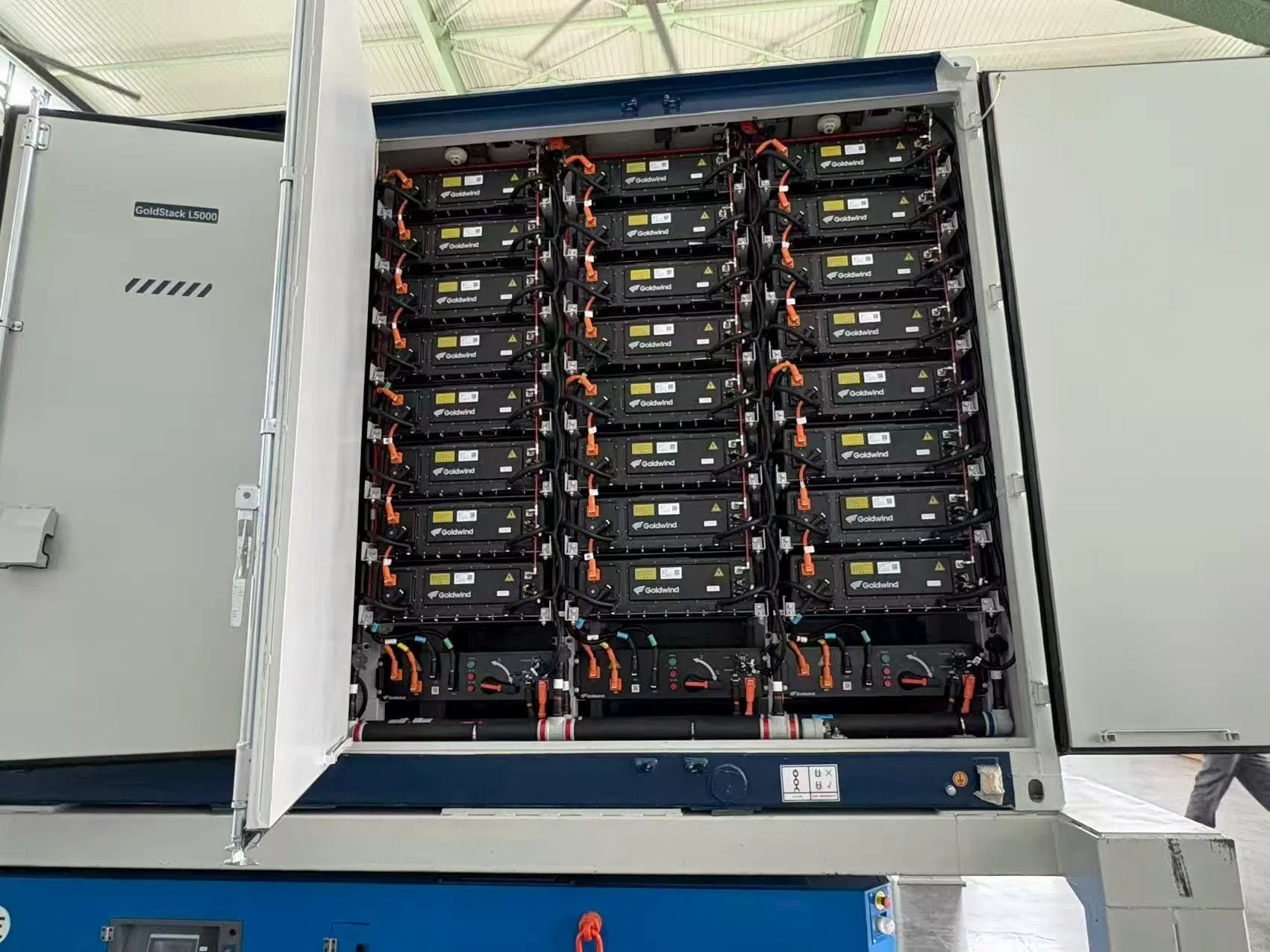

5015KWh Liquid Cooling Energy Storage System is based on high-capacity 314Ah cells. It integrates battery cluster units, management systems (BMS), fire protection, thermal management, and environmental control within a standard 20-foot container. Designed for safety and versatility, it is suitable for diverse site conditions and transport requirements.

✔
Battery Technology: High-efficiency, long-life Lithium Iron Phosphate (LiFePO4) batteries.
✔
Thermal Management: Industrial-grade cooling ensures <3℃ temperature difference inside PACKs and <5℃ in cabinets.
✔
Safety Protection: Multi-level automatic fire extinguishing system (PACK, cluster, compartment) using perfluorohexane or aerosol.
✔
Monitoring System: Real-time monitoring of temperature, humidity, smoke, and video security.
✔
Modular Design: Easy for transportation, rapid installation, and simplified maintenance.

📋 Technical Specifications

Item		Specification
1	Configuration	12(1P104S4)
2	Rated Power	5MWh
3	Rated Voltage	1331.2VDC
4	Auxiliary Power Supply	400VAC±5% 50Hz / 220VAC
5	Operating Temperature	0℃ to 60℃ (Charging) / -30℃ to 60℃ (Discharging)
6	Altitude	≤ 4000m (Derating above 4000m)
7	Dimensions	6058 x 2438 x 2896mm (20ft Container)
8	IP Rating	IP54

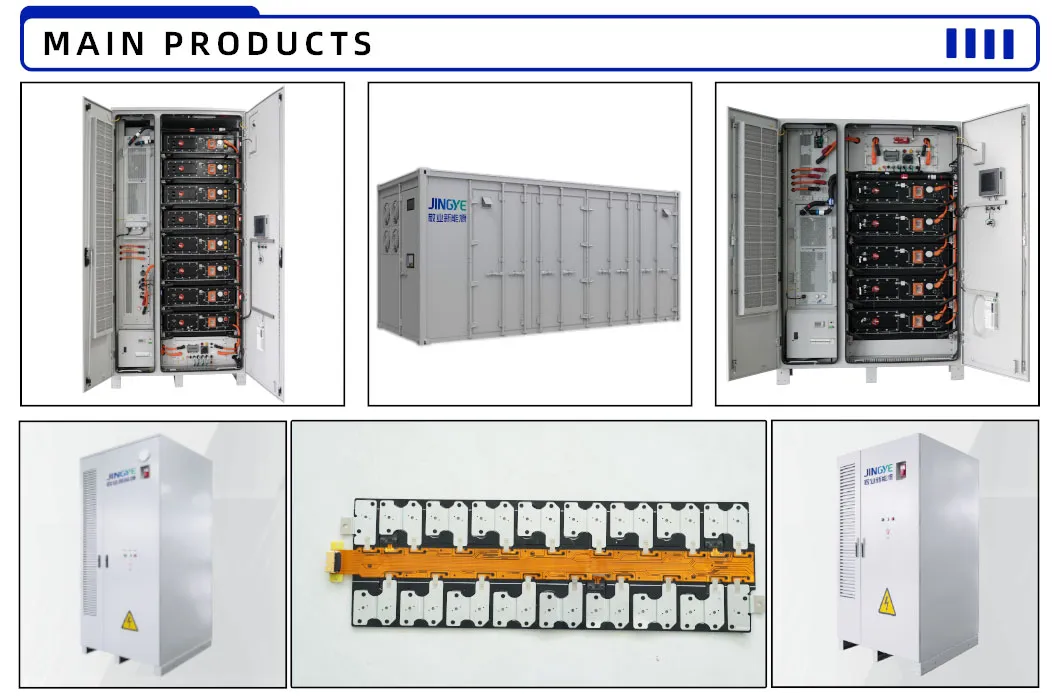

🌟 Main Products

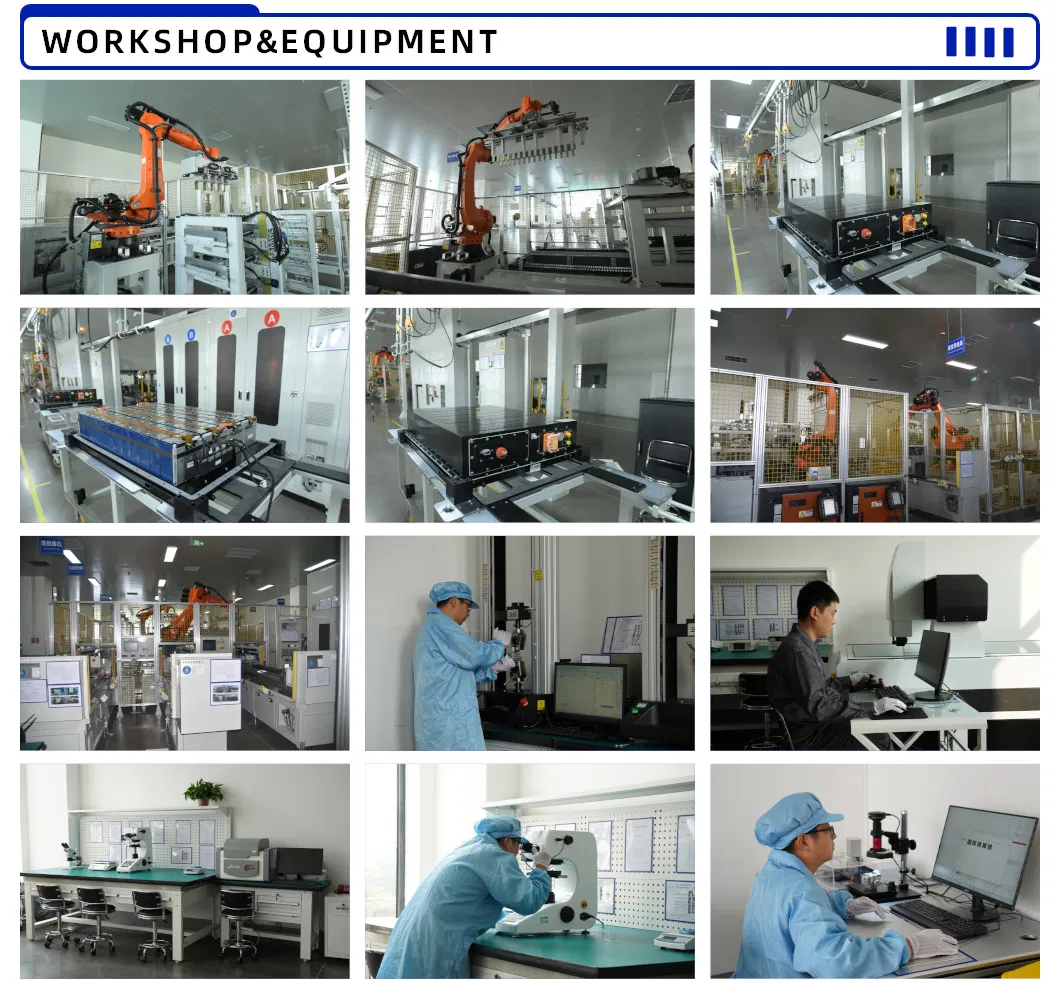

🏭 Workshop & Equipment

Our facility features advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million CCS busbars. These solutions are widely applied in smart grids, industrial/commercial storage, and green transportation.

🏆 Certifications & Exhibition

❓ Frequently Asked Questions

Q1: What are the primary products available?

A: Our core offerings include 5MWh Energy Storage Containers, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you offer customization for specific project needs?

A: Yes, we provide flexible customization services tailored to diverse process types and technical requirements for various energy storage applications.

Q3: How is production stability and delivery timing guaranteed?

A: With a fully automated production line and a team of expert technical personnel, we ensure stable manufacturing processes and reliable on-time delivery for all orders.

Q4: How can I request a detailed quotation?

A: You can reach out directly via the website’s online communication tools, and our support team will provide a comprehensive quote promptly.

Q5: Is this a direct factory or a trading company?

A: We are a formal source factory with standardized production protocols, allowing us to provide competitive pricing and high-quality product control.

Q6: What cooling technology is used in the containers?

A: The systems utilize advanced liquid cooling technology with a 50% ethylene glycol aqueous solution to maintain precise temperature control.
