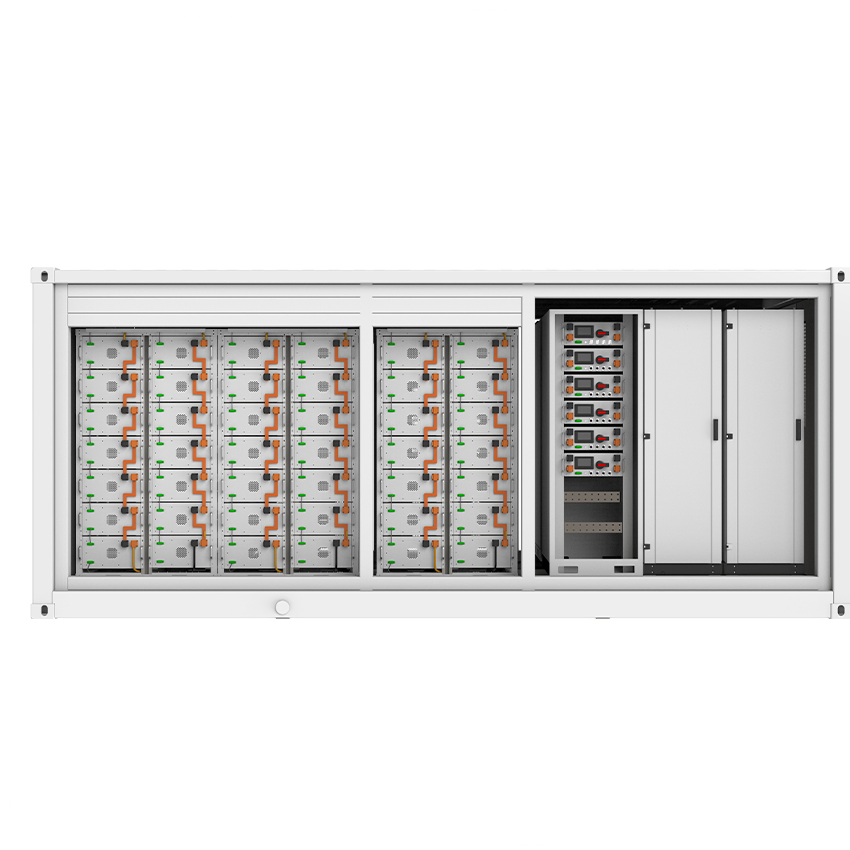

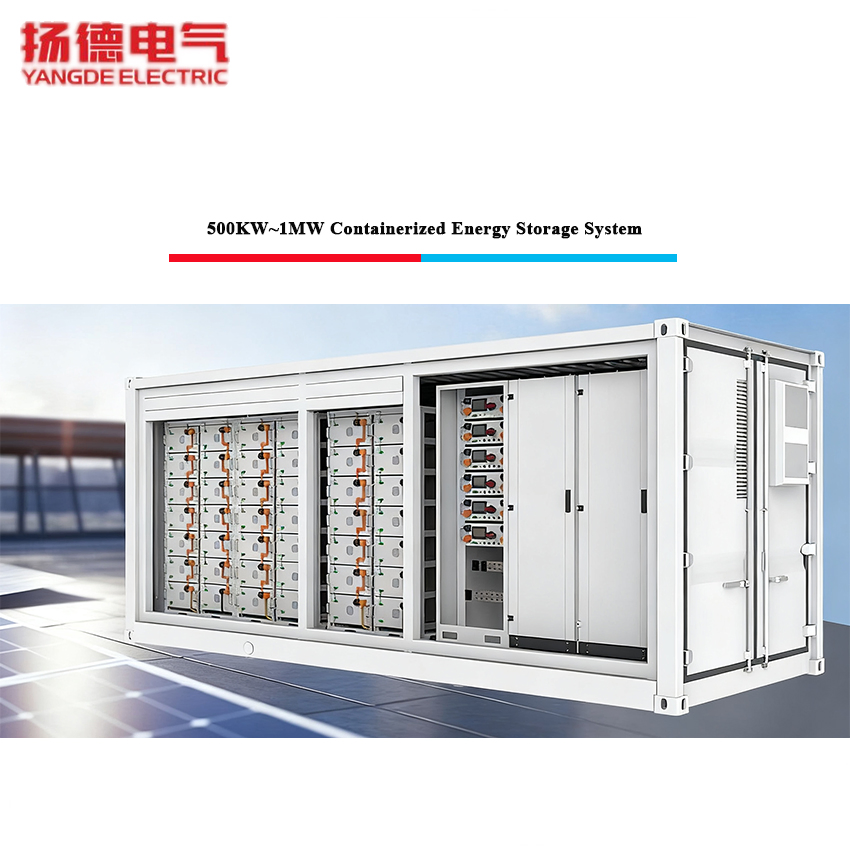

HK Charger
1 / 5

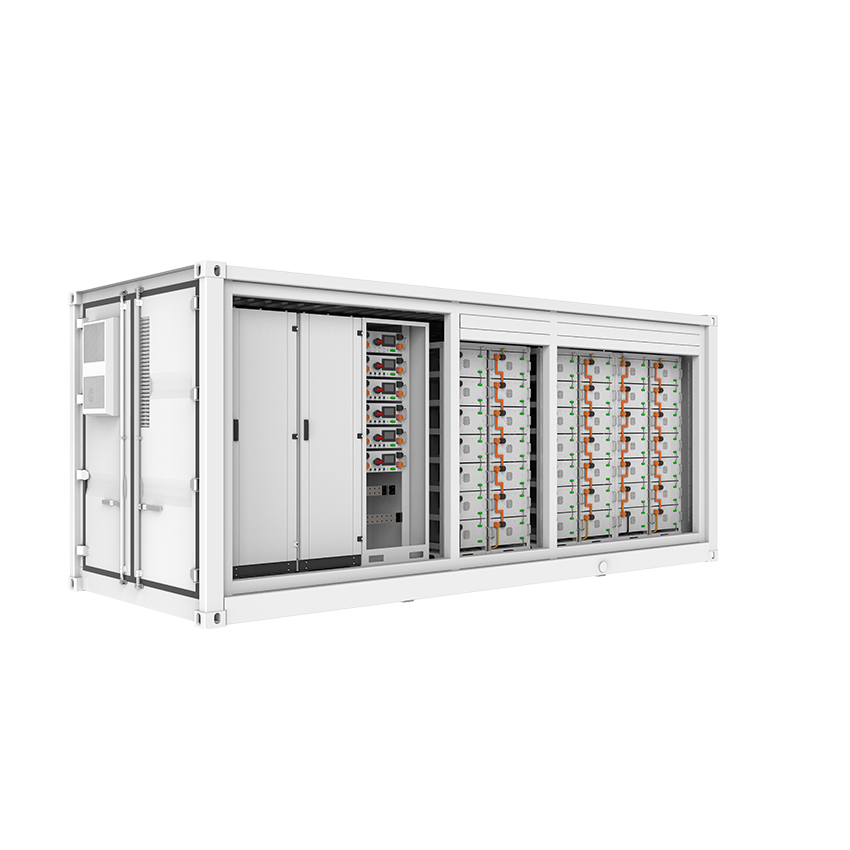

| Model NO. | 500kW 1000kWh |
| Nominal Voltage | 716.8V |
| Warranty | 5 Years |
| Nominal Capacity | 280ah |
| Cycle Life | >6000 times |

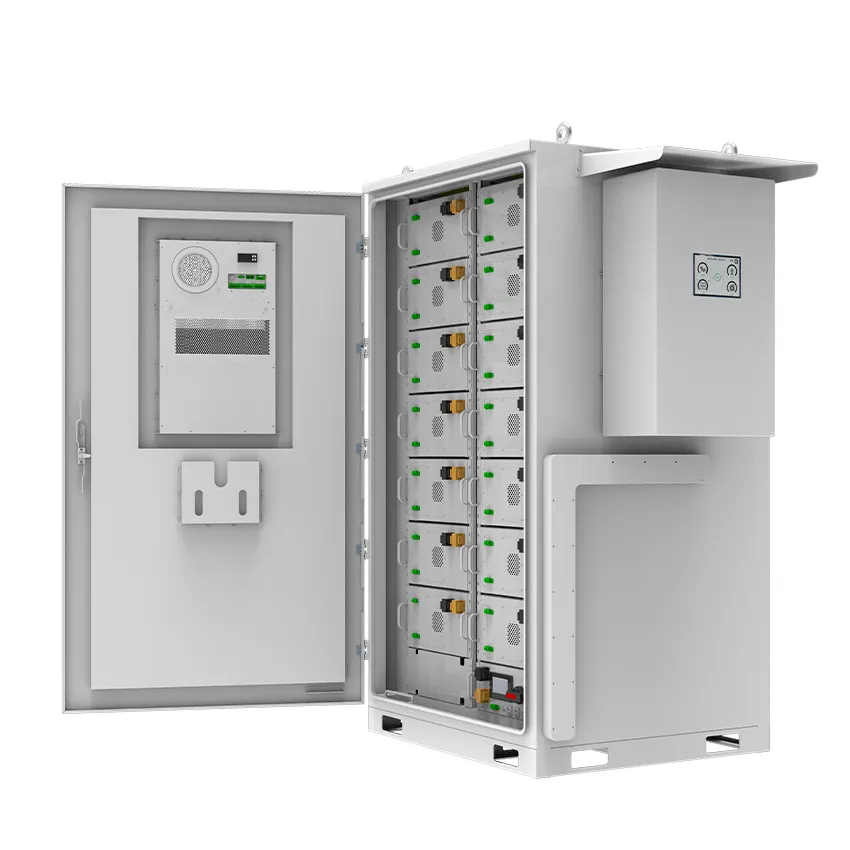

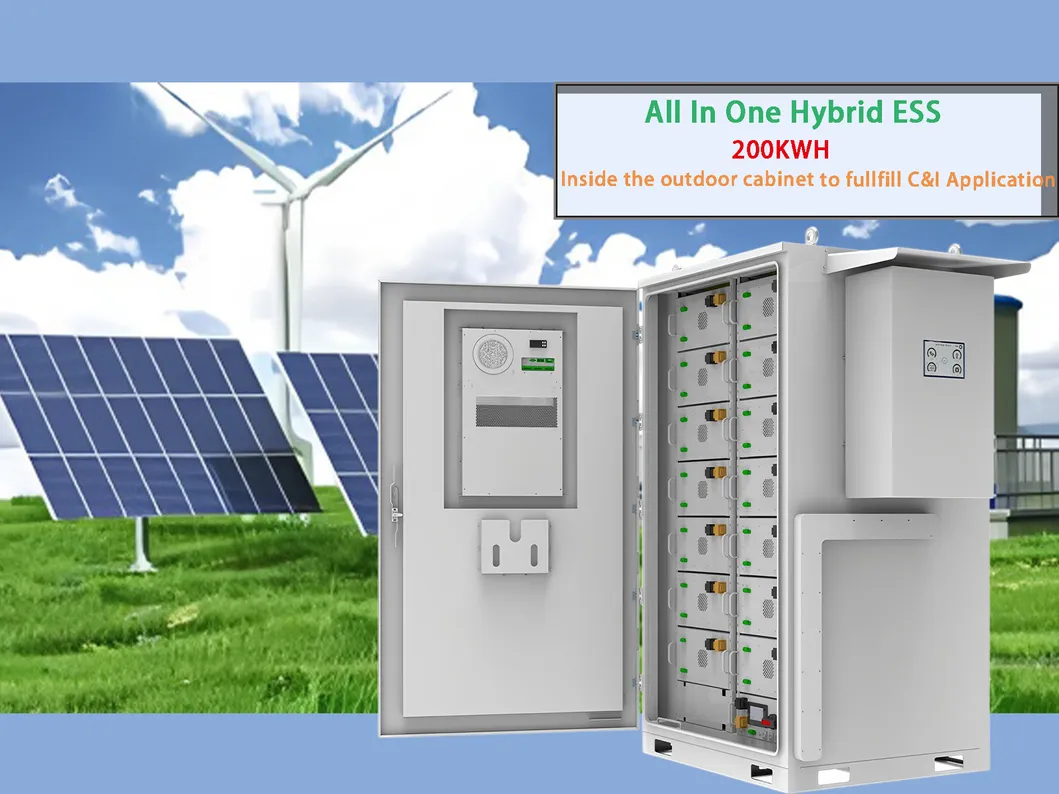

| Model Number | 200kwh Outdoor Cabinet |
| Inverter Type | Hybrid Storage Solar Inverter |
| Battery | Lithium Ion LiFePO4 |
| Controller Type | MPPT |
| Function | Solar Energy Storage |

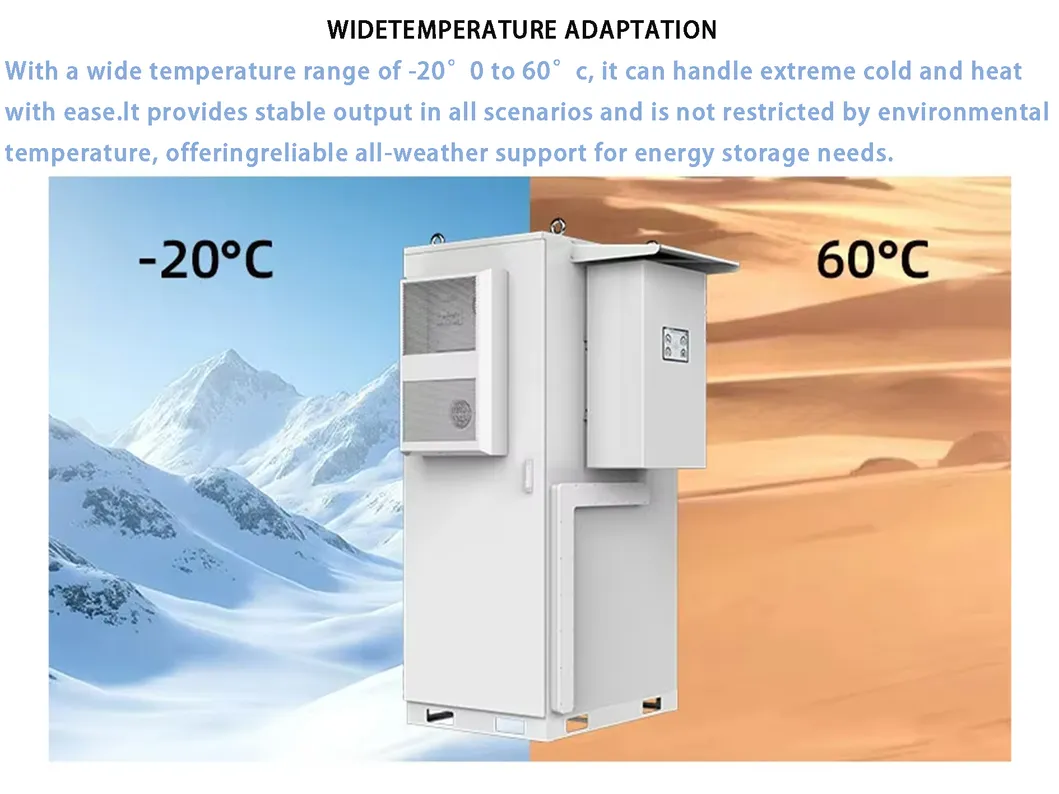

| Storage Temp | -20~60ºC |
| Safety Standard | CE, UN38.3, MSDS |
| Application | Industrial Commercial |
| Package Size | 162.00cm * 124.00cm * 217.00cm |
| Gross Weight | 871.000kg |
| Lead Time | 14-34 days depending on order volume |

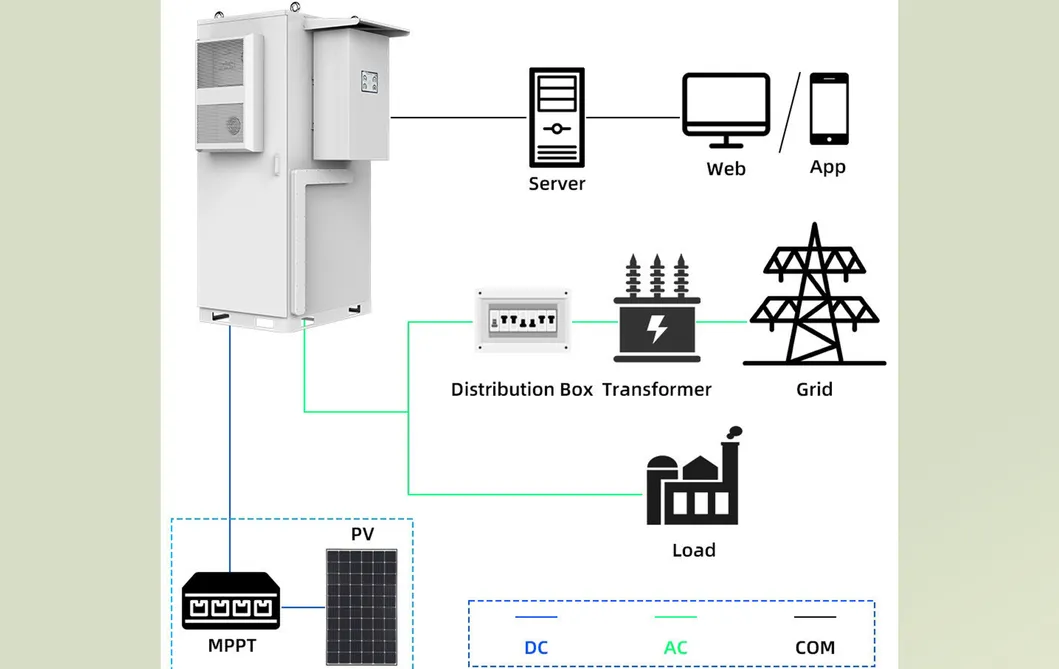

This is a working principle diagram of a solar energy storage system, showing the process from solar power generation to energy storage, use and grid connection. The components and their functions are as follows:
| Component | Function |
|---|---|
| Solar Panel | Converts solar energy into direct current. |
| PV Combiner Box | Collects direct current from multiple panels and outputs it uniformly. |
| Bess with Inverter | Stores electrical energy. The inverter converts DC to AC and manages charging. |
| Generator | Backup power source, supplementary or emergency power supply. |
| Load | Equipment/place that consumes electrical energy. |
| Electric Meter | Measure electrical energy and monitor grid exchange. |
| Grid | Realizes grid connection, purchase or sale of electricity. |
| System Specification | |
| Model | 200K |
| Norminal Voltage | 716.8V |
| Dimensions | 1626*1245*2175mm |
| Weight | 2200KG |
| Cooling Method | Air-Cooled |
| Protection Class | IP55 |

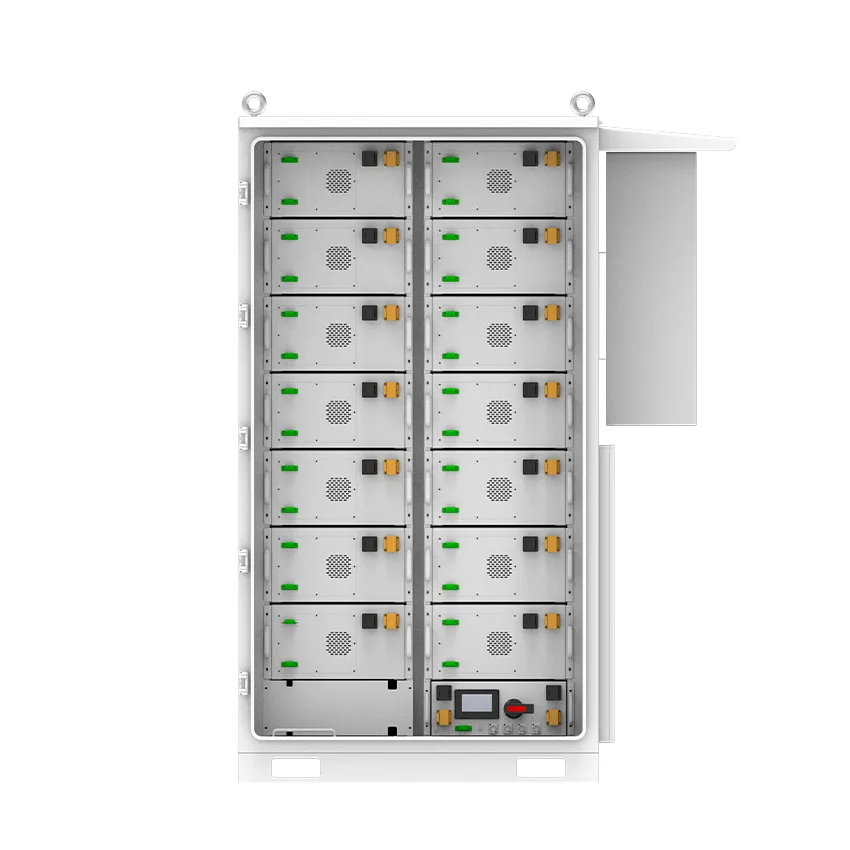

| Battery Specification | |
| Battery Type | 51.2V 280Ah LiFePO4 |
| Capacity | 200kWh |
| Communication | RS485/CAN |
| Design Life | 10 years+ |
| Cycle Life | 5000-6000 Times |
Professional, environmentally friendly, and efficient packing services ensure the safety of your goods.

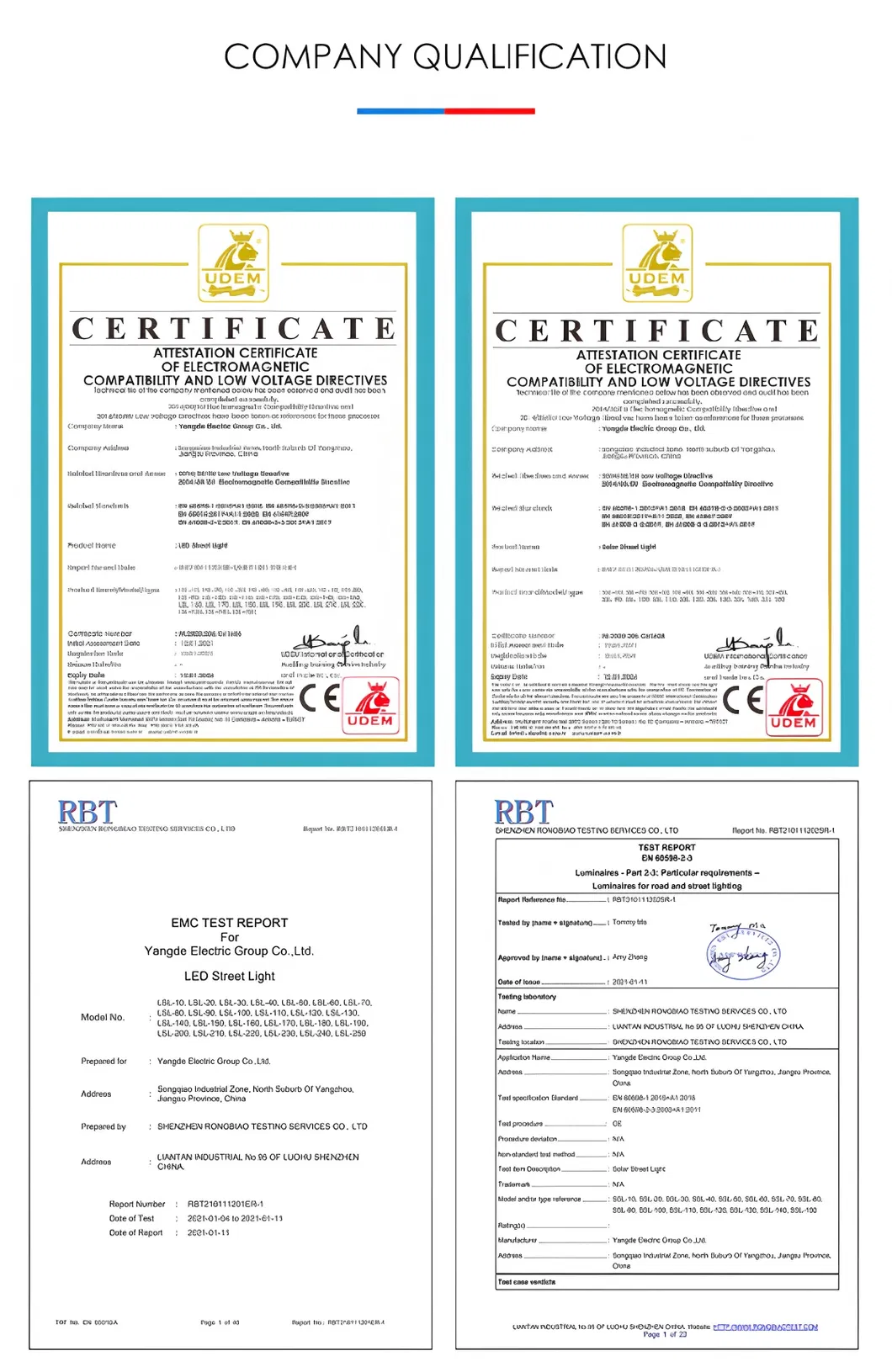

With our strict quality control system and unremitting pursuit of quality, we have achieved various certificates and honors.
