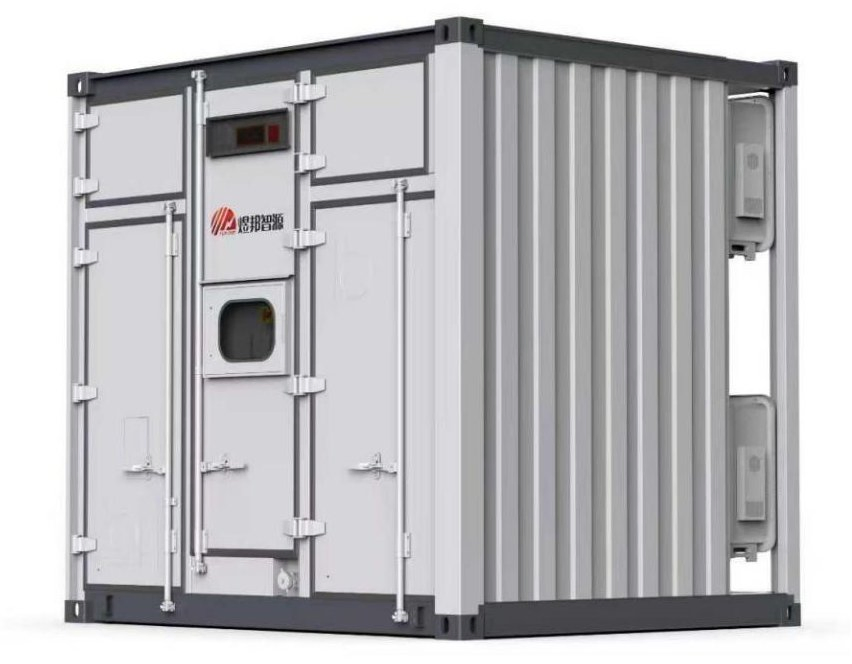

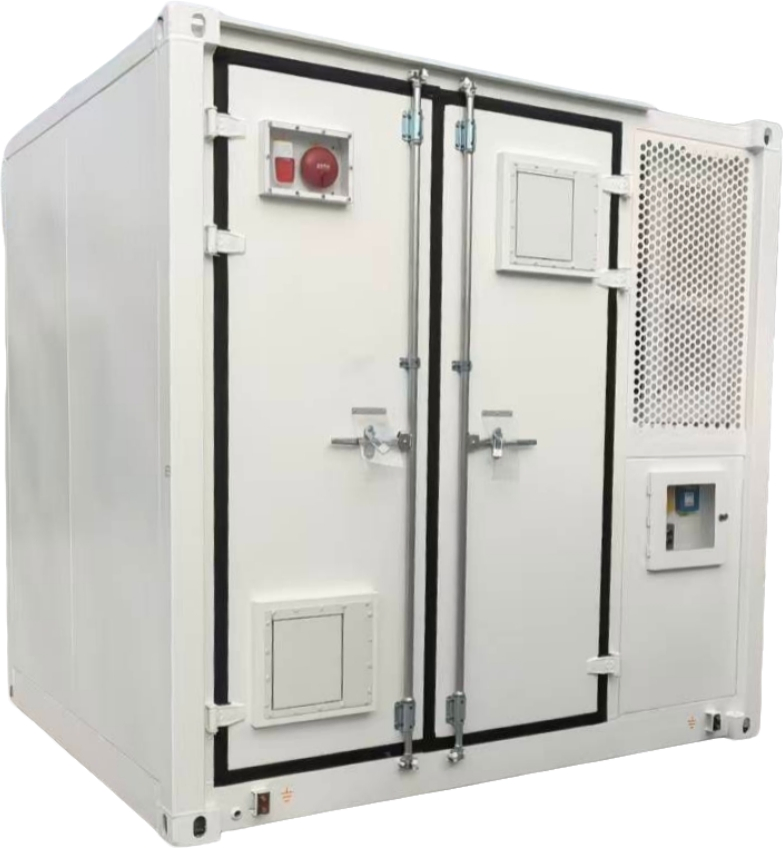

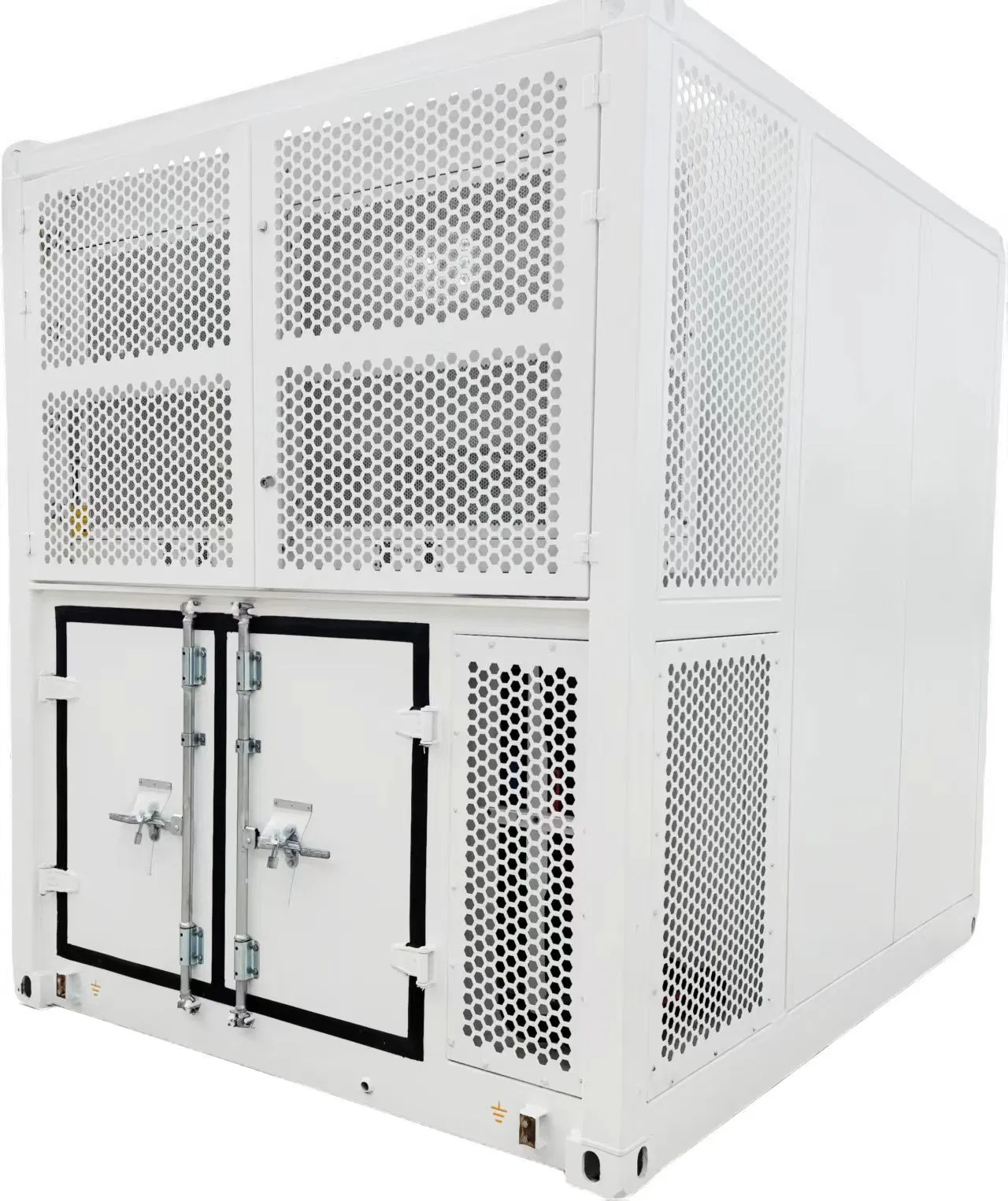

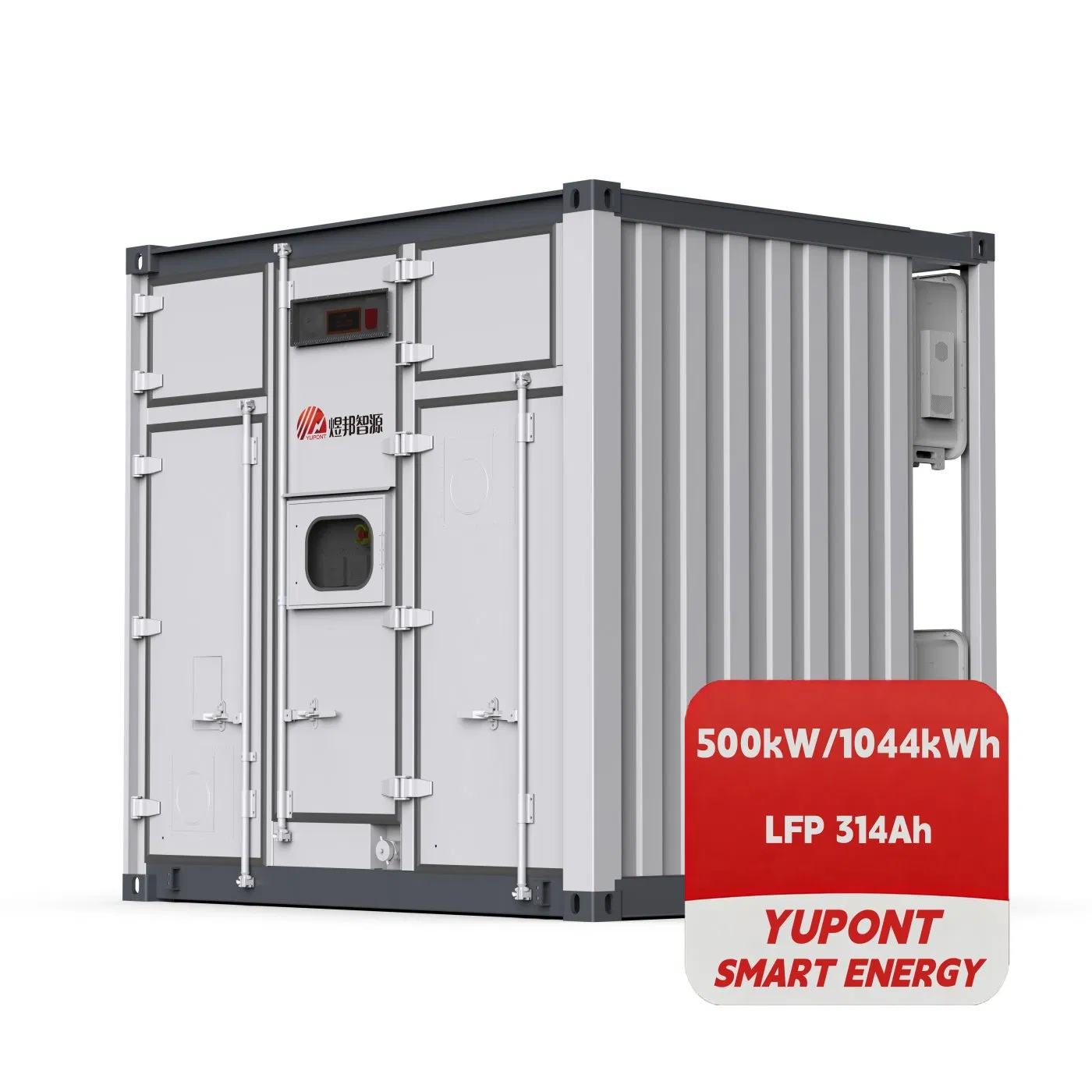

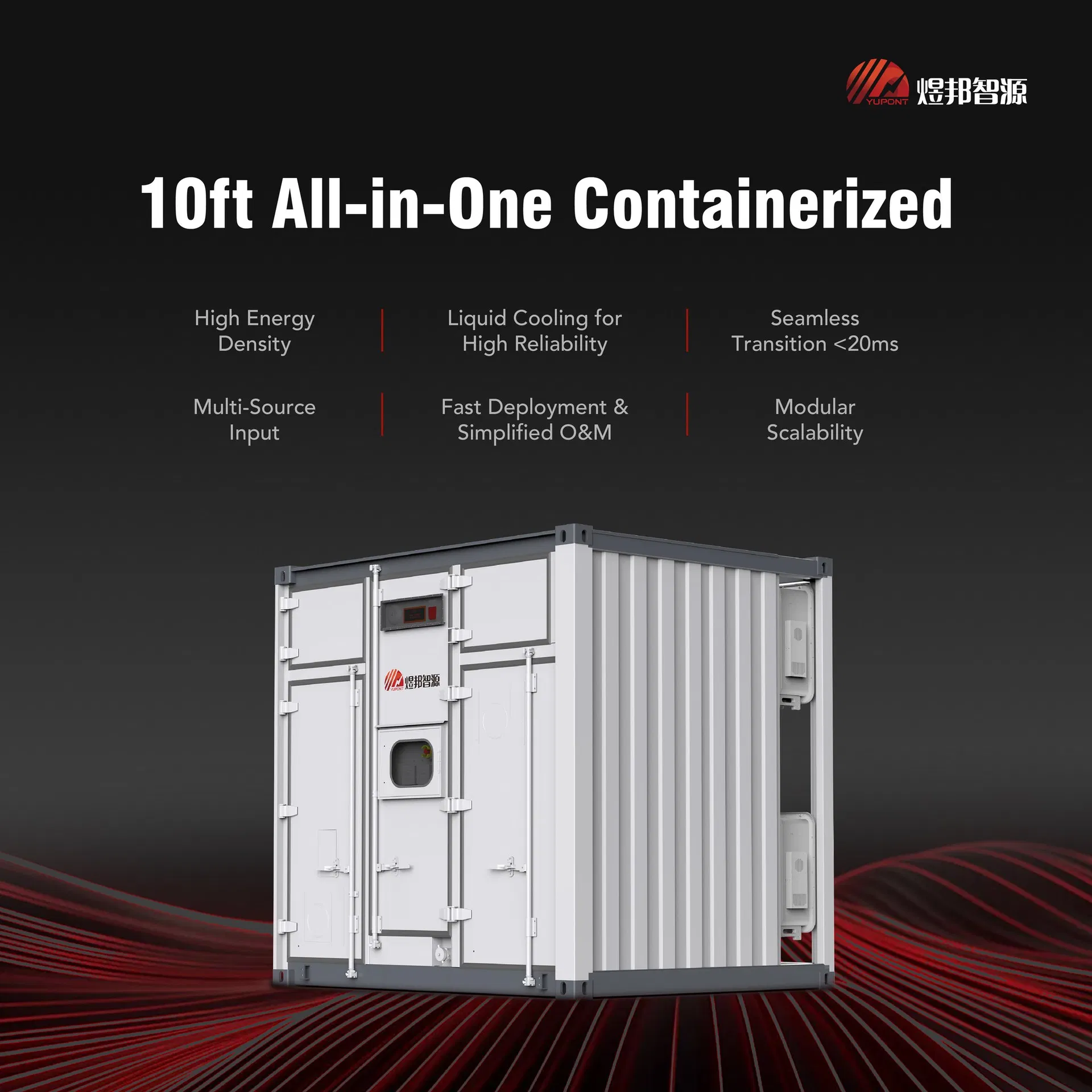

Yupont 500kW/1044kWh 10ft Containerized Hybrid System Energy Storage System

Customization:	Available
Container Size:	2991(L)2438(W)2896(H)mm
Weight:	11500kg

Hybrid Energy Storage System

Model NO.

YPZY-CeCABIN-1044Li-INTL

Nominal Voltage

832V

Nominal Capacity

1044kWh

Warranty

3 Years

Cycle Life

>6,000 Cycles@25℃,90%DOD,80%EOL

Specification

2991(L)*2438(W)*2896(H)mm

Package Gross Weight

11500.000kg

Origin

China

★This 10ft hybrid system is ideal for industrial and commercial photovoltaic storage, charging stations, agricultural micro-grids, residential use, and temporary power supply for construction sites.

Product Description

iSystem Introduction

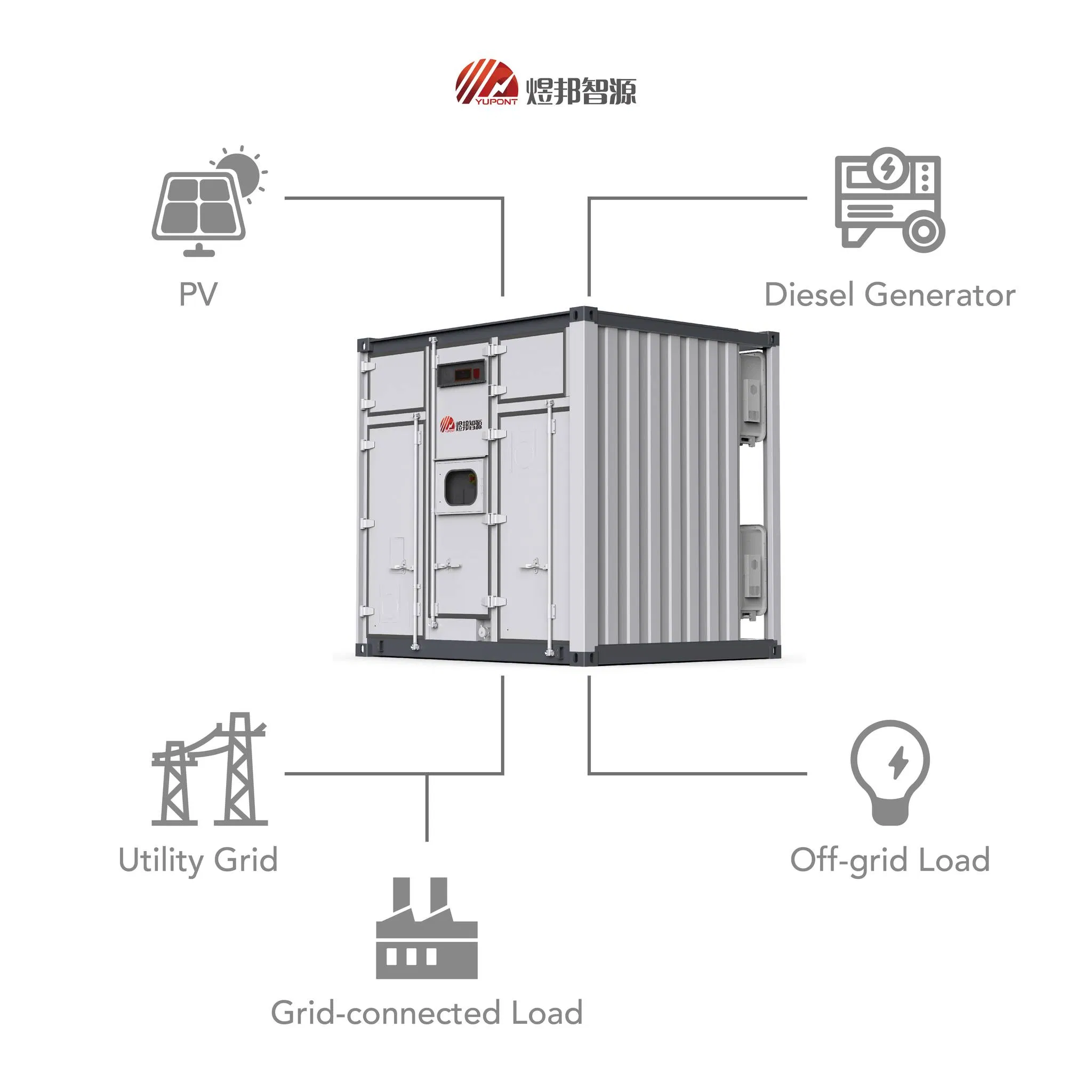

The system comprises energy storage batteries, BMS, EMS, thermal management, fire protection, and hybrid inverters. The intelligent port supports grid power, diesel generators, and photovoltaic systems.

Available in 5 configurations: 250kW/522kWh, 375kW/783kWh, 500kW/1044kWh (2-hour apps), and 125kW/522kWh, 250kW/1044kWh (4-hour apps).

Supports up to 2x photovoltaic capacity to maximize solar energy. Seamless off-grid switching time is less than 20ms.

LESS Layout (Front & Back View)

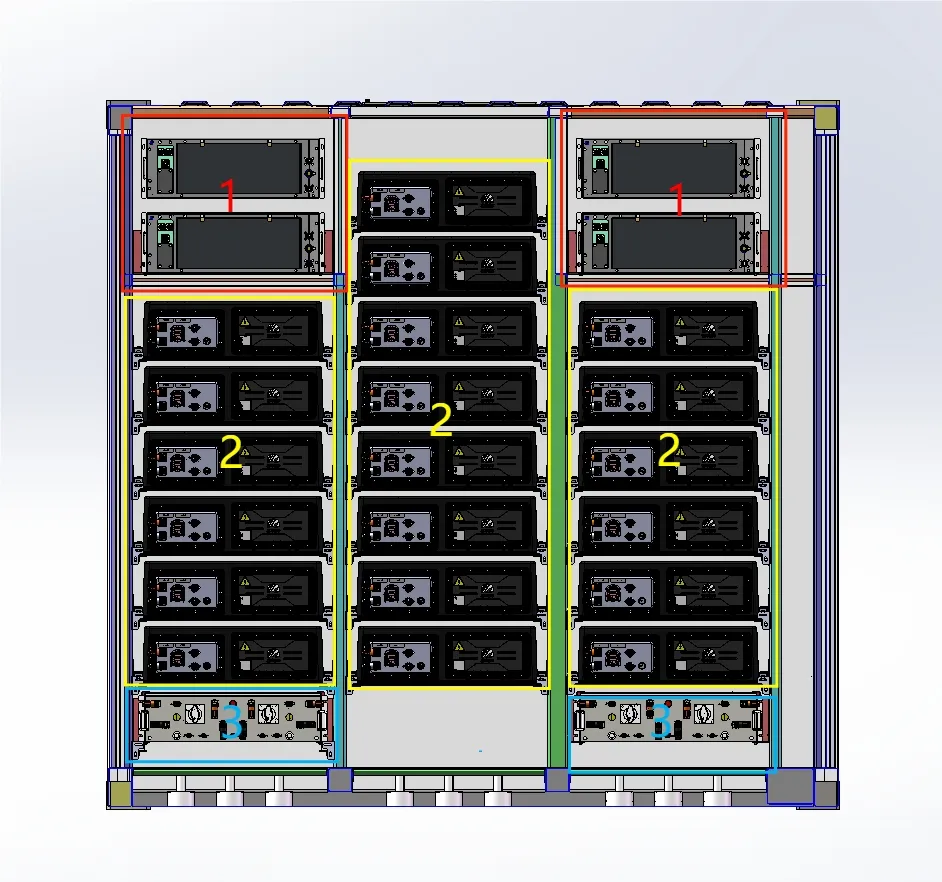

Front View

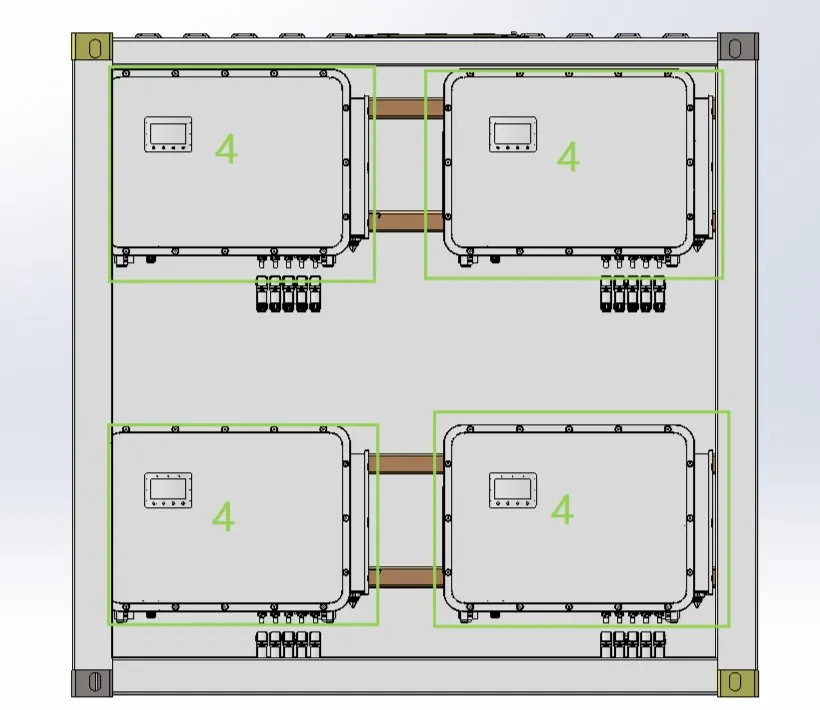

Back View

Technical Specifications

Model Parameter	250kW/522kWh	375kW/783kWh	500kW/1044kWh	125kW/522kWh	250kW/1044kWh
Operating Weight (kg)	7,500	9,500	11,500	7,000	11,000
Cell Type	LFP 314Ah
Voltage Range	728~923V
Off-Grid Switching Time	< 20ms
Cooling Method	Liquid cooling (Battery) / Wind cooling (Inverter)
Operating Temp	-20~55℃
Max PV Input Power (kW)	500	750	1000	250	500
Grid Voltage (V)	3/N/PE, 230/400V

TSystem Topology

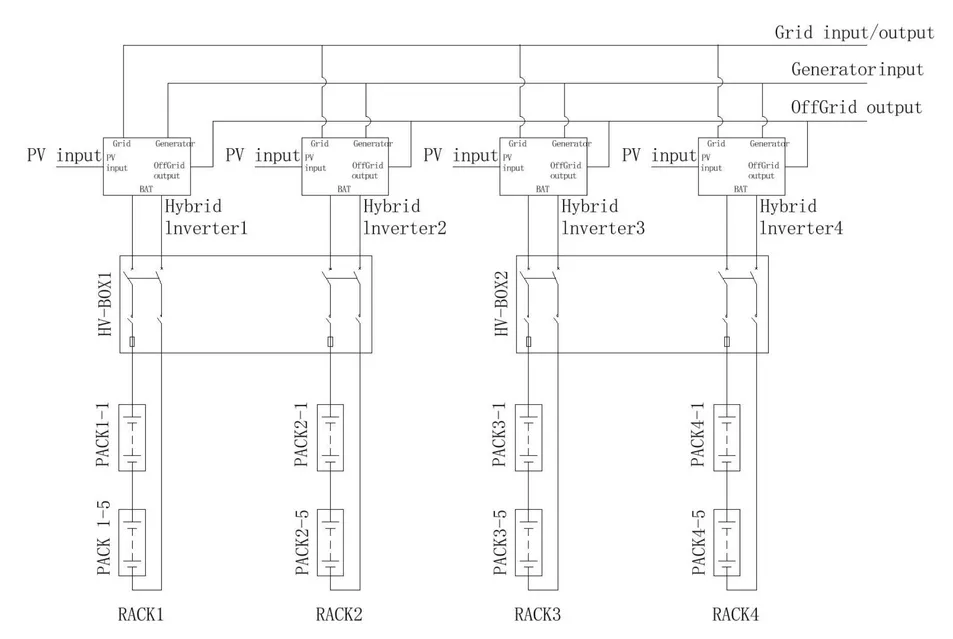

0.5C System Topology

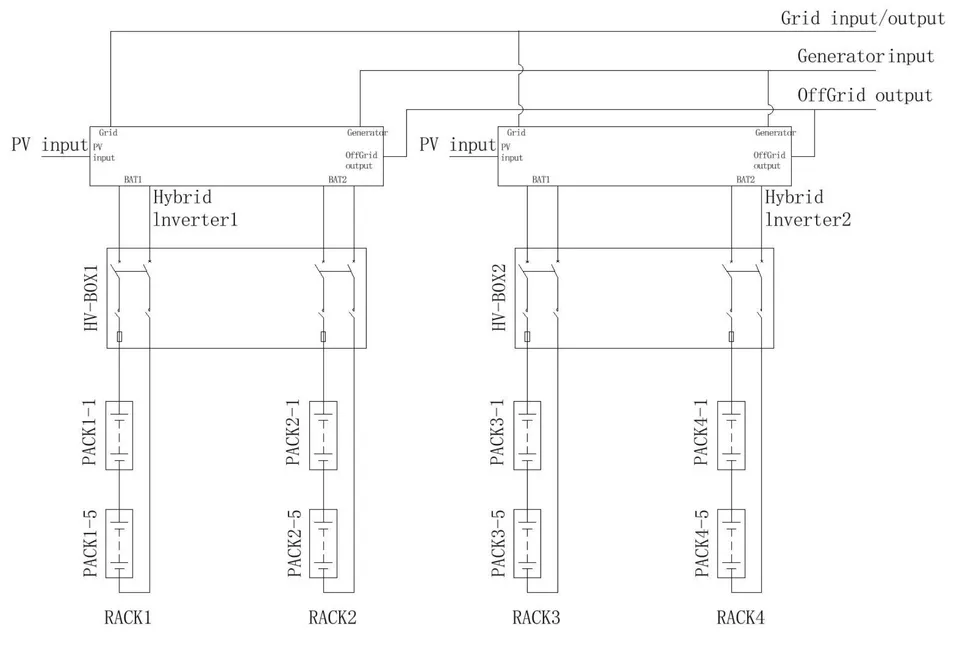

0.25C System Topology

Certifications & Quality

Exhibition & Visits

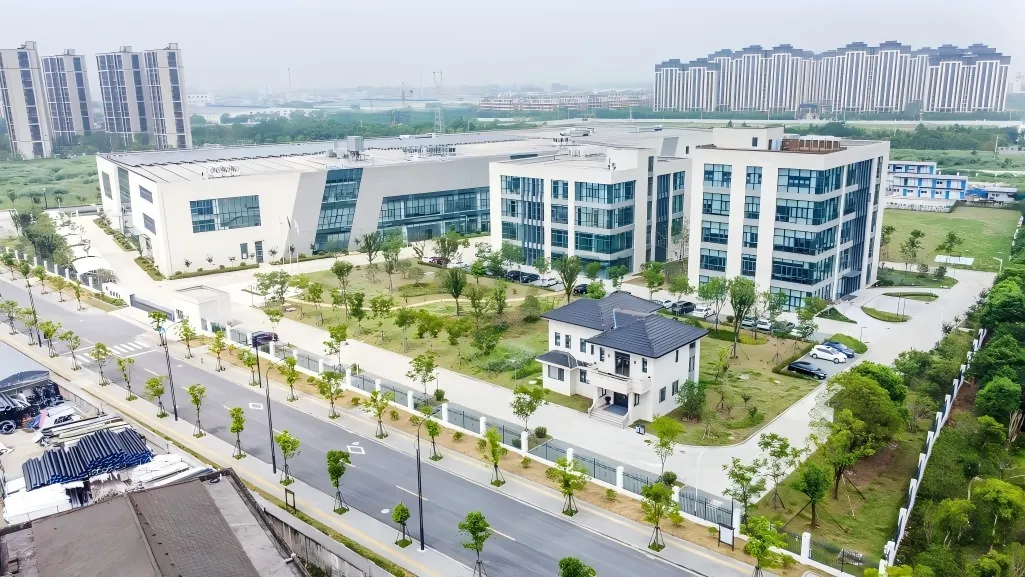

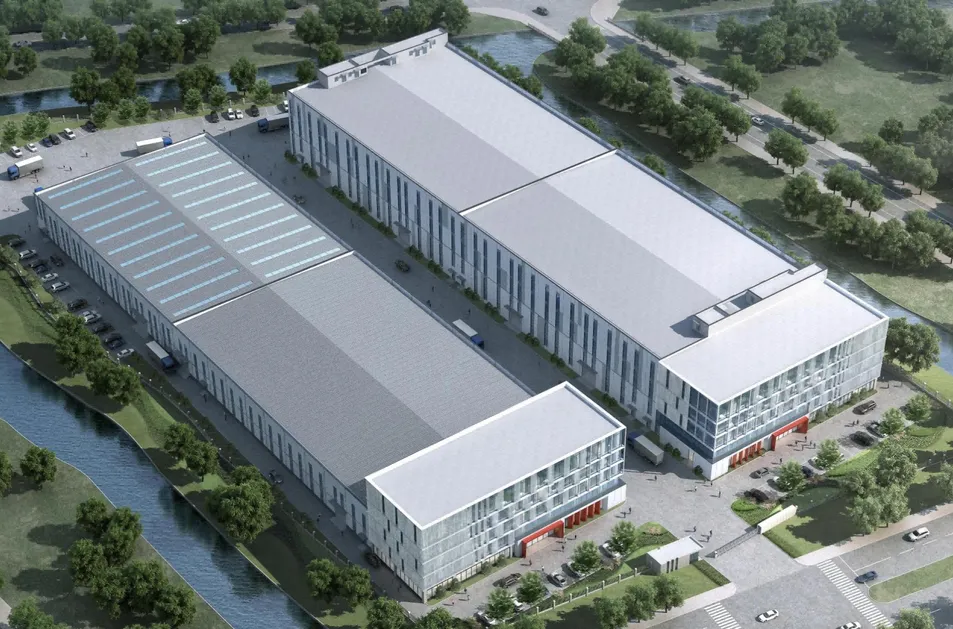

Production Capability

Why Choose Our Solutions?

Core technology with 20+ patents
10GWh smart manufacturing capacity
Full-life cycle energy solutions
Global project expertise

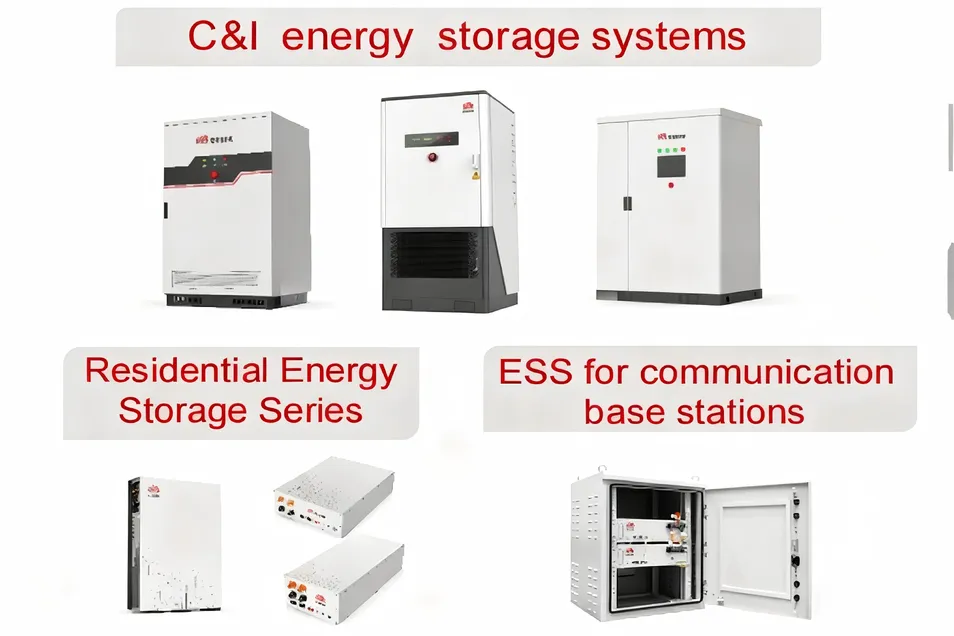

Other Product Ranges

Battery Modules and PACKs
Utility-scale ESS
Commercial and Industrial (C&I) ESS
Residential Storage Solutions

Frequently Asked Questions

Q: What are the primary applications for this 10ft hybrid system?

A: It is designed for industrial/commercial PV storage, EV charging stations, micro-grids (agricultural or residential), and temporary power support for construction sites.

Q: What is the estimated cycle life of the batteries?

A: The system provides over 6,000 cycles at 25℃, with a 90% Depth of Discharge (DOD) until 80% End of Life (EOL).

Q: Can the system switch to off-grid mode automatically?

A: Yes, it features a seamless off-grid switching time of less than 20ms, ensuring uninterrupted power for critical loads.

Q: What cooling technology is used for thermal management?

A: The battery system utilizes advanced liquid cooling, while the hybrid inverter utilizes wind cooling to maintain optimal operating temperatures.

Q: Does the system support customization?

A: Yes, we provide customized configurations based on your specific power requirements, backup duration, and site conditions.

Q: What fire safety features are included?

A: The container is equipped with temperature and smoke sensors, combustible gas detection, aerosol suppression, and water spray systems for comprehensive safety.
