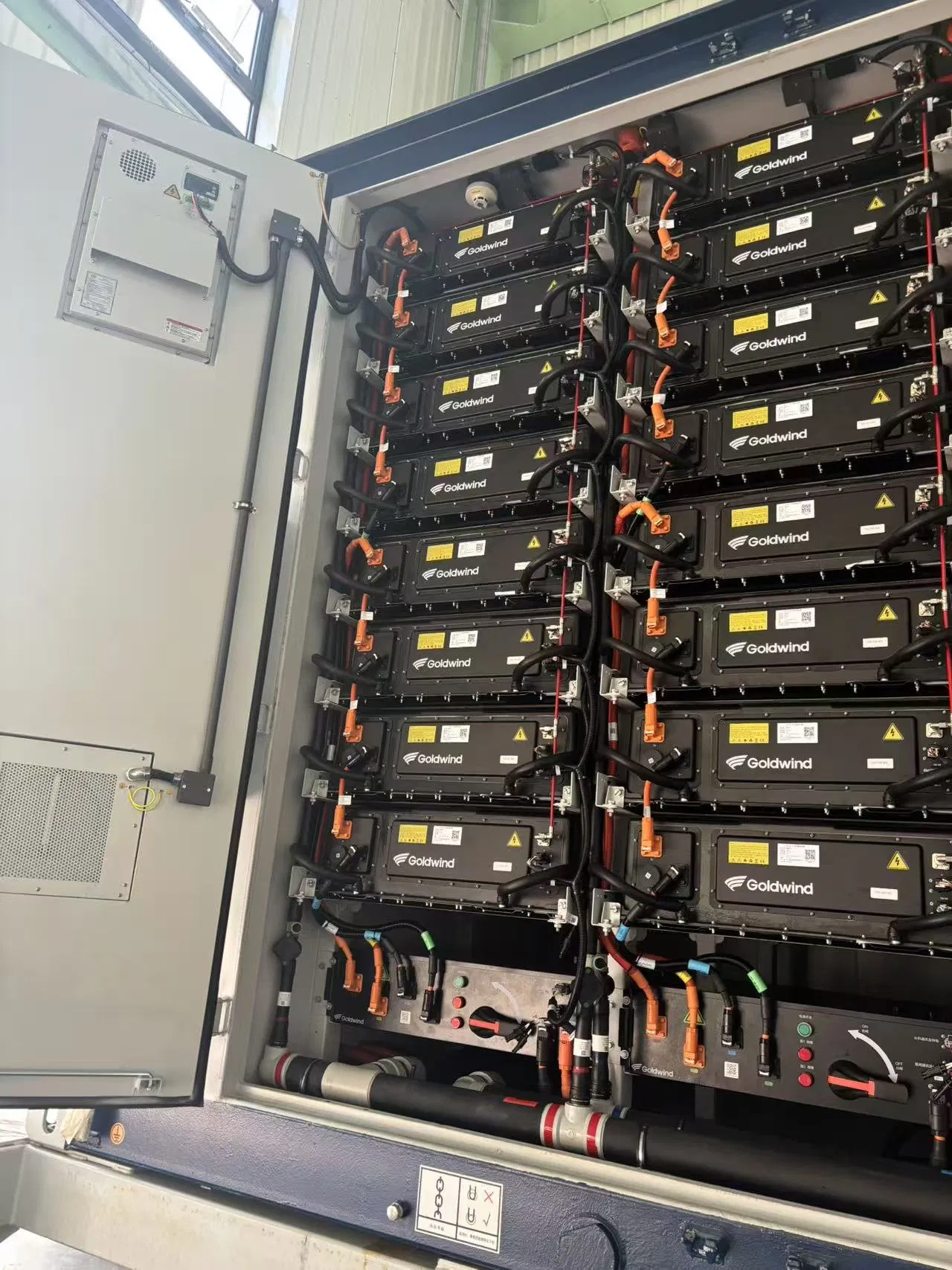

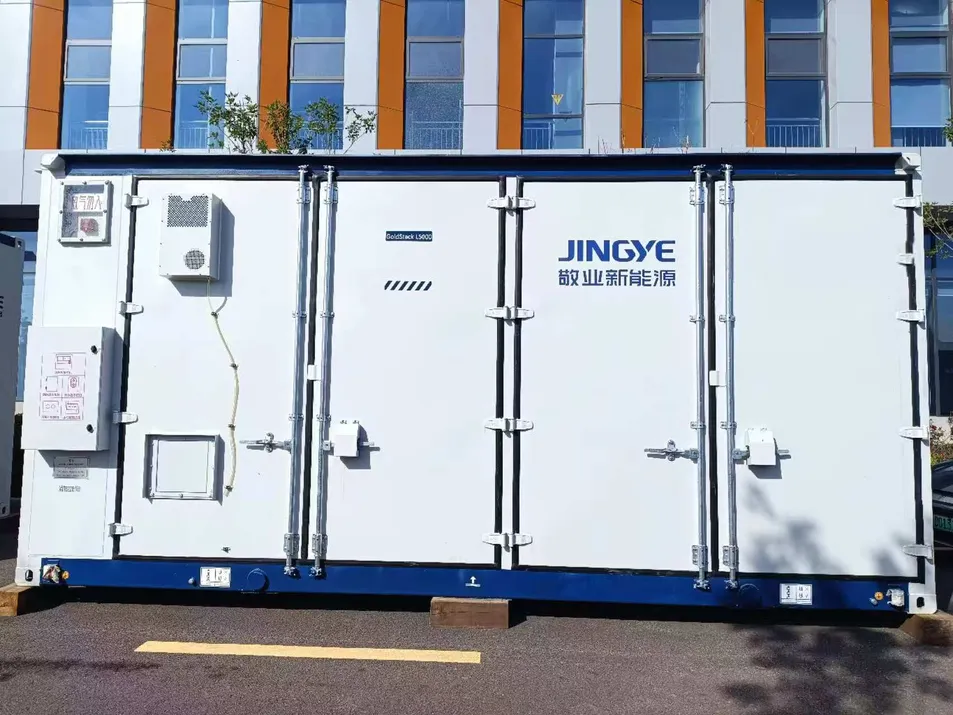

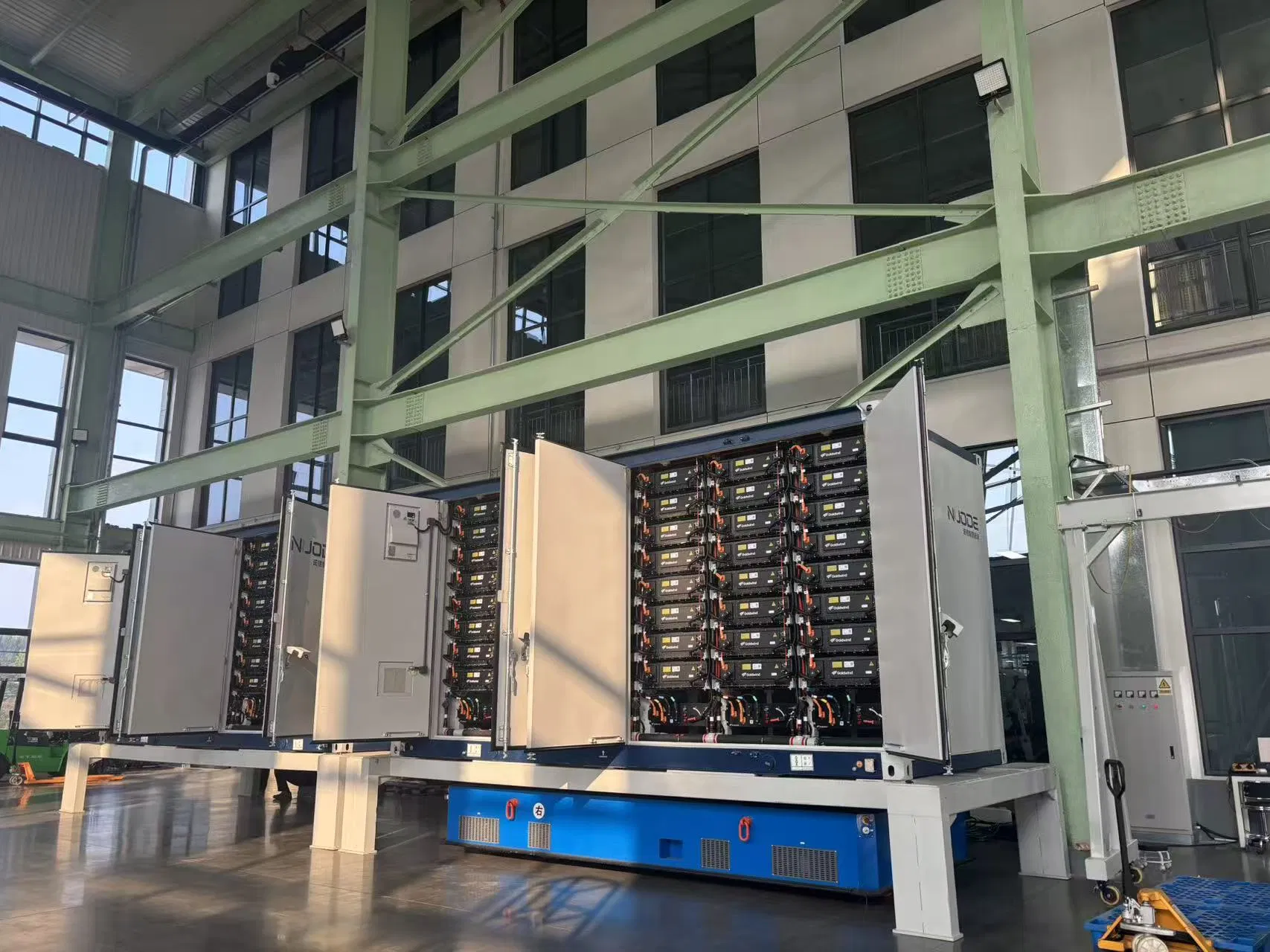

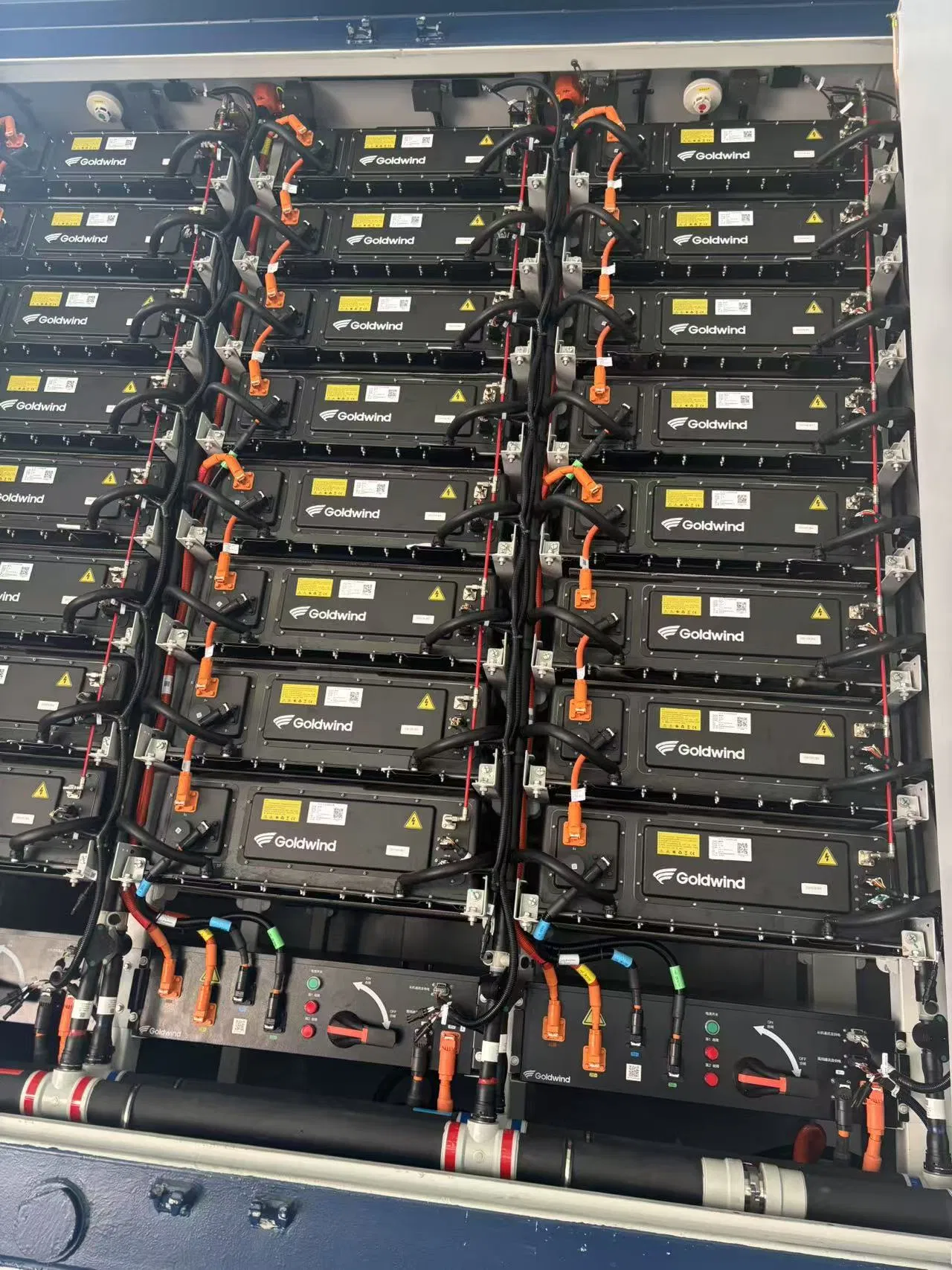

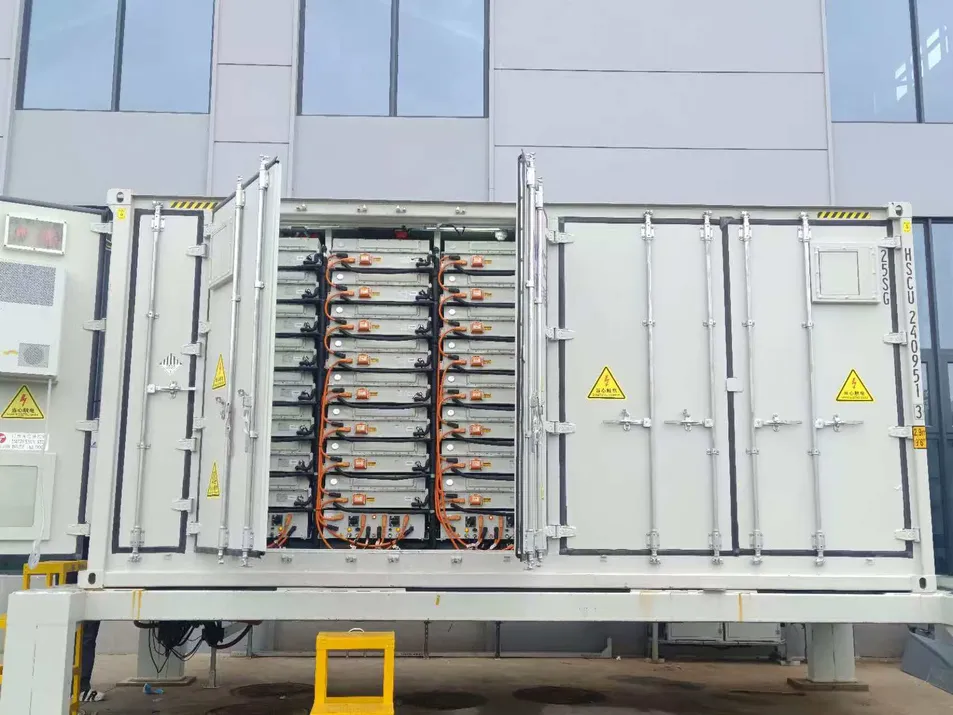

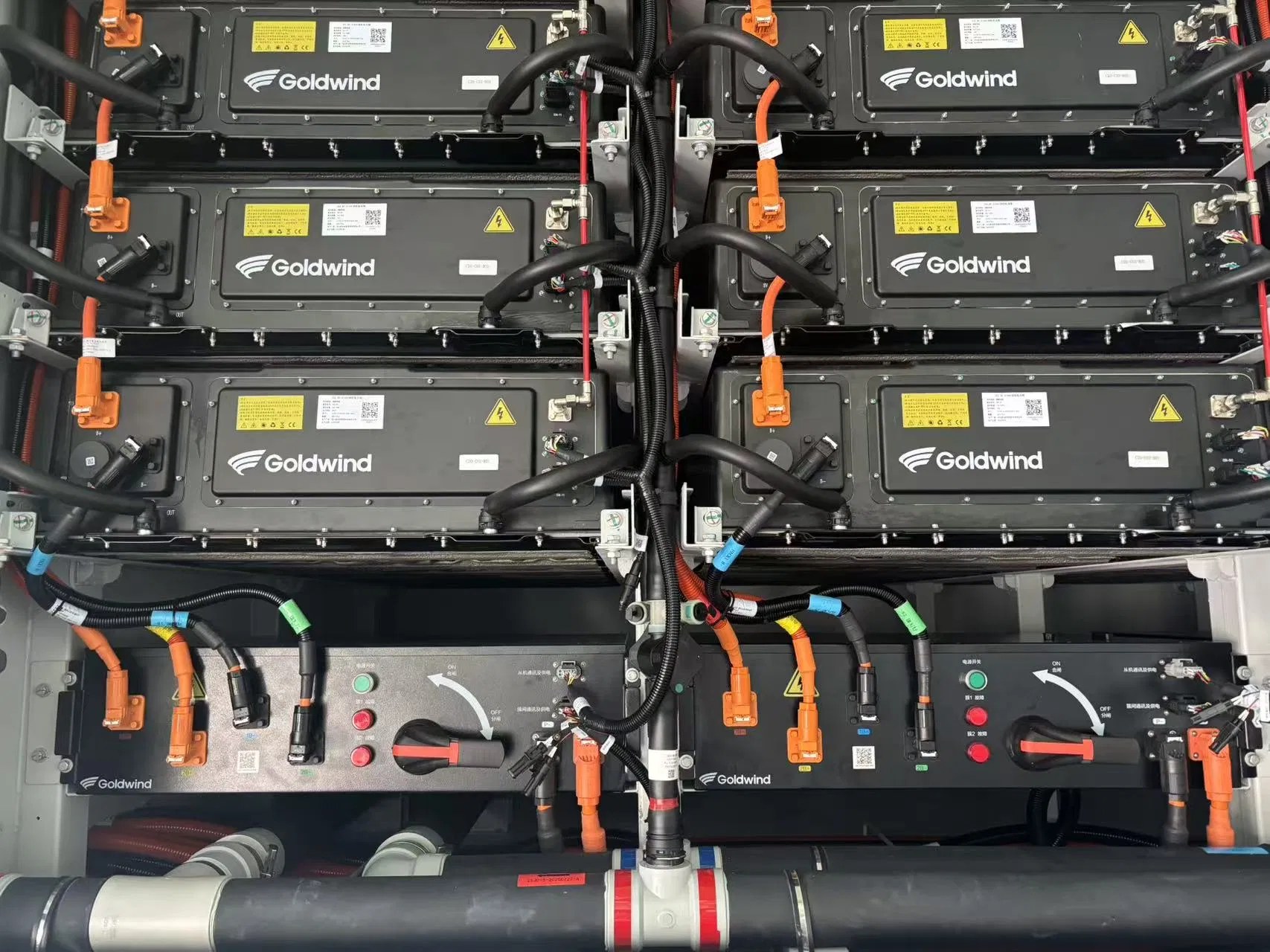

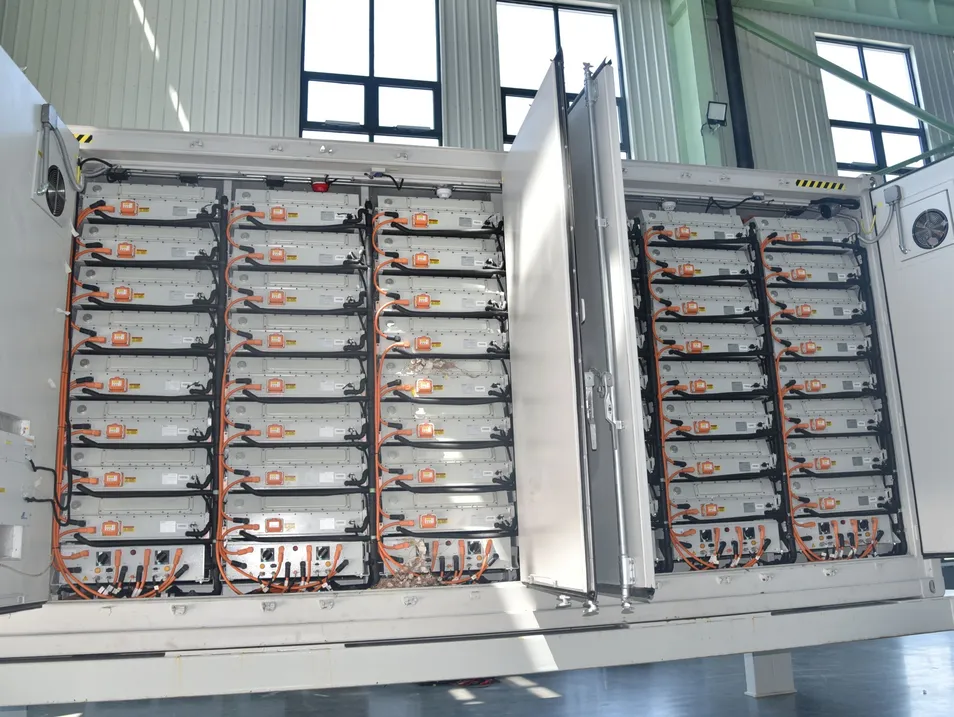

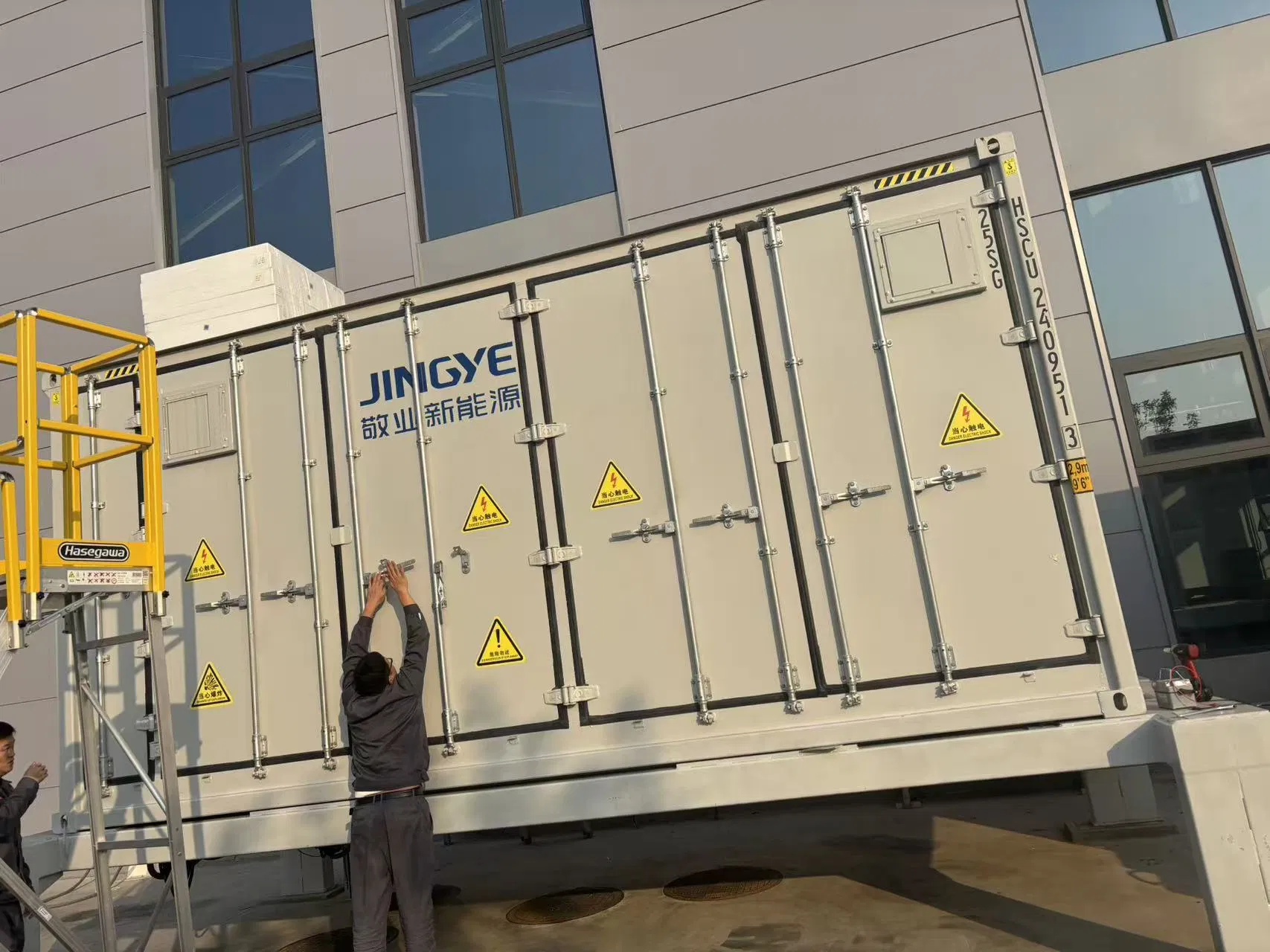

The system is based on high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, thermal management systems, and environmental control systems. This integrated technology installs PACK, distribution busbars, and cooling units within a standard 20-foot container (2438mm x 2896mm x 6058mm).
| Item | Specification |
|---|---|
| Configuration | 12*(1P104S*4) |
| Rated Power | 5MWh |
| Rated Voltage | 1331.2VDC |
| Charging/Discharge Power | ≤ 2.5MW |
| Auxiliary Power Supply | 400VAC±5% 50Hz / 220VAC |
| Work Temperature | 0℃~60℃ (Charge) / -30℃~60℃ (Discharge) |
| Dimensions | L6058 x W2438 x H2896mm |
| Weight | Approx. 43t |
| Communication | Ethernet, CAN, ModbusRTU |
Our company operates advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million units of CCS busbars. Our solutions are widely applied in smart grids, wind/solar distribution, and industrial energy storage.
