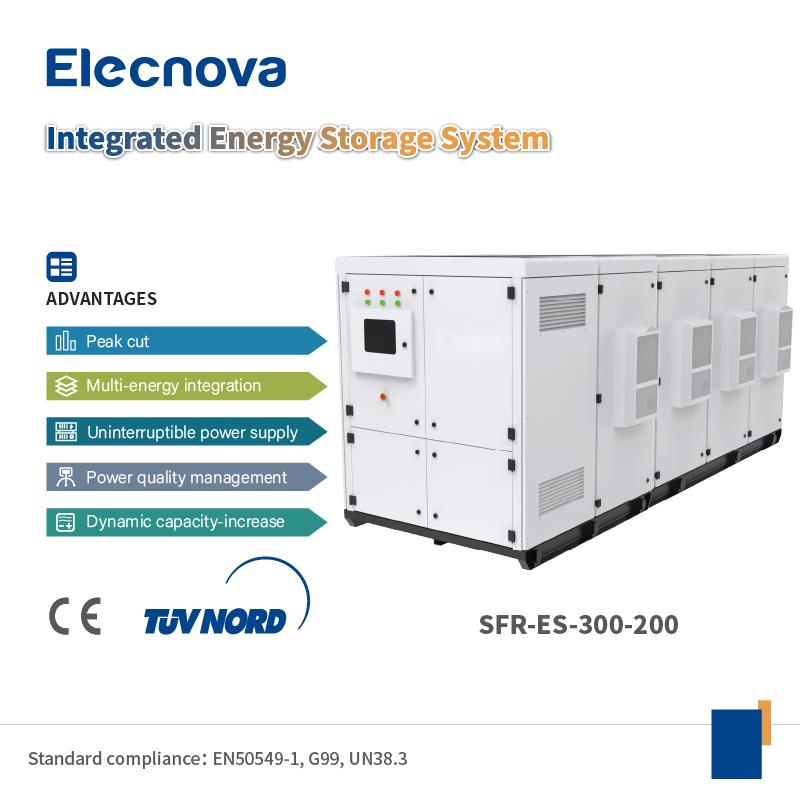

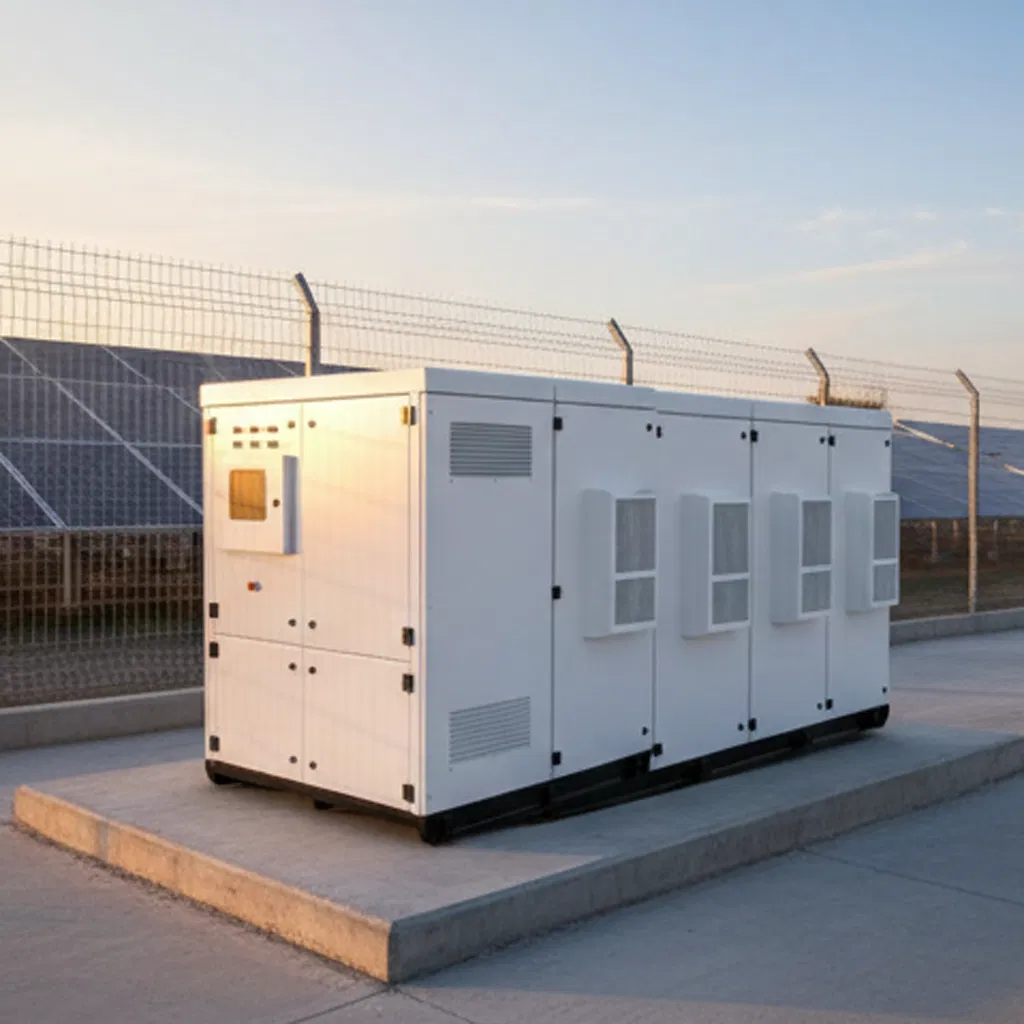

Elecnova Wind Solar Hybrid Power System Containerized Power Station Energy Storage System 300kwh

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.SFR-ES-300-200
Nominal Capacity300kwh
Cycle Life4000 Cycles
Relative Humidity0~95%(No Condensing)
Max Altitude4000m (>2000 Derating)
On/Off Grid SwitchingSts
Dimension (W*D*H)1680*3830*2300mm
OriginChina
D

Product Description

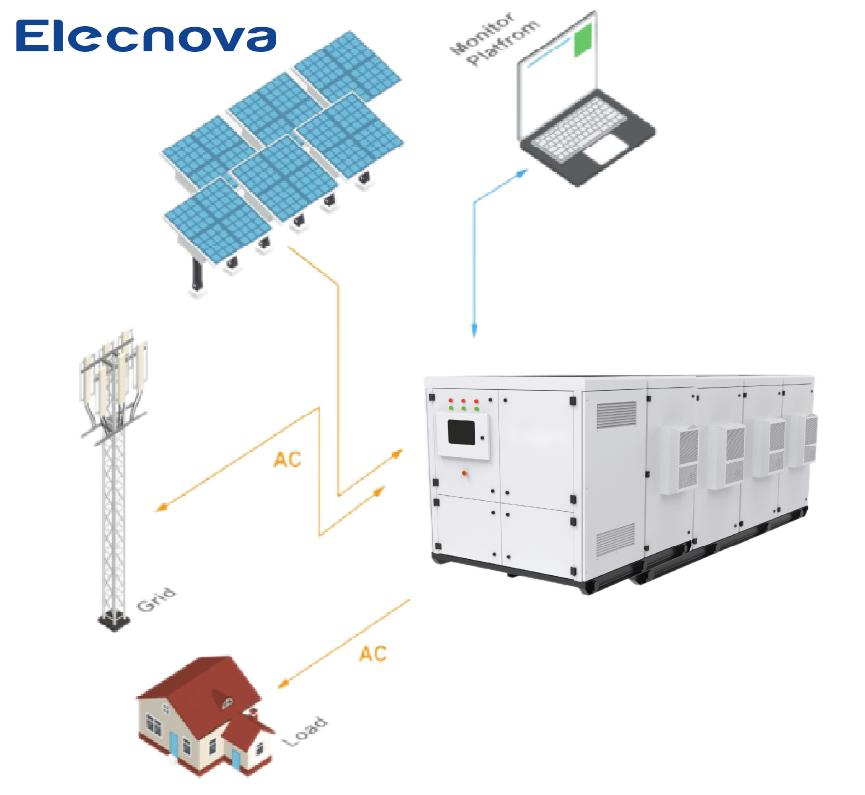

Hybrid Power System Containerized Energy Storage
Specification Item Details Specification Item Details
Output Frequency 50/60Hz Controller Type MPPT
Battery Type Lithium Ion (LiFePO4) Charging Ratio 2c
Components PCS, Lithium Battery System Work Time 24/7
Power Grid 3W+N+PE Rated Grid Voltage AC 380/400V
Rated Output Power 2000kw Output Current Harmonics ≤3% (Rated Power)
Application Industrial, Solar Systems Maximum Output Power 220kw
P

Technical Parameters

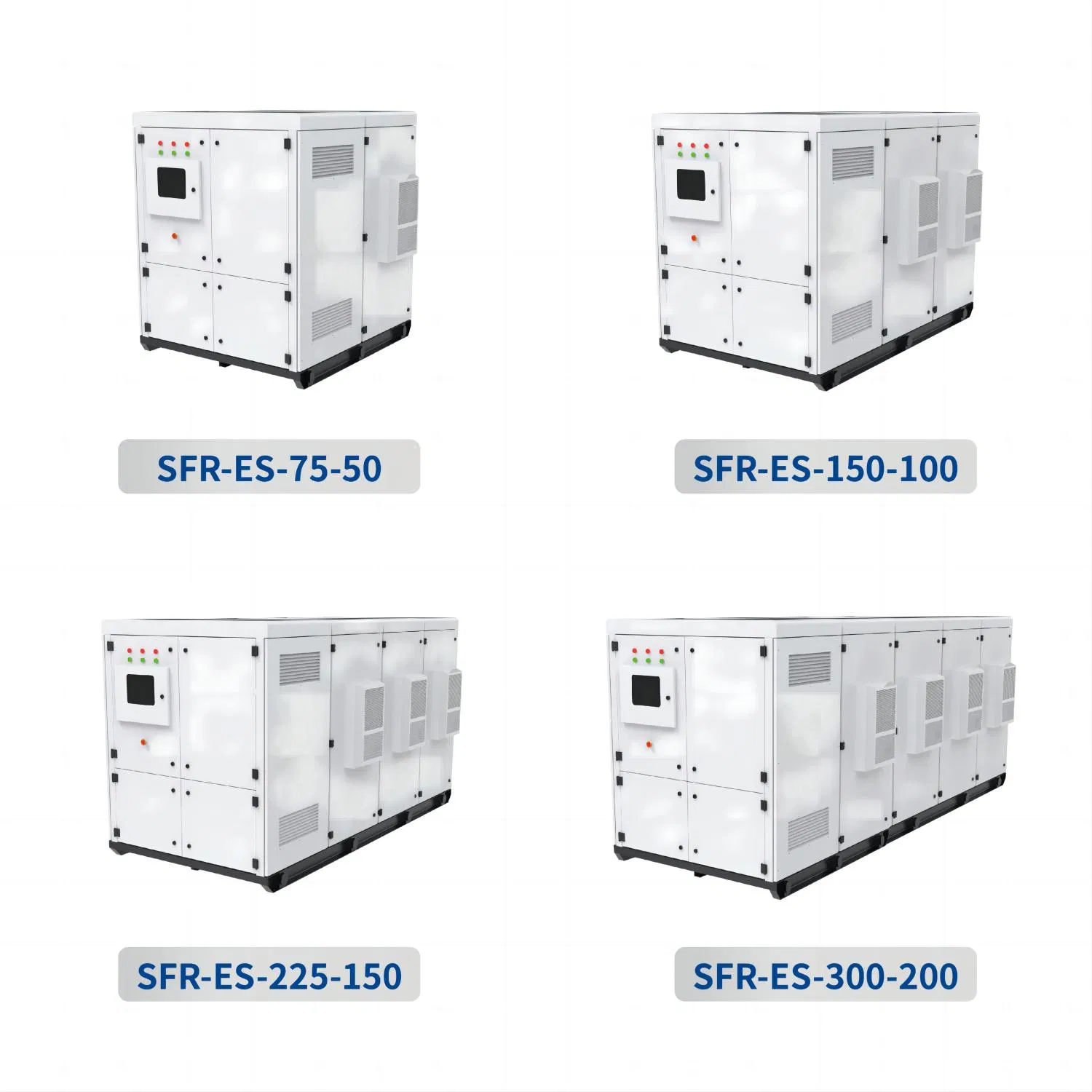

Model SFR-ES-75-50 SFR-ES-150-100 SFR-ES-225-150 SFR-ES-300-200
AC Parameters (Grid Connected)
Rated Power (kW) 50 100 150 200
Max Power (kW) 55 110 165 220
Rated Grid Voltage 3W+N+PE, 380V
Battery System
Battery Type Lithium Iron Phosphate
Total Energy (kWh) 76.8 153.6 230.4 307.2
Cycle Life 25°C 0.5C/0.5C 100%DOD EOL80% >4000 times
General Parameters
Working Temp -20 ~ 55°C (>45°C derating)
Protection Outdoor IP54
Communication RS485, CAN, LAN (Modbus-RTU/TCP)
V

Detailed Photos

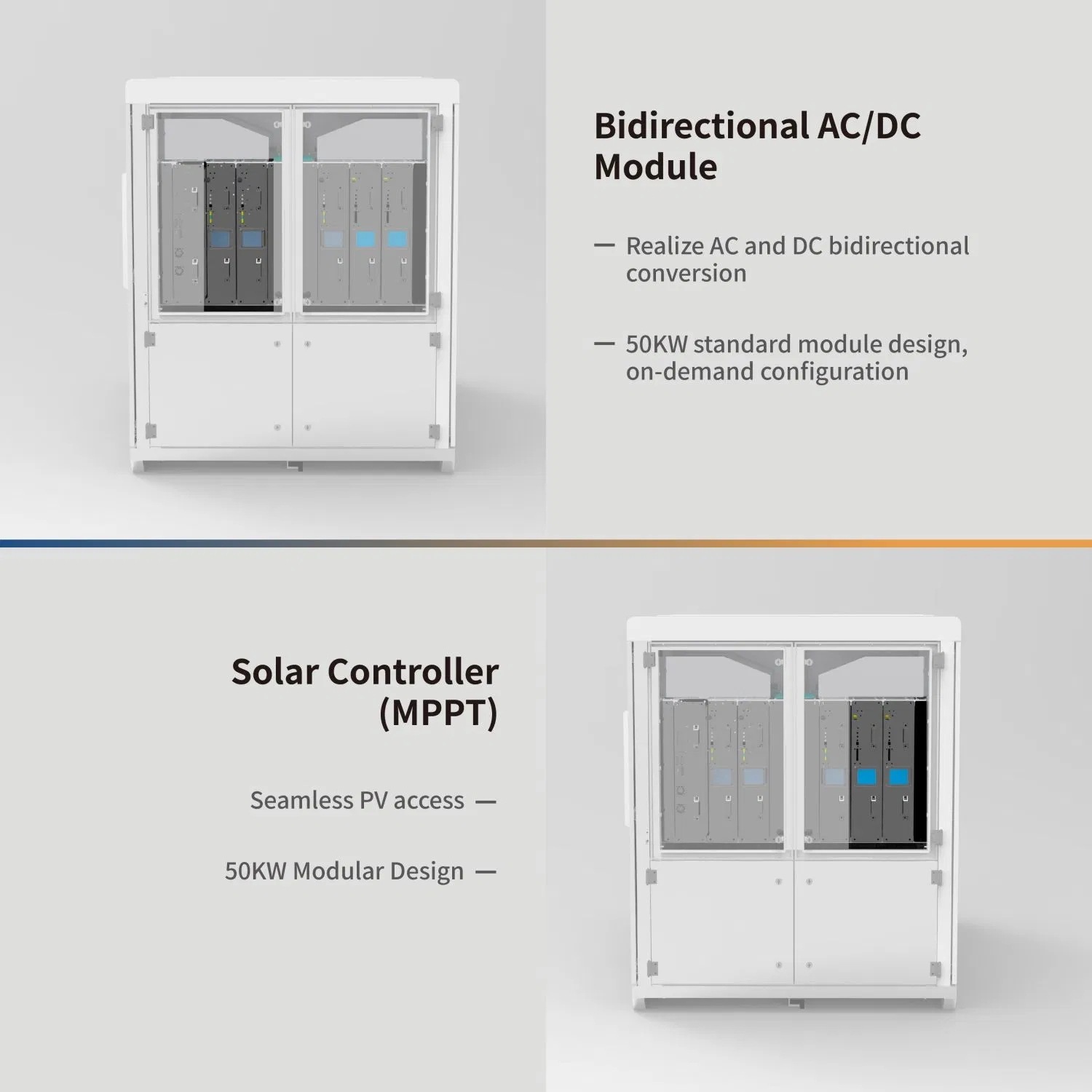

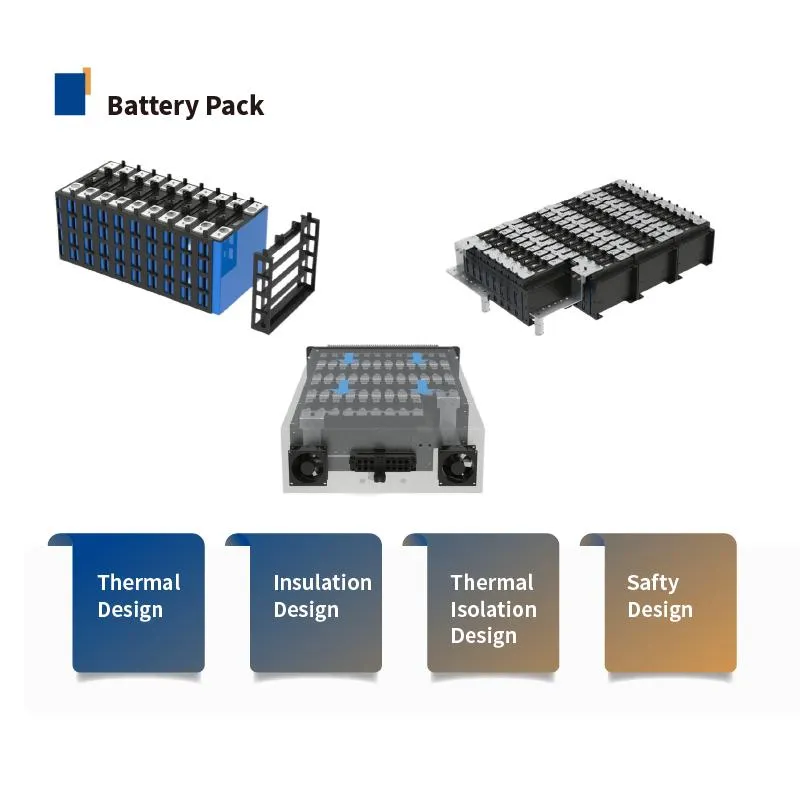

Detailed View 1

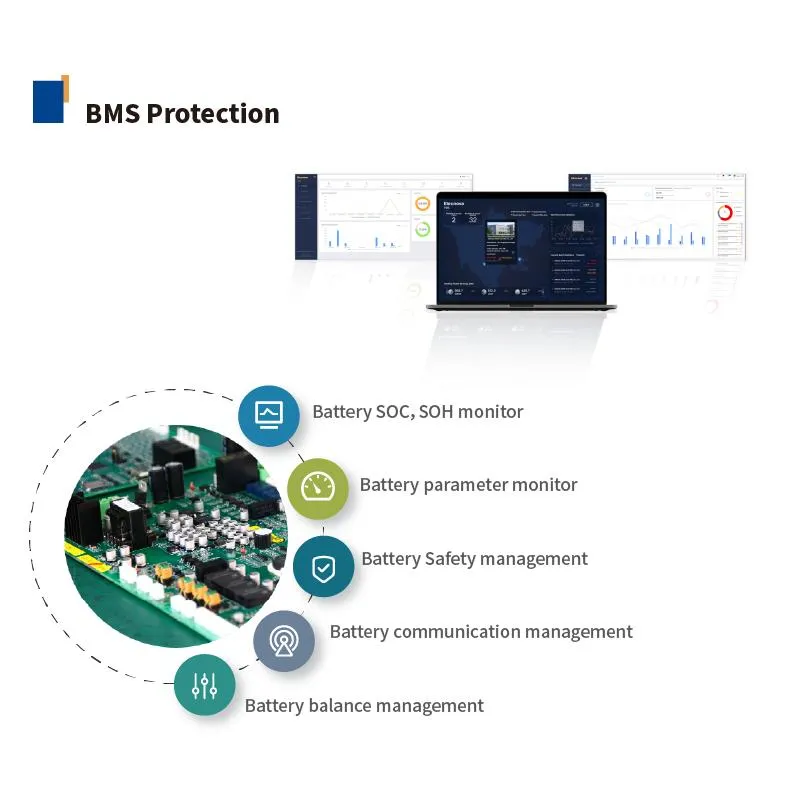

Detailed View 2

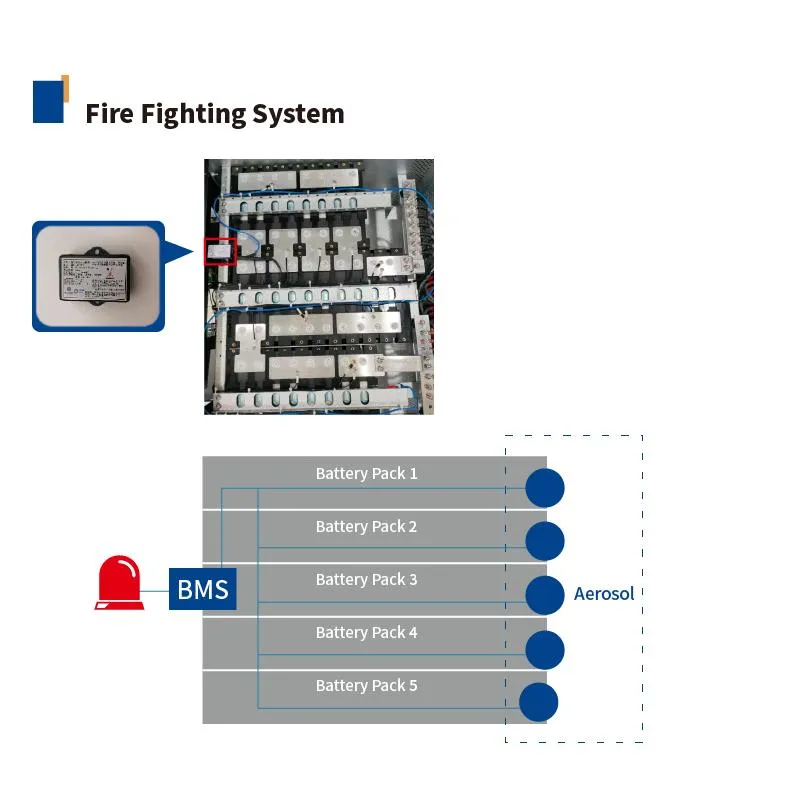

Detailed View 3

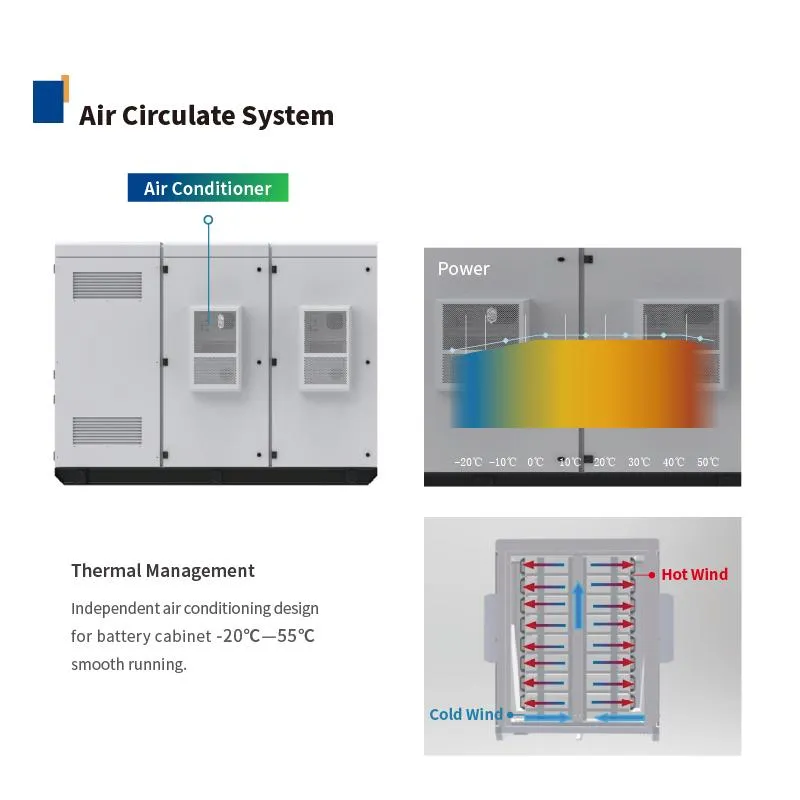

Detailed View 4
R

Reference & Quality

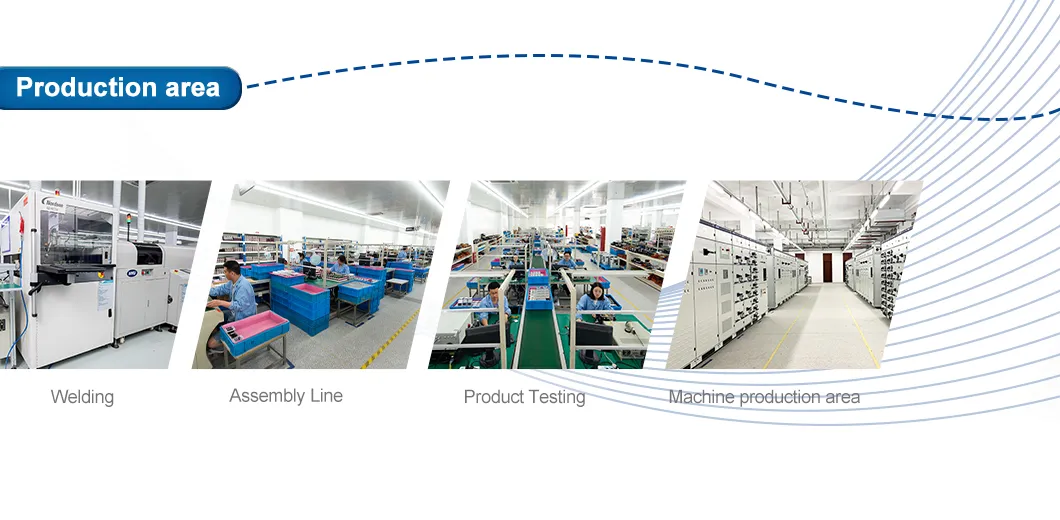

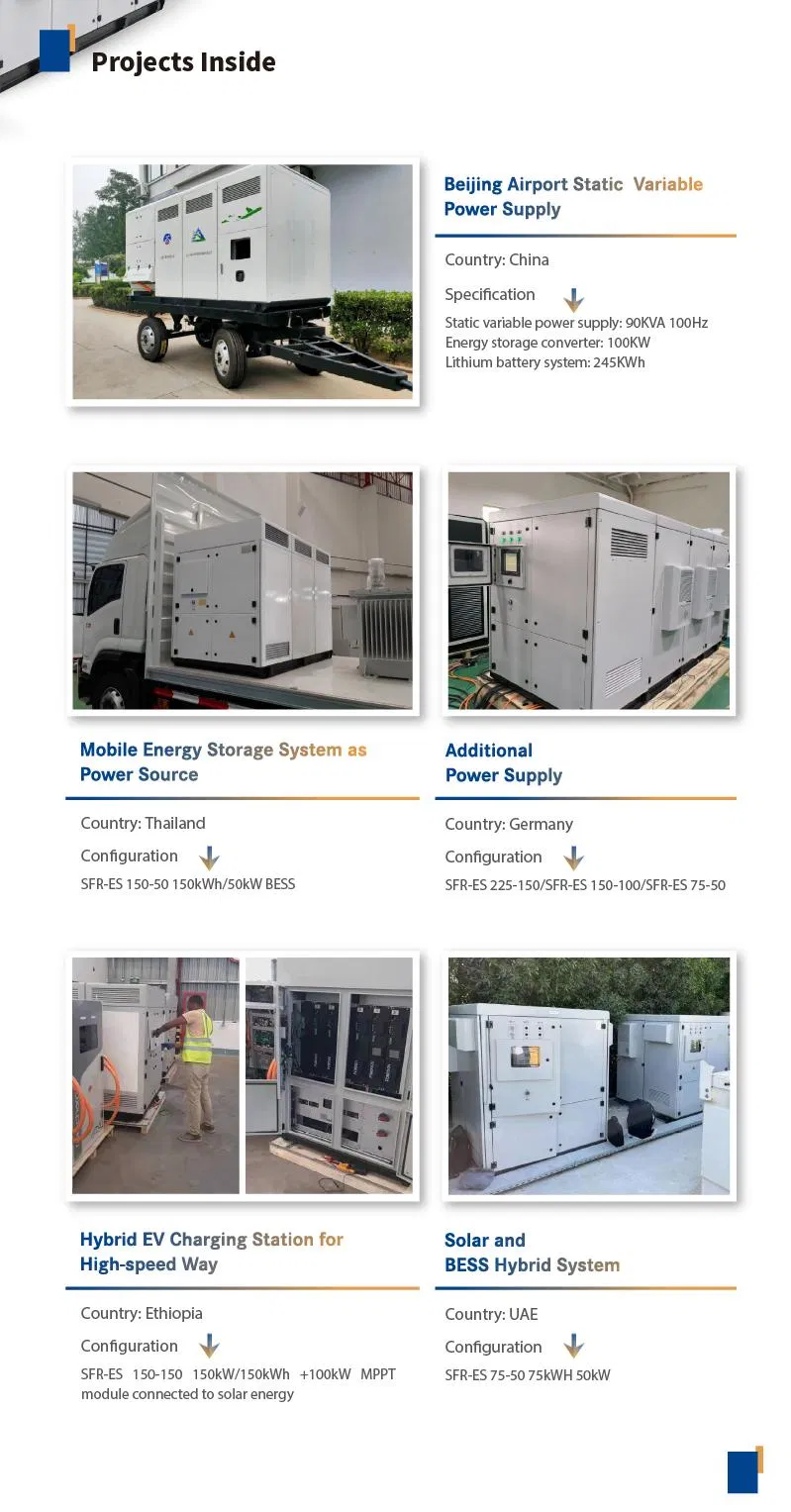

Reference Standards Production Facility System Architecture Testing and Assembly Compliance Certificates
?

Frequently Asked Questions

Are you a manufacturer or a trading company?
We are a specialized manufacturing factory with our own production facilities.
Do you provide customized manufacturing services?
Yes, we provide professional OEM/ODM services. Our experienced R&D team offers efficient, customized solutions tailored to specific project requirements.
What is the expected delivery time for an order?
For items currently in stock, delivery takes 3-5 working days. For items out of stock, the lead time is generally 15-21 days.
Is the energy storage system compatible with both on-grid and off-grid modes?
Yes, the system supports both on-grid and off-grid switching, providing flexibility for industrial and solar energy applications.
What are the standard terms of payment?
For orders under $3000, 100% payment is required before shipment. For orders over $3000, a 30% deposit is required, with the remaining 70% due before shipment.
What is the lifespan of the battery system?
Our LiFePO4 battery systems are designed for high durability, offering over 4000 cycles at 100% Depth of Discharge (DOD) under standard conditions.
