| Model NO. | CO50K-100E | Nominal Voltage | 512V |
|---|---|---|---|
| Nominal Capacity | 100ah | Cycle Life | 6000 Cycles |
| Battery Type | Lithium | Ingress Protection | IP21 |
| No.of MPPT | 2 | Power Factor | 0.8 Leading-0.8 Lagging |
| Thdi | <3% | Battery Warranty | 5 Years |
| Package Size | 80.00cm * 120.00cm * 210.00cm | Package Gross Weight | 800.000kg |

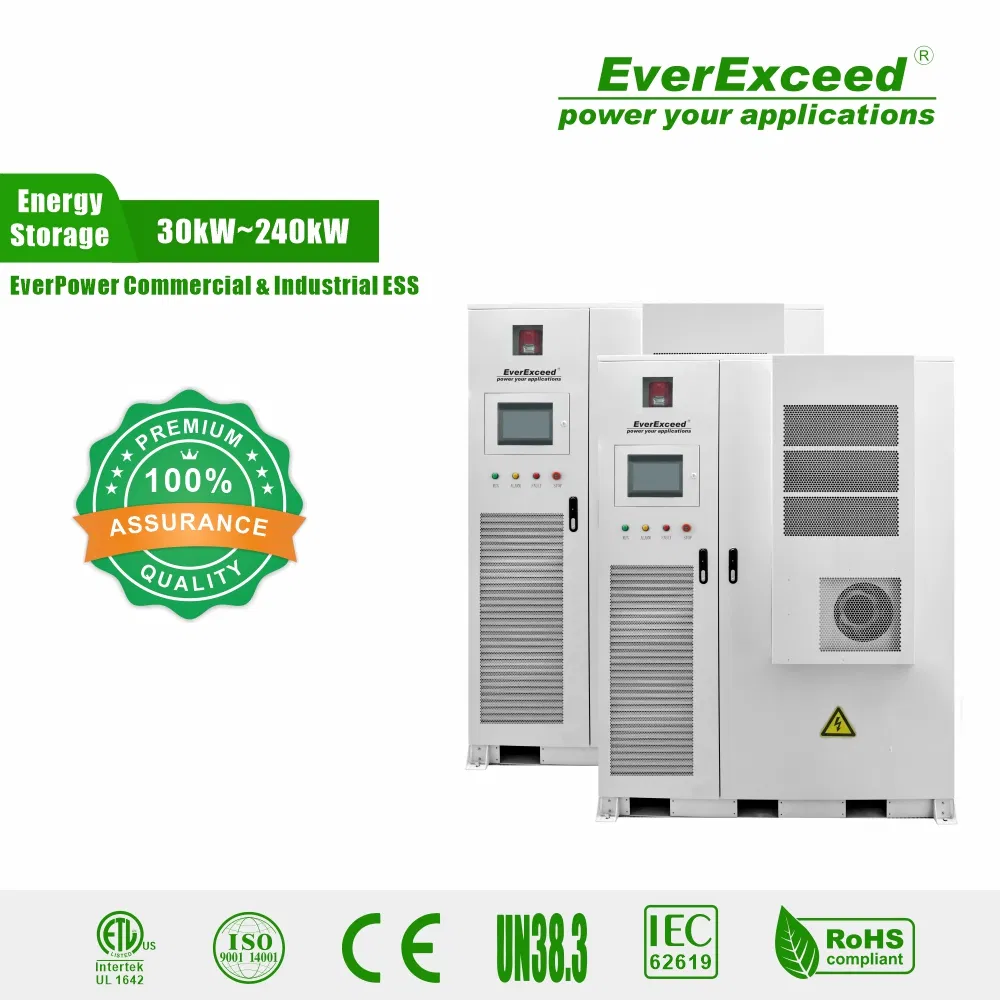

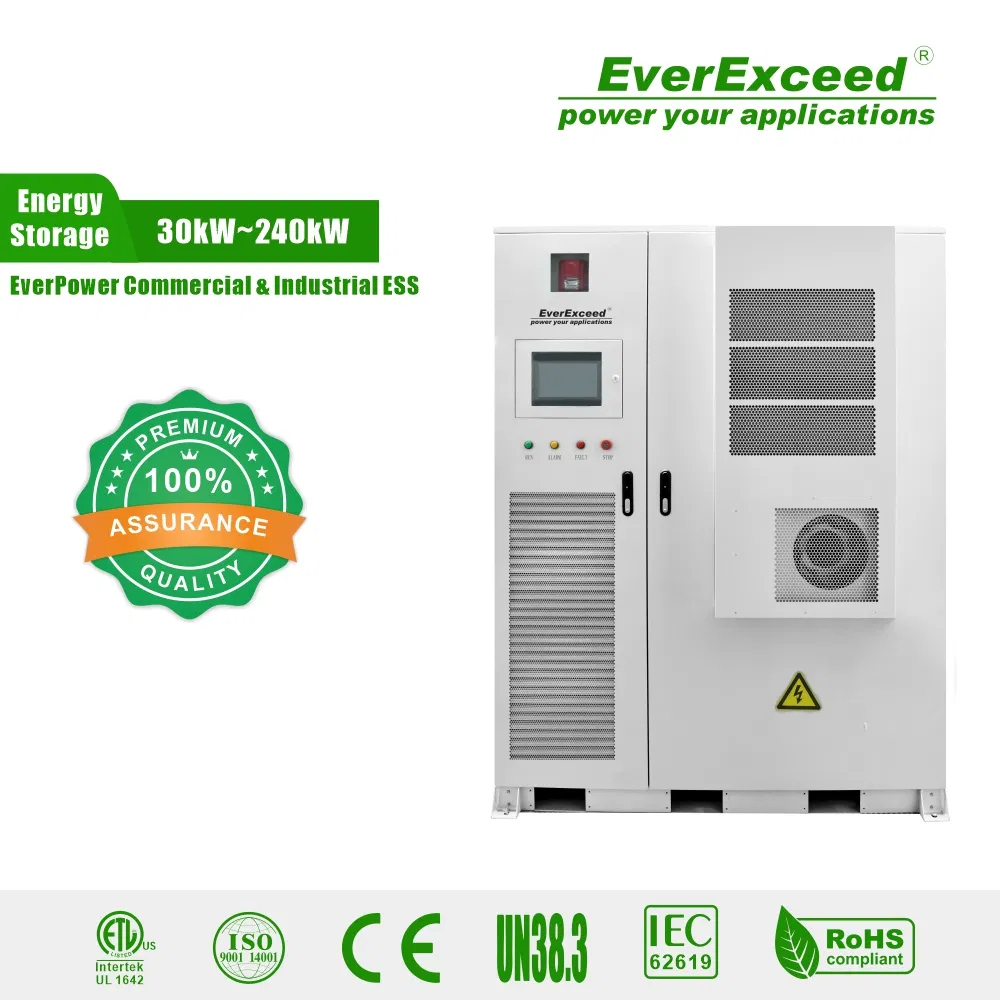

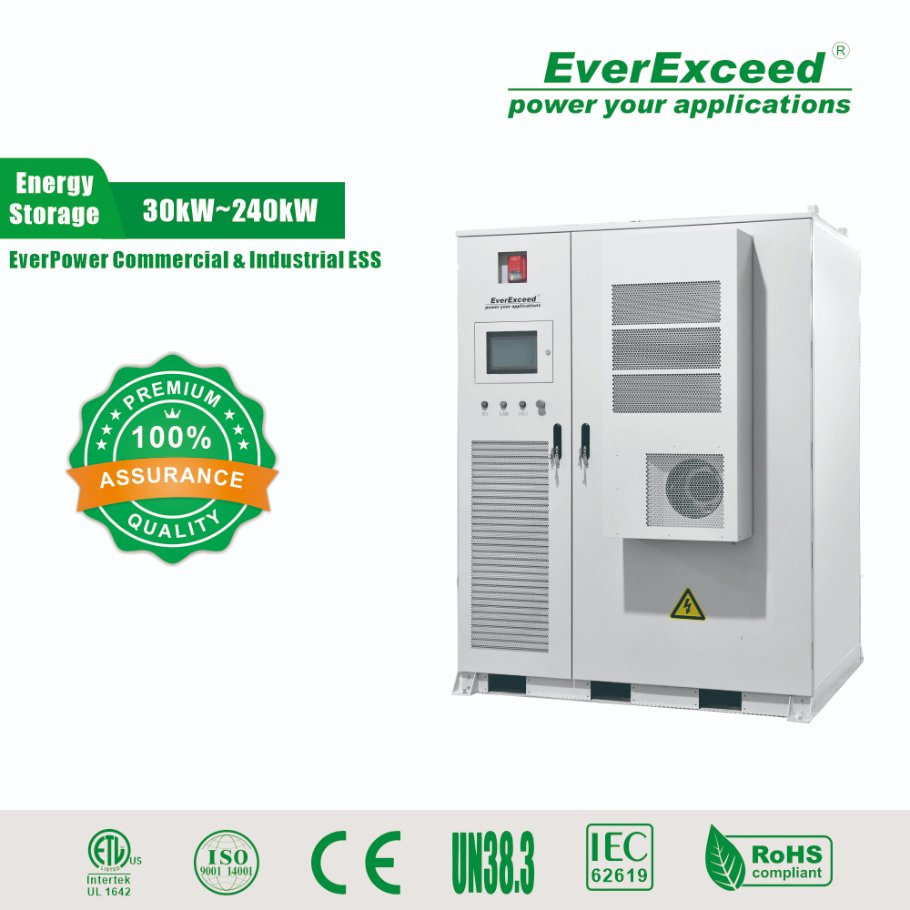

Industrial and Commercial 25kwh Air Bess Solar Energy Storage Lithium Ion Battery System Solution Container

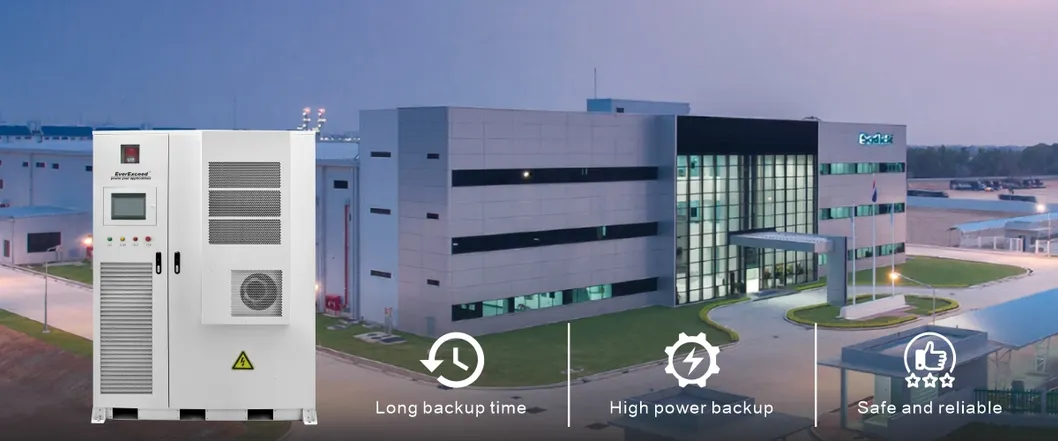

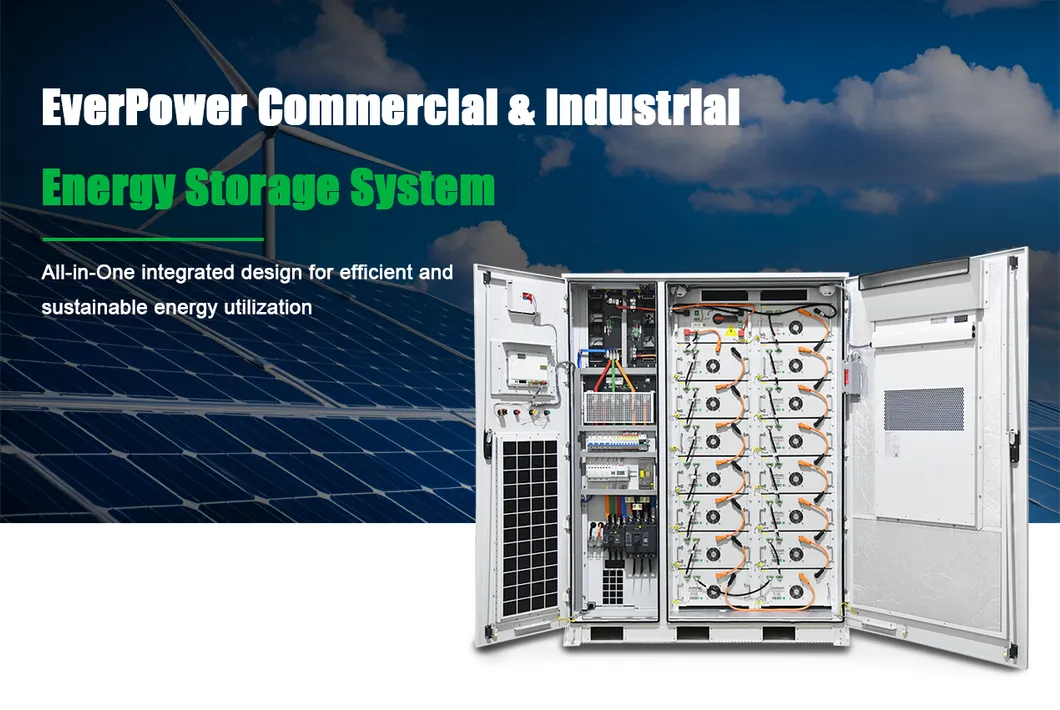

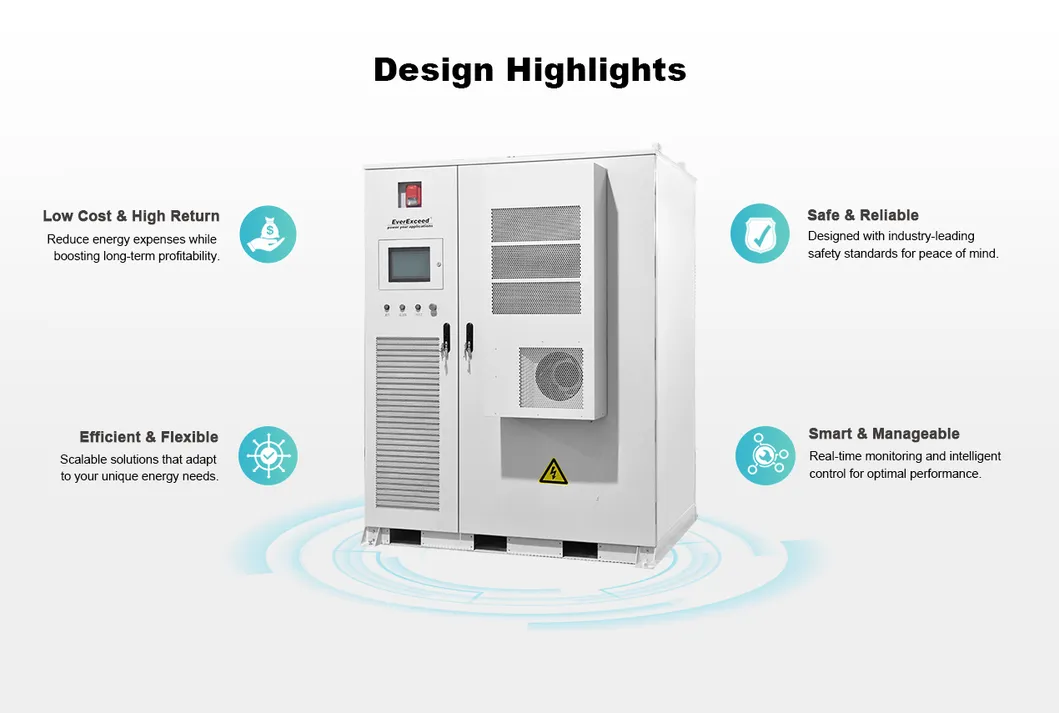

The All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting system, and heat dissipation system in the cabinet. It is a high-power backup power solution serving commercial / industrial grid-level customers. This high voltage energy storage system enables the highest flexibility both for rack-mounted and cabinet-based constructions. This system is much "Safer, Smarter, Simpler" and suitable to solve the power problems in substations, outdoor areas, microgrids, small factories, shopping malls, and solar storage charging stations.
Wide battery voltage range enables compatibility with more operation environments. Fully compatible with lead acid & lithium-ion batteries.
Off-grid cold start function, supporting multi-machine parallel function for enhanced reliability.
Comprehensive protection including overcharge, over discharge, overload, short-circuit, high temp., and low temp. protection.
AC and DC dual power backup to ensure the continuous power supply of the control system.
Features the highest power density with peak efficiency reaching 97.5%.
Flexible communication accepting BMS commands in real time via RS485 or CAN methods.
| Product Model | CO25K-50E | CO50K-100E | CO100K-215E | CO150K-300E |
|---|---|---|---|---|
| Electrical Parameters | ||||
| Nominal AC power | 25 kW | 50 kW | 100 kW | 150 kW |
| Nominal grid voltage | 400 Vac | |||
| Rated AC output current | 36.2 A | 72 A | 152 A | 200A |
| Battery Parameters | ||||
| Cell Chemistry | Lithium Iron Phosphate (LFP) | |||
| Battery energy capacity | 51.2 kWh | 100 kWh | 215 kWh | 315 kWh |
| Cycle Life | 6000+ cycles | 10000+ cycles | ||
| Compliance | IEC62619, UL9540A, UL1973, UN38.3 | |||
| Mechanical Parameters | ||||
| Cooling method | Air-conditioner | |||
| Degree of protection | IP54 | |||
| Dimensions (W*D*H) | 800x1200x2100mm | 1000x1450x2100mm | 1738x1250x2330mm | Custom |
| Payment Terms | T/T, L/C, Cash, Western Union (Flexible) |
|---|---|
| Shipping Port | Normally Shenzhen Port or as requested |
| Delivery Method | Sea, Air, Train, or Truck transportation |
| Lead Time | Normally 4 weeks ex-factory |
| Packing | Carton box with wooden pallets |
