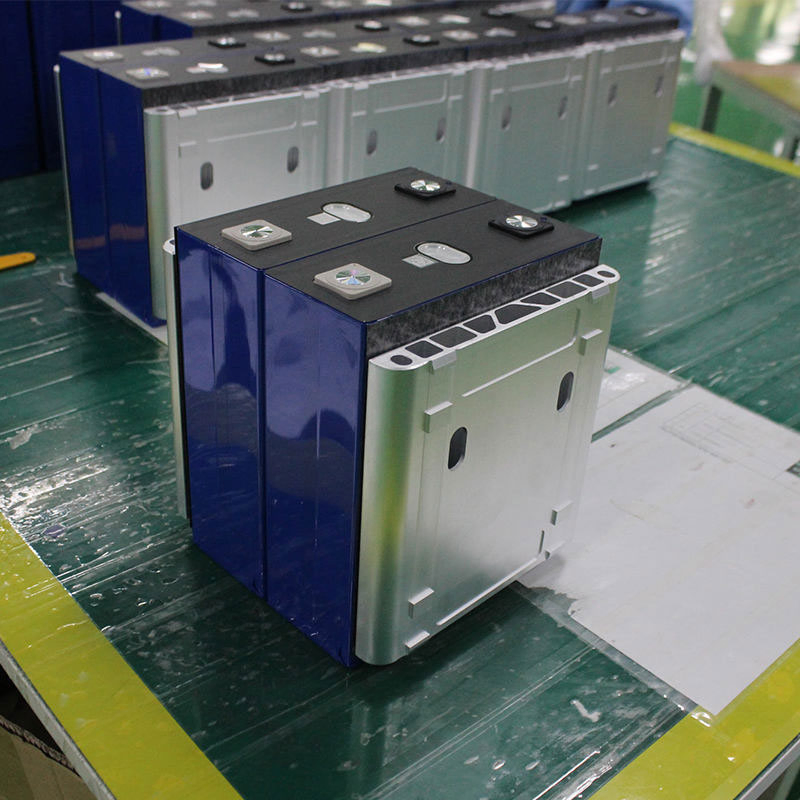

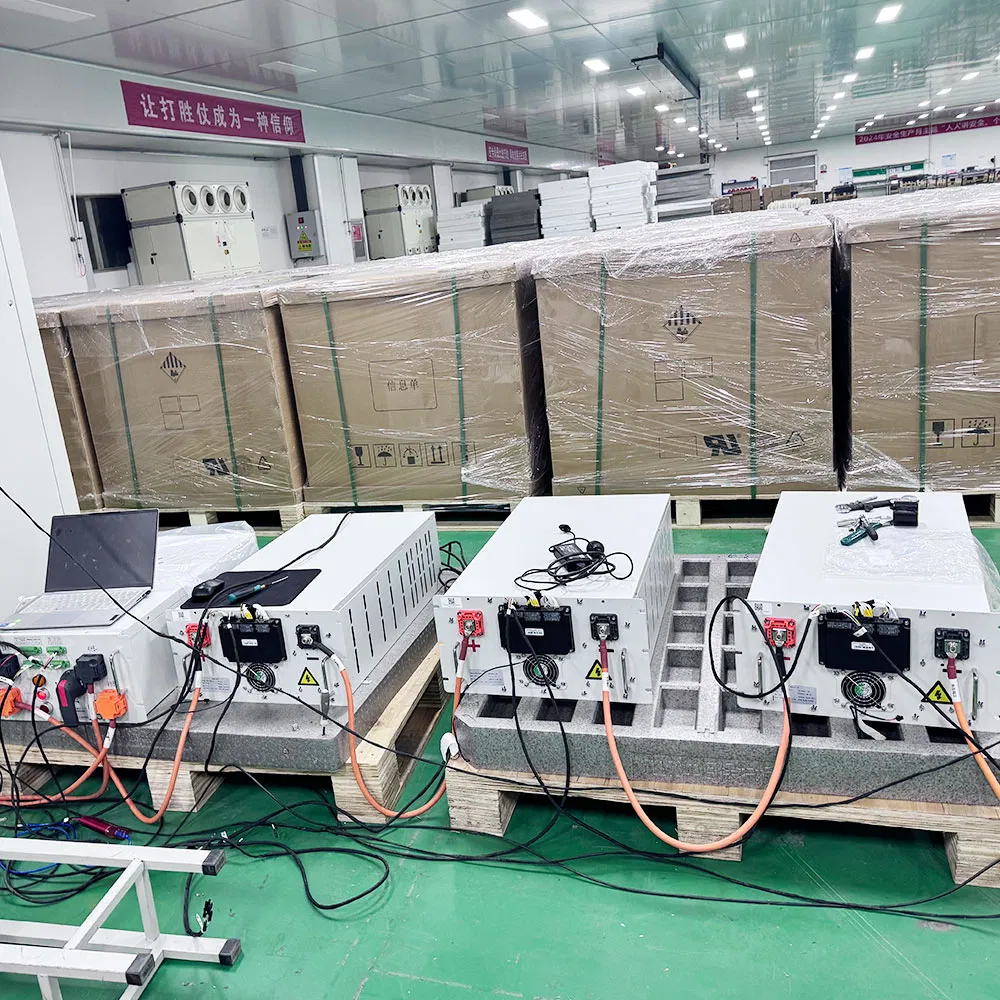

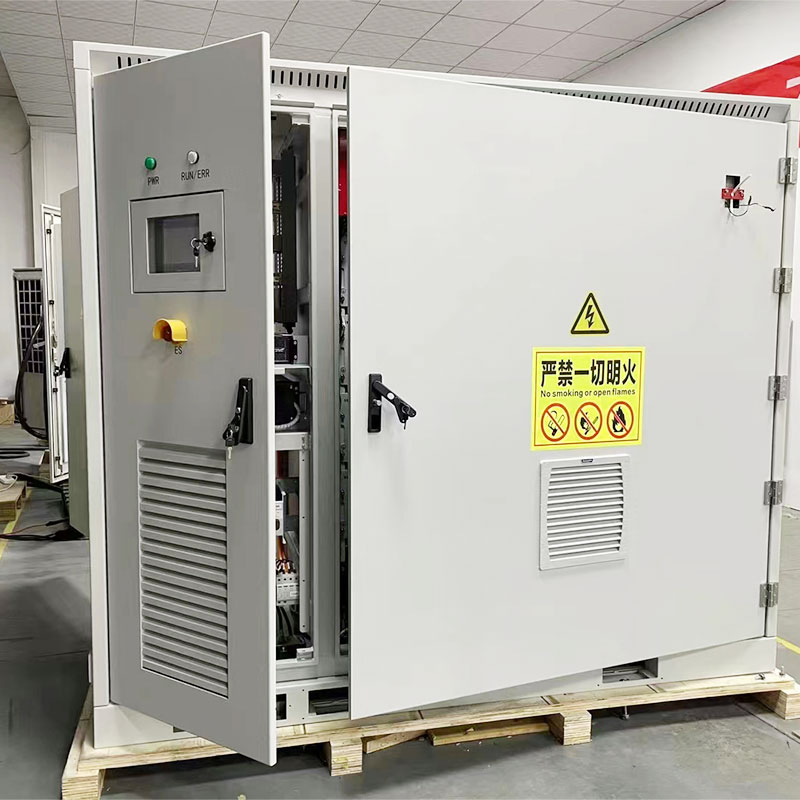

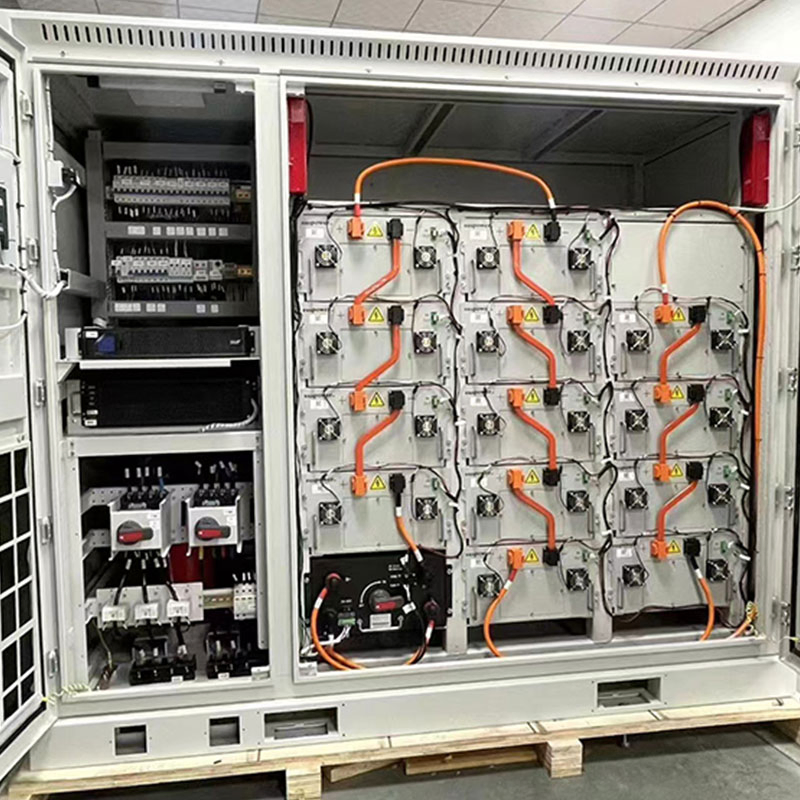

Efficient High Voltage off Grid Commercial Industrial Cabinet 215kw Energy Storage Solution

Customization: Available
Container Size: 2500*2900*1500mm
Weight: 2.65t

Product Description

i

Overview

Model NO.
PLPF0280C0-0768R0A
Nominal Voltage
768V
Warranty
2 Years
Nominal Capacity
215kWh
Cycle Life
≥6000 @100%Dod, 80%Eol
Battery Type
302V/280ah
Rated Power
110kVA
Grid Voltage
400V

Product Description

Energy Storage Solution 1
Energy Storage Solution 2

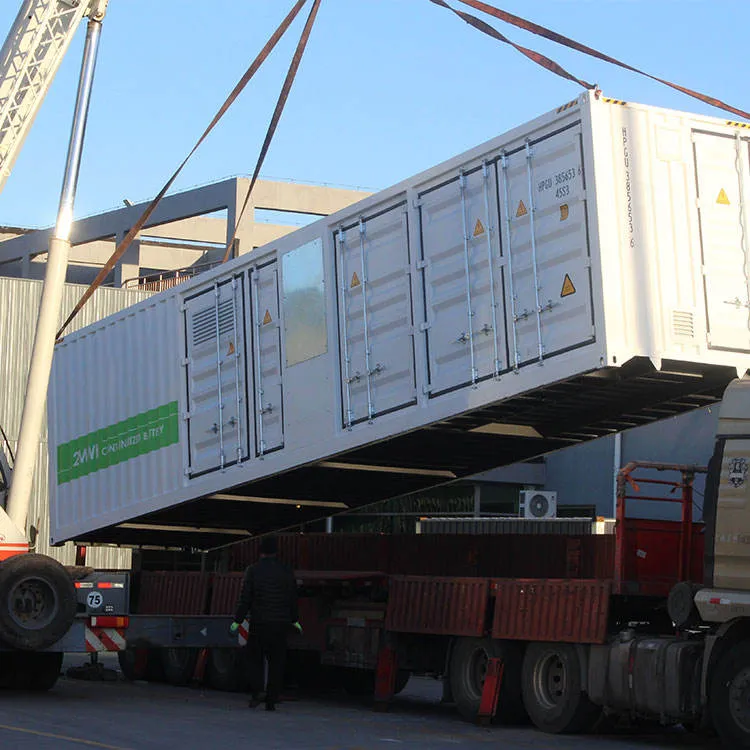

Energy Storage Solution 3

Technical Parameters

Battery Specifications
Product model PLPF0280C0-0768R0A
Battery parameter 1p240s
Cell type 3.2V/280Ah
Cell life ≥6000 @ 100%DOD, 80%EOL
Rated battery capacity 215kWh
Battery voltage range 600~876V
AC Output Parameters
Rated output power 110kW
Rated grid voltage 400V
Rated grid frequency 50Hz/60Hz
Grid voltage range ±15%
Grid connected power factor -1(leading)~1(lagging)
System Configuration
Product Size (WxHxD) 2100 X 2500X 1100mm (Air Cooled) / 1300X 2600X 1000 (Liquid Cooled)
Operating temperature -30~ 60ºC (>40ºC derating)
Fire extinguishing system Aerosol/heptafluoropropylene pit
Communication protocol ModBus-TCP / ModBus-RTU / IEC104
Maximum altitude 4000m
📷

Detailed Photos

Detailed View 1

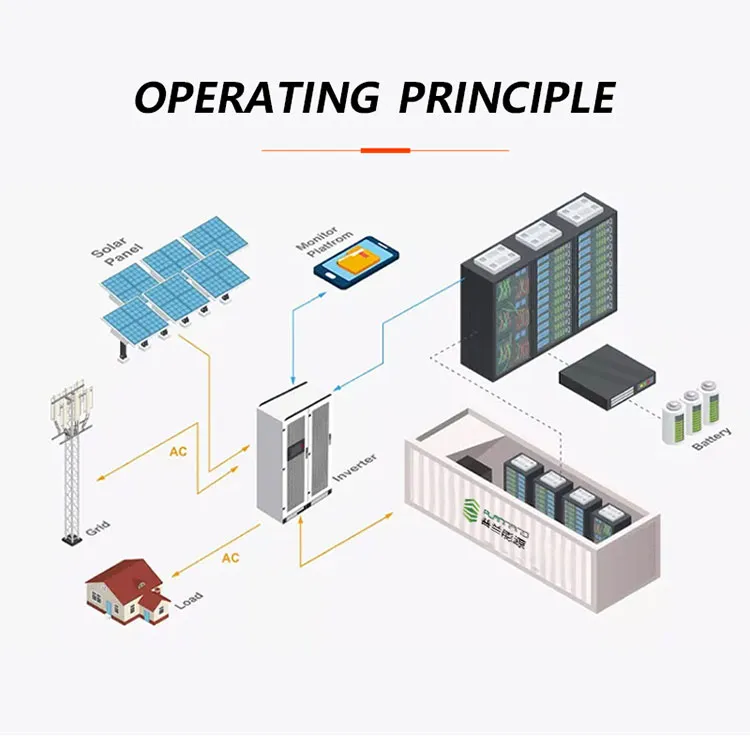

Detailed View 2
Detailed View 3

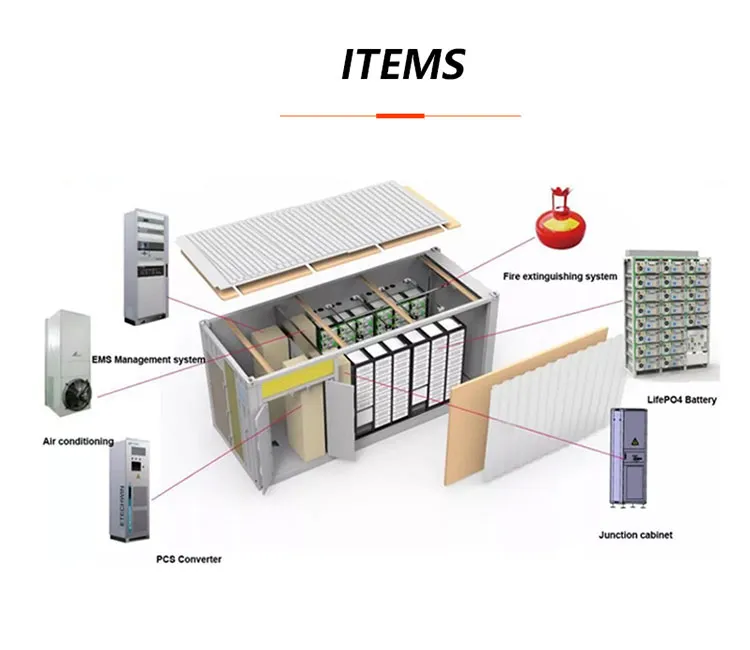

Detailed View 4
📦

Packaging & Shipping

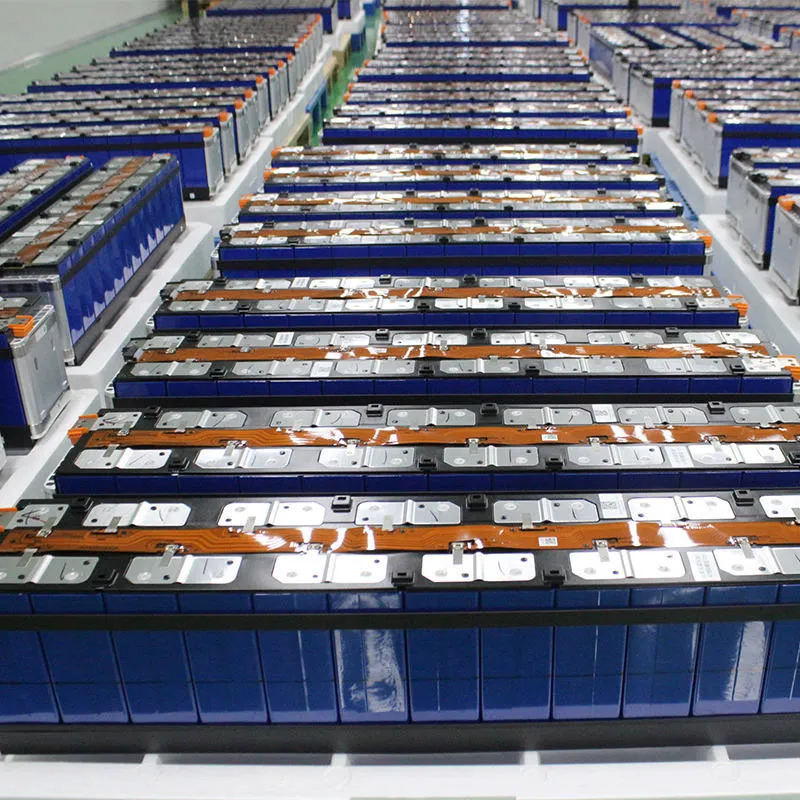

Packaging 1

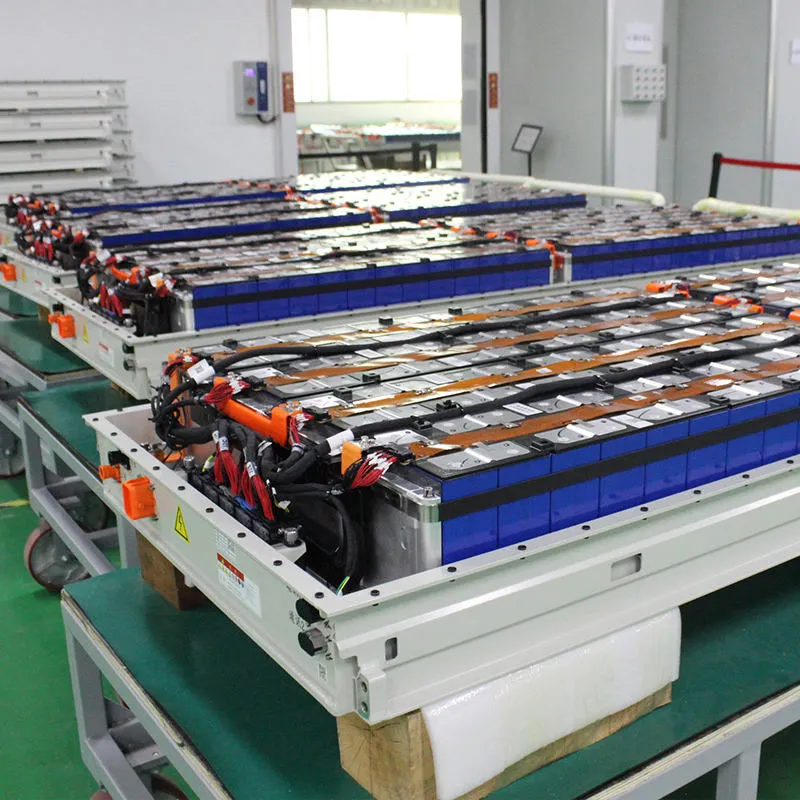

Packaging 2
Shipping 1

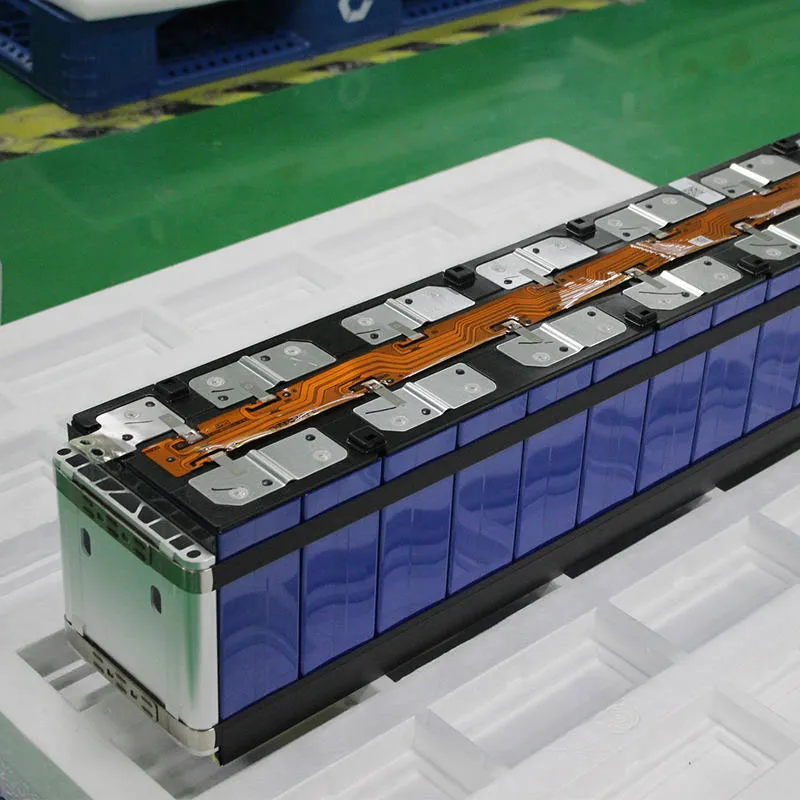

Shipping 2

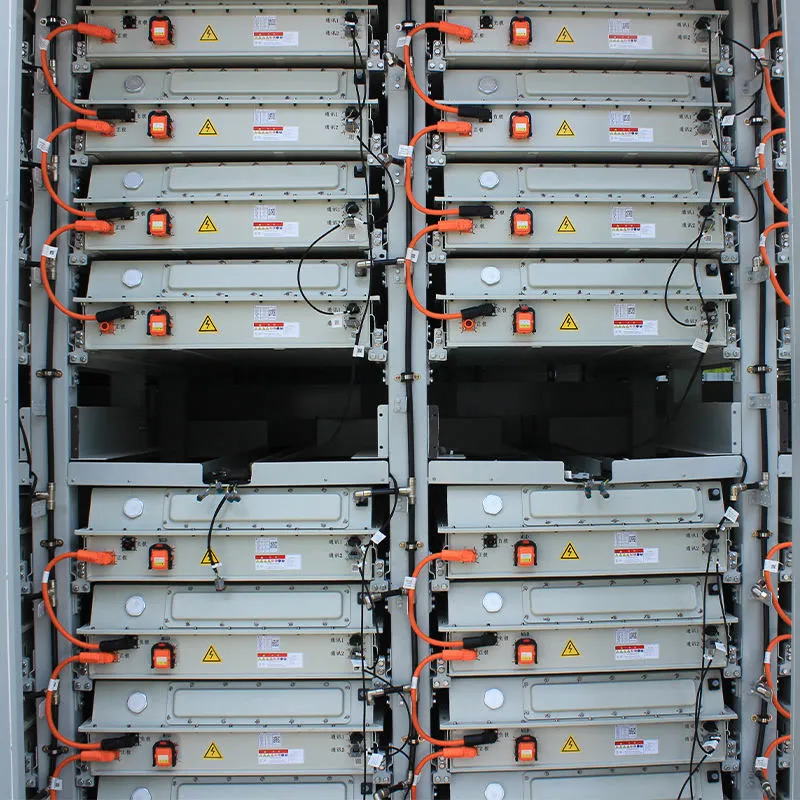

Shipping 3

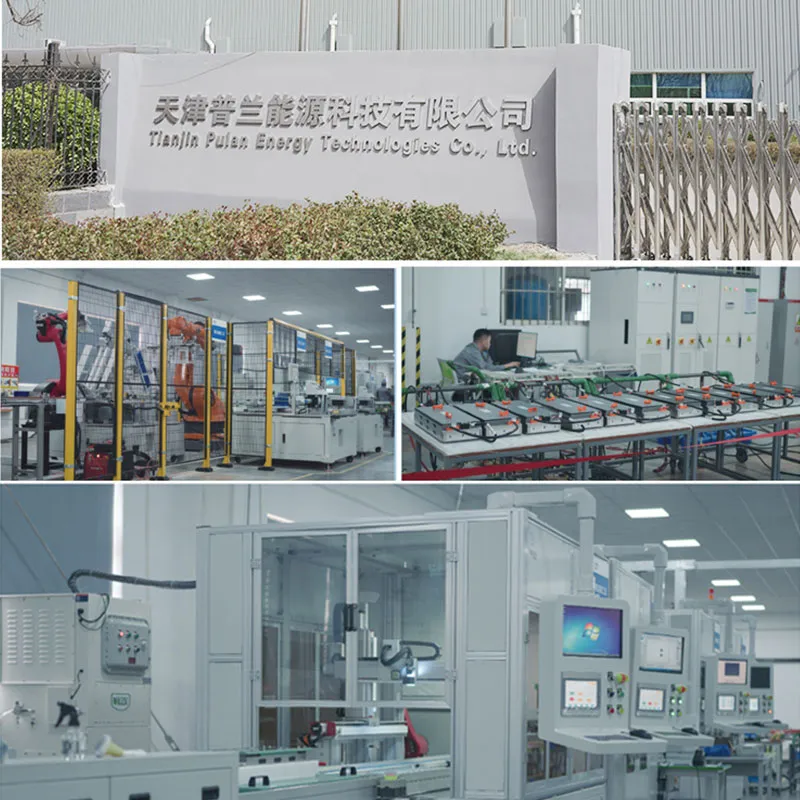

Logistics 1

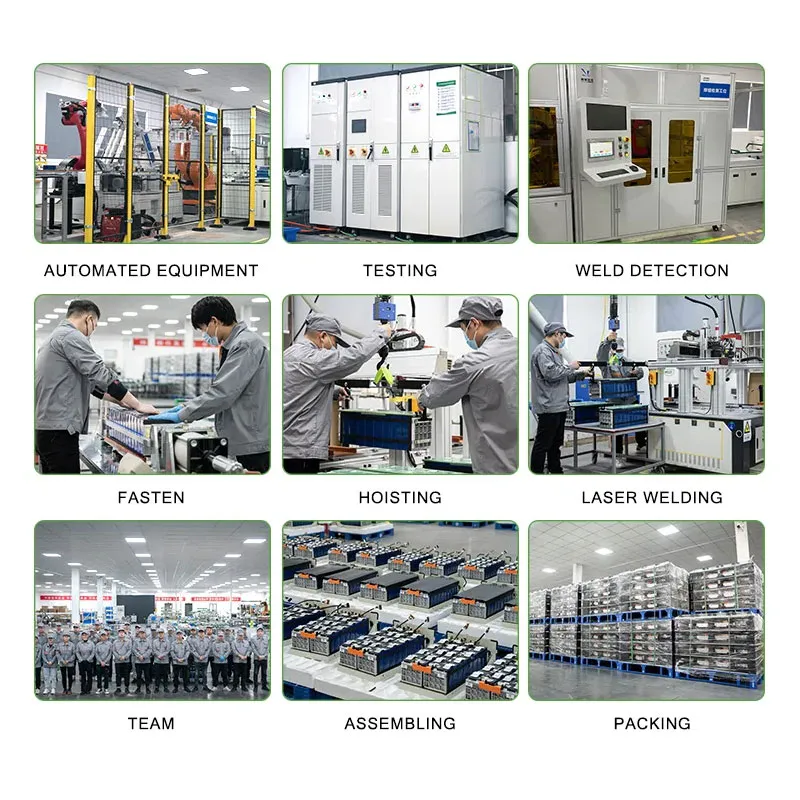

Logistics 2
Logistics 3
🏢

About the Manufacturer

We are a high-tech company focusing on the research and development, manufacturing, marketing, and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, our goal is to supply a complete solution for green-energy storage and power system products for clients worldwide.

Collaborating with leading research labs, we utilize high-standard test instruments and a top-class technical and management team. With more than 50 patents in preparation and application of graphene-based materials, we have completed production lines for various materials and successfully mass-produced products such as graphene, LTO, Si/C material, and supercapacitor cells ranging from 0.1F to 3000F.

Our main products are widely applied to new-energy vehicles, rail transportation, smart grids, micro-grids, engineering machinery, and industrial energy-saving fields. We treat credibility and integrity as our foundation, aiming to manufacture the most advanced clean-energy products with high quality and supply the most reliable solutions to energy-related systems.

?

Frequently Asked Questions

What is the expected cycle life of this energy storage system?
The system features a cycle life of ≥6000 cycles at 100% Depth of Discharge (DOD) until 80% End of Life (EOL), ensuring long-term reliability.
Does the cabinet support different cooling methods?
Yes, we provide both Air Cooled and Liquid Cooled options to meet different environmental and performance requirements.
What safety features are integrated into the system?
The system is equipped with an advanced fire extinguishing system utilizing Aerosol or heptafluoropropylene for maximum safety.
Can this unit be installed in high-altitude regions?
Yes, the system is designed to operate effectively at altitudes of up to 4000 meters.
What communication protocols are available for monitoring?
The system supports ModBus-TCP, ModBus-RTU, and IEC104 protocols, allowing for seamless integration into various management platforms.
What is the operating temperature range?
The unit operates between -30°C and 60°C, with derating occurring at temperatures above 40°C.
