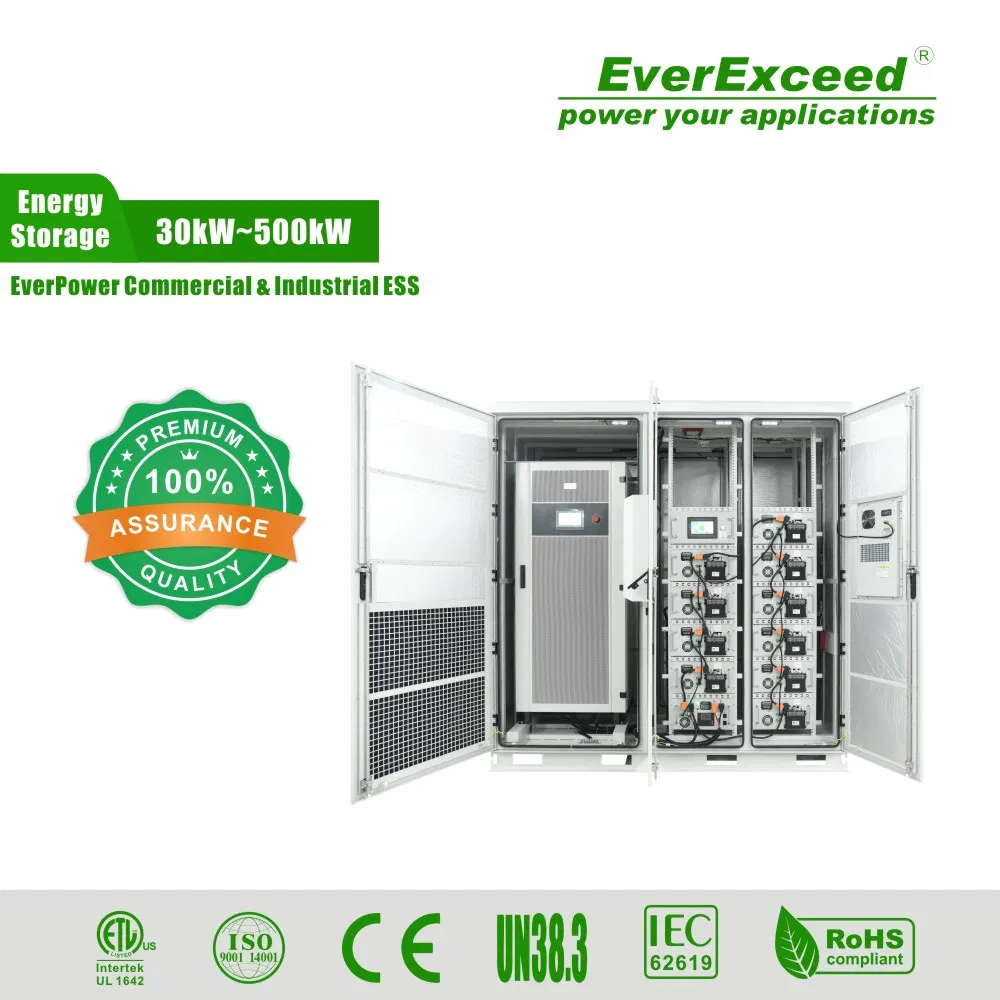

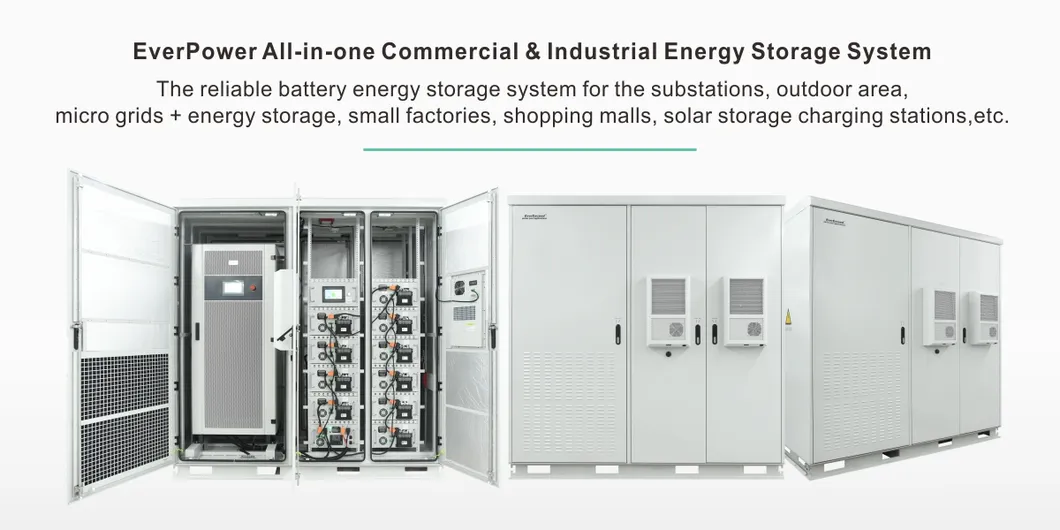

This commercial battery backup energy storage system is a high-power backup power supply solution. It features 50KW, 100KW, 150KW and 250KW power inverters integrated with a large LiFePO4 battery bank, providing long backup time for critical loads.
Wide battery voltage range compatible with more environments; fully compatible with lead acid & lithium-ion batteries.
Off-grid cold start function, supporting multi-machine parallel operation.
Comprehensive protection against overcharge, over-discharge, overload, short-circuit, and extreme temperatures.
AC and DC dual power backup to ensure the continuous operation of the control system.
Features the highest power density with peak efficiency reaching up to 97.5%.
Flexible communication accepting BMS commands in real time via RS485 and CAN interfaces.
| Model | CO30K-50E | CO30K-100E | CO50K-100E | CO100K-200E | CO150K-300E | CO250K-500E |
|---|---|---|---|---|---|---|
| Rated AC Output Power | 30KW | 30KW | 50KW | 100KW | 150KW | 250KW |
| Max. AC Output Power | 33KVA | 33KVA | 55KVA | 110KVA | 165KVA | 275KVA |
| Battery Input Range | 250~850V | 420~850V | ||||
| Max. Efficiency | 96.30% | 96.30% | 96.50% | 97.10% | 97.10% | 97.30% |
| Battery Capacity | 105Ah | 210Ah | 210Ah | 420Ah | 420Ah | 1050Ah |
| Battery Energy | 53.76kWh | 107.52kWh | 107.52kWh | 215.04kWh | 301.06kWh | 537.60kWh |
| Battery Type | LiFePO4 battery | |||||
| Cycle Life | ≥6000 at 80%DOD | |||||
| Ingress Protection | IP55 | |||||
| Model | CO30K-50E-PV | CO50K-100E-PV | CO100K-200E-PV | CO250K-500E-PV |
|---|---|---|---|---|
| Max. PV Input Voltage | 1000V | |||
| MPPT Voltage Range | 250-850V | |||
| Max. PV Input Power | 60/120KW | 60/120KW | 120/180/240KW | 300/360KW |
| Operating Temp. | -30ºC~55ºC | |||
| Cooling | Forced air | |||
| Payment | T/T, L/C, Cash, Western Union (Flexible terms available) |
| Port | Normally Shenzhen, China (or any port upon request) |
| Delivery | Sea, Air, Train, or Truck transportation |
| Delivery Time | Normally 4 weeks ex-factory |
| Packing | Carton box with pallet or wooden box |
