| Model NO. | U1-03-215 / U1-AC-215 | Cycle Life | 8000 times |
| Nominal Capacity | 215kWh | Type | Power |
| Certification | ISO9001:2000 | Form | All-Packaged Type |
| Operation Voltage | High Voltage (768V DC) | Protection Grade | IP65 / IP55 |
| Battery Type | LiFePO4 | Application | Power Plants / Commercial / Industrial |
| Weight | 2.6t / 2500kg | Dimensions | 1250*1300*2350 mm |

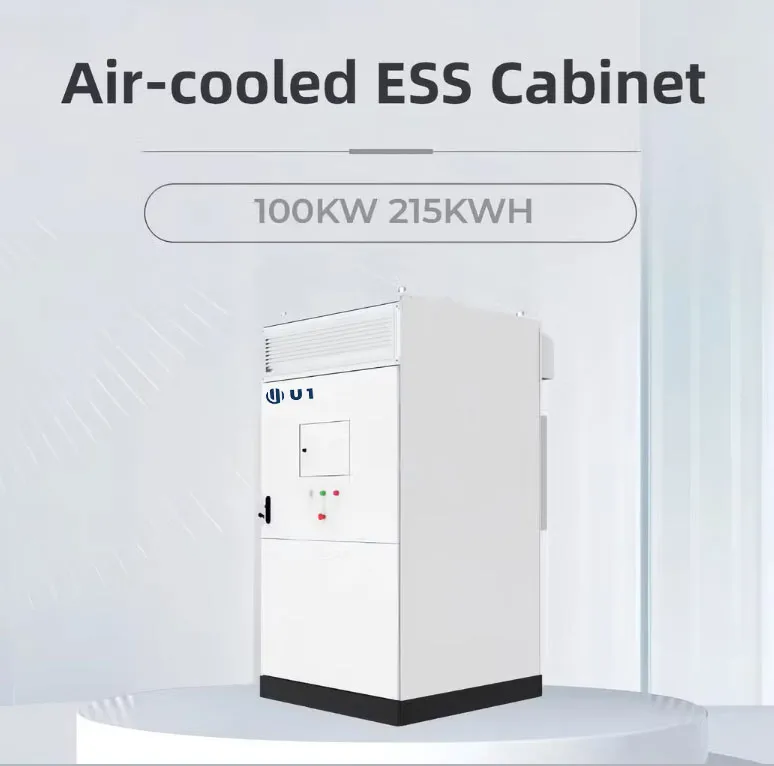

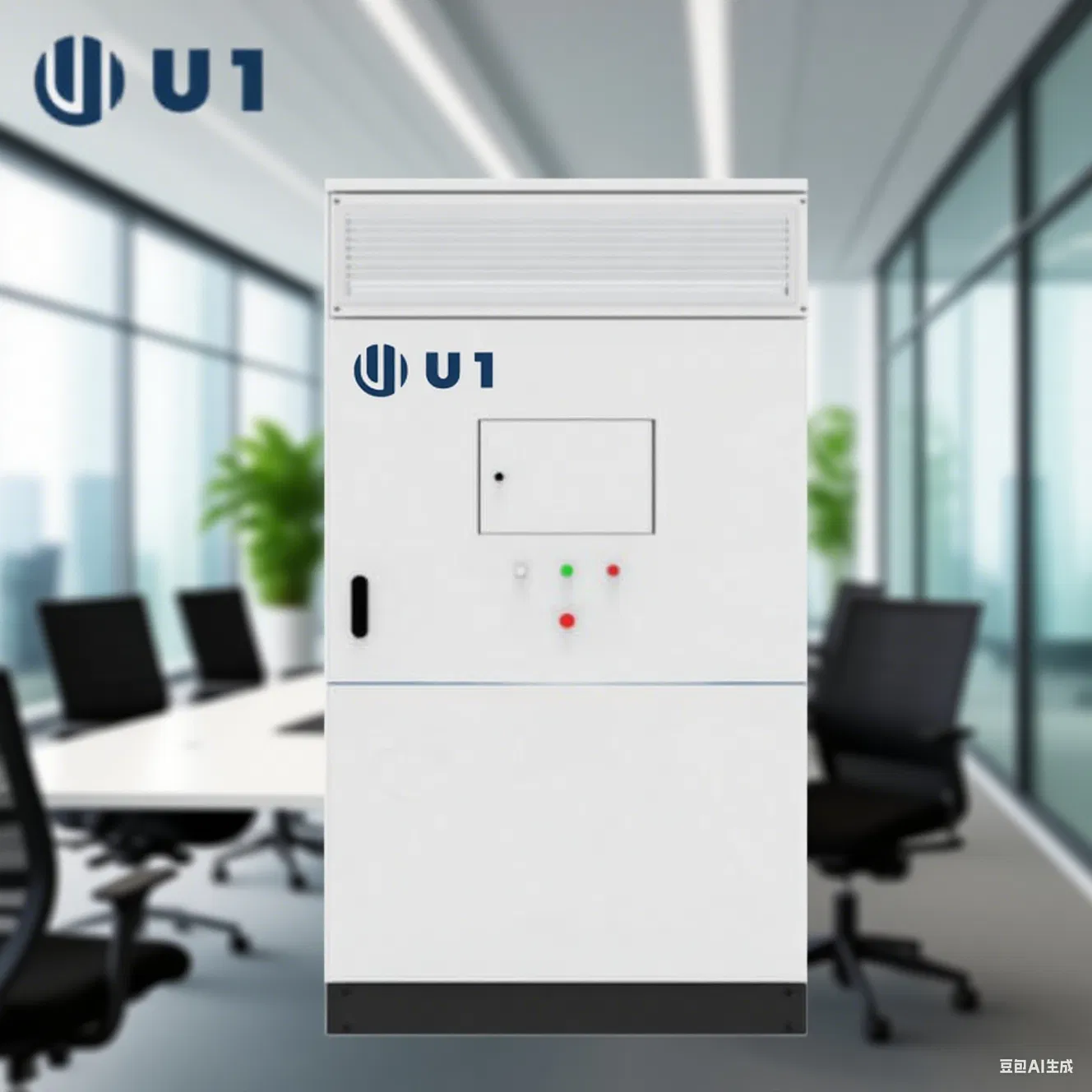

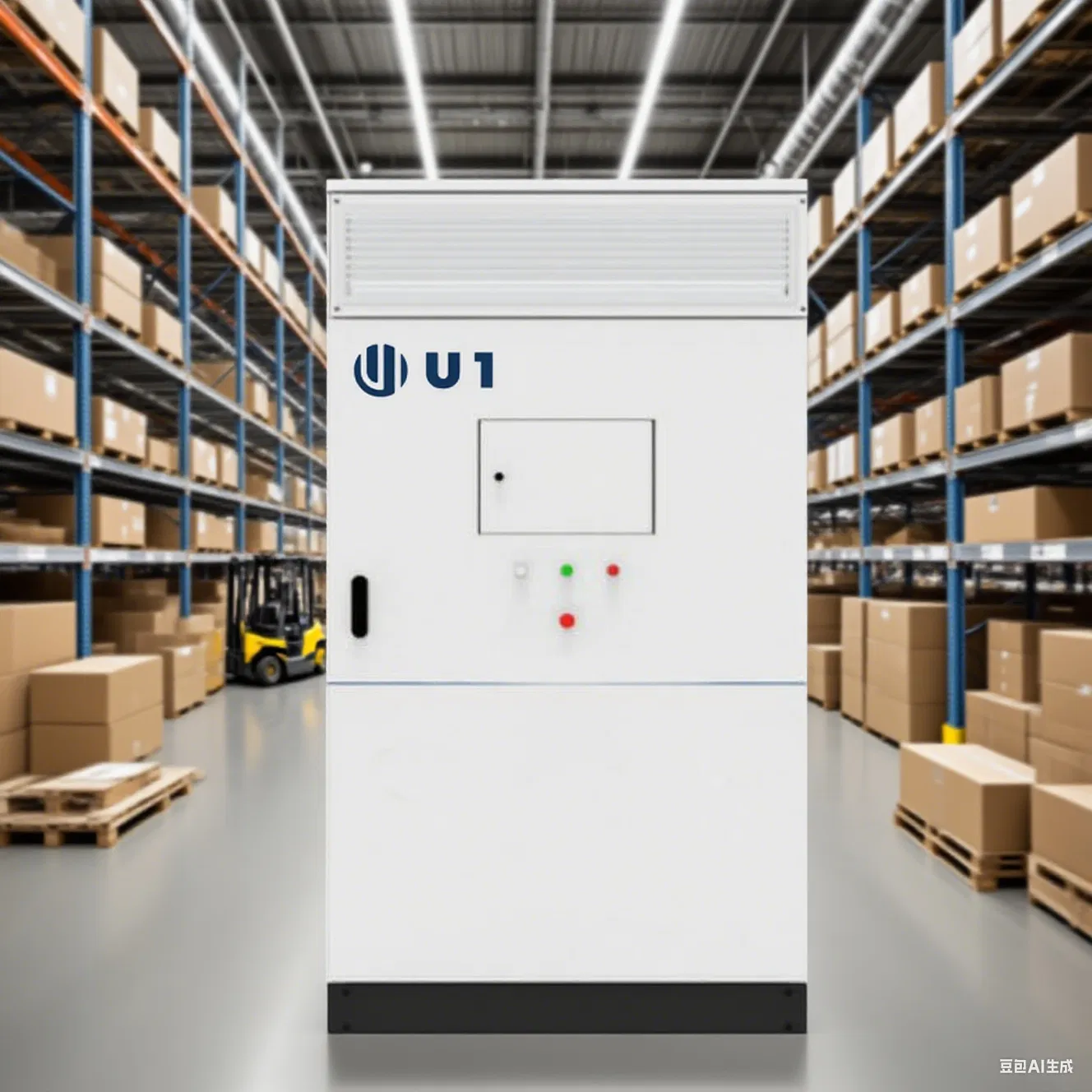

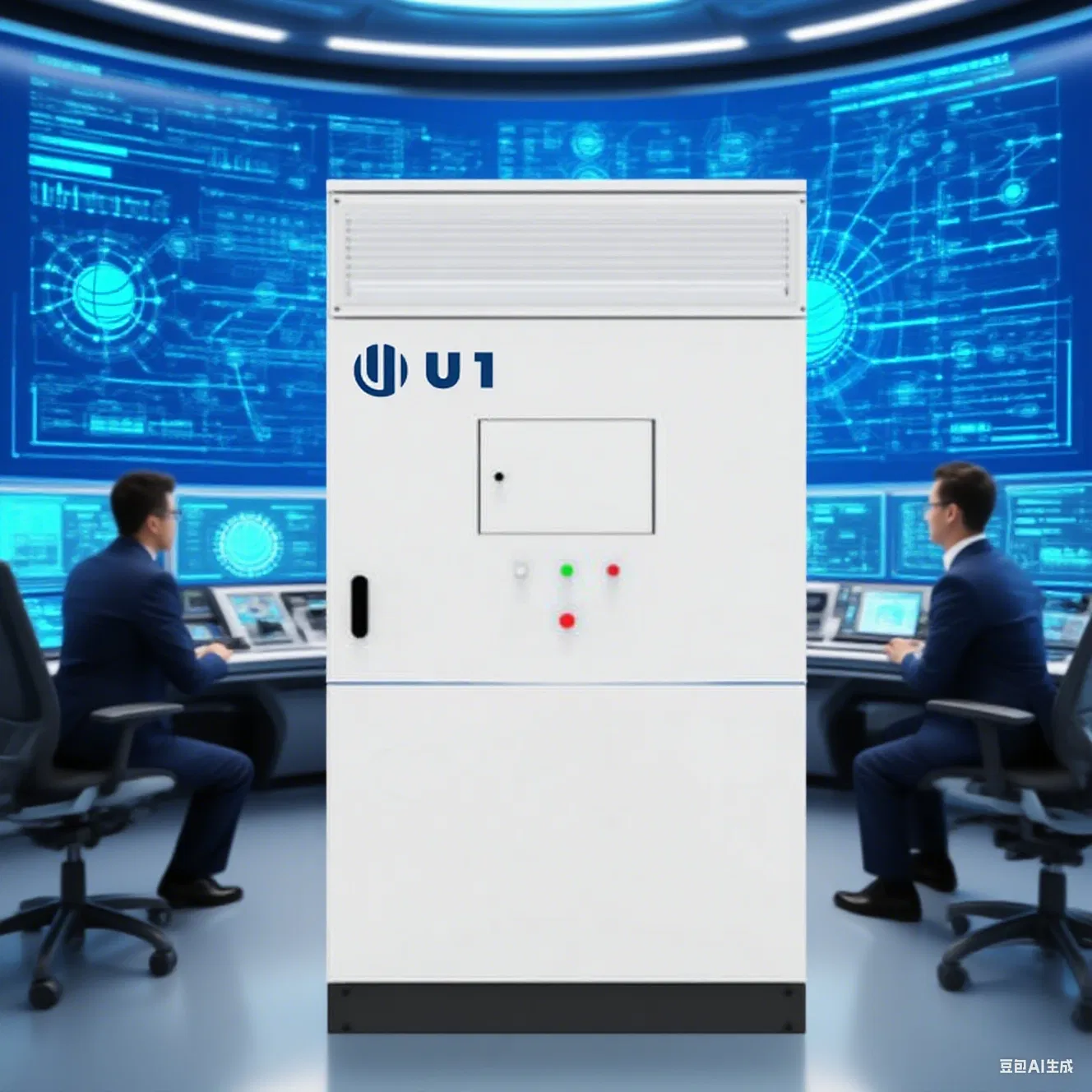

The U1 215KWH commercial & industrial energy storage system leverages cutting-edge cabinet-level liquid cooling and temperature balancing strategies. With a cell temperature variation kept under 3°C, this ensures enhanced cell temperature uniformity and prolongs battery longevity. Its modular configuration offers unparalleled flexibility in parallel solutions, coupled with increased energy density, dramatically boosting the economic viability, safety, and ease of construction for ESS projects.
Requires only a 1.4m² footprint with 233kWh of energy in a single cabinet.
Equipped with in-PACK fire warning and protection (aerosol) to curb thermal runaway.
Exceeding 8,000 cycles for superior long-term performance.

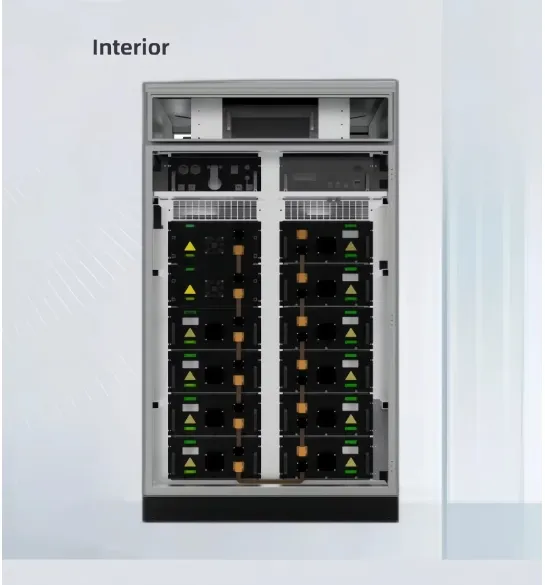

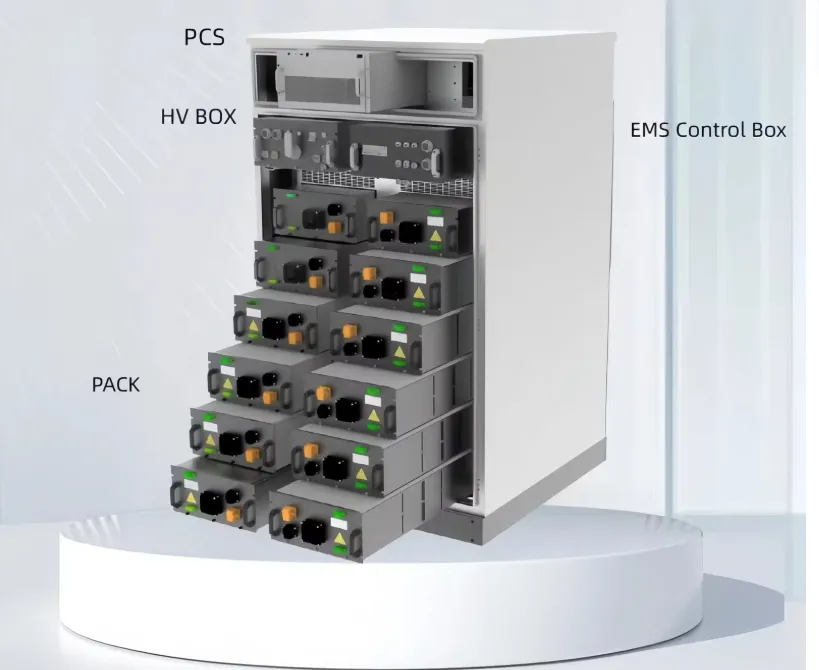

Streamlined all-in-one design for effortless integration and modular expansion.
| DC Battery Parameters | |

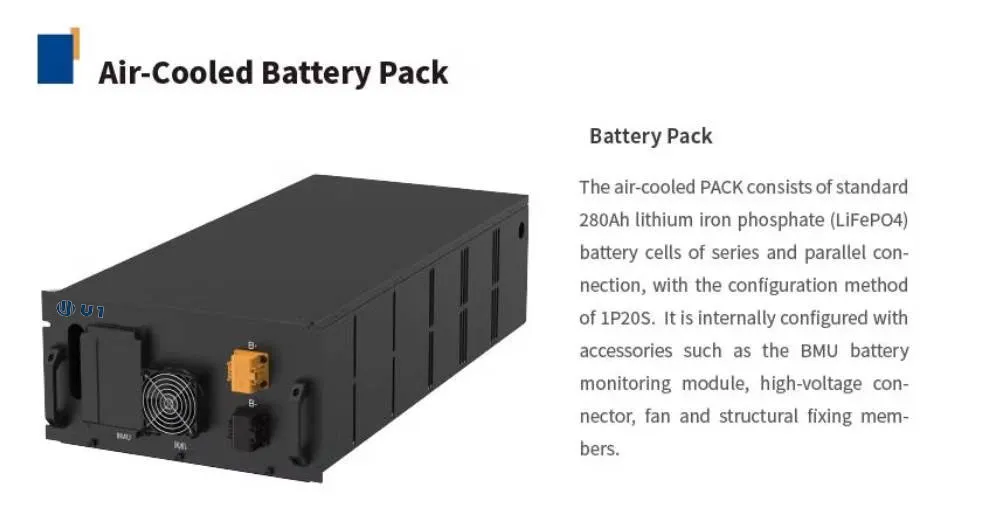

| Battery Cell Type | LFP 280Ah |
| Battery System Configuration | 215kWh / 1P240S |
| Rated Voltage | 768V DC |
| AC Side Parameters | |
| AC Rated Power | 100kW |
| Grid Rated Voltage | 400V AC |
| Efficiency | ≥90% |
| System Environmental | |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -25~55ºC |
| Fire Suppression | Aerosol + Active Warning |
