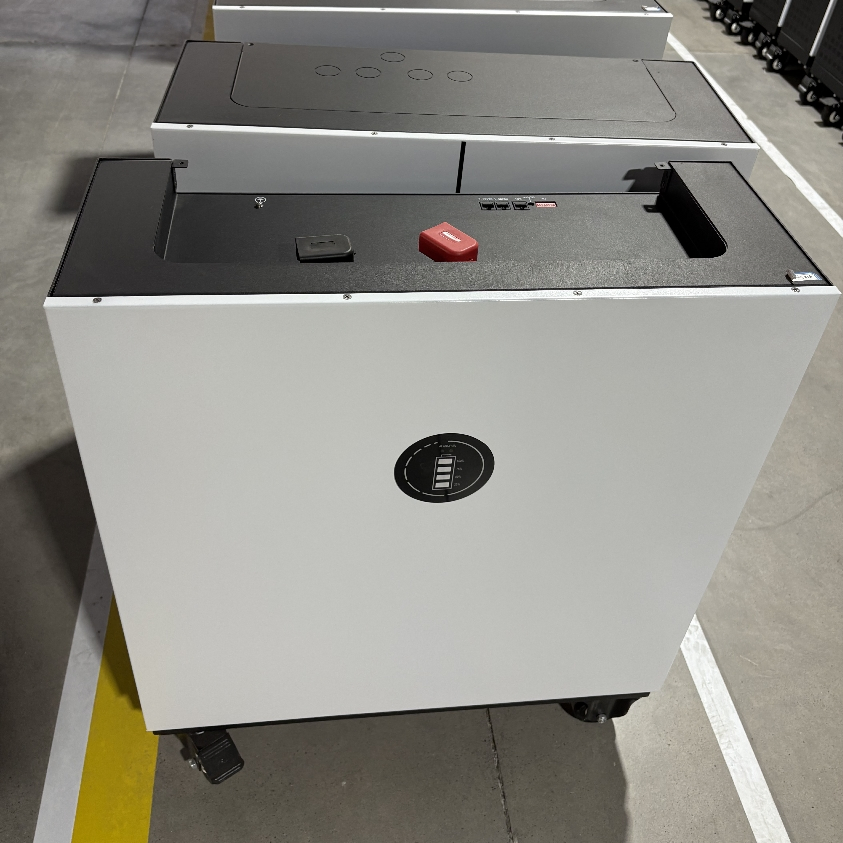

Price of 10kw 20kw 30kw Integrated off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

1 / 5

Price of 10kw 20kw 30kw Integrated off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

yd-sps-0076

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, 5KW

Solar Panel

Mono Type

Battery

Lithium/Gel

Inverter

Intelligent

Type

off-Grid

HS Code

8541402000

Production Capacity

5000 Piece/Pieces Per Month

Packaging & Delivery

Transport Package

Wooden Box

Package Size

1350.00cm * 560.00cm * 100.00cm

Package Gross Weight

100.000kg

Product Description

Price of 10kw 20kw 30kw Integrated off Grid Hybrid Solar Cell Outdoor Cabinet Energy Storage System Solution

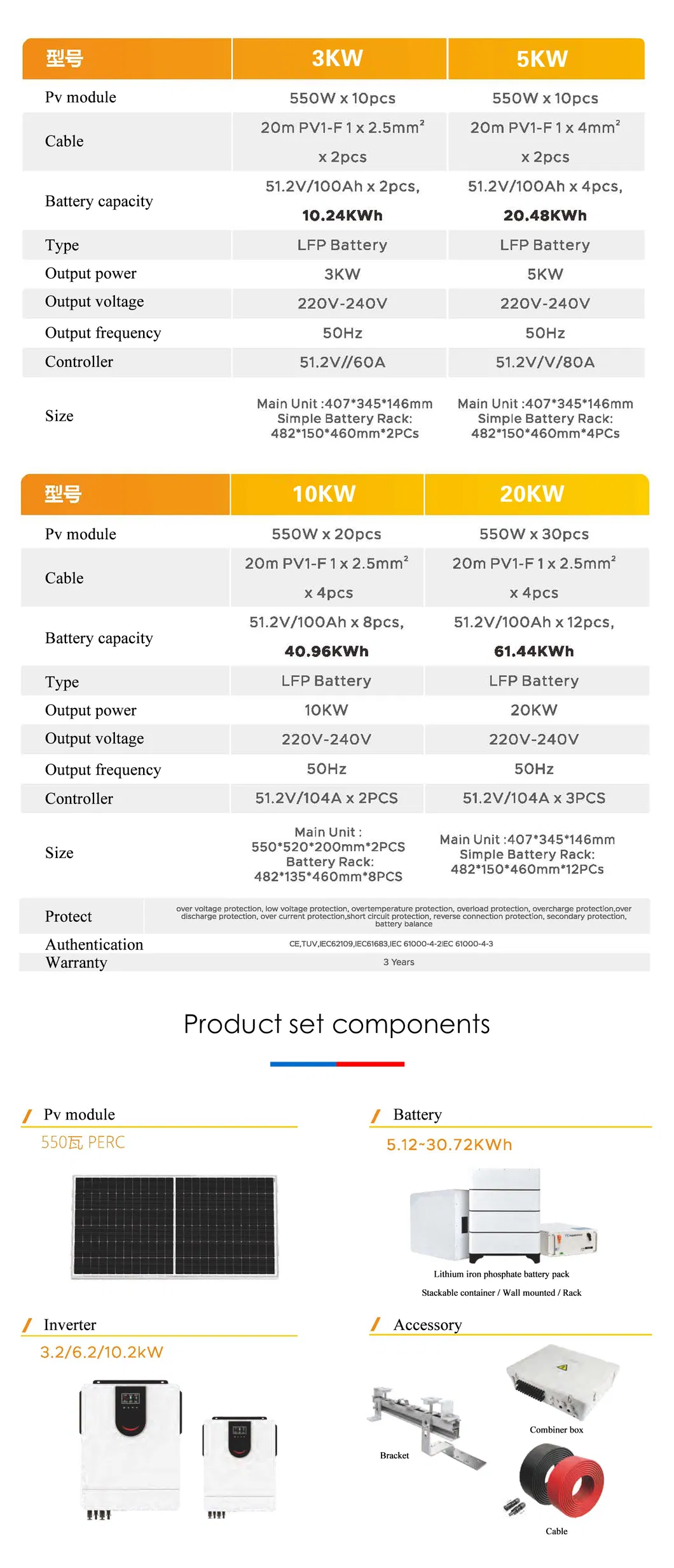

Product Parameters

Model	5KW	10KW	15KW	20KW

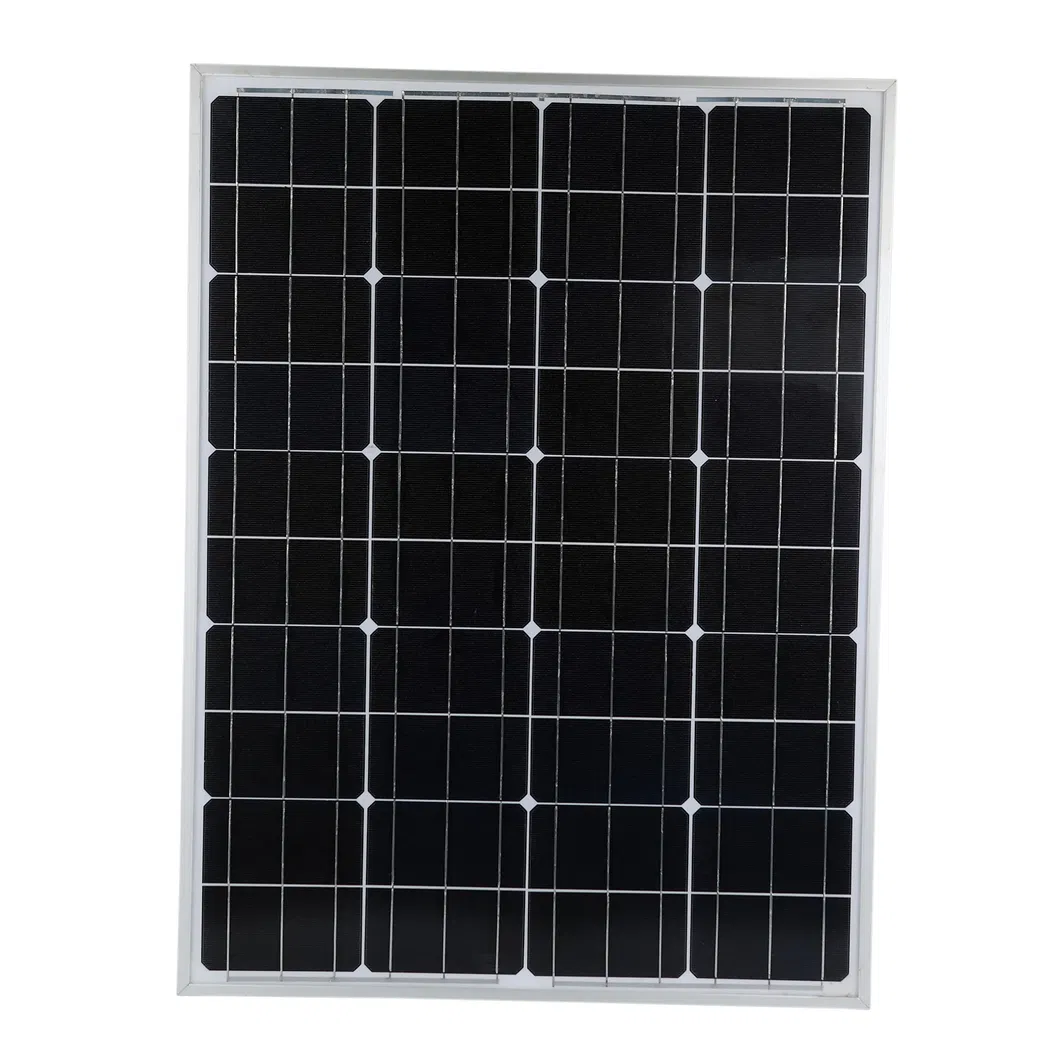

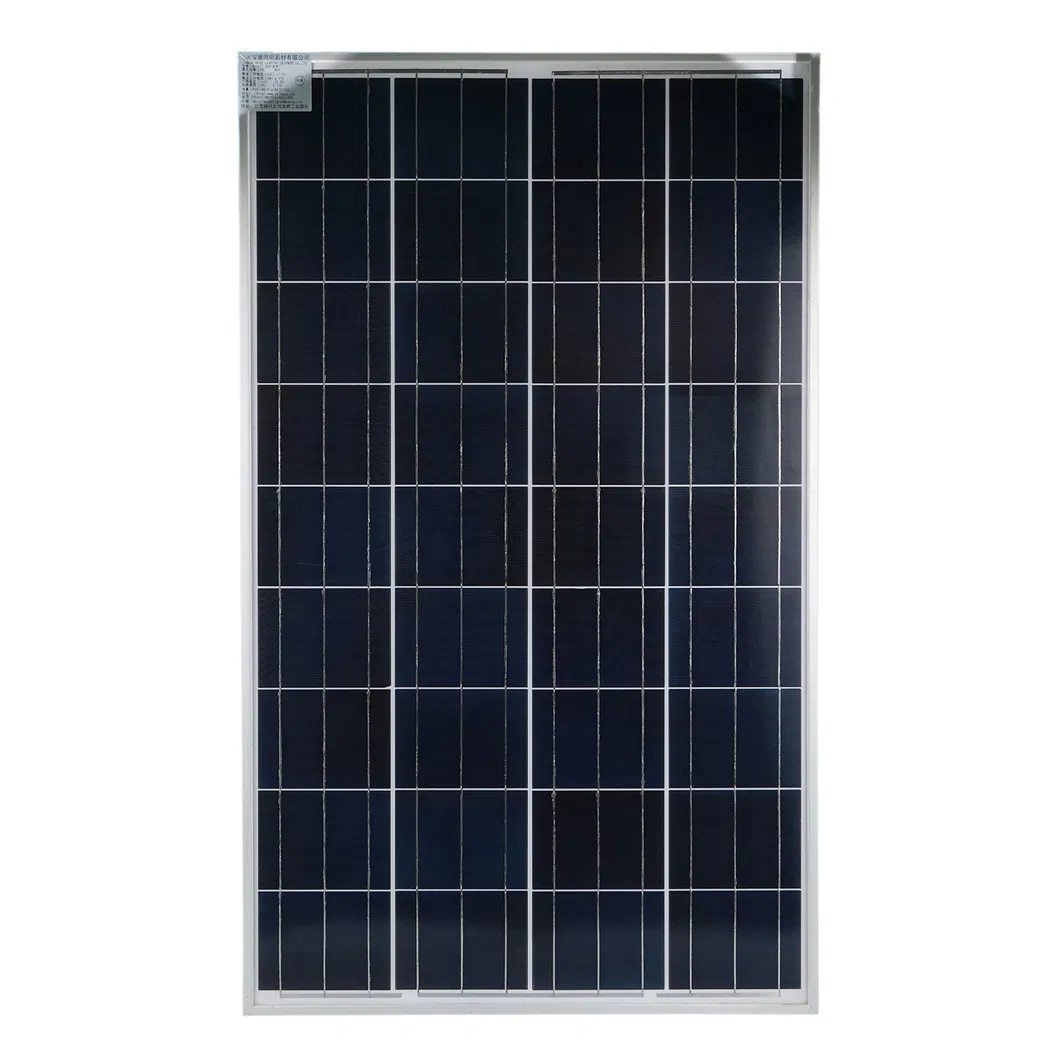

Solar panel
Size	250W
Quantity	20PCS	40PCS	60PCS	80PCS
Connection Method	5 Series*4 String	10 Series*4 String	10 Series*6 String	10 Series*8 String
Bracket
Size	C Steel
Quantity	1 Set
Junction Box
Size	4 Input*1 Output	4 Input*1 Output	6 Input*1 Output	8 Input*1 Output
Quantity	1 Set
Control Reverse Machine
Size	96V/8KVA	192V/15KVA	216V/30KVA	216V/30KVA
Feature	AC output 220VAC, 50/60HZ, sine wave; Support for mains/diesel input; Standard 60A MPPT
Dimension	600305800	600305800	7504501100	7504501100

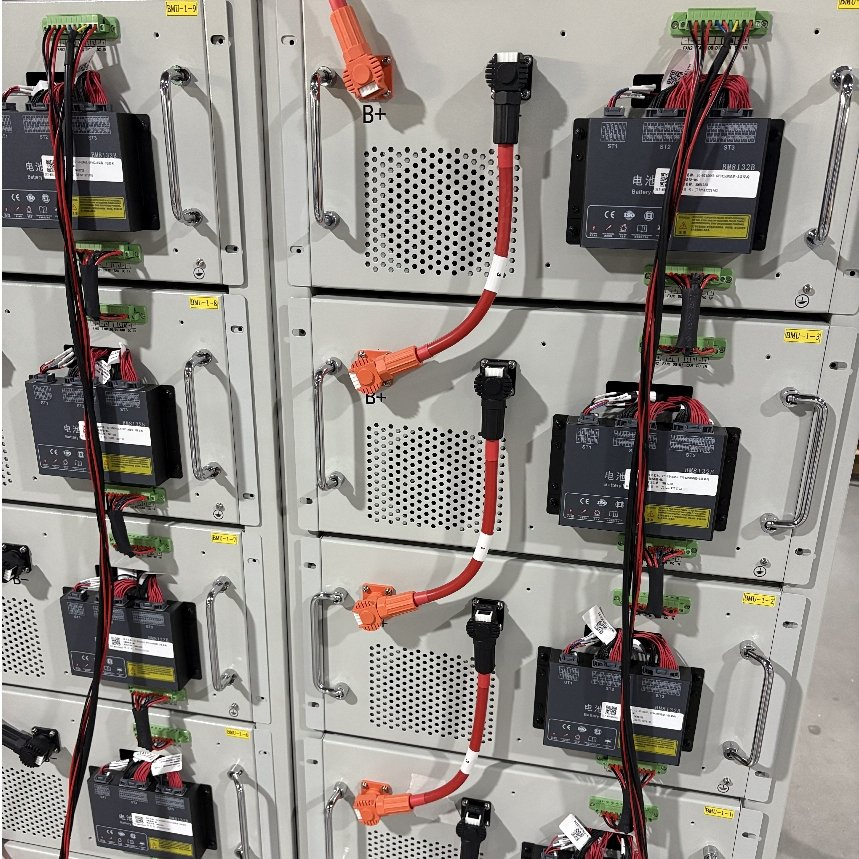

Battery
Size	200AH/12V
Quantity	8PCS	16PCS	36PCS	36PCS
Capacity	Total 16KWH	Total 32KWH	Total 86KWH	Total 86KWH
System Instruction
Max load	≤3KW	≤12KW	≤24KW	≤24KW
Charging Time	Component charging time is about 5-6H

Service & Support

One-stop Service Solutions for all outdoor lighting and energy needs, including street, landscape, and commercial applications.

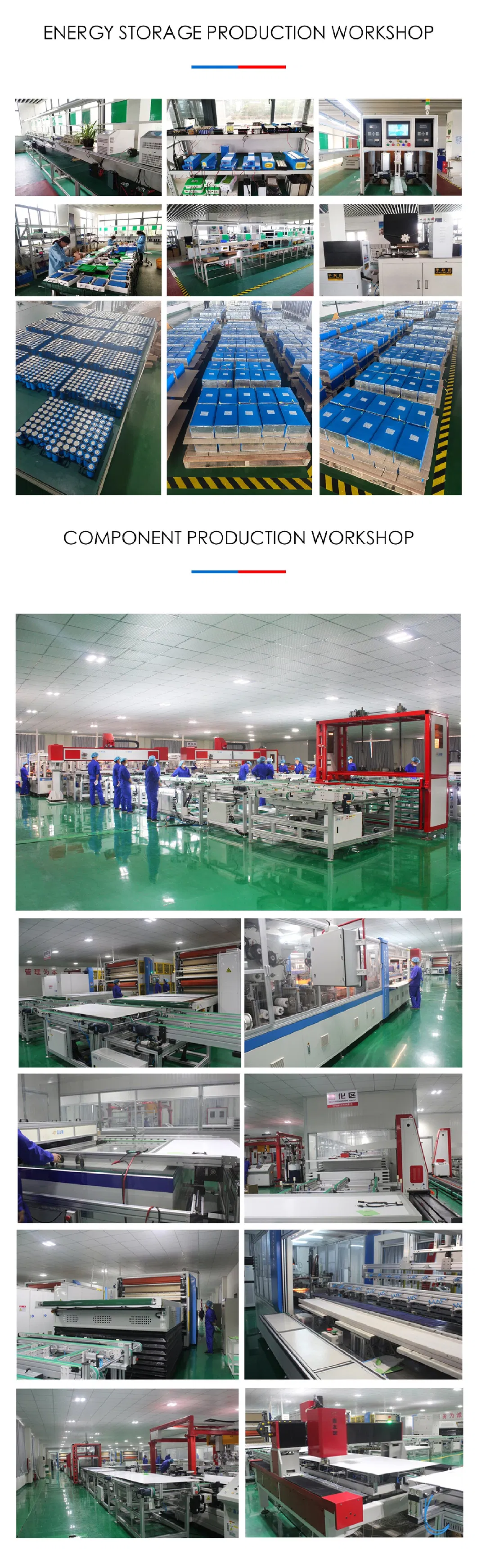

Vertically Integrated Production High-quality products with cost-effective pricing by manufacturing main components like LED sources, solar panels, and poles.

Warranty & Maintenance Two (2) years warranty for new systems. Technical guidance and repair services are provided for the entire product lifespan.

Installation Support Detailed instructions and videos provided. For large projects, onsite training and technical assistance are available.

Frequently Asked Questions

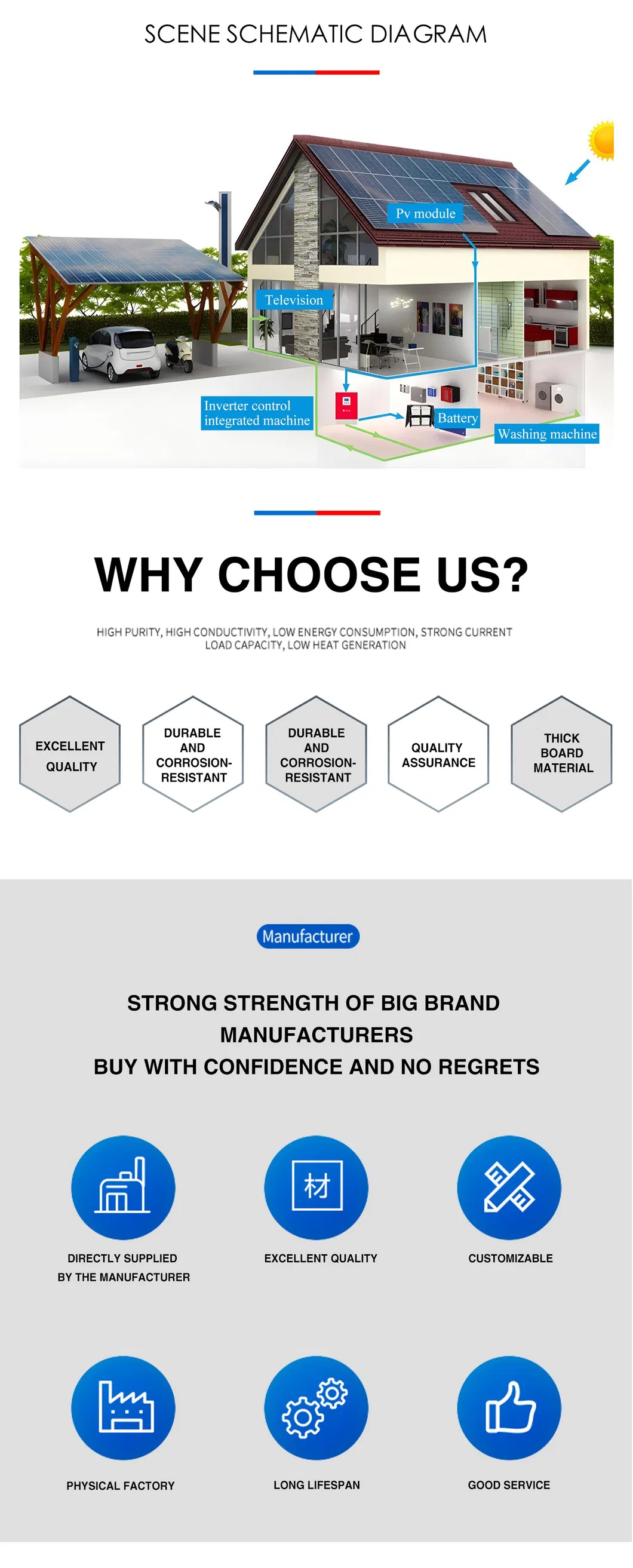

What household appliances can this solar system power?

The system provides reliable power for televisions, computers, fans, lights, and air conditioning units.

How long does it take for the components to fully charge?

Under standard conditions, the component charging time is approximately 5 to 6 hours.

What is the expected lifespan of the batteries?

The batteries have an expected life of five to seven years, depending on usage and maintenance.

Is there any regular maintenance required?

The system is designed to be essentially maintenance-free. We recommend a weekly inspection and cleaning solar panels every two months if in dusty regions.

Do you offer OEM or ODM services?

Yes, we provide reliable ODM & OEM services for overseas customers with our experienced engineering team and advanced equipment.

What happens if a part is defective?

We offer a 2-year warranty and will repair or replace any system that is defective in materials or workmanship within this period.
