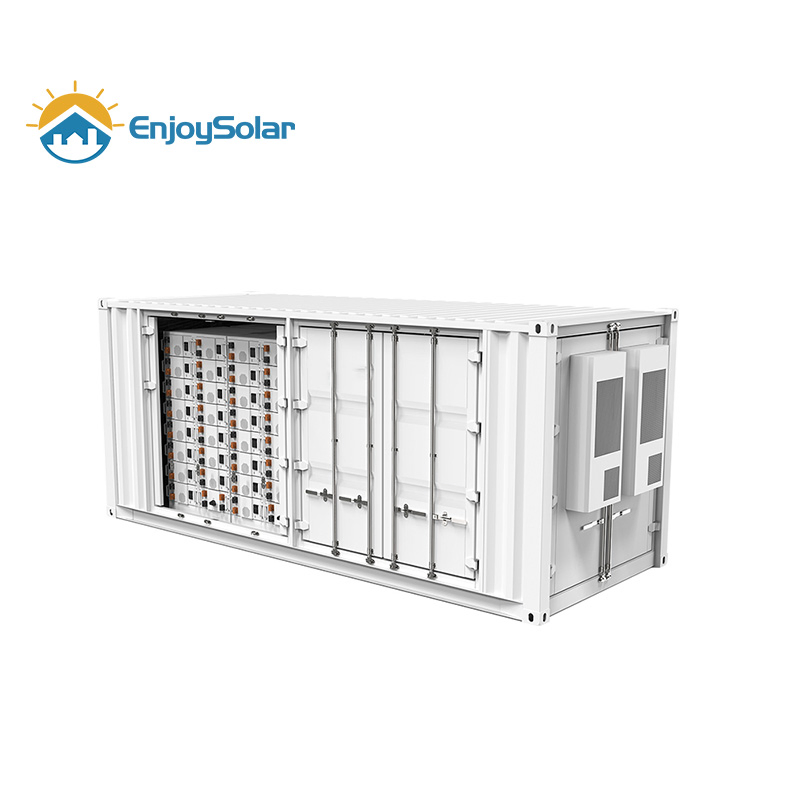

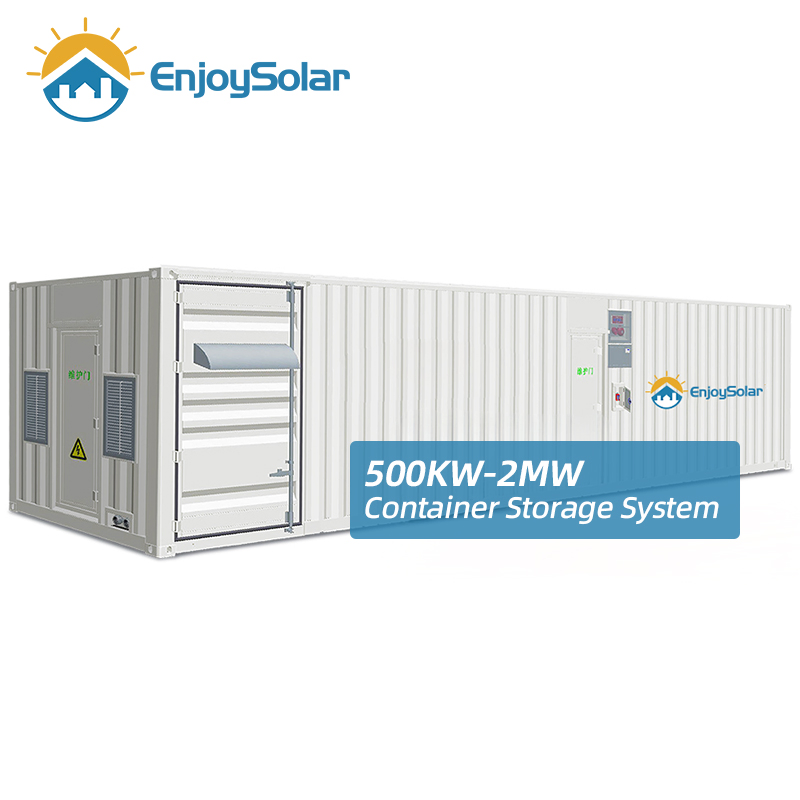

Advanced 1mwh and 2mwh Lithium LiFePO4 Energy Storage Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ⓘ

Model NO.:ES-ESS-40ft

Nominal Voltage:400V/380V 3phase

Warranty:10 Years

Nominal Capacity:800kwh

Cycle Life:6000 Times

Battery Type:Lithium Ion Battery

Communication:Can, RS485

Grid Connection:Hybrid Grid, on Grid, off Grid

Cooling:Air or Liquid Cooling

Product Name:Integrated Energy Storage System BESS

PCS Power:250kw/500kw/1MW

Battery Capacity:500kwh/1mwh/2mwh

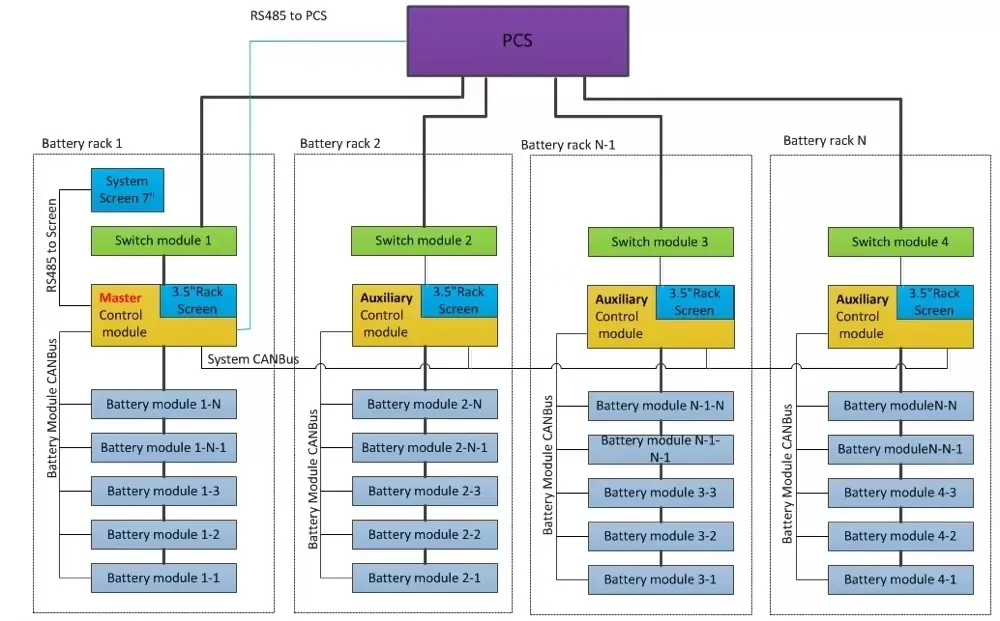

BMS:3 Levels Active BMS

Certification:CE, Un38.3, En50549, G99, VDE4105

Safety:Built-in Fire Protection System

📦

Package Size:1219.20cm * 1038.00cm * 243.80cm

Gross Weight:4000.00kg

Transport Package:Wooden Box

📝

⚙️

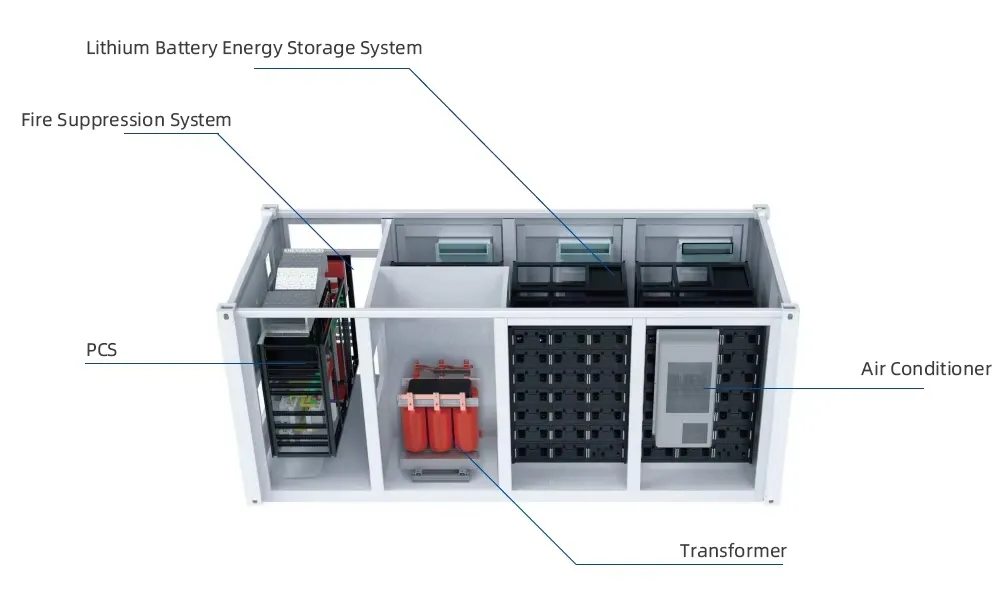

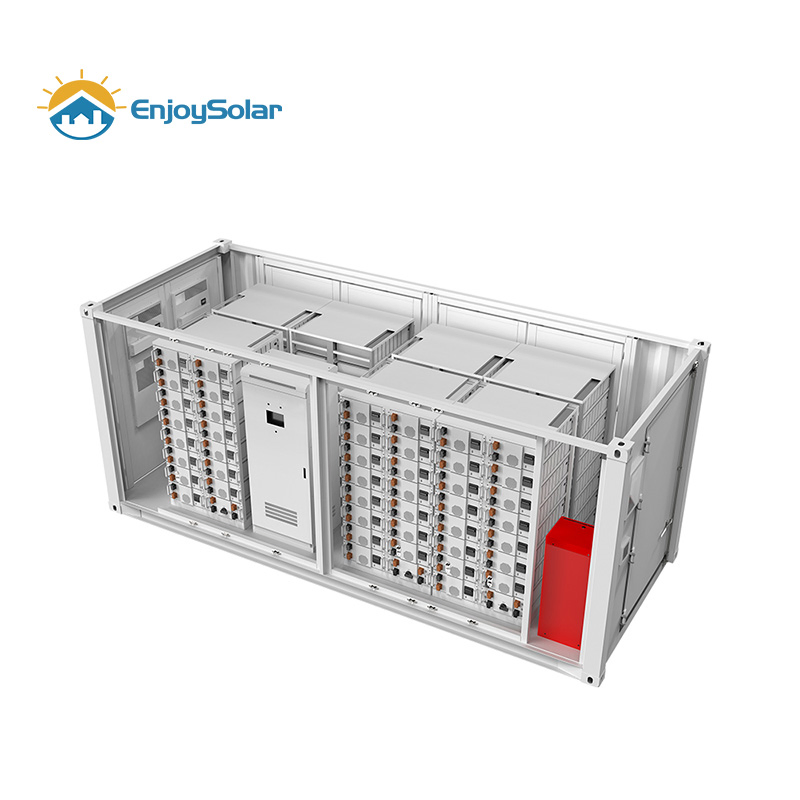

20FT System Configuration
Item	Component	Quantity	Description
PV	Panel 600W	420	Total 252kw capacity
Combiner Box	PV Combiner	5	7 inputs 1 output
Inverter	PBD250	1	Solar charge controller
	PCS250	1	Battery inverter
	Bypass 250	1	Grid switch

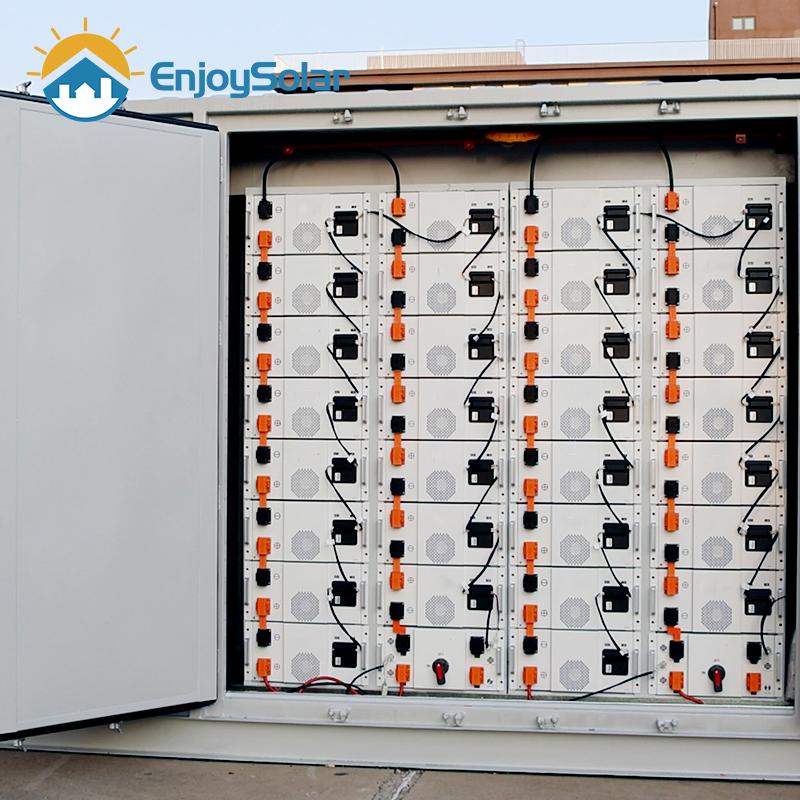

Battery	BAT-Combiner	1	Multi-rack combination

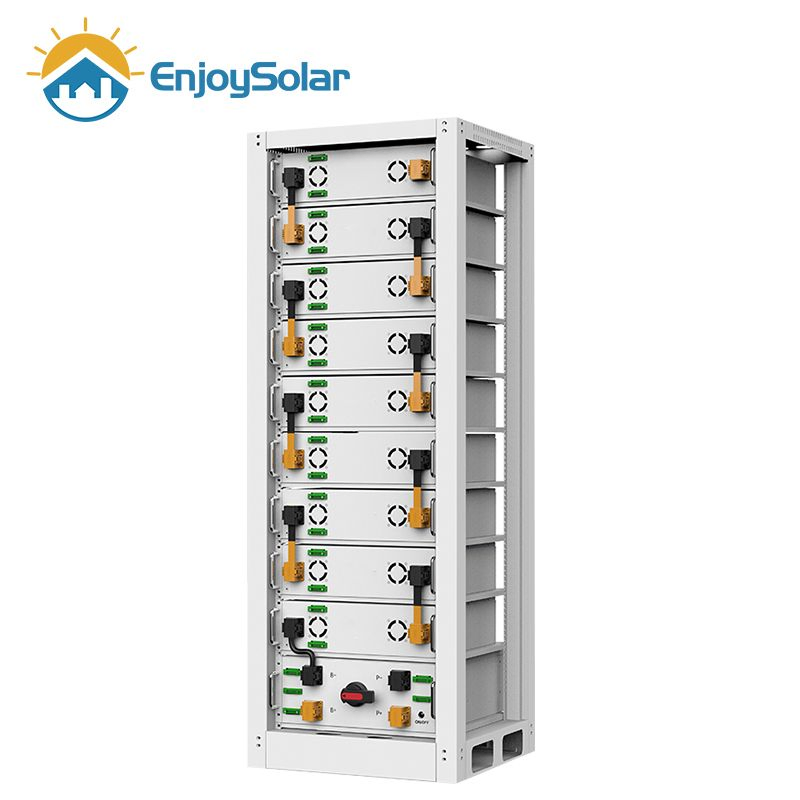

	51.2V 280AH	60	Module capacity 14.3kWh
	HV Controller	4	High Voltage Controller Box
Container	20ft Outdoor	1	IP54, Fire protection, HVAC included

40FT System Configuration
Item	Component	Quantity	Description
PV	Panel 600W	840	Total 504kw capacity
Combiner Box	PV Combiner	10	7 inputs 1 output
Inverter	PBD250	2	Solar charge controller
	PCS500	1	500kW battery inverter
	Isolation Transformer	1	500KVA Transformer
	Bypass 500	1	Grid switch
Battery	BAT-Combiner	1	Multi-rack combination
	51.2V 280AH	150	Module capacity 14.3kWh
	HV Controller	10	High Voltage Controller Box
Container	40ft Outdoor	1	IP54, Fire protection, HVAC included
