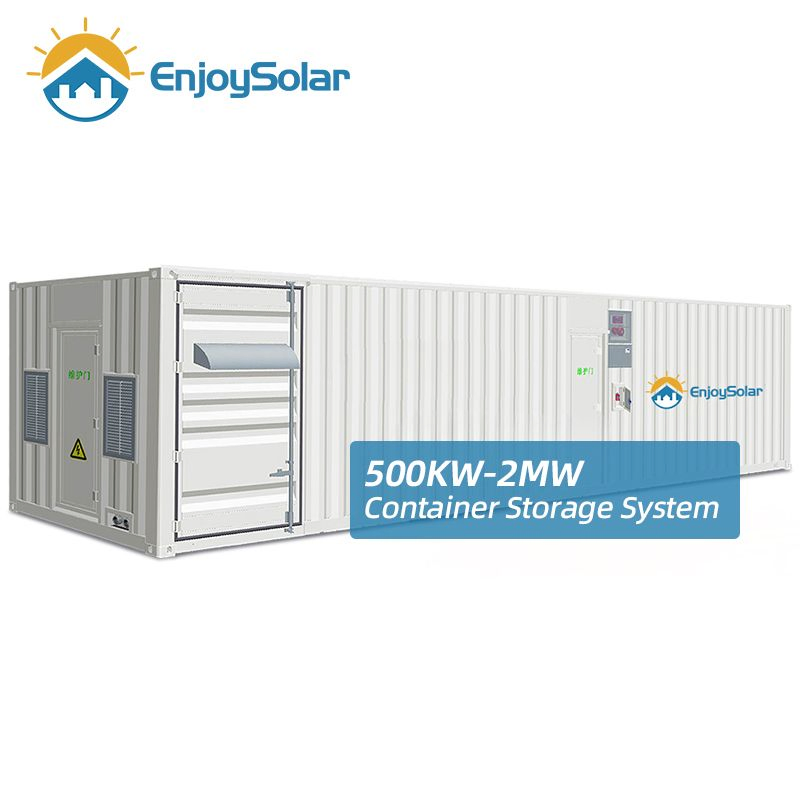

20FT 40FT All in One 1MW 2MW 3MW Solar Energy Storage Solution

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
ES-ESS-20FT
Nominal Voltage
400V/380V 3phase
Warranty
10 Years
Nominal Capacity
800kWh
Cycle Life
6000 Times
Battery Type
Lithium Ion Battery
Communication Interface
Can, RS485
Grid Connection
Hybrid Grid, on Grid, off Grid
Cooling
Air Cooling or Liquid Cooling
PCS Power
250kw/500kw/1MW
BMS
3 Levels Active BMS
Certification
CE, Un38.3, En50549, G99, VDE4105
Working Mode
on Grid, off Grid, or Hybrid
Dimensions
12192*2591*2438mm

Product Description

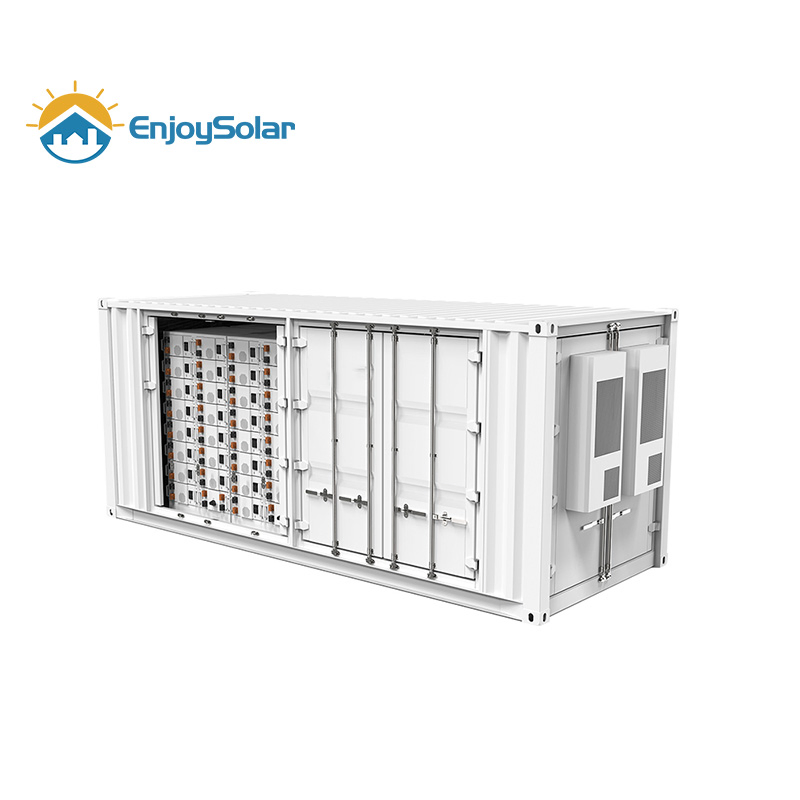

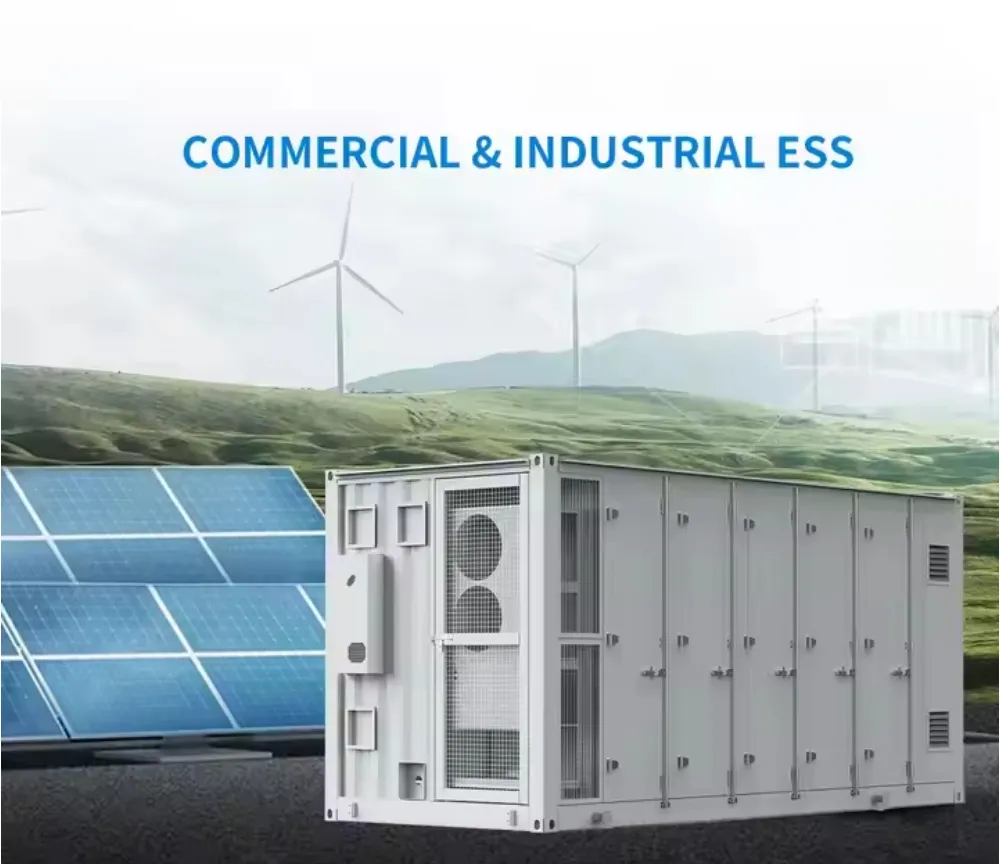

Solar Energy Storage Solution Overview

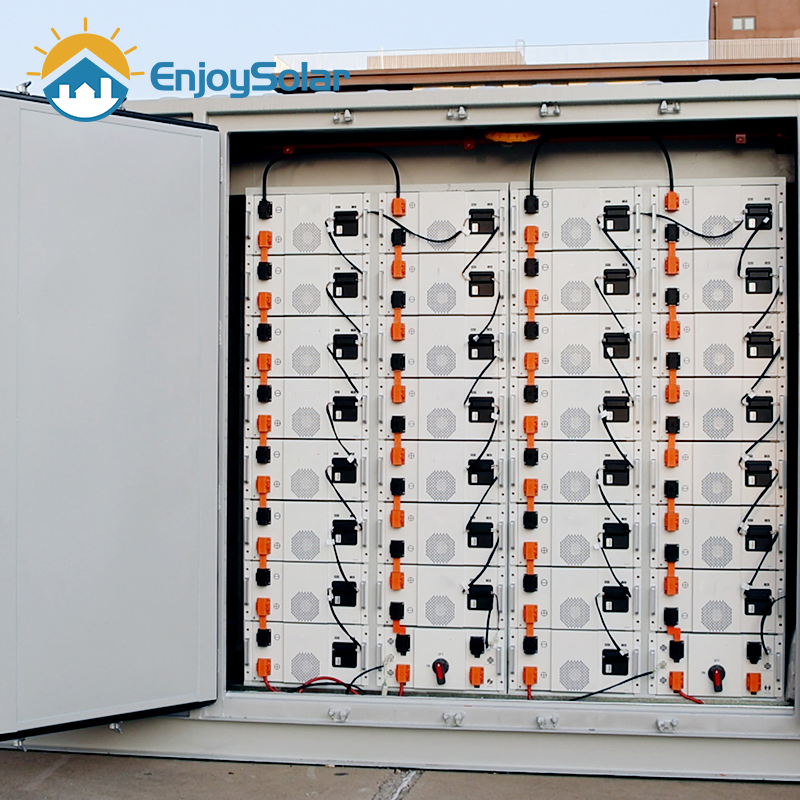

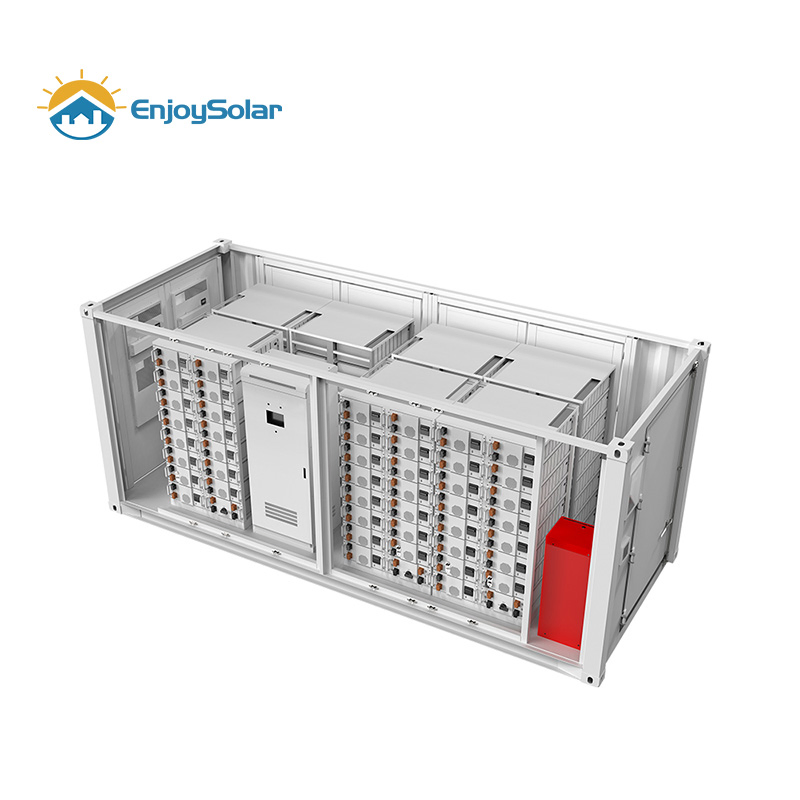

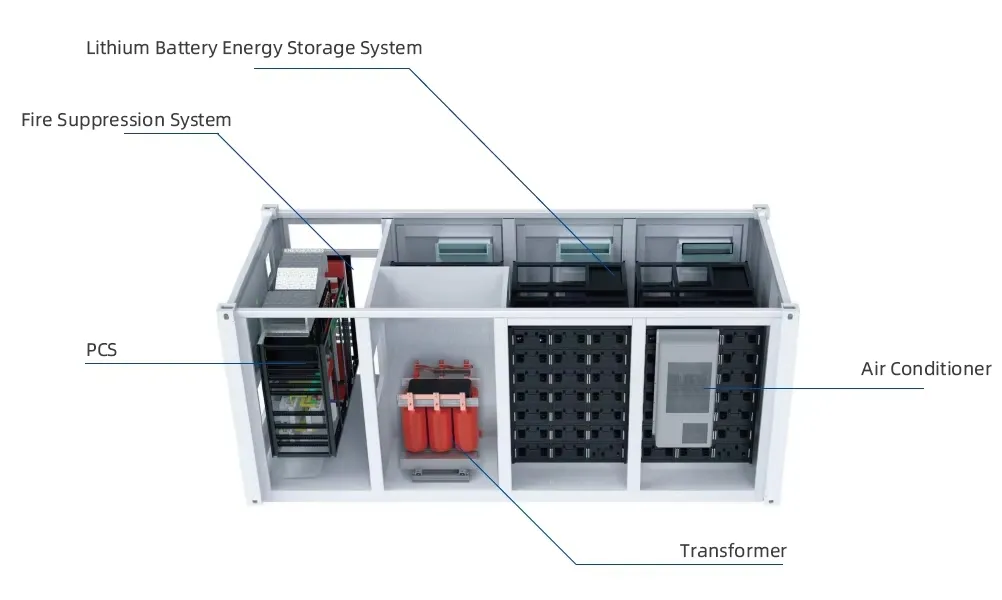

Energy Storage System Interior

System Configuration

20FT System Configuration
Item Specification Quantity Description
PV Panel 600W 420 12 pieces/string, total 35 strings. Capacity: 252kw
PV Combiner Box Combiner Box 5 7 inputs 1 output for multiple PV strings
Inverter System PBD250 1 250kW solar charge controller
PCS250 1 250kW battery inverter
Bypass 250 1 Switch Between On-grid and Off-grid
Battery System Combiner Box 1 1500V-1500A for multiple racks
51.2V 280Ah Module 60 LFP Module, Capacity 14.3kWh per unit
HV Controller 4 1500V 300A High Voltage Control
Container 20ft Unit 1 IP54, Fire-resistance, HVAC included
40FT System Configuration
Item Specification Quantity Description
PV Panel 600W 840 12 pieces/string, total 70 strings. Capacity: 504kw
Inverter PCS500 1 500kW battery inverter with isolation transformer
Battery Module 51.2V 280Ah 150 Total System Capacity scaling
Container 40ft Unit 1 Full integrated outdoor solution

Factory & Production

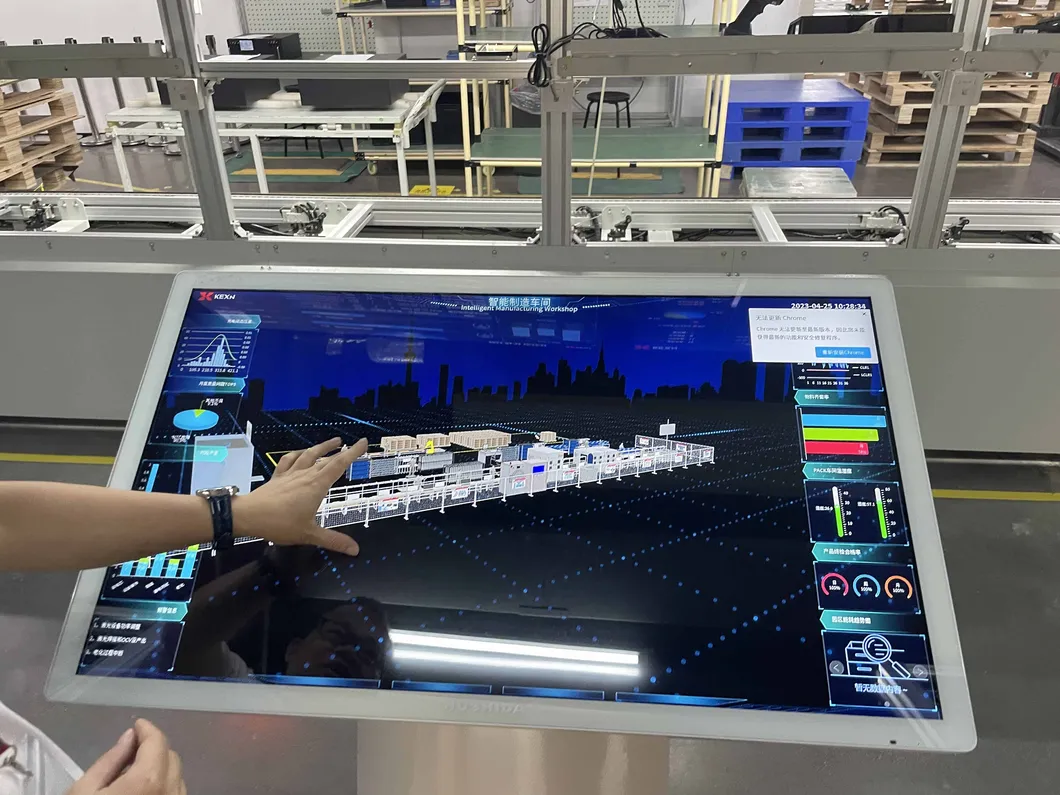

Factory Production Line 1

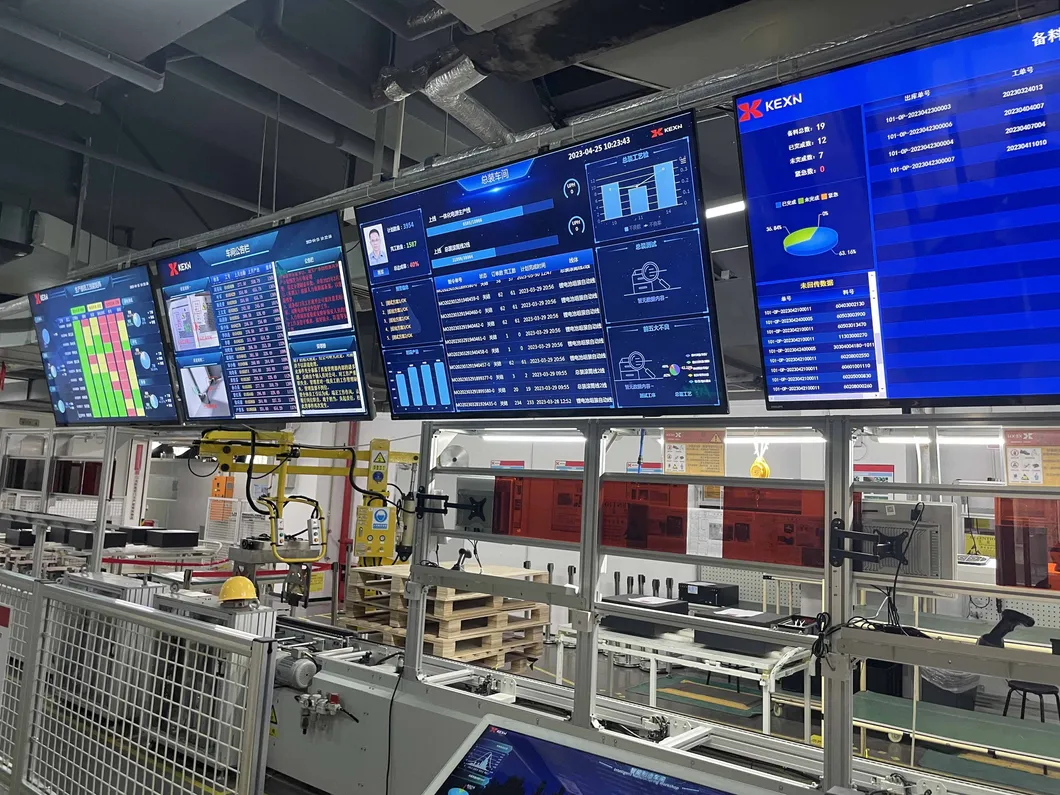

Factory Production Line 2

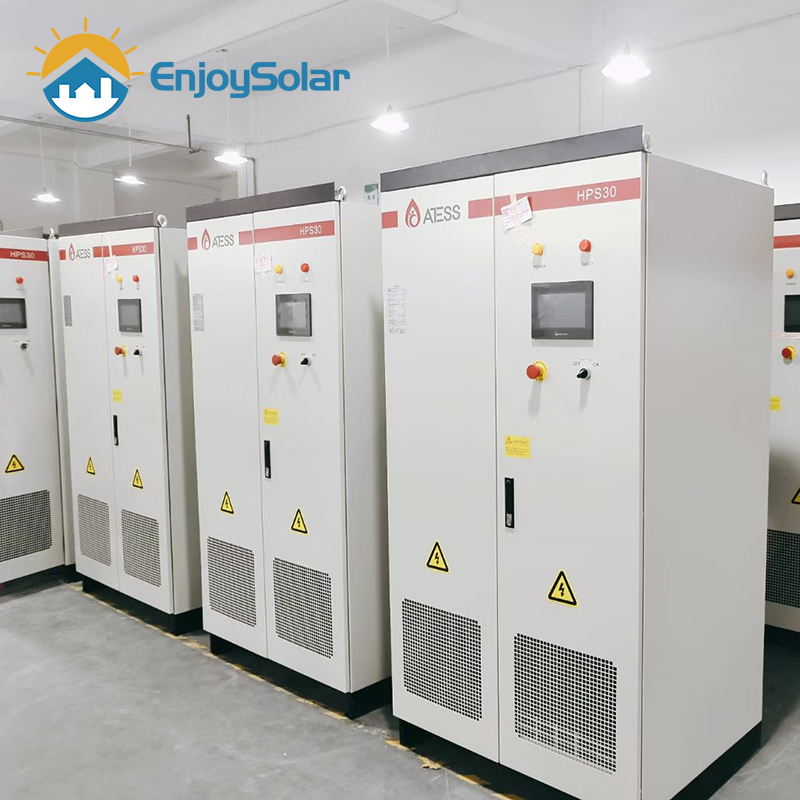

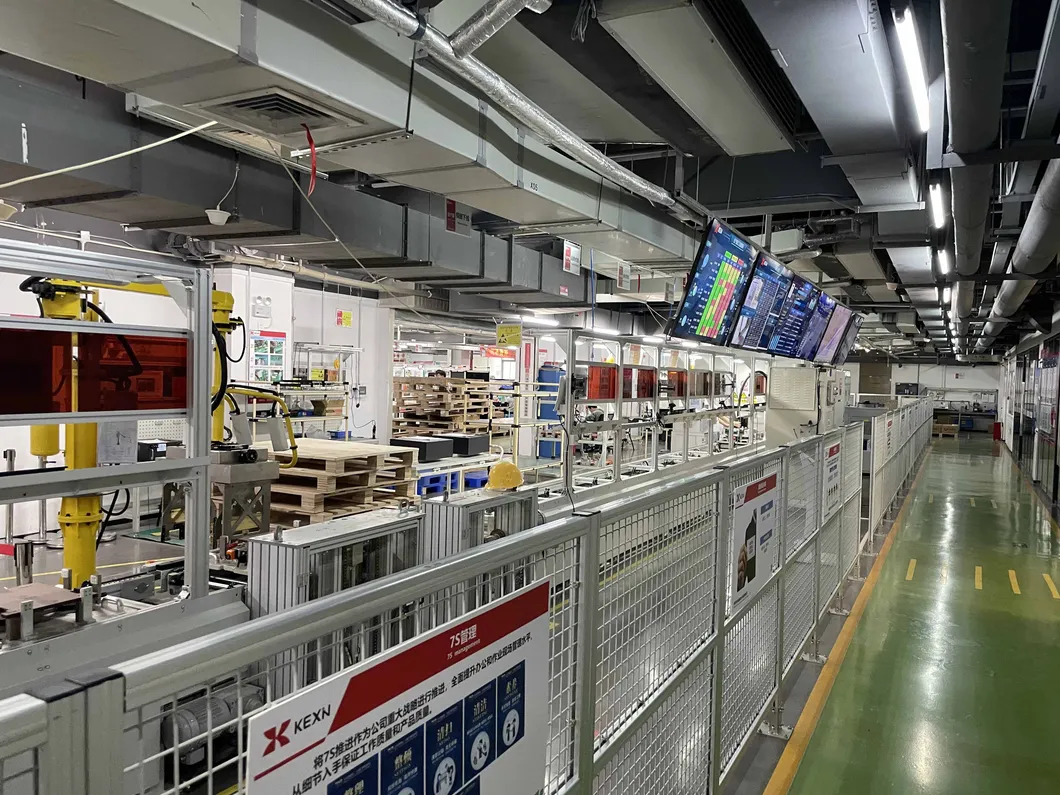

Testing Facility

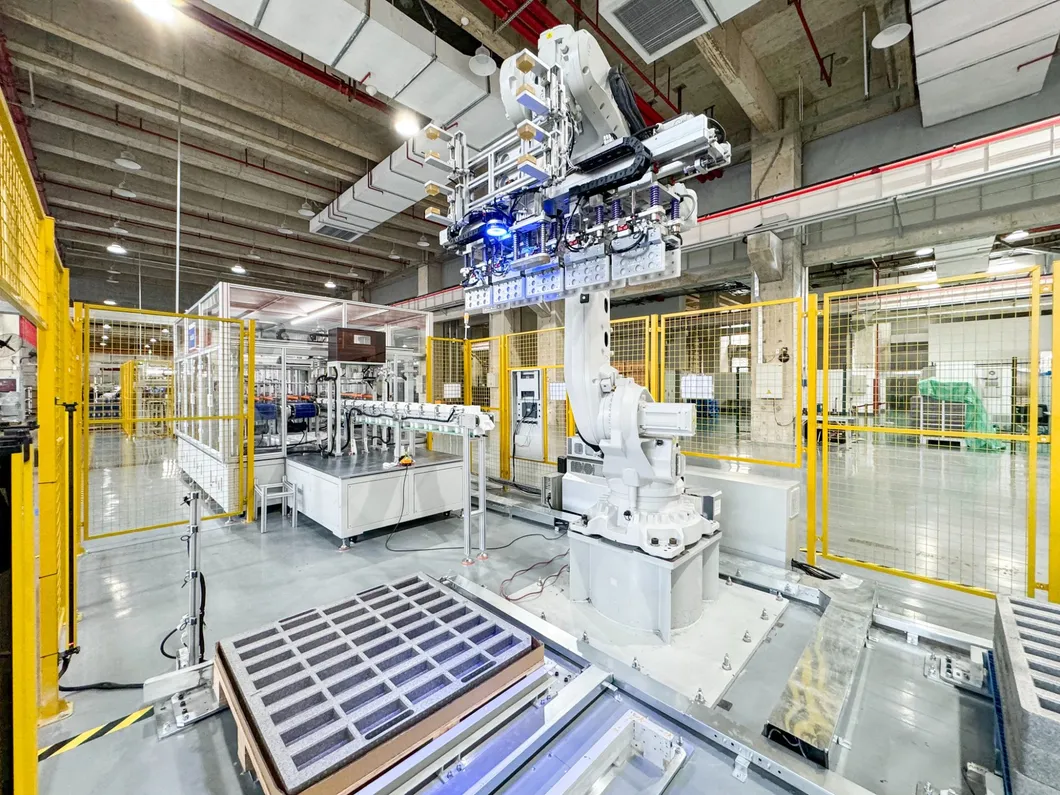

Assembly Area

Global Projects

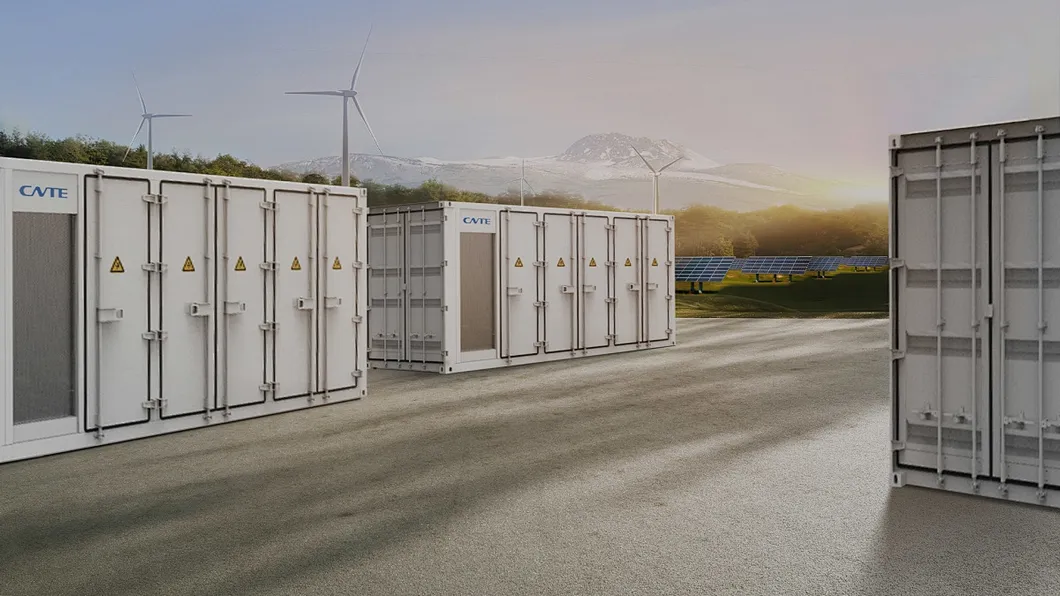

Successful Project 1

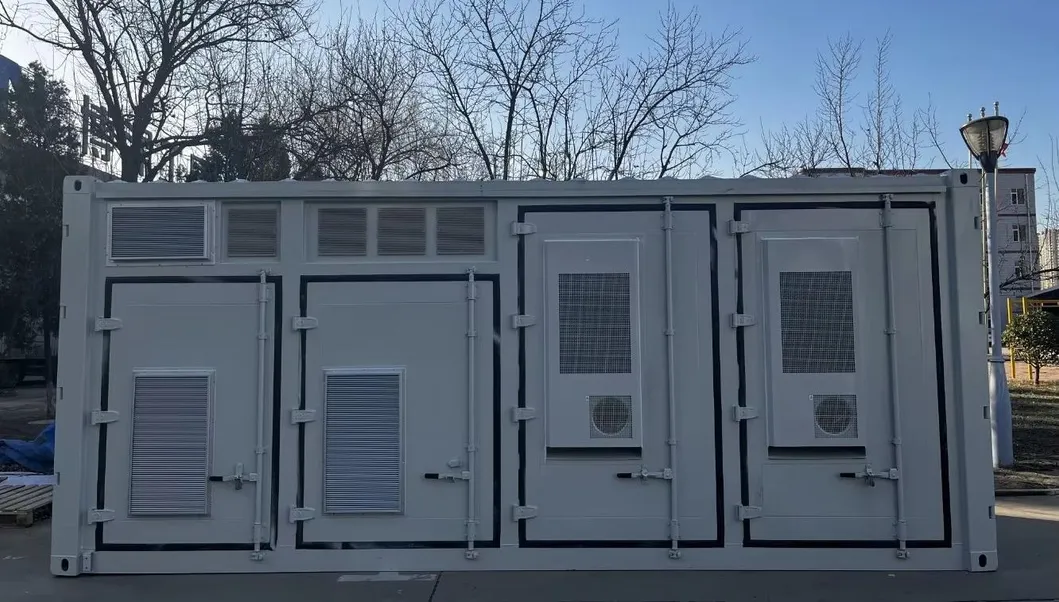

Successful Project 2

Frequently Asked Questions

What is the cycle life of this energy storage system?
The system utilizes high-quality Lithium Ion batteries with a cycle life of up to 6000 times.
What is the standard warranty period?
We provide a comprehensive 10-year warranty for the integrated energy storage system.
Does the system support off-grid operation?
Yes, the system is designed to work in On-grid, Off-grid, or Hybrid modes, with a bypass switch for seamless transitions.
What safety features are integrated into the container?
The system features a built-in fire protection system, IP54 outdoor protection rating, and 3 levels of active BMS for maximum safety.
Can the battery capacity be expanded?
Yes, the system is expandable to meet different energy requirements from 500kWh up to multi-MWH scales.
What cooling technology is used?
Depending on the configuration and requirements, we offer both Air Cooling and advanced Liquid Cooling solutions.
